FBC BIO.S2.55H - Petrol garden Shredder - Honda GX 160 engine

Questions & Answers (8)
ID: K4422

EAN: 9900000001063

MPN: 4422.1228

FBC BIO.S2.55H - Petrol garden Shredder - Honda GX 160 engine
+100 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Motor type
4-stroke
Motor brand
Honda
Motor Model
GX 160
Cubic capacity
160 cm³
Nominal power
6.0 HP
Cutting Rotor Type
Knives + hammers
No. of blades
2
No. of hammers
6
Max. Branch Diameter
50 mm
Wood Chip size
2 - 3 cm
N° of hoppers
1
Transmission type
Belt
Manufacturing country
Italy
Product Features
Model:
BIO.S2.55H
Operating mode:
Spark ignition
Hydraulic self-dragging:
No
Discharge chute:
Medium
N° of hoppers :
1
Hopper opening size (height):
33 cm
Hopper opening size (width):
37 cm
Hopper opening size:
(Ø) 19cm
Chip size reducing sieve:
Yes
Electric start:
No
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GX 160
Motor type:
4-stroke
Cubic capacity:
160 cm³
No. of cylinders:
1
Nominal power:
6.0 HP
Rated power (HP):
4.8 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.1 L
Manufacturing country:
Japan
Transmission data
Transmission type:
Belt
Cutting data
Body material:
Enamelled steel
Max. Branch Diameter:
50 mm
Cutting Rotor Type:
Knives + hammers
No. of blades:
2
No. of hammers:
6
Blade movement:
Rotating
Counter blades:
1
Wood Chip size:
2 - 3 cm
Equipment
Collection bag:
Standard equipment
Recoil start system (with rope):
Yes
Rear wheels size:
2.50 - 4"
Free gifts/extra features
Engine oil bottle for free:
2
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
83 x 134 x 106 cm
Net weight:
65 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
65 x 165 x 120 cm
Gross weight (packaging included) :
75 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
15 minutes
Prompt Delivery
7 items in stock
Free Shipping
Estimated delivery: 03/05/2024 - 07/05/2024
€ 1.697,64
VAT Included
You're viewing:
Customers also viewed:
Description

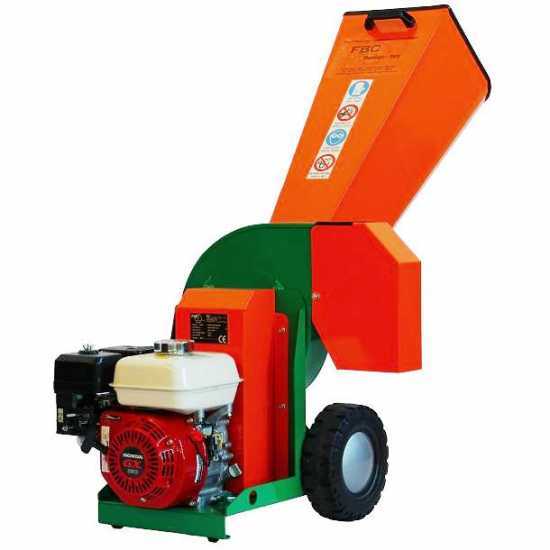

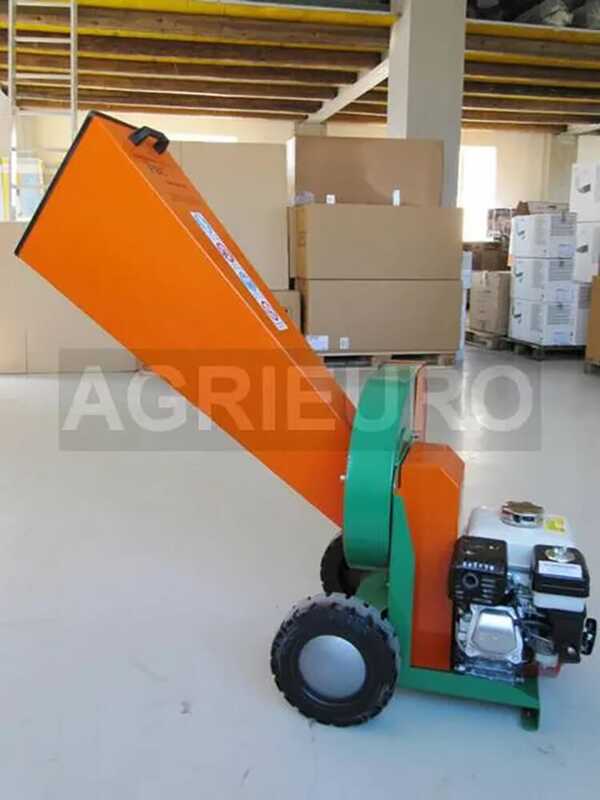

FBC BIO S2 55H Petrol Garden Shredder

FBC BIO S2 55H professional petrol garden shredder.

The wood chipper / shredder allows reducing the weeds and twigs to an easy to handle and suitable size for composting. The crushing of the material reduces the time required for its decomposition.

The machine is able to process even very bulky branches and leaves, without having to pre-shred them. Thus, it also features a large capacity that allows entering large volumes of material at once.

Cutting diameter: 50 mm

This electric shredder , MADE IN ITALY, is built following the logic of the large wood chipper, thus obtaining the best results in terms of cut, speed and reliability; it complies with CE regulations on safety at work.

The machine conforms to the latest and strictest EU regulations.


Shredders intended use:

- The shredder must grind only green branches and not dried ones (which would limit its shredding capacity and lead to rapid deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwoods and can reduce the cutting capacity of the wood chipper)

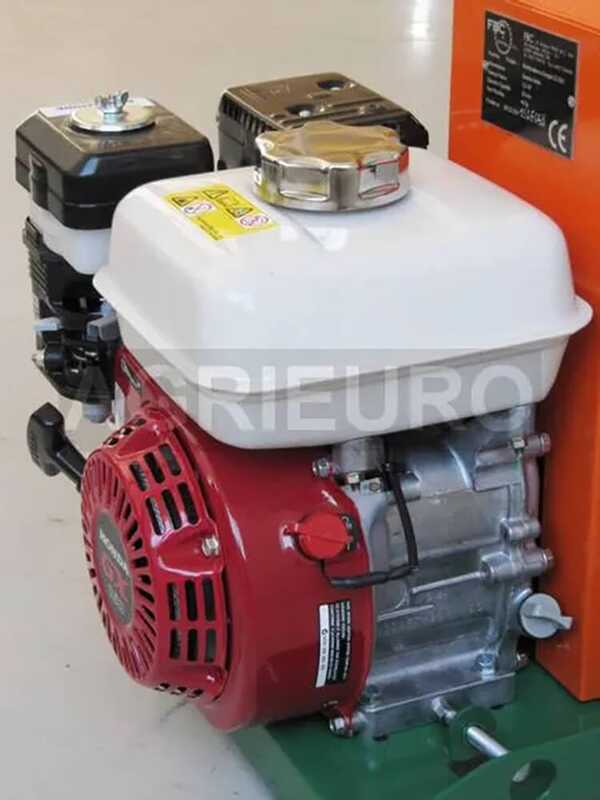

Honda GX 160 Engine

Honda series GX 160 engine: Super-professional and SUPER-POWERFUL series, belonging to the latest overhead valve OHV technology.

Features:

  • Engine type: Single-cylinder 4-stroke - OHV
  • Cylinder type: Aluminium
  • Displacement: 163 cm³
  • Compression ratio: 9.0: 1
  • Max. rpm 3600 rpm
  • Torque value: 10.3 Nm / 1.05 kgfm / 2500 rpm
  • Fuel tank capacity: 3.1 L
  • Consumption: 1.4 L/h 3000 rpm
  • Dry weight: 15.1 kg


The Honda “GX” series is highly professional and was developed for heavy-duty jobs in building and agricultural field for generators, welders etc. It’s characterized by great durability and reliability

WARNING

The engine is PROVIDED WITHOUT OIL.
Read the instructions manual carefully before starting it.

Rated Power: 5.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Real power: 4.8 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the speed of rotation provided.

Main features

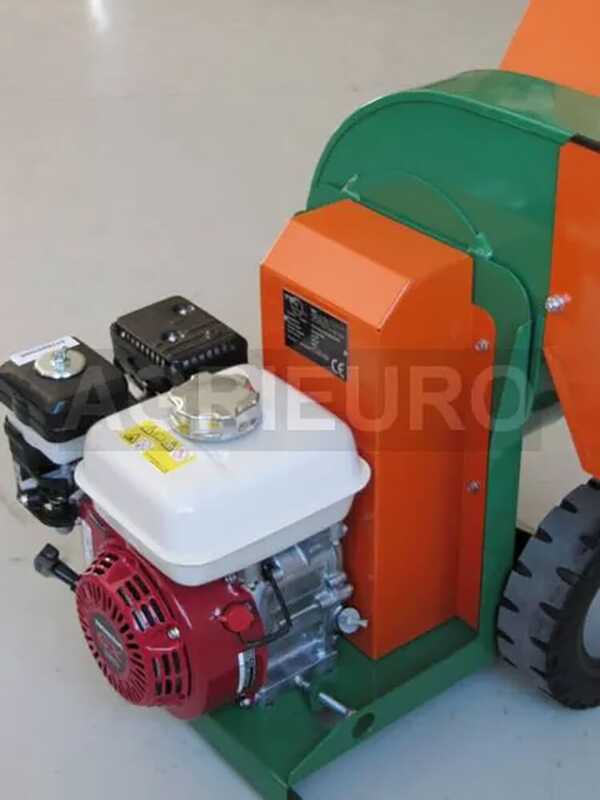

Unique in its class with INTERMEDIATE BELT TRANSMISSION

This gives the machine an uncommon sturdiness, protecting both the motor and the entire grinding mechanism from any kind of internal shock or kickback. Higher durability over time compared to the standard system of all the manufacturers of petrol-powered machineries, the transmission is directly connected to the shredding cutting system.

*example of a shredder without belt drive, with motor directly connected to the shredding rotor

Optimal cutting mechanism, highly effective and performing, which distinguishes this product from all competitors. It consists of:

* no. 2 + 1 large, thick cutting blades (2 blades + counter-blade), mounted on a rotating steel disc at the end of the hopper. They carry out pre-processing, breaking the material in the hopper into rough fragments
* no. 6 high-speed rotating hammers in hardened steel (they are located to the rear of the above-mentioned blades, so they are not visible on the picture). They perform a centrifugal operation, reducing the material into small fragments
It features the largest cutting diameter of all hopper-type shredders: 50 mm MAX (the top-quality shredders on the market allow cutting up to 35-40 mm)
Very large steel Maxi hopper, capable of receiving even the bulkiest branches and fronds, without pre-processing. Thus, it also features a large capacity that allows entering large volumes of material at once.

The largest and most capacious hopper among shredders of its category

Hopper size: approx. 37 x 33 cm
Equipped with the largest and sturdiest shredding chamber in its class. It is very large and rounded shaped. It guarantees excellent productivity, as well as the durability in time.
This shredder model is almost the only machinery with the discharge opening provided with grid, which ensures that the fragments are only ejected when perfectly shredded by the cutting hammers.

The machine structure is 100% made of steel. No part of the machine is made of plastic. Output discharge chute with adjustable inclination. Large and sturdy rubber wheels

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines
