Eurosystems TM70 EVO - Self-propelled multi tool leaf vacuum - B&S 850

The powerful Eurosystem TM70 machine with B&S engine is equipped with the leaf vacuum - blower accessory included in the product description.

MULTI TOOL: it can be provided with different accessories thanks to the quick-release system and reversible handlebar.

Below are shown only some of the accessories attachable to this machine, which can be purchased separately, all available in prompt delivery.

WARNING: they are not included in the price, they are shown here for illustrative purposes only. The only accessory included in this product description is the leaf vacuum / blower accessory, here shown and described.

These machines, even if hand-pushed, are suitable for flat terrain or with very limited slopes. They are therefore not suitable for working on hard slopes.

TM70 Multi tool - WARNING, accessories NOT INCLUDED in the product description 55 cm TILLER: makes this machine a functional petrol engine two wheel tractor

-- not included --

63 cm FLAIL MOWER BLADE DECK: this accessory allows using the machine as a powerful petrol rough-cut mower (to chop the grass very finely).

-- not included --

BRUSH AND COLLECTOR: this attachment allows using this machine as a handy self-propelled power sweeper

-- not included --

MOWING BLADE

-- not included --

FRONT BLADE: suitable for small amounts of snow, sand, dirt and so on.

-- not included --

PAIR OF IRON WHEELS: to work on soft ground or on slopes

-- not included --

ENGINE BALLAST KIT: allows you to work on slopes up to 30-35% (moving sideways respect to the slope) while maintaining excellent traction and running stability but above all without engine seizure. In fact, thanks to the ballast rotation system, the engine would still work in a horizontal position, guaranteeing the same efficient lubrication. This accessory can only be used together with the mower and cutter bar accessory

-- not included --

FIXED-WING RIDGER

-- not included --

ROTATING SICKLE: with a diameter of Ø64 cm, it cuts with four floating blades placed at 90 °

-- not included --

WHEELBARROW: with 85 L galvanised tank and pivoting front wheels

-- not included --

SPRING AERATOR: perfect for aerating your garden without damaging the turf

-- not included --

POWERFUL Briggs & Stratton petrol engine OHV series

This is one of the most famous engines around the world, both among riding-on mowers and the greenery and agricultural field in general. This is an engine of the latest generation.

The Briggs & Stratton engines are MADE IN USA

WARNING: today many riding-on mowers on the market are equipped with engines without brand (or with an unknown brand) Made in CHINA

Recoil start system Transmission: 5-speed (3 + 2), all of which can be used with the flail mower deck accessory

3 forward gears: 1MA = 1.08 km / h 2MA = 2.51 km / h 3MA = 3.47 km / h

2 reverse gears: 1WD = 1.07km / h 2WD = 2.07km / h

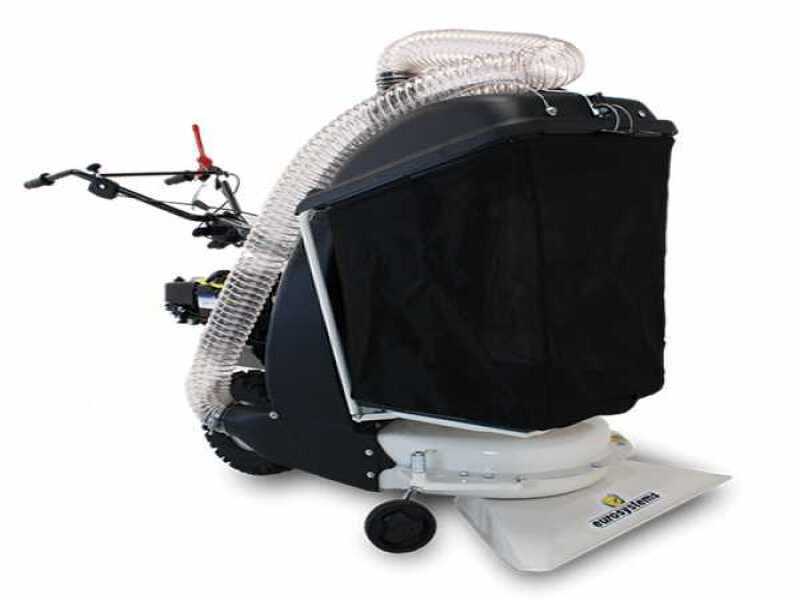

Leaf vacuum - blower

Suitable for vacuuming leaves and more on very large surfaces, ensuring great performance in a short time.

Suitable for vacuuming leaves, grass, twigs, waste and much more ...

Wheeled leaf vacuums are much more comfortable than traditional backpack blowers for many reasons:

- They clean thoroughly

- Direct vacuuming (with the backed ones you must first blow)

- They operate with less time and above all with less effort

- Capacity of the collection bag greater than about 5 times

Large 78 cm width vacuuming surface

Adjustable cutting height from 20 mm to 64 mm

The internal suction system consists of a steel turbine that creates the suction flow.

Extra-large 185 L collection bag (that avoids continuously sto working for emptying the bag).

Handle for opening the collection bag

Blower tube, ideal for particularly large surfaces

Excellent for preliminary piling leaves in heaps or more restricted areas.

Once the leaves have been piled, you can easily switch to the suction function using the proper lever placed at the bottom of the machine.

Blow / suction selection lever

Front pivoting wheels

Heavy-duty large-sized pneumatic sculpted drive wheels 15 "x6.00-6

Equipped with locking / unlocking system (when opening the fixing support the wheels shift in neutral position)

Central transmission with aluminum casing and internal steel gears in oil bath Very sturdy and reliable.

Focus on the steering handles (handlebars) where all the main controls are placed.

Red lever: Sickle bar engagement/disengagement.

Silver lever: Engage / Disengage motion forward or reverse (i.e. whatever gear has been set)

Throttle lever

Focus on the handlebar height adjustment.

Laterally adjustable and reversible steering handles

Focus on the system for fixing and rotating the frame of the handlebars using the proper lever.

Assembly time: 30 minutes

The wheeled leaf vacuum ensures great performance as long as it is properly used, in residential areas and in the following working conditions:

It must be considered:

• Surfaces suitable for leaf vacuum use (well-kept lawn, asphalt, concrete or paved surfaces and surfaces with non-dusty debris)
• Surfaces NOT suitable for leaf vacuum use (rough terrain, unkempt grass, wet surfaces, wooded areas)

First of all, the surfaces must be well leveled and kept:

• Gardens with mown and well-kept lawn
• Asphalted or concrete surfaces used for parking, courtyard, etc ...
• Sidewalks as long as they are free of disconnections, barriers and steps
• Surfaces and squares with debris/stones only if not dusty

Surfaces not suitable for using a leaf vacuum:

• Agricultural soils
• Wild land with wild and untended grasses
• Thickets or other areas with a dense layer of settled undergrowth

When using a leaf vacuum cleaner:

• On recently fallen dry leaves (not stuck to the ground because of moisture and decomposition cycle due to long standing)
• No damp leaves or leaves that have settled on the ground for a long time
• No steep areas
• No piles of leaves, no undergrowth
• No pine needles or other needle-like plants

SPEED:

• In case of large quantity of leaves, use the slowest forward speed
