Name: Eurosystems P70 EVO - Petrol Leaf Vacuum - Rato RV200
Brand: Eurosystems
SKU: K610159
Price: 2106.14 EUR
Availability: OutOfStock

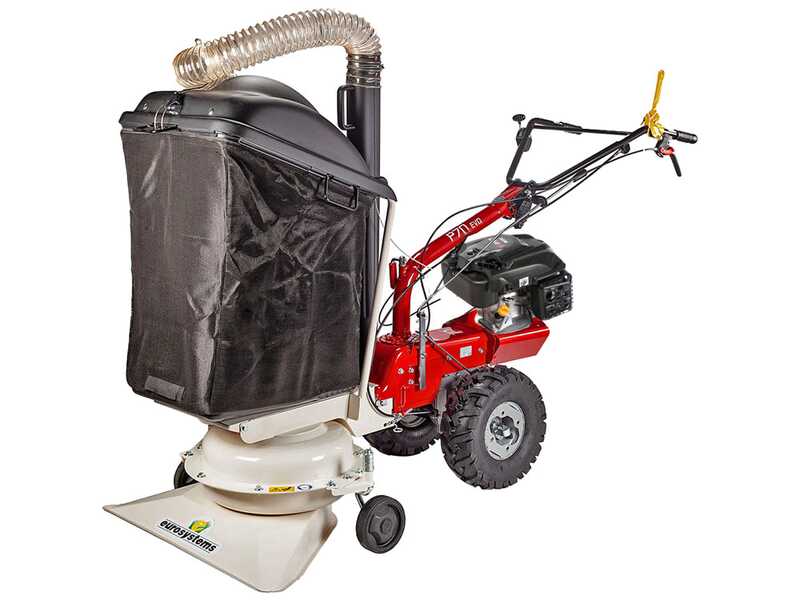

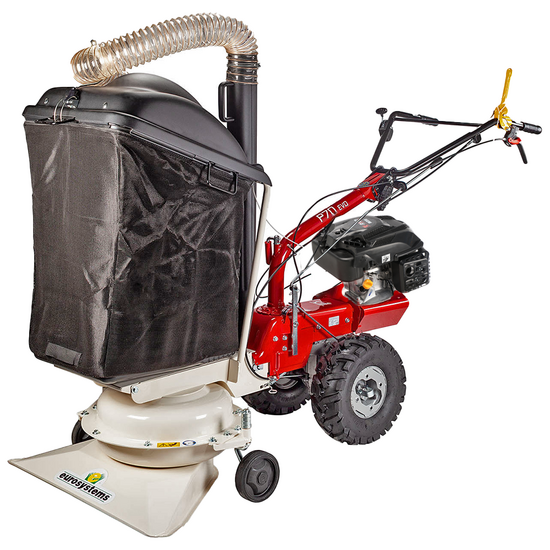

Petrol Leaf Vacuum and Blower Eurosystems P70 EVO Rato RV200

The Eurosystems P70 EVO leaf vacuum is a self-propelled dual-function machine designed for efficient management of leaves, debris, and plant residues on medium to large surfaces. Its sheet metal structure ensures solidity and durability over time. The operation is carried out through a reversible suction fan, combined with a wide suction nozzle that allows the collection of even bulky materials. The system includes the use of an independent blower tube, 250 cm long with a diameter of 10 cm, which allows conversion into an Eurosystems P70 EVO blower, useful for reaching difficult corners or under hedges and benches.

The machine is equipped with a 185-litre nylon collection bag, featuring a dust cover and quick-release system. This allows for quick and safe emptying of the contents, improving productivity during more intense work phases. The rubber swivel wheels are equipped with a height adjustment system, variable from 2 to 6.4 cm, adapting to different types of terrain and amounts of material to be removed.

The operating width is 78 cm, allowing for rapid coverage of large areas such as driveways, courtyards, communal areas, or public parks. The engine operates at 2600 rpm, ensuring a maximum air flow rate of 4.4 m³/min both in suction and blowing phases. This guarantees consistent performance even with wet or light materials.

Distinctive features:

Dual vacuum/blower function: the independent tube and reversible fan allow for quick mode change.
Large 185-litre collection bag: made of nylon, includes dust cover and quick release.
High-performance fan: ensures a constant flow rate up to 4.4 m³/min.
Height-adjustable wheels: from 2 to 6.4 cm to suit any type of terrain.
Reinforced sheet metal frame: solid construction designed for continuous use.

Eurosystems P70 EVO - Petrol Leaf Vacuum - Rato RV200

Proper use of the machine

The wheeled leaf vacuum is a high-performance machine, provided it is used correctly, on residential surfaces, and operates under the correct conditions:

Consider the following:

suitable surfaces for leaf vacuum use (well-maintained lawns, asphalted, cemented, or paved surfaces, non-dusty gravel surfaces)
surfaces NOT suitable for leaf vacuum use (uneven terrain, unkempt grass, wet surfaces, wooded areas)

Firstly, the surfaces of use must be well-levelled and maintained:

Gardens with mowed and maintained lawns
Asphalted or cemented surfaces used for parking, courtyards, etc...
Sidewalks provided they are free of irregularities, barriers, and steps
Surfaces and yards with gravel/stones only if not dusty

Surfaces where use is not allowed:

Agricultural land
Wild areas with spontaneous and unkempt grasses
Groves or other surfaces with a thick layer of settled undergrowth

Conditions of use:

Yes to recently fallen dry leaves (not attached to the ground due to moisture and decomposition cycle given the long stay)
No to wet or long-settled leaves on the ground
No to steep areas
No to piles of leaves, no undergrowth
No to pine needles or other needle-like plants

SPEED:

In case of high presence of leaves, use the lowest forward speed

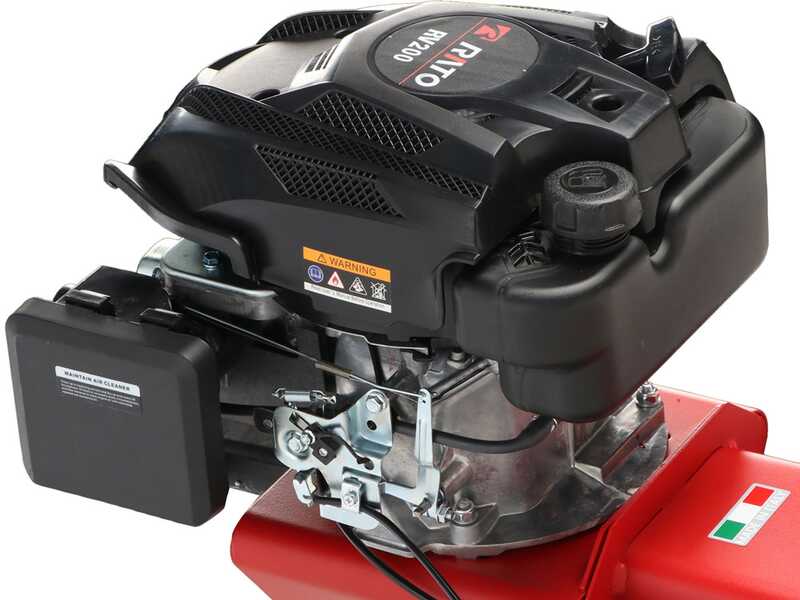

Rato RV200 Engine

The Eurosystem P70 EVO is equipped with a powerful Rato RV200 engine.

Features:

Engine type: Single-cylinder 4-stroke;
Cylinder type: Aluminium;
Displacement: 200cc;
Starting: Manual, recoil;
Fuel: Petrol;

WARNING!

The engine is supplied without oil. Bring the oil to level before the first start.

Nominal Power: 6.5 HP

Effective Power: 4.08 HP

WARNING!

*Also known as "Commercial" Power, we mean the classic power definition standard that was also officially used until a few years ago by all the most well-known engine manufacturers. This data is still the most widespread and advertised in the main commercial sales channels.

Accessories suitable for P70 sold separately

Sweeper
for cleaning:
- courtyards
- green areas of all kinds
- roads
- yards

Snow blade
for clearing fallen snow in yards, small driveways, courtyards...

Cultivator
for treating small plots of soft and non-stony soil

Sickle bar
with double-blade movement for cleaning plots of land from wild or poorly maintained grass

Leaf vacuum
for quick collection of fallen dry leaves in yards, driveways,
courtyards...

Snow blower
to clear roads, driveways, yards of good amounts of fallen snow
by depositing it to the sides thanks to the cannon it is equipped with.

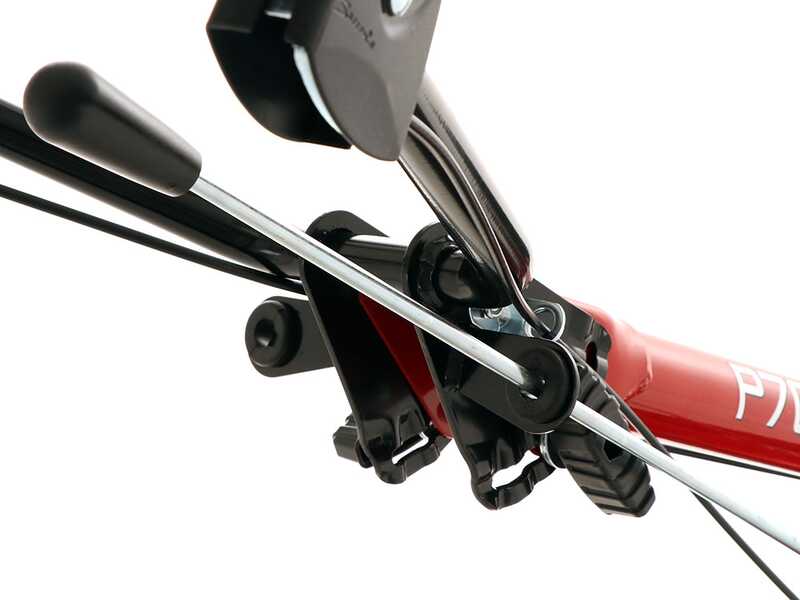

5-Speed Gearbox (3+2) and Oil-Bath Gear Transmission

The leaf vacuum is driven by a 5-speed gearbox, 3 forward gears and 2 reverse gears.

They are selectable via the appropriate lever located under the handlebars.

Central transmission with aluminium casing and internal steel gears in oil bath. Extremely robust and reliable.

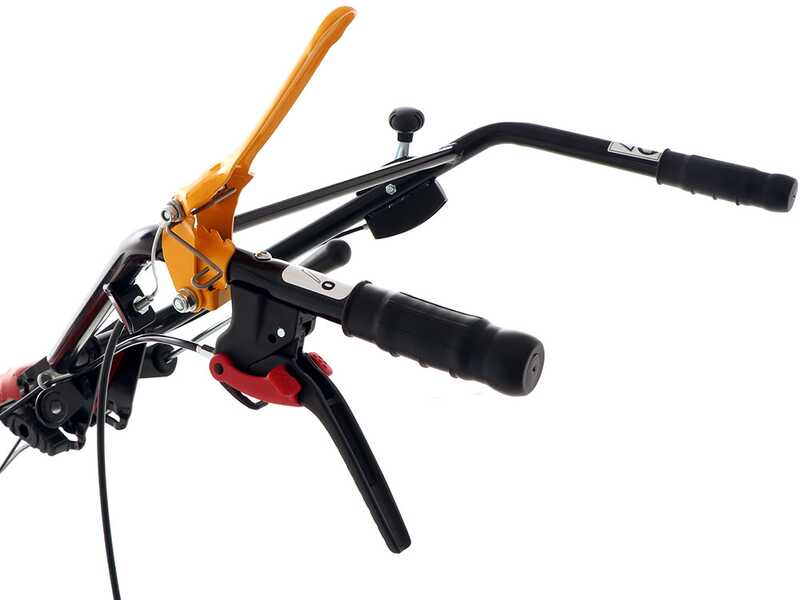

Handlebars and controls

Detail of the handlebars, where all the main functions of the machine are gathered.

Lower lever with black knob: gear shift lever.

Orange lever: Engage/Disengage cutter

Black lever: Engage/Disengage forward or reverse motion (i.e. whatever gear has been set).

Detail of the height adjustment of the handlebar.

Reversible or laterally adjustable guide handlebars.

Detail of the fixing and rotation system of the handlebar trunk through the appropriate lever.

Throttle knob

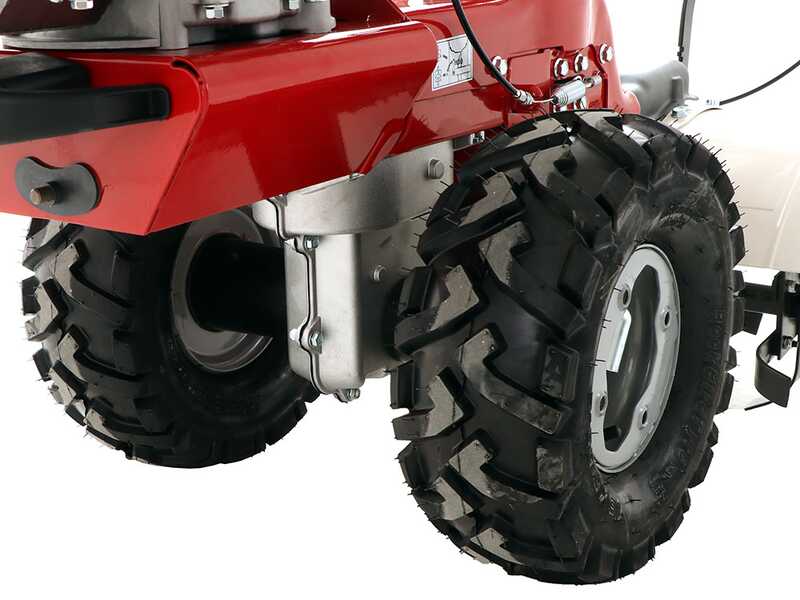

Sculpted Drive Wheels

Professional large pneumatic sculpted drive wheels 15"x6.00-6

Equipped with lock/unlock system that can be activated and deactivated by opening the fixing support. In this way, the wheels go into neutral or regain traction.
