HOME Workshop and Do-It-Yourself Electric Air Compressors Coaxial Air Compressors for hobby use (25 - 50 L) 50 L Air Compressors 50 L Oil Lubricated Air Compressors Einhell TE-AC 270/50/10

Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air

Hobby
Questions & Answers (6)
ID: K501112

EAN: 4006825594447

MPN: 40.104.40

Einhell
Catalogue Einhell
8,1/10
After-sales assistance & Spare parts
35Pictures
1Videos
21Customer pics
Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Special offer
+800 sold
FREE
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
50 L
Max. operating pressure
10 bar
Air intake flow
270 L/min
Cylinder head rpm
2850 RPM
Lubrication
Oil
Pump type
Single-stage
Nominal power
2.5 HP
Operating mode
Single-phase 230 V
Product Features
Model:
TE-AC 270/50/10
Air compressor type 2:
Coaxial
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
50 L
Noise level:
94 dB(A)
Noise level:
94 LwA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
2.5 HP
Pump data
Pump brand:
Einhell
Air intake flow:
270 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
1
Cooling manifold:
No
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
2850 RPM
Equipment
No. of outlet couplings:
2
Folding/removable handle/s:
Yes
Lifting handle:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Oil bottle:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
98x40x70 cm
Net weight:
36 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
78x36x66 cm
Weight including packaging:
36 Kg
Assembly time:
5 minutes
Prompt Delivery
20 items in stock
Free Shipping
Estimated delivery: 13/05/2025 - 15/05/2025
Free returns (up to 30 days after receipt) *
Lowest price:
€ 318,32
-15 %
€ 268,06
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

You're viewing:
Customers also viewed:
Description

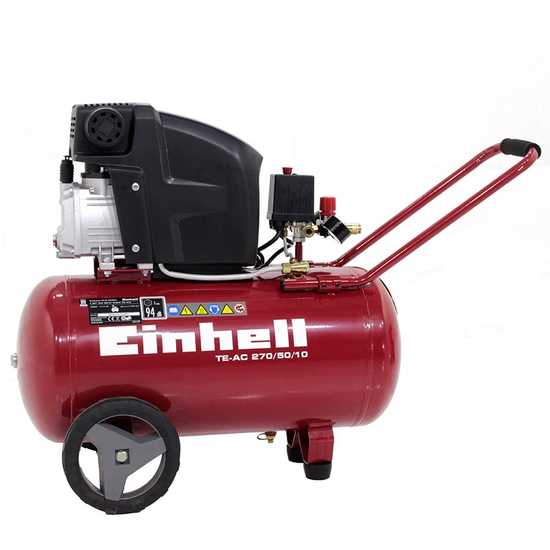

Einhell TE-AC 270/50/10 Electric Air Compressor

The Einhell TE-AC 270/50/10 air compressor is renowned as the best choice among hobbyists looking for a reliable, silent, lightweight and high-performing equipment.

Powered by a 2.5 Hp motor, this air compressor features a compressed air suction capacity of 270 L/min. It is capable of reaching a maximum pressure of 10 bar.

It comes with a large-sized compressed air storage tank of 50 L. The air compressor weighs 36 Kg and can be easily transported thanks to its wheels and the upper handle.

This model is part of the Einhell’s Expert level: it stands out for its high performance and higher quality elements. Einhell guarantees rust resistance of painted parts for up to 10 years.

Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air

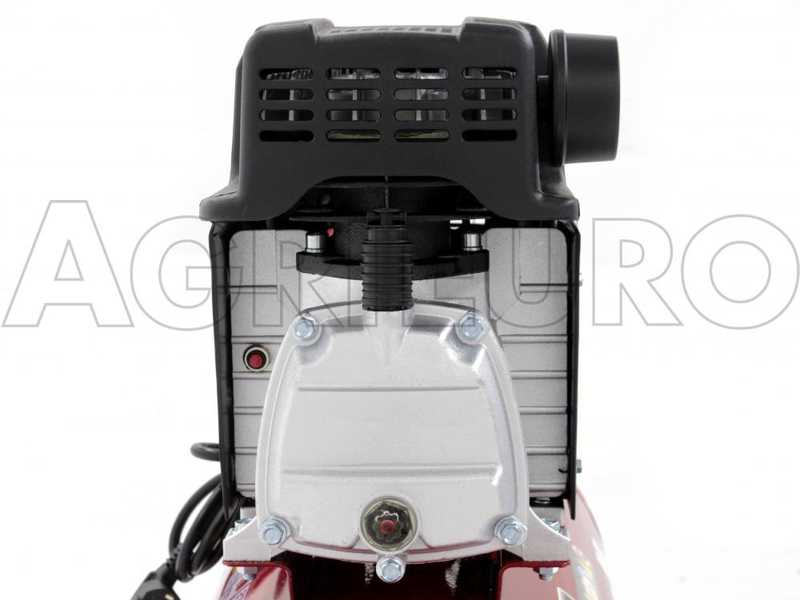

Technical features

Air intake flow: 270 L/min


Pumping unit type: coaxial

Pressure: 10 bar

Electric motor power: 2.5 Hp

Tank: 50 L

Overall dimensions:
- Width: 980 mm
- Height: 400 mm
- Depth (or thickness): 700 mm

Weight: 36 kg

Porthole for oil control

Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air

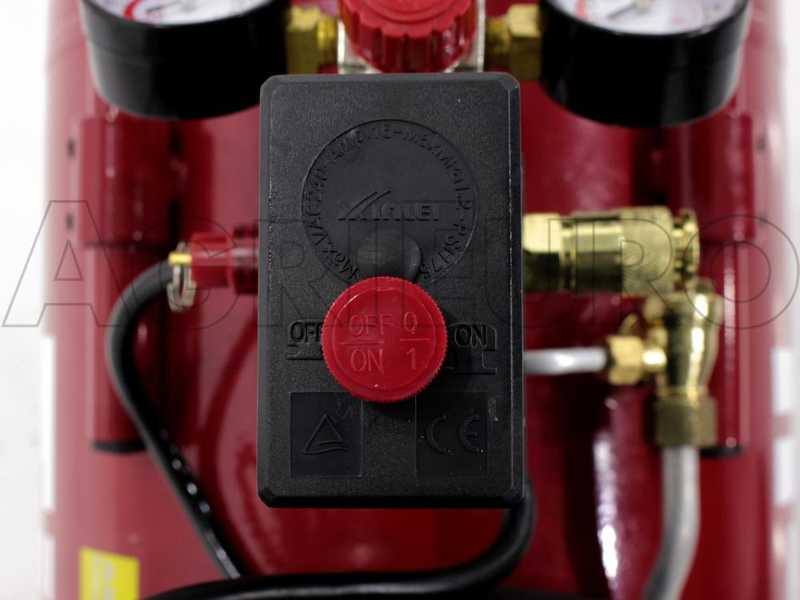

Controls

The Einhell TE-AC 270/50/10 air compressor features easy and user-friendly controls, which are divided into:

Power switch

Output air pressure gauge

Tank air pressure gauge

Air compressor female outlet fitting

Air compressor second female outlet fitting

Pressure adjusting knob

Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air

Other features

The Einhell TE-AC 270/50/10 compressor is powered by a Schuko plug

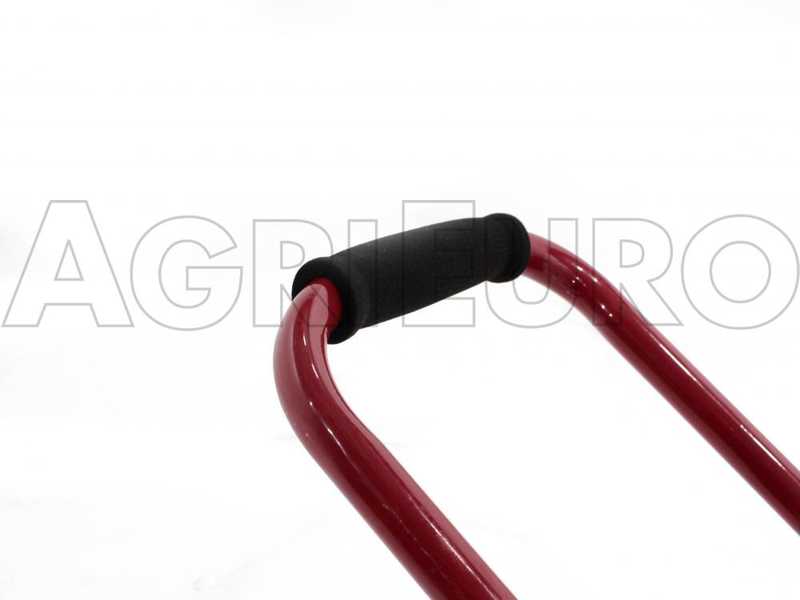

Ergonomic lifting handle

Large wheels in sturdy plastic
Anti-vibration rubber pads

Condensate drain valve

Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint

  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations
Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air

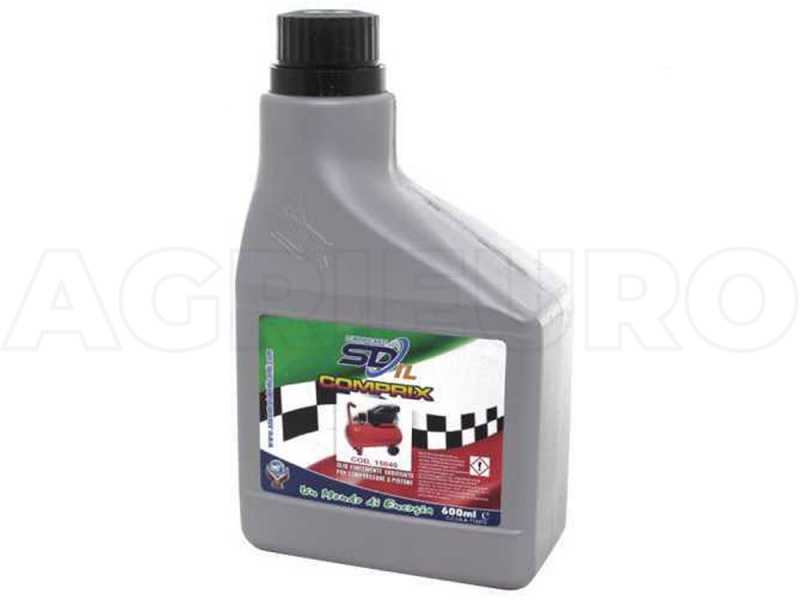

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.

Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Einhell TE-AC 270/50/10 - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
