no. 8 compressor connections

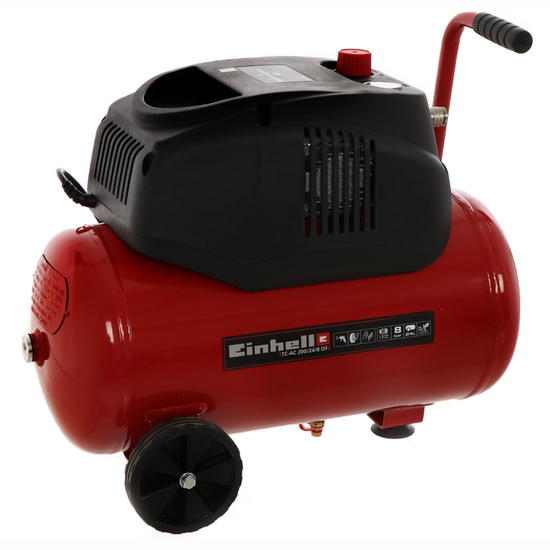

The Einhell TC-AC 200/24/8 air compressor is renowned as the best choice among the hobbyists users, who are looking for a reliable, silent, lightweight and high-performing equipment.
Powered by a 1.5 HP electric motor, this air compressor has a 180 L compressed air suction capacity. It’s capable of reaching a 8 bar Max pressure.
It has a large-sized compressed air storage tank of 24 liters. The compressor weighs 16 Kg and it can be easily transported thanks to its wheels and the upper handle.
Air intake flow: 180 L/min
Pump type: coaxial
Suction air capacity: 180 L/min
Pressure: 8 bar
Electric motor power: 1.5 HP
Tank : 24 L

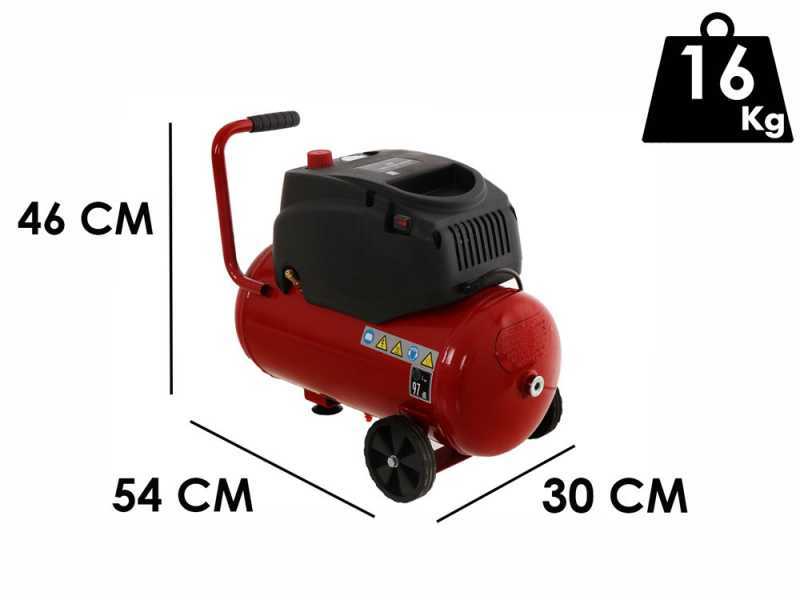

Overall dimensions:
- Width: 30 cm
- Height: 46 cm
- Length: 54 mm
Weight: 16 Kg

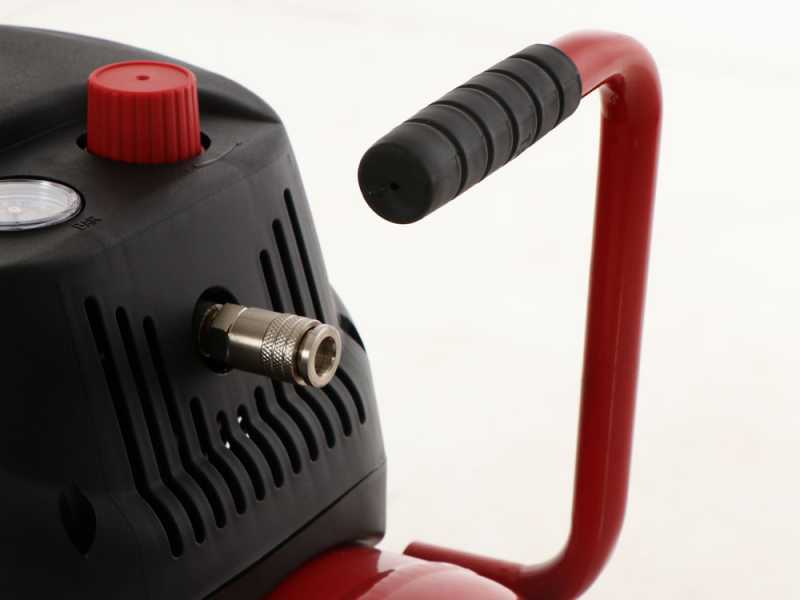

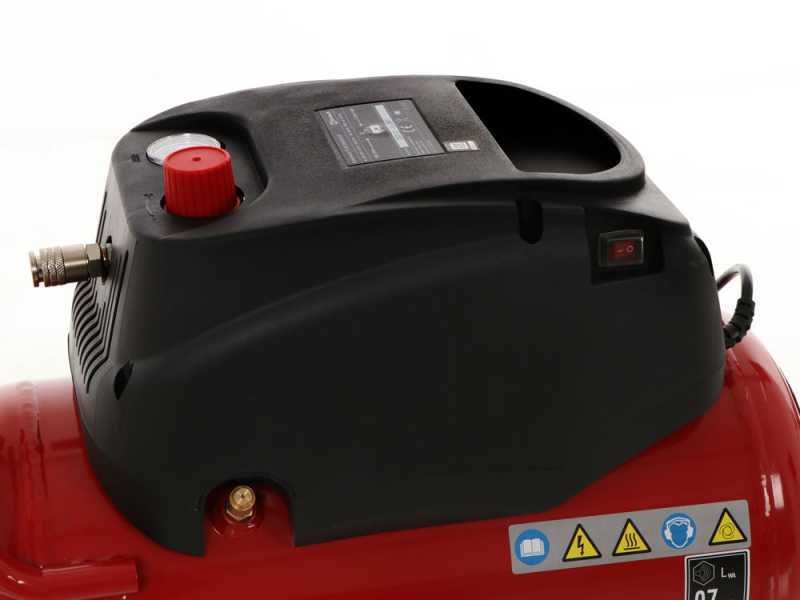

The Einhell TC-AC 200/24/8 OF air compressor features easy and user-friendly controls, which are divided into:
Power switch
Output air pressure gauge
Female outlet fitting
Shuko socket.
Ergonomic lifting handle
Large sturdy plastic wheels
Anti-vibration rubber pads
Condensate drain valve
Maintenance kit provided on standard equipment includes:
Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint
Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.
Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

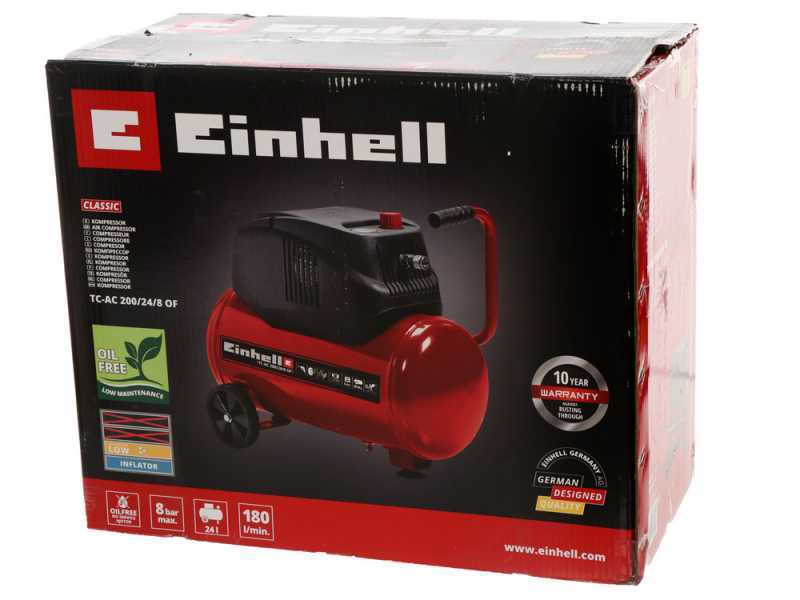

The air compressor is shipped in its original packaging
Instruction manual included.
