Einhell TC-AC 190/24/8 - Wheeled Electric Air Compressor - 2 Hp Motor - 24 L

Questions & Answers (2)
ID: K501206

EAN: 4006825610635

MPN: 40.073.25

8,1/10
After-sales assistance & Spare parts
Einhell TC-AC 190/24/8 - Wheeled Electric Air Compressor - 2 Hp Motor - 24 L
+300 sold
FREE
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
24 L
Max. operating pressure
8 bar
Air intake flow
165 L/min
Cylinder head rpm
2850 RPM
Lubrication
Oil
Pump type
Single-stage
Nominal power
2 HP
Operating mode
Single-phase 230 V
Product Features
Model:
TC-AC 190/24/8
Air compressor type 2:
Oil-lubricated coaxial
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Max. operating pressure:
8 bar
Number of tanks:
1
Air compressor tank:
24 L
Noise level:
97 dB(A)
Noise level:
97 LwA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
2 HP
Power supply:
220 V electric
Pump data
Pump brand:
Einhell
Air intake flow:
165 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
1
Cooling manifold:
No
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
2850 RPM
Equipment
No. of outlet couplings:
1
Front handle:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
56x34x59 cm
Net weight:
21 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
58x25x56 cm
Gross weight (packaging included) :
25 Kg
Assembly time:
5 minutes
Prompt Delivery
9 items in stock
Free Shipping
Estimated delivery: 18/10/2024 - 22/10/2024
€ 203,13
VAT Included

You're viewing:
Customers also viewed:
Description

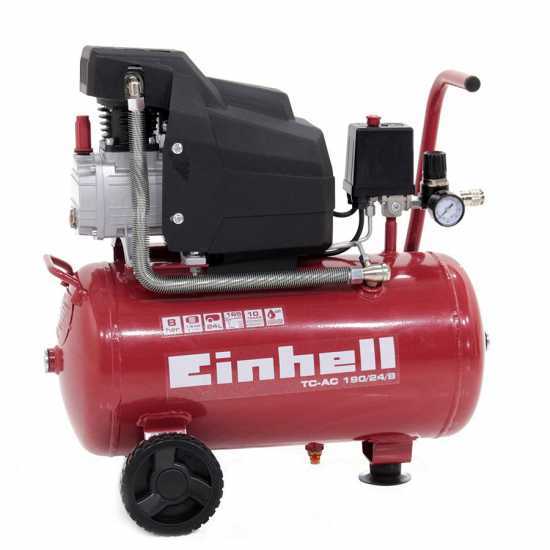

Einhell TC-AC 190/24/8 Electric Air Compressor

The Einhell TC-AC 190/24/8 air compressor is renowned as the best choice among hobbyists looking for a reliable, lightweight and high-performing equipment.

Powered by a 2 Hp electric motor, this air compressor features a compressed air suction capacity of 165 L/min. It is capable of reaching a maximum pressure of 8 bar.

It comes with a large-sized compressed air storage tank of 24 L. The air compressor weighs 21 Kg and can be easily transported thanks to its wheels and the upper handle.

Technical features

Air intake flow: 165 L/min

Pumping unit type: coaxial

Pressure: 8 bar

Electric motor power: 2 Hp

Tank: 24 L


Overall dimensions:
- Width: 560 mm
- Height: 580 mm
- Depth (or thickness): 340 mm

Weight: 21 kg

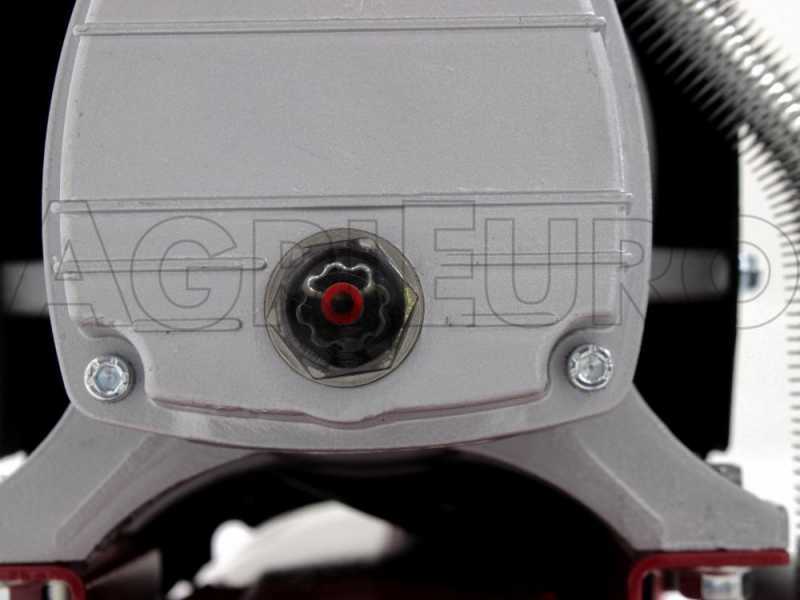

Focus on the porthole for oil control

Controls

The Einhell TC-AC 190/24/8 air compressor features easy and user-friendly controls, which are divided into:

Power switch

Output air pressure gauge

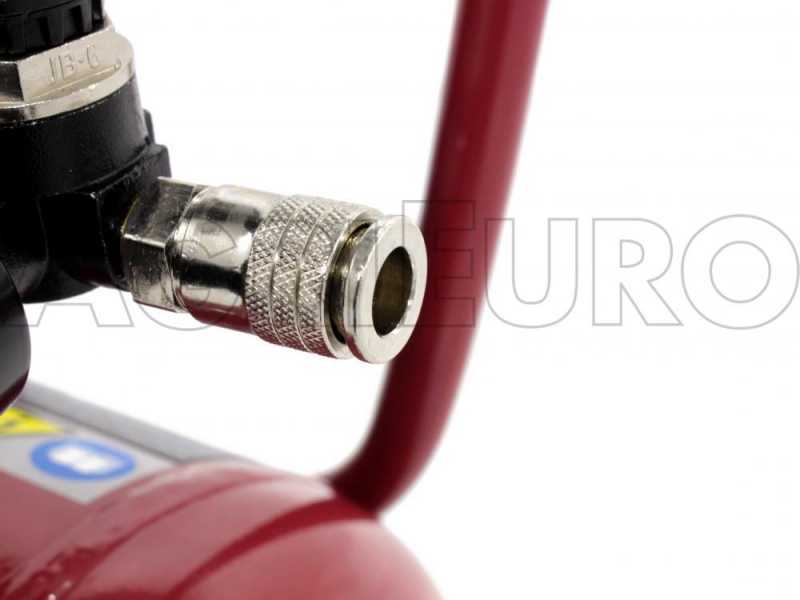

Air compressor female outlet fitting

Pressure adjusting knob

Other features

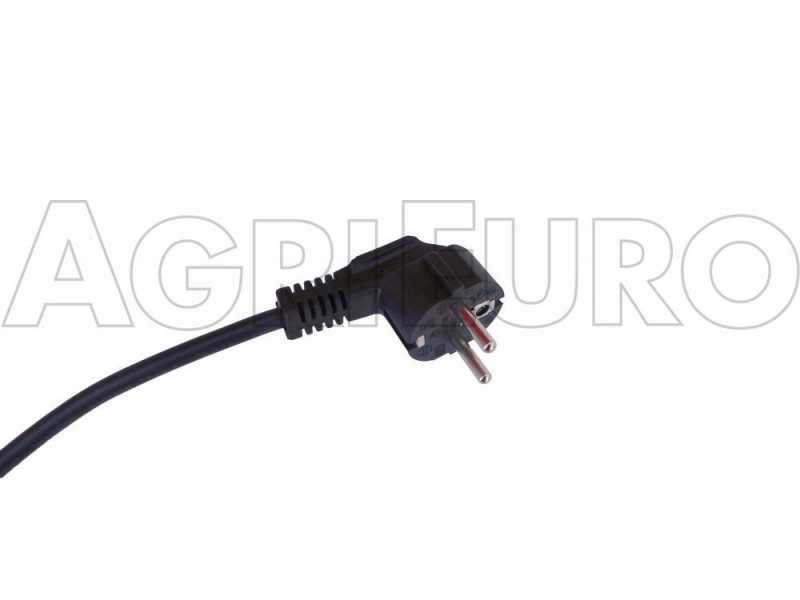

Schuko plug

Ergonomic lifting handle

Large wheels in sturdy plastic
Anti-vibration rubber pad

Condensate drain valve

Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

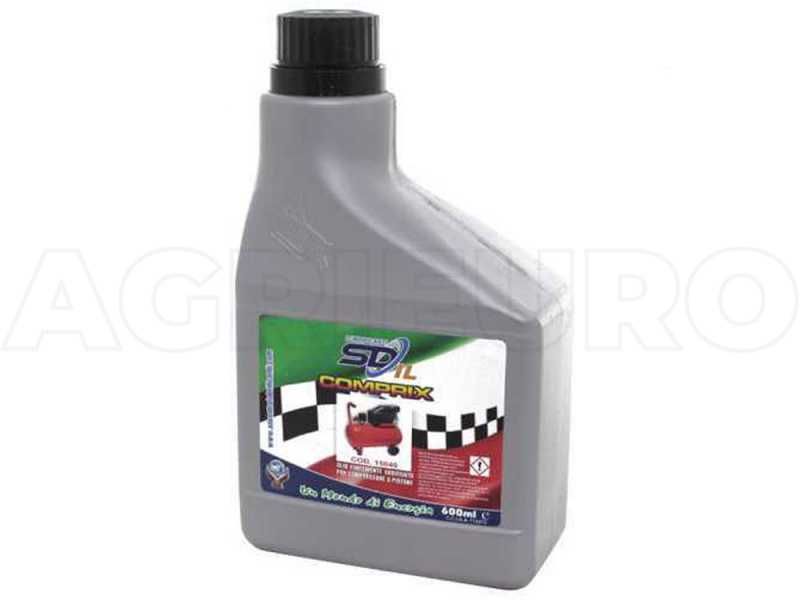

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
