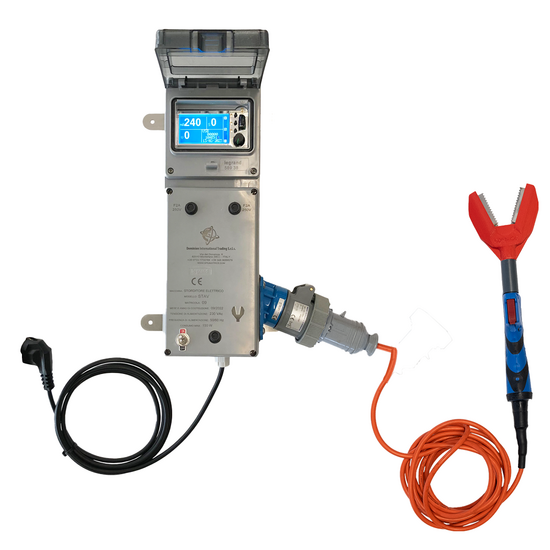

Dominion DIT STAV - Electric poultry stunner

The electric stunner is a tool used to temporarily immobilise animals, often used in contexts of animal killing or processing.

Dominion International Trading (DIT) is a company that produces a wide range of products suitable for the meat processing, including electric stunners.

The DIT STAV electric stunner is one of their flagship electrical products.

However, it is important to note that the use of electric stunners must be done responsibly and in accordance with local regulations and animal safety guidelines.

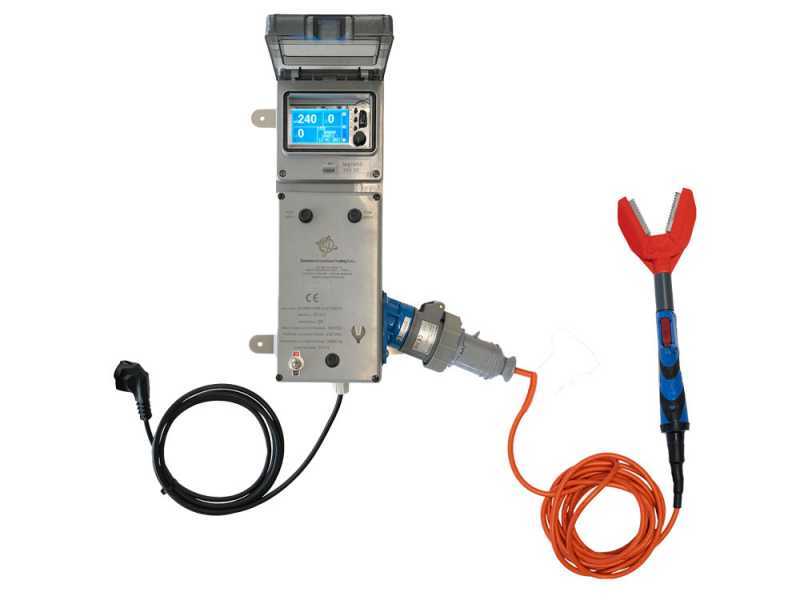

This equipment is used to supply power to the electrode clamp, with which animals can be stunned before being killed.

Thanks to the extremely precise current adjustment, it is possible to process only poultry and rabbits without any blood residues inside the animal or damage to the animal's organs and tissues.

The control panel, equipped with easy-to-use operating devices and a large graphic display, allows the operator to easily and intuitively set the machining parameters and read the information clearly at a glance.

The USB connector integrated in the electronic device automatically records the stun data (date - time - Amperes - Volts - Hertz - Seconds) into the USB stick, without the need for operator intervention.

Splashproof and dustproof switchboard, it is equipped with a transparent door and sturdy handle for access to the control panel, and a quick bayonet connector for the connection to the electrode clamp.

To perform the stunning, the animal's head must be inserted between the 2 clamps of the electrode holder, then the electrical parameters for stunning are set and the shock is given.

THE STUNNER NEEDS ELECTRODE TONGS TO FUNCTION ARE SUPPLIED.

Always check compatibility with the pliers you already have if you only buy the stunner.

The equipment complies with Directive 93/119/EC, and Regulation 1099/2009.

TECHNICAL SPECIFICATIONS AND FEATURES:

• A single board, for both the logic and the power part, easily replaceable in case of malfunction or failure;
• Easy setting of parameters, thanks to the presence of a convenient adjustment knob for the current to be applied to the animal and buttons for setting the date and time (in the case of USB data storage);
• Clear parameter reading, thanks to a large LCD graphic display that allows all stun parameters (set current/selected animal, stun voltage, test duration timer) to be read at a glance;
• Stun current set in a continuous mode from 20mA to 700mA in 10mA steps, with automatic display of the corresponding animal;
• Automatic and precise maintenance of the delivered stunning current, even when the animal's electrical parameters change, thanks to a sophisticated measuring and control system;
• Second-counting timer function with alarm after 4 seconds of current delivery;
• Equipped with a Stun count;
• Acoustic and visual signalling of stun in progress;
• Clamp ready to stun signal with flashing LED;
• The safety of the switchboard is based on its double insulation;
• Automatic data storage on USB stick, which allows stun data to be recorded on the USB stick for later transfer to the computer. No data will be recorded inside the USB if it is removed from the stunner.

Stunning parameters:

• Quail 45 mA (MIN)
• Rabbit 140 mA (MIN)
• Chicken 240 mA (MIN)
• Turkey 400 mA (MIN)

THE STUNNER REQUIRES ELECTRODE TONGS TO OPERATE, AND THESE ARE SUPPLIED.

Always check compatibility with the pliers you already have if you only buy the stunner.

The equipment complies with Directive 93/119/EC, and Regulation 1099/2009.

Dominion international Trading (DIT) is a company that produces a wide range of products suitable for the meat processing, including plucking machines, wetting tanks, electric stunners, exsanguination systems but also rollers and other spare parts suitable for plucking machines.

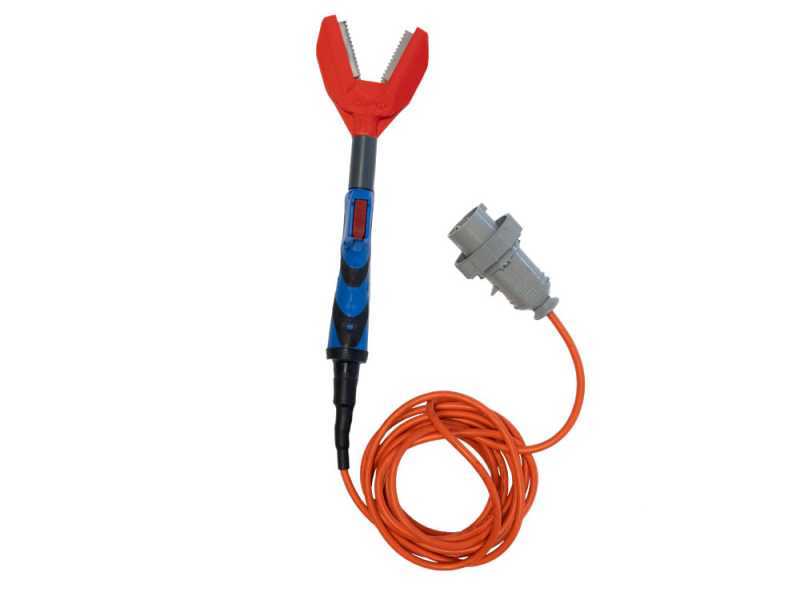

The Dominion DIT PINV electric stunning clamps are designed to be easy to use and handle.

It is equipped with an ergonomic grip that allows it to be held firmly in the hand during use. In addition, the clamps are equipped with a number of safety devices to prevent any accidents during use.

Features:

• Electrically insulated clamp;
• Ergonomic handle;
• 5 cm Electric cable;
• It can be used for poultry (quail, pigeons, chickens, geese, ducks, turkeys, etc.) and rabbits;
• 2 year warranty;
• Complies with the Low Voltage Directive 2014/35/EU.
