Description

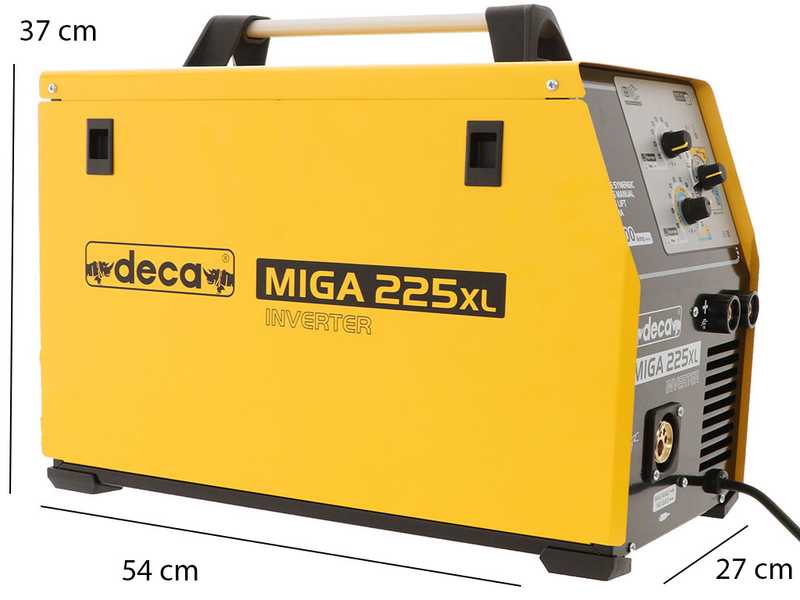

MIGA 225XL 1Ph 230/50-60 Welding Machine

Multiprocess welding machine with inverter technology for MIG/MAG, NO-GAS, MMA and TIG DC welding. 4 welding processes available:

Synergic MIG/MAG - basic programs for carbon steel, stainless steel, aluminium welding, braze welding with special copper silicon and copper aluminium wires
Manual MIG/MAG - free wire speed, arc voltage and electronic inductance adjustment
MMA - welding current and ARC-FORCE adjustment, useful for electrodes with difficult striking
TIG DC - Lift striking to limit the risk of contaminating the piece with tungsten, adjustment of the welding current and the current down slope, with filling effect at the end of the weld seam. All metals can be welded, except aluminium.

Thanks to the outside polarity change function, it will be possible to switch to NO-GAS welding in a very simple and fast way. In this series of products, all adjustments are made intuitively through the combined use of three potentiometers: the first allows you to select the process, the second to regulate the current and the third is useful for wire welding as it adjusts the arc voltage.

The MIGA 225XL has various adjustment settings according to the type of welding: MIG/NO GAS modes have a range of 10 - 200A, MMA has a range of 10 - 160A while TIG welding has an adjustment range of 10 - 200A.

It has a power supply of 230V, the absorbed power is 5kW. It mounts a 16A fuse and the torch connector is straight.

Equipped with current up slope which consists of the time in which the current passes from the initial value following the striking to the value set for welding, it allows to avoid an abrupt start of melting. The down slope is the time in which the current passes from the value set for welding to the switch-off value, avoiding crater cracks at the end of the weld seam.

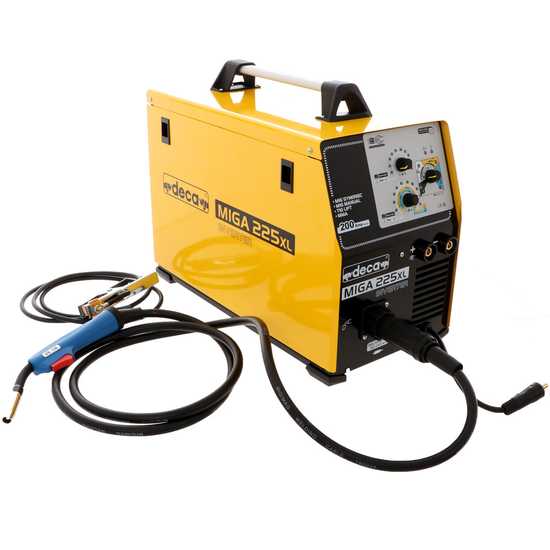

A 2m MIG 110A torch, a ground clamp with cable and a gas hose are supplied as standard.

Deca MIGA 225XL 1Ph 230/50-60 Multiprocess Inverter Wire Welding Machine - GAS/NO GAS

Technical Features

Focus on the data sheet

Power supply: 1ph - 230V - 50/60Hz
Wire to Use Steel ø 0.6 - 0.8 - 0.9 - 1.0 mm, Inox - Cu.Si 3 - Cu.Al 8 ø 0.8 - 1.0 mm , Al.Mg - Al.Si - ø 0.8 - 1.0 - 1.2 mm, Cored wire ø 0.8 - 0.9 - 1.0 - 1.2 mm
Open circuit voltage: 80V
Welding processes: Synergic MIG/MAG, manual MIG/MAG, MMA, TIG DC

Equipped with several systems that help the operator during welding operations.

The Burn Back is the delay time between engine stop and output power interruption, it allows length adjustment of the of the wire that comes out from the nozzle at the end of the welding.
Hot Start consists of increasing the welding current at the moment of striking, making it easier.
Arc Force dynamically increases the welding current when the arc becomes too short, prevents the electrode from sticking to the piece to be welded. Equipped with Anti-Sticking, which consists in a drastic reduction of the welding current when the electrode sticks to the piece, i.e. the arc voltage is zero for a time that exceeds the set limit, facilitates the removal of the electrode from the piece to be welded.

The welding current must be set according to the work to be done, however it is better to start with a low level when the metal is thick and gradually increase until you find the right adjustment. In the chart you can find all the recommended settings for welding different thicknesses.

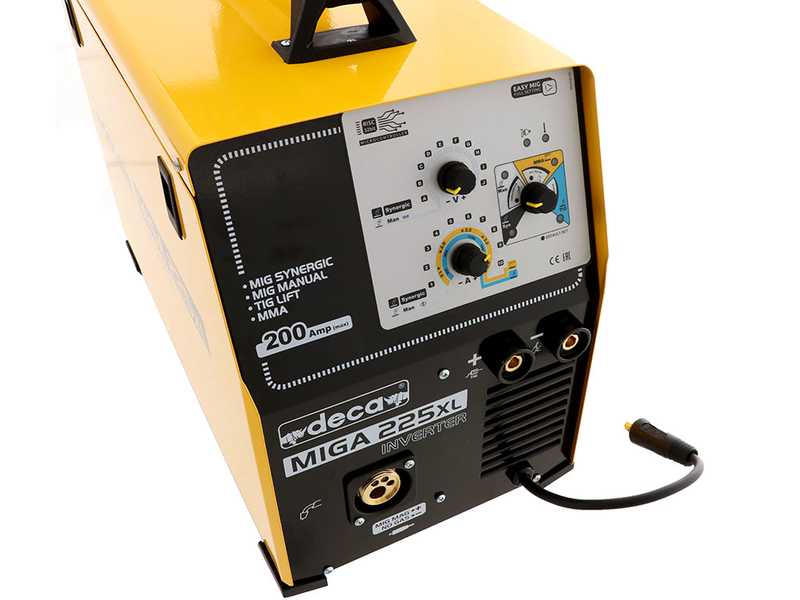

Focus on the control panel

If the welding duty cycle is exceeded, the thermostatic protection comes into operation and stops the work; the light turns on when it is activated.

Ergonomic handle for easy transport

Focus on the rubber feet
