20T tractor log splitter - Horizontal

Questions & Answers (18)
ID: 0371

EAN: 8050246354162

MPN: 0371

9,1/10
After-sales assistance & Spare parts
20T tractor log splitter - Horizontal
+300 sold
Arriving on 26/12/25
Free Shipping
Estimated delivery: 08/01/2026 - 13/01/2026
€ 1.949,80
Vat included
Technical data
Max. trunk diameter
70 cm
Piston stroke
66 cm
Max. pressure
250 bar
Retractable piston for transport
Yes
Operating mode
Tractor-driven PTO
Nominal splitting force
20 t
Tractor three-point hitch
Yes
Manufacturing country
Italy
Product Features
Model
Profi 20 T
Type
Horizontal
Double speed
No
Operating mode
Tractor-driven PTO
Nominal splitting force
20 t
Piston stroke
66 cm
Adjustable piston stroke (for short logs)
No
Worktop log cutting
No
Ground splitting system
No
Manufacturing country
Italy
Motor data
Manufacturing country
Italy
Pump data
Pump type
Hydraulic
Flow rate
25 L/min
Max. pressure
250 bar
Oil tank
Yes
Hydraulic cylinder outer diameter
105 mm
Piston diameter
50 mm
Manufacturing country
Italy
Cutting data
Max. trunk length
68 cm
Max. trunk diameter
70 cm
Equipment
Frame
Standard
Pump
Standard
Vertical log splitter safety lever
No
Retaining side supports
Yes
Trunk lifting system
No
Retractable piston for transport
Yes
Tractor three-point hitch
Yes
Replaceable wedge guides
Yes
Cartridge oil filter
No
Free gifts/extra features
Splitting wedge
No
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
177x125x90 cm
Net weight
320 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
138x128x90 cm
Weight including packaging
340 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
Assembled
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

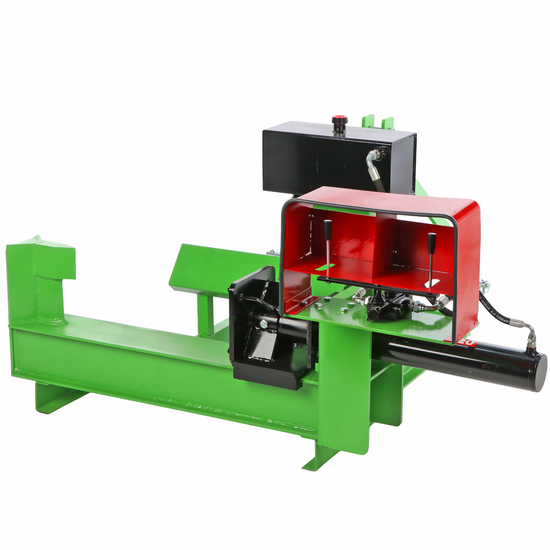

Profi 3-point linkage 20 tons horizontal log splitter

This log splitter is a SEMI PROFESSIONAL machine in terms of power, performance, sturdiness and weight. Please read the data below.

HORIZONTAL - PROFI 20 T log splitter

Designed for all those looking for a very powerful but user-friendly machine.

HIGHLY-POWERFUL, thanks to its 20 tons (making it one of the most powerful on the market)

HORIZONTAL STRUCTURE: it allows splitting even large-sized logs without having to lift them up (you can place them on the machine without any effort, given the low height of the support leg)

LINEAR DESIGN: unbeatable in terms of reliability and durability;

Product 100% Made in Italy.

ATTENTION:

The log splitters in this category are not suitable for working with wood with particularly twisted fibres, such as poplar or pine, with large diameters and, in any case, types of wood with frequent knots. In this case, it is advisable to opt for professional models. In addition, logs should only be split once they have been dried, and not when they are green; when wood is green, it is less likely to split and open up and is therefore less suitable for use with a log splitter. Once dried, however, it can be split and is ready for use in fireplaces, stoves, ovens, etc.

General features

The double blade wedge is a robust element designed to ensure efficient splitting. The upper, more protruding blade initially penetrates the wood, while the lower blade follows, allowing easy work even on particularly hard, twisted or knotty logs.

The loading platform makes loading logs easier and faster. It is equipped with a lever for operation that improves convenience during use.

The model includes a three-point hitch and a PTO assembly for universal joint attachment to the tractor (not included).

The supporting frame is very strong and has guides that ensure the piston slides smoothly. The structure is designed to ensure stability and durability even under high loads.

The large hydraulic oil reservoir is located above the pump, maximizing the efficiency of the hydraulic system. The lever type distributor allows precise control of the piston movement, ensuring a fast and safe action.

The machine is equipped with sturdy standing feet for greater stability during operation.

The high cutting capacity of up to 70 cm allows working with large logs. In addition, it is possible to reduce the size of the piston during storage by unscrewing four special bolts, thus facilitating storage.

Piston and machine frame

The large piston, with a diameter of 117 mm (100 mm bore), is an essential component that contributes to the overall strength of the machine.

Thanks to this feature, the log splitter is able to develop a thrust force of 25 tonnes, guaranteeing high performance even on large logs.

The thrust platform is made of thick steel, mounted on robust steel rails. This ensures strength and stability during operations, making the device reliable even in the harshest working conditions.

The large hydraulic pump has several advantages.

Firstly, it allows the machine to express its full power, up to 25 tons.

In addition, with this pump, the piston can operate at a high speed, improving efficiency and reducing working time.
