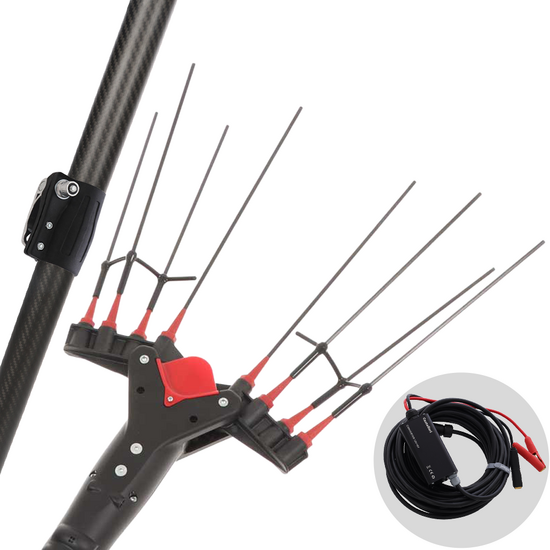

Castellari Vertigo Carbon C 30V Electric Battery Powered Olive Harvester - 190/240 cm

Castellari Vertigo Carbon C 30V Electric Battery Powered Olive Harvester - 190/240 cm
Body material
Technopolymer
Typology
single-phase electric
Motion
Speed (revolutions per minute)
1150 bpm
Telescopic pole
Maximum Length
240 cm
Motor type
Brushes
Voltage
30 V
Motor speed levels
1
Teeth material cabon
Manufacturing Country
Italy
FREE:
Free item: Castellari SME 33C pruning saw with protective holster
Free item: Multi-purpose Lithium spray grease - 400 ml
Noise-canceling earmuffs
Cotton gloves for free
AgriEuro headscarf for free
Protective goggles for free
FREE:
Free item: Castellari SME 33C pruning saw with protective holster
Free item: Multi-purpose Lithium spray grease - 400 ml
Noise-canceling earmuffs
Cotton gloves for free
AgriEuro headscarf for free
Protective goggles for free
€ 722,72
VAT Included
Prompt Delivery
5 items in stock
|
Free Shipping
You should receive it by 03/11/2021
ID: K602930

EAN: 8033803892987

MPN: 8033803891577

Castellari Vertigo Battery Powered Olive Harvester

The Castellari Vertigo Carbon C 30V 190/240 is the olive harvester created for all types of olives and plants, with no difference between olive trees prepared for mechanization, so well pruned, or thick, in crops on plain or on the hills.

Designed to fit every situation, it ensures the best results in absolute respect of the integrity of the plant and the fruit.

With double comb opposed lateral movement, suitable for any type of fruits and plants.

The carbon prongs are flexible and have a length of 35 cm, allowing the collection up inside the plant.

The Vertigo 30V is supplied with a power cable watertight complete 15m unit and two spare fuses.

All these functions are clearly visible through the reading of the LEDs on the control unit.

Made with components in:

  • CARBON FIBER 8 rods and telescopic rod
  • STEEL (gear unit)

Synonymous with LIGHT, POWER, RELIABILITY

The Vertigo olive harvester is the most effective, and it is by far the machine with one of the highest hourly gathering capabilities.

It can be used to comb well trimmed and not very thick trees.

It can instead be inserted and removed easily from the foliage repeatedly in plants not pruned and very thick

New telescopic pole extra light and made of aluminium, equipped with quick coupling.

Actual length of the olive harvester:

  • Harvester + telescopic pole: closed 190 cm open 240 cm

WARNING: BATTERY NOT INCLUDED The Vertigo requires a battery of a car of at least 60 amperes (60 ah) to ensure safely a range of a full day's work

Innovative Oscillation Prong System

The carbon rakes move accomplishing each elliptical 1150 beats per minute, with a direction opposite to one another.

You can obtain 2 opposite elliptical motions 1150 + 1150bpm.

This is undoubtedly one of the most advanced and sophisticated systems in the field for olive harvesting machines.

Here below the main advantages:

  • Higher harvesting capacity of each tooth
  • almost nonexistent twigs brakes
  • low vibrations
  • Greater range of action of the 2 rakes.

For that it differs significantly from all other manufacturers on the market, because today they use on their rakes the construction technique of carbon teeth.

WARNING: BATTERY NOT INCLUDED The Vertigo requires a battery of a car of at least 60 amperes (60 ah) to ensure safely a range of a full day's work

Main Features

It mounts 8 carbon rods which optimize the olive harvest.

It offers an exceptional maneuverability inside the plant

LIGHTWEIGHT among electrical harvesters: it weighs only 2.4 kg which on its own it is insignificant, because, as explained previously, the data about the weight counts only and exclusively the weight of the head (and not of all the rest that is absolutely irrelevant to the perceived fatigue by the user)

SUPER POWERFUL Motor: one of the most powerful among electric harvesters. It can activate the two rakes (having very long prongs), each with a horizontal movement of well 1150 cycles + 1150 cycles.

New telescopic pole (longer than previous models) extra light and made of aluminium , equipped with quick coupling.

WARNING: BATTERY NOT INCLUDED The Vertigo requires a battery of a car of at least 60 amperes (60 ah) to ensure safely a range of a full day's work

Telescopic Carbon Pole

This are the most important features when choosing a carbon pole instead of an aluminium one:

  • Higher sturdiness;
  • More rigidity means higher control;
  • Reduced weight compared to the corresponding aluminium;

New telescopic handle (longer than previous models) extra light and completely made of CARBON .

Length of 190 cm when closed and 240 cm when extended.

It is great with shorter olive trees, we advice to grip the pole from the middle to maintain a weight balance of 50%-50% (just like shown in the upper diagram) making it even more handy to use.

The rotating pole for electrical equipment is 100% made of Carbon, thus resulting robust and extremely light.

WARNING: BATTERY NOT INCLUDED The Vertigo requires a battery of a car of at least 60 amperes (60 ah) to ensure safely a range of a full day's work

Additional Features

Teeth holder made in aluminium, robust and lightweight.

Super-strong head transmission. In fact it is very simple and realized with only a few high resistance tempered steel gears.

There aren't cams, spider assemblies, connecting cross shaped rods or other mechanical components that undergo a quick wear-and-tear process and require constant maintenance.

In addition, the Vertigo carbon harvester is maintenance free!

The whole is enclosed in a robust housing made of ABS plastic which protects from dust, dirt and bumps that transmit the movement to the rakes. TAKE UP MINIMUM SPACE: It offers an exceptional maneuverability inside the plant

Focus on the professional rapid fixing system placed on the telescopic pole

Professional-type outlets

SUPER-PROFESSIONAL Connection cable of 15 m length and of exceptional strength, with terminals for battery clamps

Focus on the housing of the fuse

WARNING: BATTERY NOT INCLUDED The Vertigo requires a battery of a car of at least 60 amperes (60 ah) to ensure safely a range of a full day's work

Assembly tutorial of the Castellari Vertigo Carbon C 30V Electric Battery Powered Olive Harvester
Product Features
Model:
Vertigo Carbon C 30V
Use:
For olive harvester only
Power supply:
Lead-acid battery 12V
Body material:
Technopolymer
Typology :
single-phase electric
Activation:
battery-powered
Motor position:
At the top of harvesting head
Motion:
Speed (revolutions per minute):
1150 bpm
Rakes width:
35 cm
No. of teeth:
4+4
Teeth length:
35 cm
Teeth material:
Carbon
Teeth material cabon:
Maximum rakes opening:
50 cm
Minimum Length:
190 cm
Maximum Length:
240 cm
Pole material:
Carbon
Carbon pole:
Removable harvesting head for hand use:
No
Maximum power even with low battery:
No
Saving energy system:
No
Type:
Telescopic
Manufacturing Country:
Italy
Motor data
Motor location:
On top of the harvesting head
Motor type:
Electric
Motor type :
Brushes
Motor speed levels:
1
Power supply:
Battery powered
Fuse:
Yes
Voltage:
30 V
Battery recommended:
60 Ah
Running time:
9 h
Power engine:
30 V
Recharge time:
9 h
Manufacturing Country:
Italy
Equipment
Telescopic pole:
Extension power cable:
15 m
Free gifts/extra features
Noise cancelling ear muffs:
yes
Instructions manual:
yes
Dimensions and logistics
Product dimensions cm (LxWxH):
190x50x6
Net weight:
2.5 Kg
Packaging:
Original packaging
Packaging dimensions cm (LxWxH):
153x27x15
Gross weight (packaging incuded) :
7.5 Kg
Assembly time:
15 minutes

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate,equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

AgriEuro Headscarf

Cotton gloves

Multi-purpose lithium grease spray 400 ml to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

Free Items

The olive harvester is shipped in its original packaging

ON STANDARD EQUIPMENT:

  • SUPER-PROFESSIONAL Connection cable of 15 m length and of exceptional strength, with terminals for battery clamps
  • 2 spare fuses
  • 2 branch blocks to install if necessary.
  • Manual ripsaw.

WARNING: BATTERY NOT INCLUDED The Vertigo requires a battery of a car of at least 60 amperes (60 ah) to ensure safely a range of a full day's work
