Castellari OLIVANCE PN XT - Pneumatic Olive Harvester

Questions & Answers (3)
ID: K601307

EAN: 8033803899573

MPN: KIT OLIVANCE PN XT

8,3/10
After-sales assistance & Spare parts
Castellari OLIVANCE PN XT - Pneumatic Olive Harvester
Special offer
FREE
Lubricant for olive harvestersLubricant for olive harvesters
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
Head material
Magnesium
Motion
Vertical, double
Speed (bpm)
1900 bpm
Max. prongs opening
24 cm
Max. operating pressure
7 bar
Air consumption
200 L/min
Olive harvester head weight
950 g
Motor speed levels
1
ABS Prongs
Manufacturing country
Italy
Product Features
Model:
Olivance PN XT
Head material:
Magnesium
Type:
Pneumatic
Motion:
Vertical, double
Speed (bpm):
1900 bpm
No. of prongs:
7+7
Prongs length:
19.3 cm
Prongs material:
High-resistance technopolymers
ABS Prongs:
Max. prongs opening:
24 cm
Max. operating pressure:
7 bar
Air consumption:
200 L/min
Lubrication type:
With oil for pneumatic tools
Adjustable head:
no
Olive harvester head weight:
950 g
Manufacturing country:
Italy
Motor data
Motor speed levels:
1
Power supply:
Compressed air
Dimensions and logistics
Product dimensions in cm (L x W x H):
34x24x22.5
Net weight:
1200 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
34x27x17
Weight including packaging:
14 Kg
Assembly time:
Assembled
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 21/05/2025 - 23/05/2025
Lowest price:
€ 329,02
-9 %
€ 298,50
Vat included
You're viewing:
Customers also viewed:
Description

Castellari Olivance PN XT Pneumatic Olive Harvester

The Olivance PN XT pneumatic olive harvester performs 1900 beats per minute. With a total weight of only 950 gr the OLIVANCE PN XT It is extremely handy.

The pneumatic Castellari Olivance PN XT is a tool suitable for harvesting olives and other fruits. The pneumatic olive harvester has an opposing combs motion , ideal for the collection of olives medium / large caliber and for plants with not too thick foliage. The vibration of the pair of rakes which is fitted, is transmitted to the branches of the trees thus causing the detachment of its products.

The reduced weight and the ability to be separated from the pole increases the portability and convenience in the movements.

Pneumatic professional olive harvester with opposing combs motion ideal for the collection of medium / large olives and plants with not too thick foliage.

The rake combs made in techno- polymer do not damage the fruits because they are flexible and of round cross-section and generate a pressure that does not scratch or ruin the plant.

The movement in opposing combs allows a fast and accurate collection without causing damage to the plant. The detachment of the fruit is gentle and olives fall at the foot of the operator.

With a total weight of only 950 gr. The OLIVANCE PN XT is extremely handy and with its 1900 strokes per minute is one of the most efficient models on the market.

Able to support normal and telescopic poles.

The exhaust air, in these types of harvester, is directed towards the components that are in motion, in such a way that it goes to help cooling and lubrication. The opposed combs motion enables fast collection, practical and precise without causing damage to the plant. The detachment of the fruit is gentle and olives fall at the foot of the operator.

The motor, in magnesium alloy, favours thermal exchange and prevents the formation of ice in case of low temperatures. These harvesters generally have a very low air consumption (200 L / min) 7 bar.

Fully interchangeable.

WARNING: pole not included

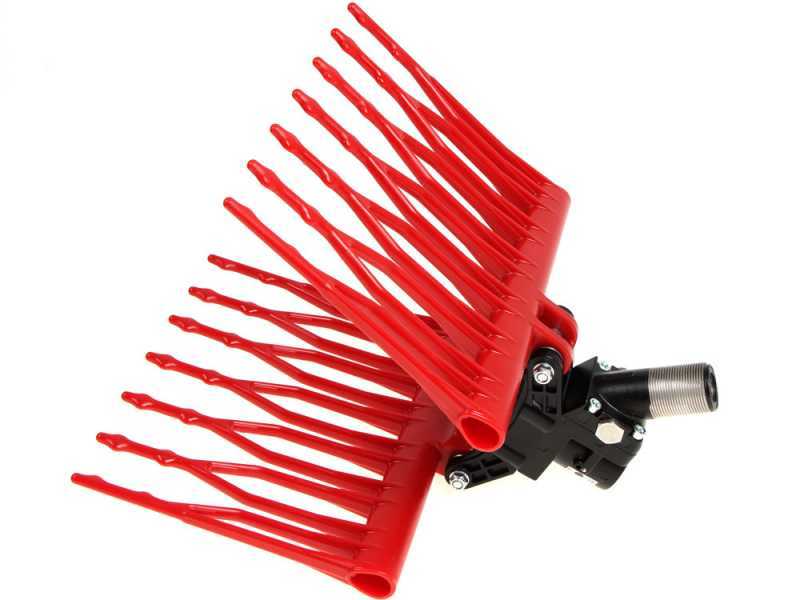

Prongs

This olive harvester is equipped with rakes in technopolymer with long, elastic prongs, which guarantee good performance without any damage to the plant.

All these characteristics make it particularly suitable for working on all types crops at all levels of ripeness, especially in thick foliage.

In addition, its operation does not damage the olives and does not cause breakage to twigs.

  • The best performance on the market: this tool offers instant penetration on plants foliage, thanks to the tapered and widely-spaced prongs.
  • Improved working width compared with traditional comb olive shakers. 24 cm working width at maximum opening.

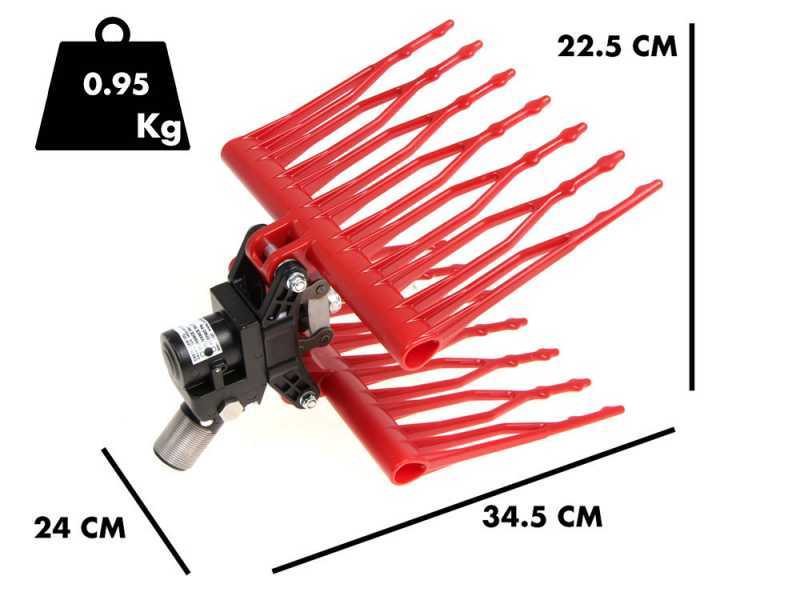

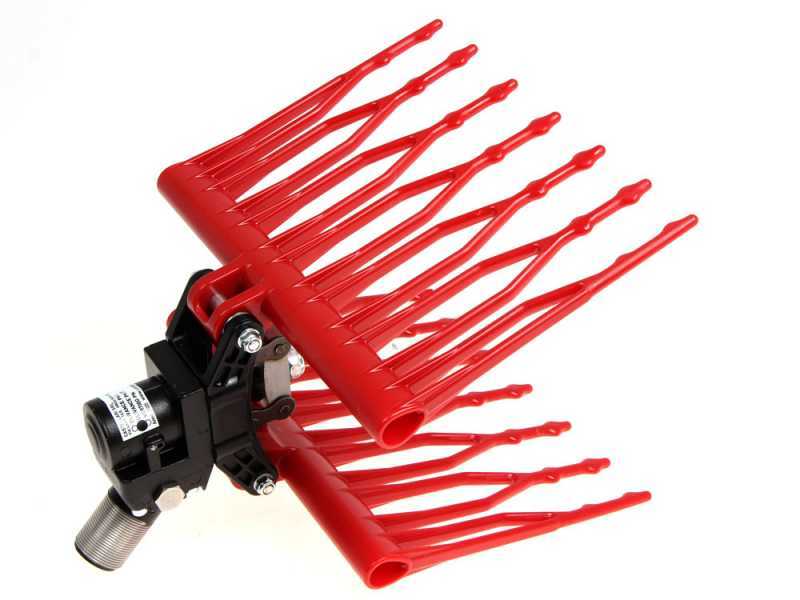

Technical features

One of the great strengths of these harvesters is definitely the beating speed, 1900 rpm, thanks to the short-stroke piston and rakes.

In addition, its operation does not damage the olives and does not cause breakage to twigs.

Made with components in TECHNOPOLYMER, it is equipped with a protection for the moving parts to reduce wear and tear.

Weight: only 1000 g. Simply the absolute lightest on the market, despite the considerable width and length of the combs.

Working pressure: 7 Bar

Air consumption: 200 L/min

The rakes opening measures 24 cm

Free items & Standard equipment

FREE:Kit for pneumatic olive harvesters: ear protections, goggles, Gloves, Headscarf and Lubricant

FREE ITEMS:

Ear protections to work in total comfort.

Ear protection has to be appropriate: these standard supplied ear muffs are esepcially designed to destroy the noise level of the machine.

Protective goggles

Made of polycarbonate provided with anti-mist and scratch-resistant shield. Ventilation is granted by holes directly placed on the goggle frame to avoid mist and enhance the working comfort.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

1 L professional lubricant for pneumatic equipment for the lubrication of internal transmission gear of the olive harvester.

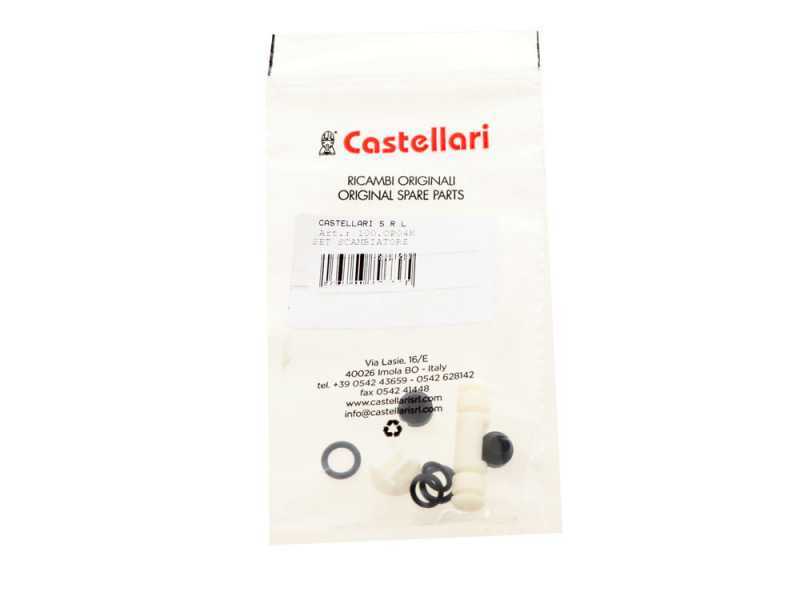

Standard equipment

The product is shipped in its original packaging.

The packaging also includes:

Instructions manual

Exchanger kit. (1 free kit of spares)
