Campagnola MASTER PLUG-IN - 185-270 cm Carbon & Aluminium Pole - Electric Battery-powered Olive Harvester

Add a question
ID: K608890

EAN: n/a

MPN: n/a

9,1/10
After-sales assistance & Spare parts
Campagnola MASTER PLUG-IN - 185-270 cm Carbon & Aluminium Pole - Electric Battery-powered Olive Harvester
FREE
Campagnola capCampagnola cap
Multi-purpose Lithium spray grease - 400 mlMulti-purpose Lithium spray grease - 400 ml
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
Head material
ABS
Motion
Double side
Speed (bpm)
1200 bpm
Max. prongs opening
46 cm
Pole material
Carbon/aluminium
Telescopic pole
Max. length
270 cm
Motor type
Brush
Voltage
12 V
Nominal power (W)
325 W
Motor speed levels
1
Motor type
Battery-powered
Integrated battery
Li-ion battery-powered
Yes
Items included
Battery and battery charger NOT included
Carbon prongs
Manufacturing country
Italy
Product Features
Model:
MASTER Plug-in
Use:
For olive harvester only
Power supply:
Lead-acid battery 12 V
Head material:
ABS
Type:
12 V battery-powered
Items included:
Battery and battery charger NOT included
Motor position:
On the head
Motion:
Double side
Integrated battery:
Speed (bpm):
1200 bpm
No. of prongs:
4+4
Prongs length:
30 cm
Prongs material:
Carbon
Carbon prongs:
Max. prongs opening:
46 cm
Min. length:
185 cm
Max. length:
270 cm
Pole material:
Carbon/aluminium
Adjustable head:
no
Removable harvesting head for direct use:
No
Max. power even with low battery:
Yes
Energy Saving System:
No
Pole type:
Telescopic
Manufacturing country:
Italy
Motor data
Motor position:
On the head
Motor type:
Battery-powered
Motor type :
Brush
Battery type:
Car type o Lithium (Li-Ion)
Motor speed levels:
1
Nominal power (W):
325 W
Power supply:
12 V battery-powered
Fuse:
Yes
Voltage:
12 V
Recommended battery:
80 Ah
Working autonomy:
8 h
Motor power:
12 V
Manufacturing country:
Italy
Equipment
Telescopic pole:
Extension power cable:
13 m
Free gifts/extra features
Prongs/rods:
2
Instructions manual:
Yes
Dimensions and logistics

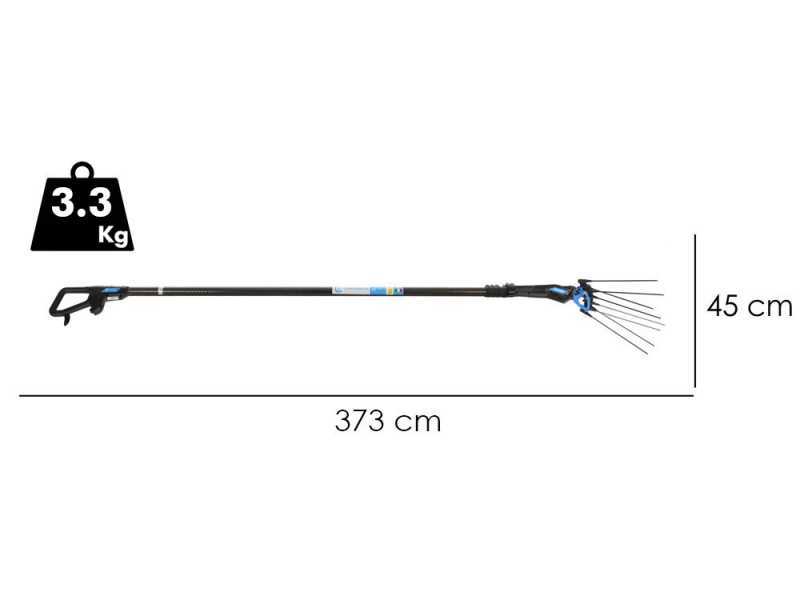

Product dimensions in cm (L x W x H):
252x50x21
Net weight:
3.3 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
48.5X31.5X18
Gross weight (packaging included) :
4.1 Kg
Assembly time:
15 minutes
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 21/02/2025 - 25/02/2025
€ 605,03
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

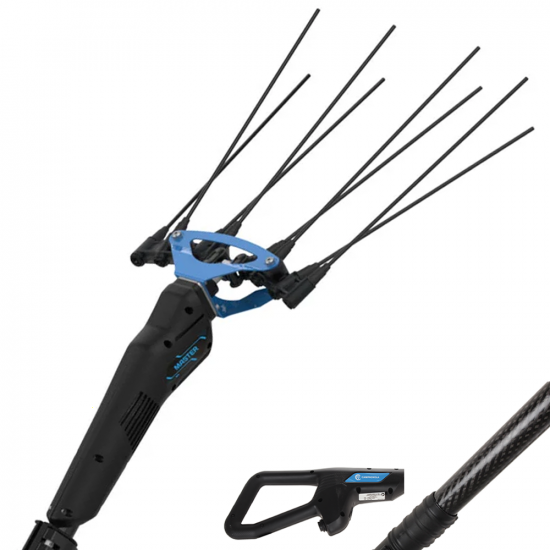

Campagnola MASTER Battery-powered Olive Harvester

The Campagnola MASTER olive harvester is a superior quality Italian product, meticulously designed to guarantee exceptional results in olive harvesting.

Its advanced design is focused on preserving the health of plants and fruits, ensuring an optimal harvest without damaging the branches.

One of the outstanding features of the MASTER harvester is the telescopic carbon and aluminium pole, with an adjustable length between 185 and270 cm.

This design not only guarantees extraordinary lightness, but also makes it comfortable and user-friendly.

The high-quality engine, integrated in the harvester head, provides high performance for efficient and effortless harvesting.

The harvester is equipped with 8 carbon prongs, each 32 cm long, that operate gently, ensuring that plants are treated with care during the harvesting process.

The powerful 12 V brush motor provides a power rating of 325 W, ensuring reliable operation and consistent performance over time.

Additionally, the lightweight, strong and durable structure of the carbon and aluminium pole guarantees a long service life.

Thanks to the adjustable telescopic pole, the MASTER harvester easily adapts to different heights, satisfying all requirements during harvesting.

The harvester is powered by a car battery, which provides greater autonomy and facilitates use in the field.

This device can also be powered by a 12 V lead-acid battery or a lithium-ion battery, with a nominal voltage of 21.6 V and a maximum of 25.2 V, thus providing flexibility in use according to the availability of energy sources.

All in all, the Campagnola MASTER harvester is the ideal choice for those seeking superior performance and reliability in olive harvesting.

WARNING: BATTERY NOT INCLUDED!

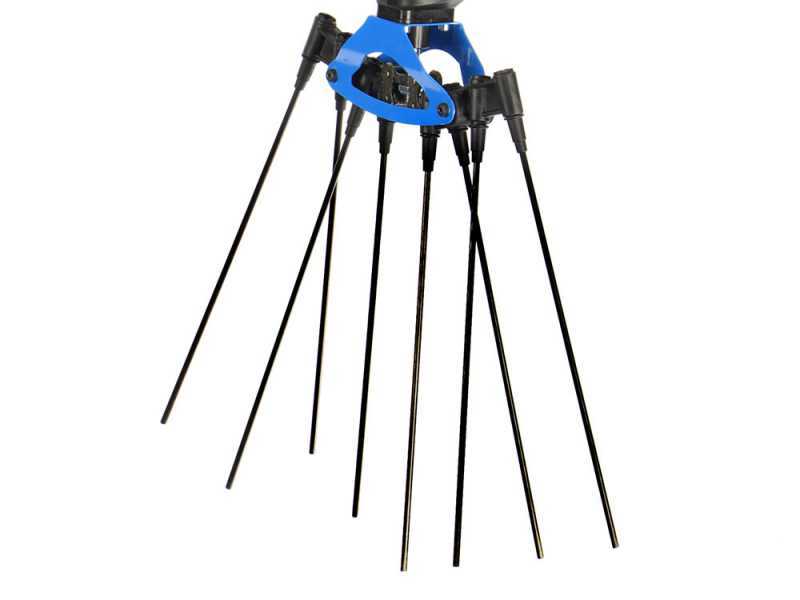

Prongs

The rakes are made of the purest carbon and make a characteristic double side-to-side motion.

The rakes swing in a right-to-left motion, which allows for a wider collecting radius. This special swinging motion reduces to minimum the vibrations transferred to the operator.

Amazing advantages:

  • Each prong can harvest many olives.
  • Superior collection capacity over 50%

The Campagnola MASTER is one of the battery-powered harvesters with the highest hourly harvesting capacity. Unlike all harvesters on the market, there is no specific technique to use the MASTER. It can be used like a rake on well pruned and thin plants.

On the other hand, it can be inserted and extracted repeatedly from the foliage in unpruned and very dense plants (which do not allow the machines to rake through).

The advantage is an exceptional ability to penetrate into foliage, thanks to the scattered front, and very deep thanks to the exceptional length of the prongs.

WARNING: BATTERY NOT INCLUDED!

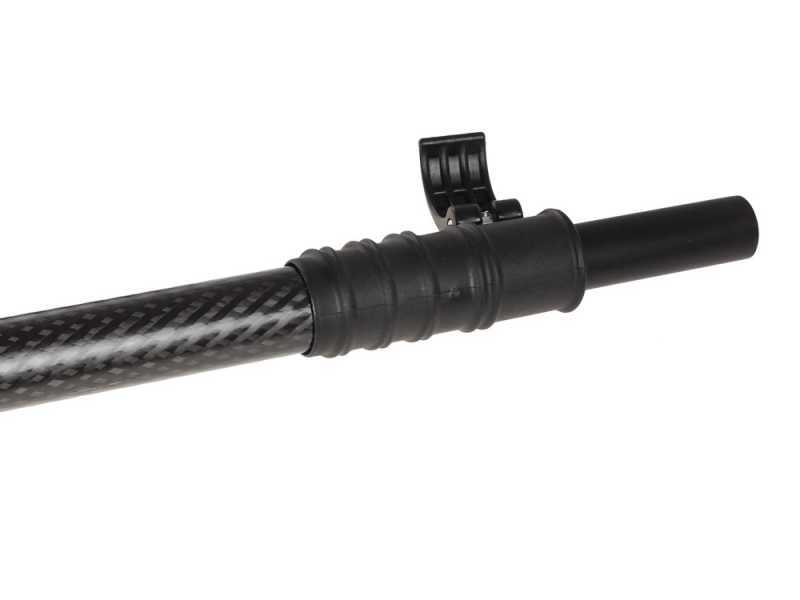

185-270 cm Carbon an Aluminium Telescopic Pole

New, telescopic pole made of ALUMINIUM and CARBON (longer than the previous models), equipped with quick coupling.

  • Length of the rotating aluminium telescopic pole: 185-270 cm

The rotating extension rod for power tools is made of carbon and aluminium, making it robust and extremely light.

WARNING: BATTERY NOT INCLUDED!

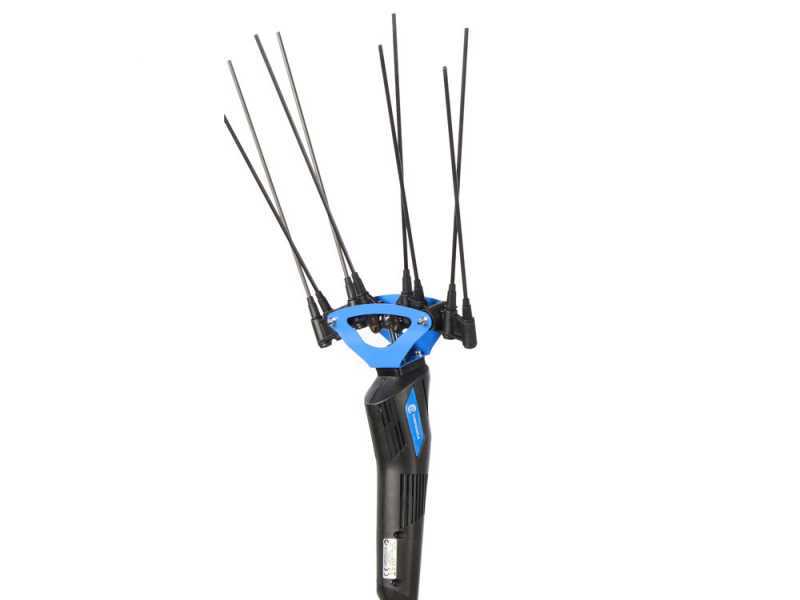

Technical Features

The engine of the purchased harvester provides outstanding technical features that guarantee high performance and user-friendliness.

This brush motor has a power output of 325 W, ensuring powerful and constant operation.

Power consumption varies between 7 and 8 Ah, maintaining a good balance between performance and battery life.

At 1200 rpm (+/- 5%), the engine ensures optimal speed for olive harvesting.

The ergonomic design is reflected in the weight of the handle, which varies between 280 g and 690 g, while the harvesting head weighs 1420 g.

This makes the harvester light and easy to handle during extended use.

The engine housing is made of thermoplastic material, which offers strength and lightness, although the protection rating is IP00, meaning that the tool is not protected from dust or water infiltration.

The engine features an on/OFF button for easy starting and a 15 A fuse (light blue) to protect the engine from overloads.

The harvester can be powered by a 12 V lead-acid battery or a lithium-ion battery with a nominal voltage of 21.6 V and a maximum of 25.2 V, providing flexibility in use depending on the availability of energy sources.

In short, this brush motor proves to be a reliable choice for those seeking a powerful, manoeuvrable and versatile harvester, with special emphasis on battery life and the lightness of the tool.

Rakes with spacers:

It is equipped with two pre-installed spacers that increase the crossing of the rakes, but can be removed if necessary.

WARNING: BATTERY NOT INCLUDED!

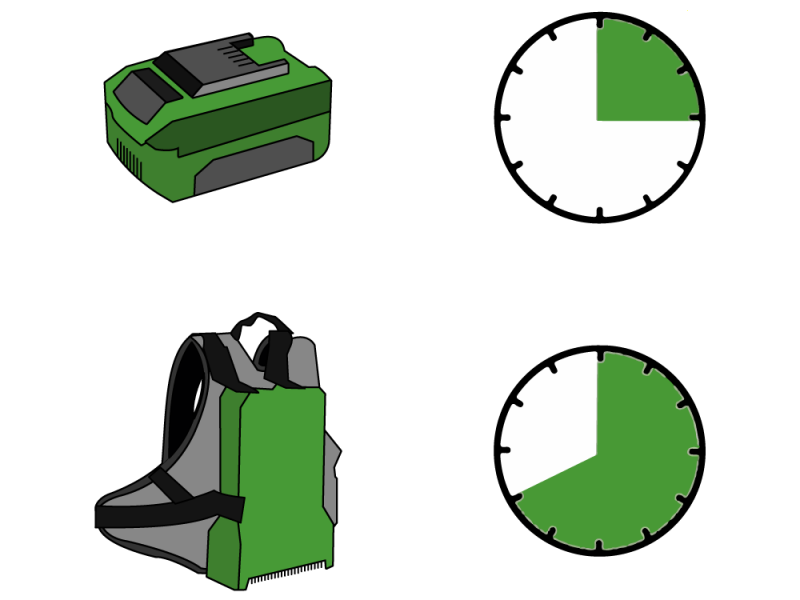

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.
Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.
On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.
However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.

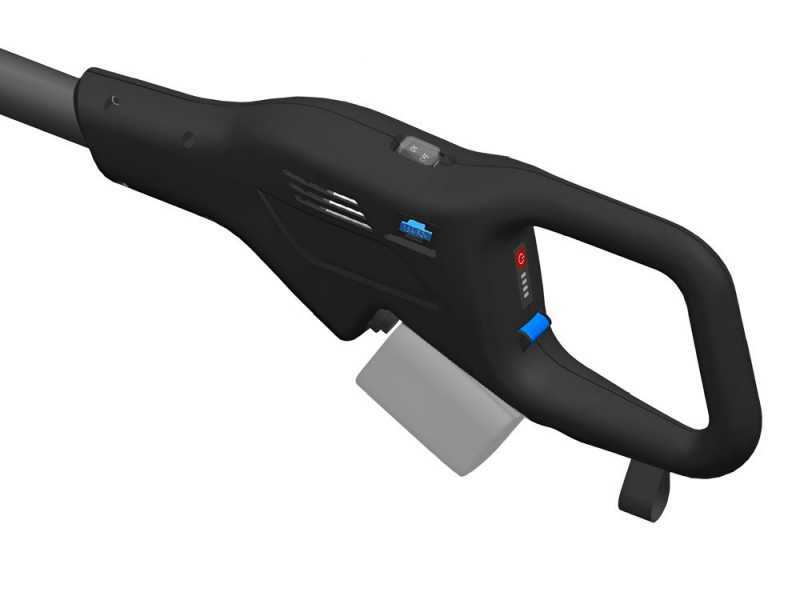

PLUG-IN Electric Engine and Head

The Campagnola MASTER is fitted with a 325 W brush motor located in the head of the machine

The machine can be powered either by a 12V lead-acid car battery (not included), with a consumption of 8 Ah, or by a Campagnola Plug-in 21V lithium battery.

The Campagnola MASTER features 4+4 carbon pick-up prongs on the head.

The arms, therefore, carry a total of 8 easy-to-replace carbon fibre tines.

The 32 cm long prongs allow deep access into the plant.

Technical details of the head:

  • Working width: max. 460 mm.
  • Shakes per minute: 1200.

WARNING: BATTERY NOT INCLUDED!

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

Standard Equipment

The product is shipped in its original packaging.

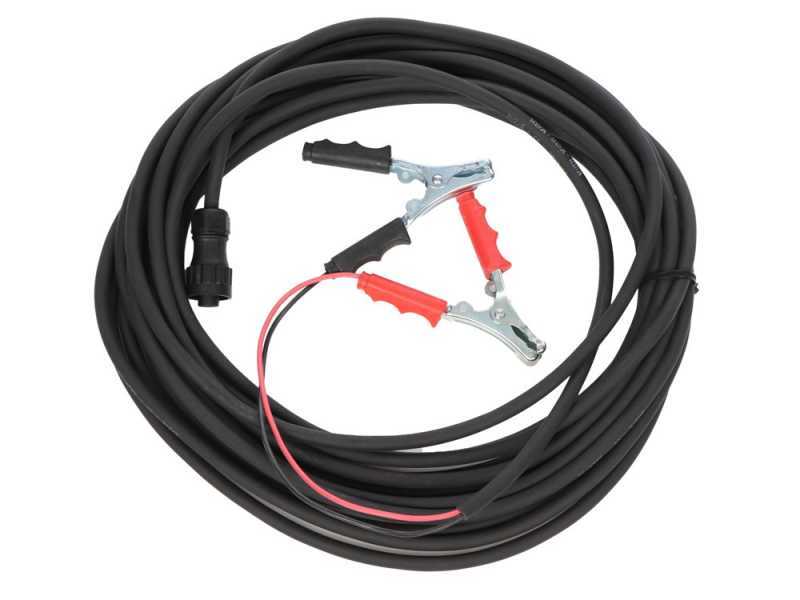

  • Professional cable
  • 185-270 cm Carbon telescopic pole
  • Instruction manual
  • Campagnola cap

WARNING: BATTERY NOT INCLUDED! The harvester requires an automotive-grade battery of at least 60/70 amps to safely provide a full day's work range
