Campagnola MASTER PLUG-IN - 150-220 cm Carbon and Aluminium Pole - Electric Battery-powered OLive Harvester - 21.6V 5Ah

Add a question
ID: K608913

EAN: N/A

MPN: N/A

9,1/10
After-sales assistance & Spare parts
Campagnola MASTER PLUG-IN - 150-220 cm Carbon and Aluminium Pole - Electric Battery-powered OLive Harvester - 21.6V 5Ah
FREE
Campagnola capCampagnola cap
Multi-purpose Lithium spray grease - 400 mlMulti-purpose Lithium spray grease - 400 ml
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
Head material
ABS
Motion
Double side
Speed (bpm)
1200 bpm
Max. prongs opening
46 cm
Pole material
Carbon/aluminium
Telescopic pole
Max. length
220 cm
Motor type
Brush
Voltage
12 V
Nominal power (W)
325 W
Motor speed levels
1
Motor type
Battery-powered
Integrated battery
Li-ion battery-powered
Yes
No. of batteries
1
Battery Amperes
5 Ah
Carbon prongs
Manufacturing country
Italy
Product Features
Model:
MASTER Plug-in
Use:
For olive harvester only
Power supply:
Lead-acid battery 12 V
Head material:
ABS
Type:
Li-ion battery-powered
Operating mode:
12 V battery-powered
Operating mode:
Battery-powered
Items included:
Battery and battery charger included
Motor position:
On the head
Motion:
Double side
Integrated battery:
Speed (bpm):
1200 bpm
No. of prongs:
4+4
Prongs length:
30 cm
Prongs material:
Carbon
Carbon prongs:
Max. prongs opening:
46 cm
Min. length:
150 cm
Max. length:
220 cm
Pole material:
Carbon/aluminium
Adjustable head:
no
Removable harvesting head for direct use:
No
Max. power even with low battery:
Yes
Energy Saving System:
No
Pole type:
Telescopic
Manufacturing country:
Italy
Motor data
Motor position:
On the head
Motor type:
Battery-powered
Motor type :
Brush
Battery type:
Car type o Lithium (Li-Ion)
Motor speed levels:
1
Nominal power (W):
325 W
Power supply:
12 V battery-powered
Fuse:
Yes
Voltage:
12 V
Battery Amperes:
5 Ah
Recommended battery:
80 Ah
No. of batteries:
1
Working autonomy:
8 h
Motor power:
12 V
Manufacturing country:
Italy
Equipment
Extension pole :
150 / 220 cm
Telescopic pole:
Extension power cable:
13 m
Free gifts/extra features
Prongs/rods:
2
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
252x50x21
Net weight:
3.1 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
48.5X31.5X18
Gross weight (packaging included) :
4.1 Kg
Assembly time:
15 minutes
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 25/02/2025 - 27/02/2025
€ 823,09
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

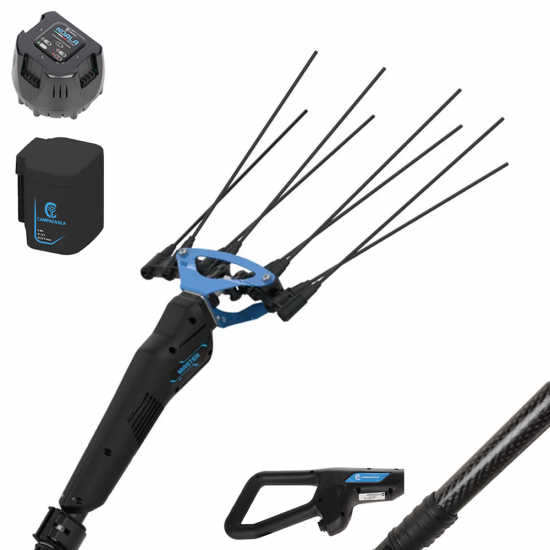

Campagnola MASTER Battery-powered Olive Harvester

The Campagnola MASTER olive harvester is a quality Italian product, carefully designed to guarantee exceptional results in olive harvesting. Its design is focused on preserving the health of plants and fruits, ensuring an optimal harvest without damage.

Equipped with a 150/220 cm telescopic carbon and aluminium rod, the MASTER harvester is characterised by its light weight, offering comfortable and easy operation. The high quality motor in the head ensures high performance, allowing efficient and effortless harvesting.

With 8 carbon prongs, each 32 cm long, this harvester treats the plants gently during olive harvesting.

The powerful 12 V brush motor offers a nominal power of 325 W, ensuring reliable operation and consistent performance during harvesting. The lightweight, strong and durable structure of the carbon and aluminium pole guarantees a long life.

With its telescopic pole, you can easily adjust the height of the harvester to your needs when harvesting. The Campagnola MASTER is equipped with a car-type battery motor, which provided increased autonomy and ease of use.

The Campagnola MASTER harvester is the ideal choice for olive harvesting, offering superior performance and reliability.

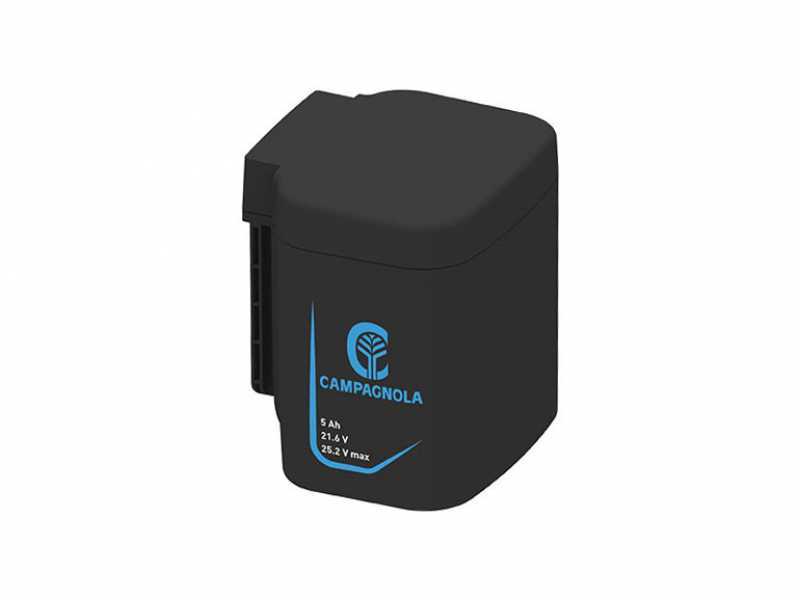

Battery and Charger

Plug-in lithium-ion batteries are an advanced technological solution, combining light weight and high performance.
These batteries are particularly appreciated for their ability to deliver energy efficiently, while at the same time ensuring a low weight that facilitates transport and installation.

A distinctive feature of lithium-ion batteries is the inclusion of an integrated control system.

This system is designed to prevent overcharging or misuse, which could compromise the safety and efficiency of the battery. With this advanced protection, battery life is significantly extended, ensuring reliable and long-lasting operation.

To support these batteries, the Power Eco Plug-in Power Unit, equipped with a brush motor, is an excellent choice for those seeking solid and consistent performance.

The brush motor, known for its simple design and reliability, perfectly combines with lithium-ion technology to provide an efficient and long-lasting power supply.

Quick Start Guide

STARTING

  1. Battery plug-in: Press and hold the battery lock button and then plug the battery in.

  2. Switch on the device: To switch on the device, simply press the switch to the ON position.

  3. Charge status check: To display the battery charge status, press the red switch.

This mini-guide allows simple and immediate use of the system, ensuring efficient and safe handling of the tool.

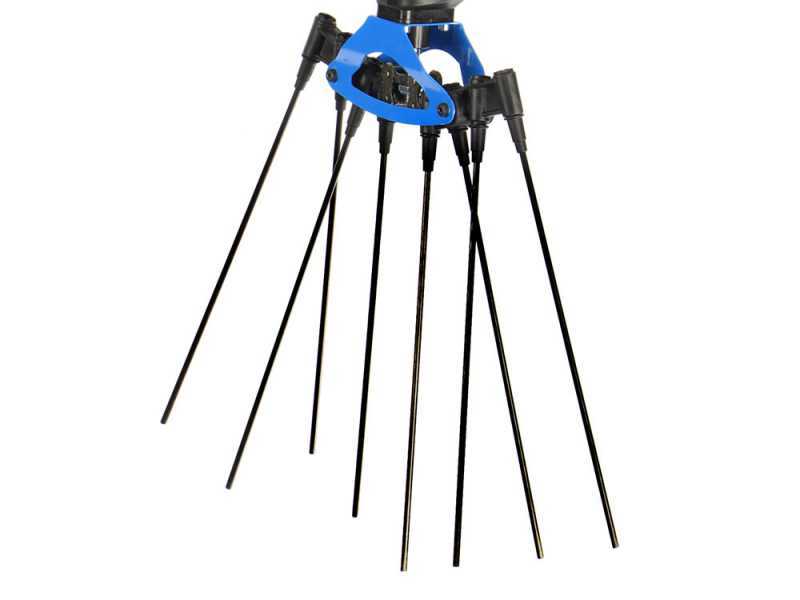

Prongs

The rakes are made of the purest carbon and make a characteristic double side-to-side motion.

The rakes swing in a right-to-left motion, which allows for a wider collecting radius. This special swinging motion reduces to minimum the vibrations transferred to the operator.

Amazing advantages:

  • Each prong can harvest many olives.
  • Superior collection capacity over 50%

The Campagnola MASTER is one of the battery-powered harvesters with the highest hourly harvesting capacity. Unlike all harvesters on the market, there is no specific technique to use the MASTER. It can be used like a rake on well pruned and thin plants.

On the other hand, it can be inserted and extracted repeatedly from the foliage in unpruned and very dense plants (which do not allow the machines to rake through).

The advantage is an exceptional ability to penetrate into foliage, thanks to the scattered front, and very deep thanks to the exceptional length of the prongs.

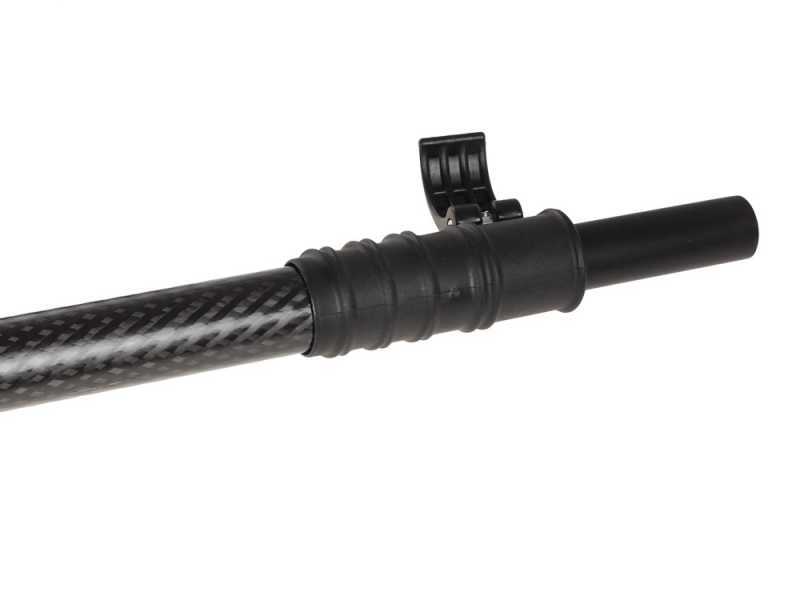

150/220 cm Carbon an Aluminium Telescopic Pole

New telescopic pole (longer than the previous models), made of ALUMINIUM and CARBON, equipped with quick fixing.

  • Length of the rotating aluminium telescopic pole: 150-220 cm

The rotating extension rod for power tools is made of carbon and aluminium, making it robust and extremely light.

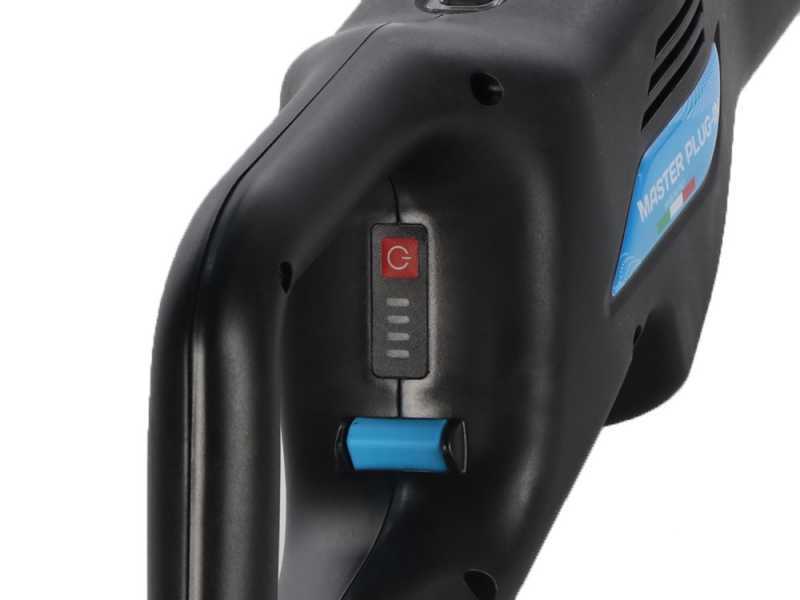

Technical Specifications

Professional-type interlocking socket. Support base with cable entry eyelet.

Provides full protection of the extension cable and the motor connection socket. Both in the working phase, when the cable is constantly being pulled, and in the other phase when the machine is resting vertically on the ground.

The tines are individually interchangeable one by one in the event of accidental breakage

The most powerful engine on the market: an impressive 325 watts.

It generates up to 1200 rpm despite the rake's considerable size.
Professional brush motor.

In fact, in case of overheating, it is the only engine on the market that will stop and restart after it cools down (thus preventing it from burning out)

SUPER LIGHT-WEIGHT: The head of this harvester, despite its large size, weighs only 1420 grams

RELATED ADVANTAGES:

  • improved penetration into foliage;
  • higher respect of the tree and lower breakage of branches and leaves compared to other olive harvesters with rigid prongs.

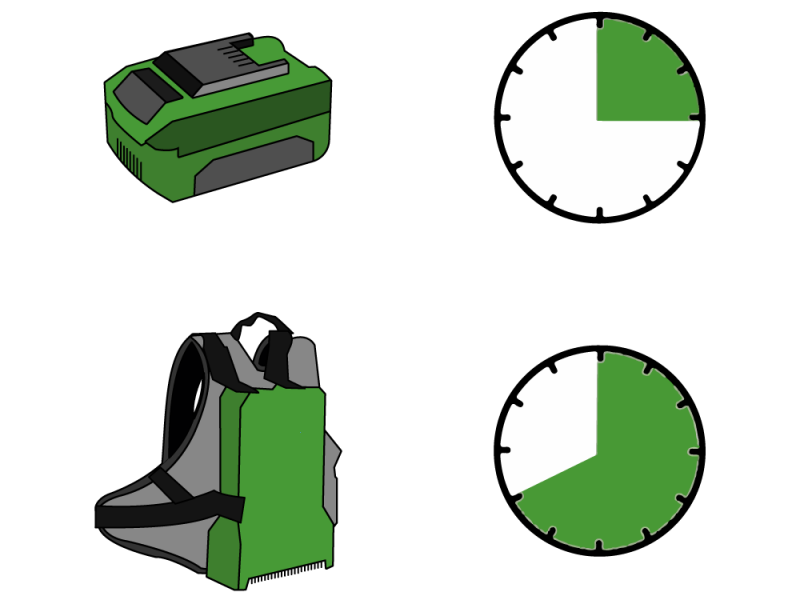

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.
Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.
On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.
However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.

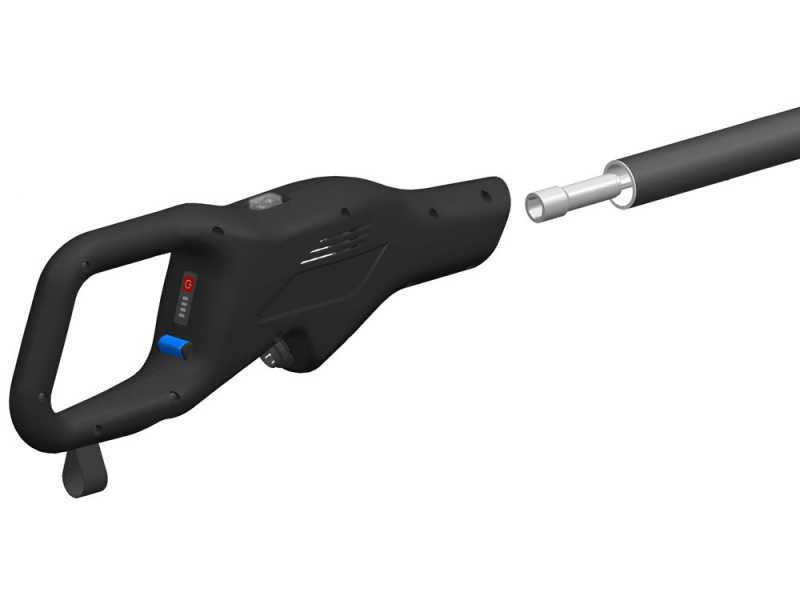

PLUG-IN Electric Engine and Head

The Campagnola MASTER is fitted with a 325 W brush motor placed in the head of the machine

The machine can be powered either by a 12V lead-acid car battery (not included), with a consumption of 8 Ah, or by a Campagnola Plug-in 21V lithium battery.

The Campagnola MASTER mounts 4+4 carbon harvesting prongs on the head.

The arms, therefore, carry a total of 8 carbon fibre prongs with easy replacement. The 32 cm long prongs allow deep access into the plant.

Technical details of the head:

  • Working width: max. 460 mm.
  • Shakes per minute: 1200.
Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

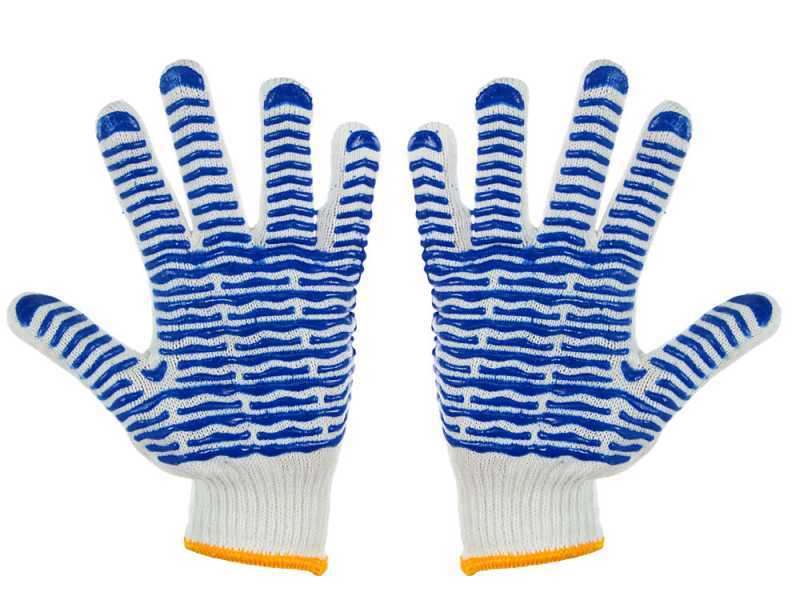

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

Standard Equipment

The product is shipped in its original packaging.

  • Professional cable
  • 150-220 cm carbon telescopic pole
  • Instruction manual
  • Campagnola cap
  • Battery

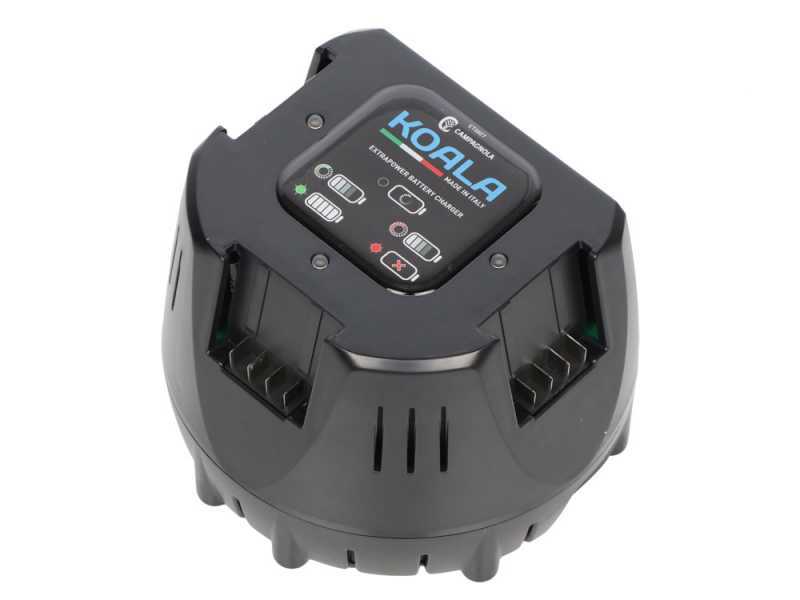

  • Charger

WARNING: CAR TYPE BATTERY NOT INCLUDED, ONLY THE 21V LITHIUM BATTERY IS INCLUDED
