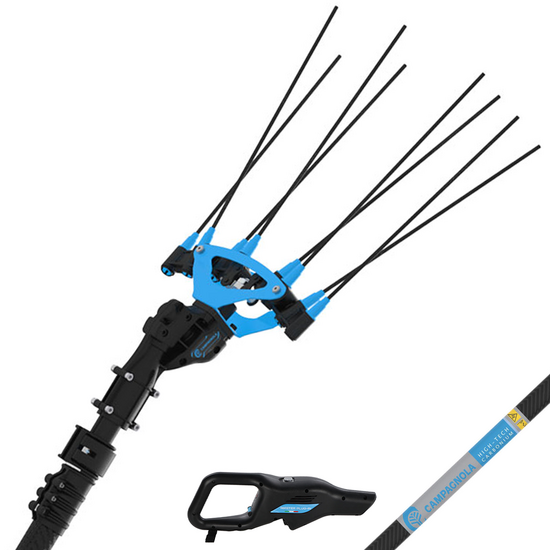

Campagnola Icarus V1 ECO Plug-in - 230 cm Carbon Pole - Electric Battery-powered Olive Harvester

Add a question
ID: K608955

EAN: N/A

MPN: N/A

9,1/10
After-sales assistance & Spare parts
Campagnola Icarus V1 ECO Plug-in - 230 cm Carbon Pole - Electric Battery-powered Olive Harvester
Special offer
FREE
Campagnola sweatshirtCampagnola sweatshirt
Multi-purpose Lithium spray grease - 400 mlMulti-purpose Lithium spray grease - 400 ml
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
Head material
ABS
Motion
Double side
Speed (bpm)
1200 bpm
Max. prongs opening
50 cm
Pole material
Carbon
Max. length
230 cm
Motor type
Brush
Voltage
12 V
Nominal power (W)
325 W
Motor position
At the bottom of extension pole
Motor speed levels
1
Motor type
Battery-powered
Integrated battery
Li-ion battery-powered
Yes
Items included
Battery and battery charger NOT included
Carbon prongs
Manufacturing country
Italy
Product Features
Model:
Icarus V1 ECO Plug-in
Use:
For olive harvester only
Head material:
ABS
Type:
12 V battery-powered
Operating mode:
12 V battery-powered
Items included:
Battery and battery charger NOT included
Motor position:
At the bottom of extension pole
Motion:
Double side
Integrated battery:
Speed (bpm):
1200 bpm
No. of prongs:
4+4
Prongs length:
36 cm
Prongs material:
Carbon
Carbon prongs:
Max. prongs opening:
50 cm
Max. length:
230 cm
Pole material:
Carbon
Carbon pole:
Max. power even with low battery:
Yes
Pole type:
Fixed
Manufacturing country:
Italy
Motor data
Motor position:
At the bottom of extension pole
Motor type:
Battery-powered
Motor type :
Brush
Battery type:
Car type o Lithium (Li-Ion)
Motor speed levels:
1
Nominal power (W):
325 W
Power supply:
12 V battery-powered
Fuse:
Yes
Voltage:
12 V
Recommended battery:
80 Ah
Motor power:
12 V
Manufacturing country:
Italy
Equipment
Extension power cable:
15 m
Free gifts/extra features
Prongs/rods:
2
Instructions manual:
Yes
Dimensions and logistics

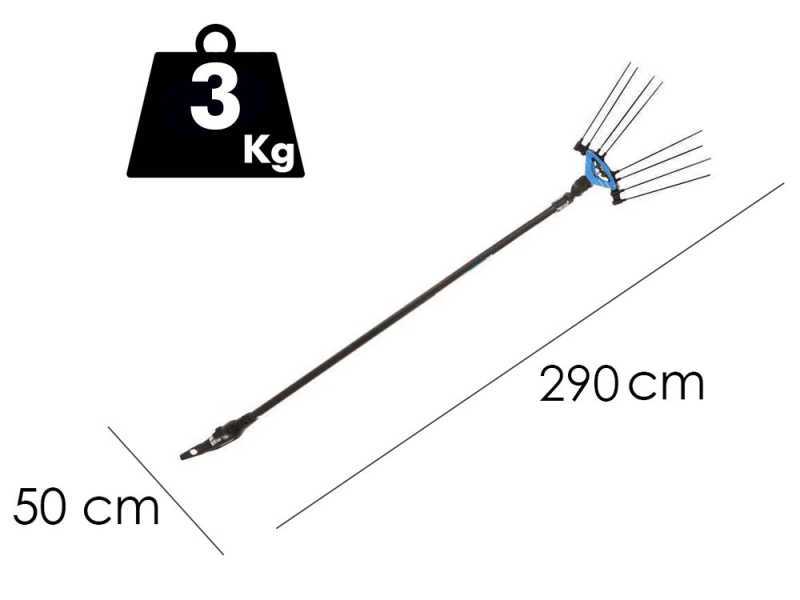

Product dimensions in cm (L x W x H):
290x50x21 cm
Net weight:
3 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
48.5X31.5X18
Gross weight (packaging included) :
5.7 Kg
Assembly time:
15 minutes
Prompt Delivery
8 items in stock
Free Shipping
Estimated delivery: 25/02/2025 - 27/02/2025
Lowest price:
€ 852,58
-10 %
€ 763,19
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

ICARUS ECO 230 cm Battery-powered Olive Harvester

The Icarus V1 ECO PLUG-IN is a harvester designed to optimize operating efficiency in different agricultural contexts, while ensuring plant and fruit protection during harvest.

This device is equipped with a high-efficiency brush motor, offering a power output of 325 W and a rotation speed of 1200 rpm, making it ideal for fast and efficient operations.

Operating at a 12V nominal voltage, with a power consumption ranging from 7 to 8 Ah, the Icarus V1 ECO PLUG-IN ensures a good balance between performance and power consumption, allowing optimal energy management during use.

The device stands out for its low weight at 3 kg only, which contributes to easier handling and reduced operator fatigue even with extended use.

The harvester head, made of sturdy materials, is equipped with interchangeable carbon fibre prongs, allowing efficient harvesting while preserving the integrity of the fruit.

An additional safety feature is the anti-tear protection system built into the power cable, designed to prevent accidental damage during operation.

The pole, with a length of 230 cm, offers good flexibility, allowing it to adapt to different operational needs.

Additionally, the Icarus V1 ECO PLUG-IN can be powered either via a car battery or by a Campagnola 21.6V plug-and-play battery, making it versatile and suitable for a wide range of working conditions.

In brief, the Icarus V1 ECO PLUG-IN is a harvester designed to deliver efficient and reliable performance, whilst focusing on easy handling and crop protection.

WARNING: BATTERY AND BATTERY CHARGER NOT INCLUDED!

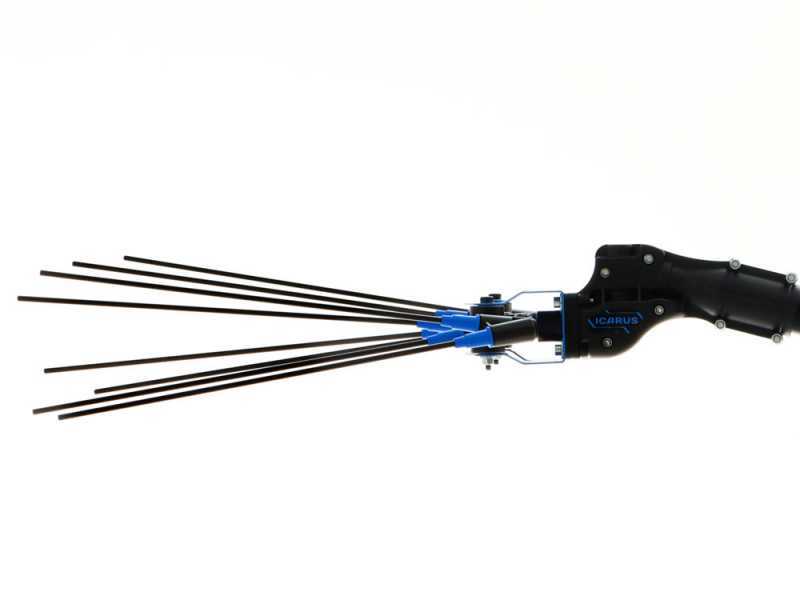

Prongs

The rakes are made of the purest carbon and make a characteristic double side-to-side motion.

The rakes swing in a right-to-left motion, which allows for a wider collecting radius. This special swinging motion reduces to minimum the vibrations transferred to the operator.

Amazing advantages:

  • greater harvesting capacity of each prong, i.e. greater separation of the olives
  • collection capacity exceeding 50 %

The Campagnola Icarus is one of the battery-powered harvesters with the highest hourly harvesting capacity. Unlike all harvesters on the market, there is no specific technique of use for the Icarus. It can be used like a rake on well pruned and thin plants.

On the other hand, it can be inserted and extracted repeatedly from the foliage in unpruned and very dense plants (which do not allow the machines to rake through).

The advantage is an exceptional ability to penetrate into foliage, thanks to the scattered front, and very deep thanks to the exceptional length of the prongs.

WARNING: BATTERY AND BATTERY CHARGER NOT INCLUDED!

230 cm Fixed Carbon Pole

The most important features to consider when choosing a carbon pole instead of an aluminium one are:

  • Higher sturdiness;
  • More rigidity, thus higher control;
  • It weighs 300 grams less than its aluminium counterpart;

New fixed pole (longer than previous models) extra light and completely made of CARBON.

  • Rotating fixed carbon pole length: 230 cm

The length of this pole is the ideal configuration of this olive harvester, because the motor is fitted at the end of the pole.

It is great with shorter olive trees, we advise to grip the pole in the middle to maintain a 50%-50% weight balance (just like shown in the upper diagram) making it even more handy to use.

The rotating pole for electrical equipment is 100% made of Carbon, thus resulting robust and extremely light.

WARNING: BATTERY AND BATTERY CHARGER NOT INCLUDED!

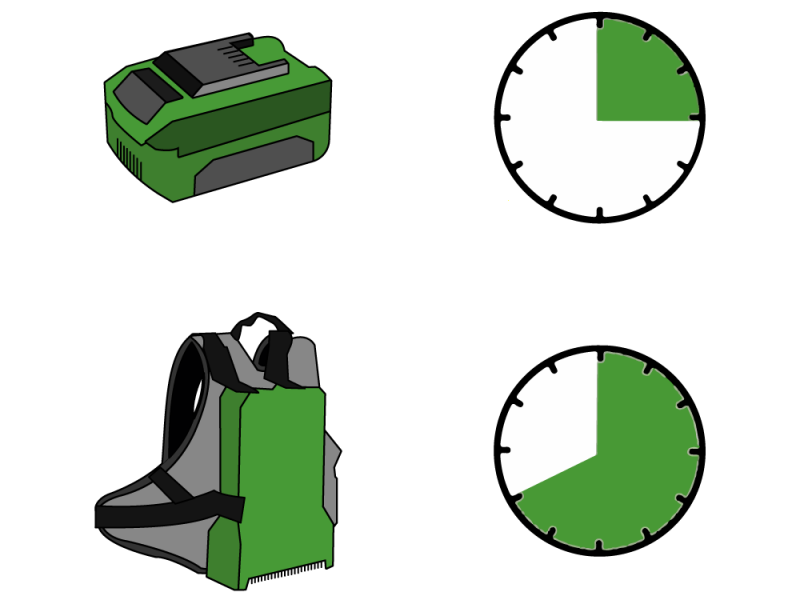

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.
Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.
On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.
However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.

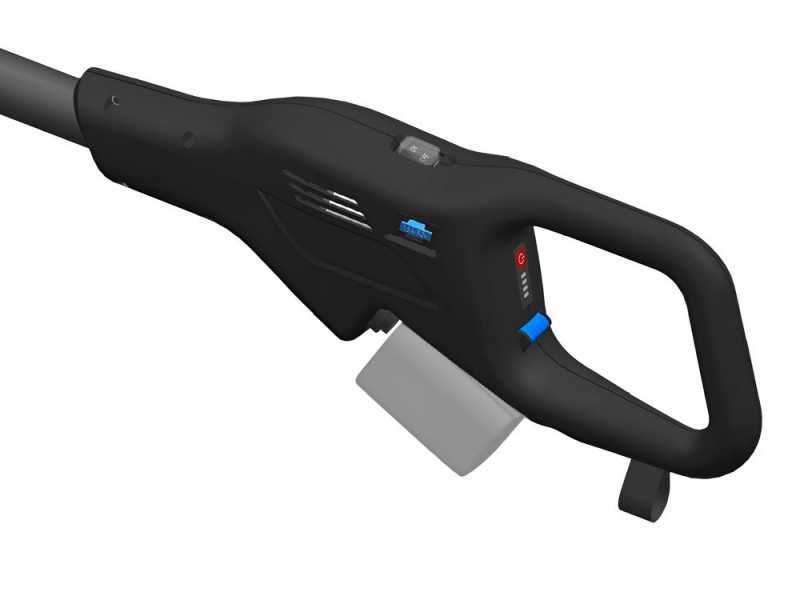

PLUG-IN Electric Motor

The Campagnola ICARUS V1 ECO PLUG-IN is fitted with a 325 W brush motor placed in the head of the machine

The machine can be powered either by a 12V lead-acid car battery (not included), with a consumption of 8 Ah, or by a Campagnola Plug-in 21.6V lithium battery.

The Campagnola ICARUS V1 ECO PLUG-IN features 9 carbon harvesting prongs on the head.

The 36 cm long prongs allow deep access into the plant.

Technical details of the head:

  • Working width: 50 cm.
  • Shakes per minute: 1200.

WARNING: BATTERY AND BATTERY CHARGER NOT INCLUDED!

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

Standard Equipment

Standard equipment:

  • 15 m long PROFESSIONAL connection cable with battery terminal clamps

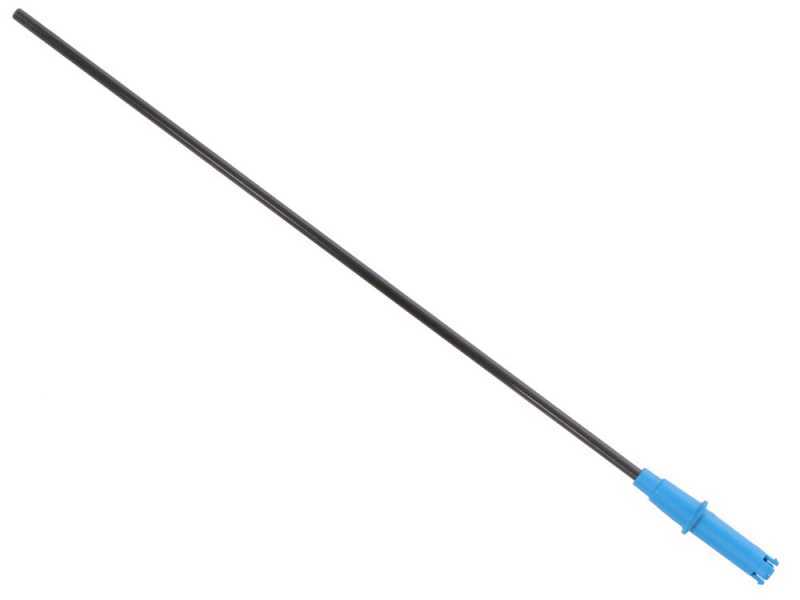

  • 36 cm carbon prongs
  • Instruction manual

WARNING: BATTERY AND BATTERY CHARGER NOT INCLUDED!
