Campagnola Icarus V1 ECO Plug-in - 200 cm Carbon Pole - Electric Battery-powered Olive Harvester - 21V 5Ah

Add a question
ID: K608962

EAN: N/A

MPN: N/A

9,1/10
After-sales assistance & Spare parts
Campagnola Icarus V1 ECO Plug-in - 200 cm Carbon Pole - Electric Battery-powered Olive Harvester - 21V 5Ah
Special offer
FREE
Campagnola sweatshirtCampagnola sweatshirt
Multi-purpose Lithium spray grease - 400 mlMulti-purpose Lithium spray grease - 400 ml
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
Head material
ABS
Motion
Double side
Speed (bpm)
1200 bpm
Max. prongs opening
50 cm
Pole material
Carbon
Max. length
230 cm
Motor type
Brush
Voltage
12 V
Nominal power (W)
325 W
Motor position
At the bottom of extension pole
Motor speed levels
1
Motor type
Battery-powered
Integrated battery
Li-ion battery-powered
Yes
No. of batteries
1
Battery Amperes
5 Ah
Carbon prongs
Manufacturing country
Italy
Product Features
Model:
Icarus V1 ECO Plug-in
Use:
For olive harvester only
Head material:
ABS
Type:
12 V battery-powered
Operating mode:
12 V battery-powered
Items included:
Battery and battery charger included
Motor position:
At the bottom of extension pole
Motion:
Double side
Integrated battery:
Speed (bpm):
1200 bpm
No. of prongs:
4+4
Prongs length:
36 cm
Prongs material:
Carbon
Carbon prongs:
Max. prongs opening:
50 cm
Max. length:
230 cm
Pole material:
Carbon
Carbon pole:
Adjustable head:
no
Removable harvesting head for direct use:
No
Max. power even with low battery:
Yes
Pole type:
Fixed
Manufacturing country:
Italy
Motor data
Motor position:
At the bottom of extension pole
Motor type:
Battery-powered
Motor type :
Brush
Battery type:
Car type o Lithium (Li-Ion)
Motor speed levels:
1
Nominal power (W):
325 W
Power supply:
12 V battery-powered
Fuse:
Yes
Voltage:
12 V
Battery Amperes:
5 Ah
Recommended battery:
80 Ah
No. of batteries:
1
Working autonomy:
8 h
Motor power:
12 V
Manufacturing country:
Italy
Equipment
Extension pole :
200 cm fissa
Extension power cable:
15 m
Free gifts/extra features
Prongs/rods:
2
Instructions manual:
Yes
Dimensions and logistics

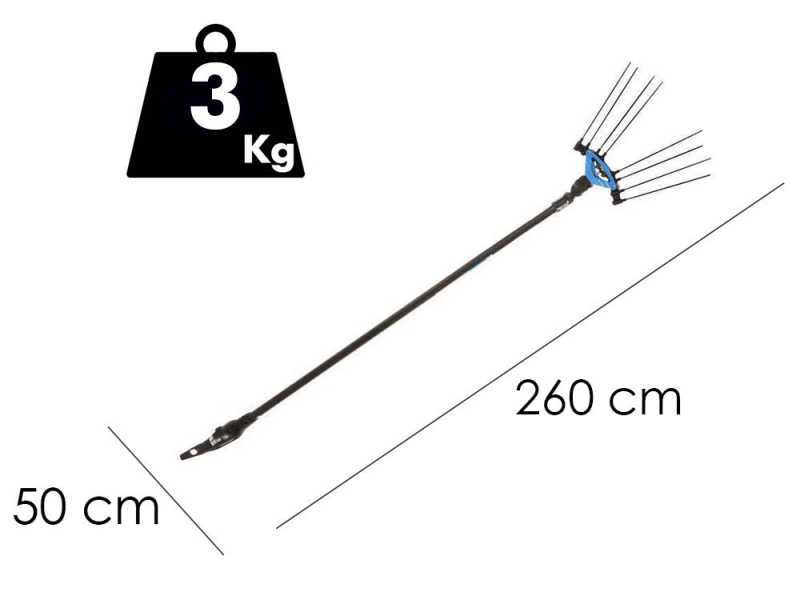

Product dimensions in cm (L x W x H):
260x50x21 cm
Net weight:
3 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
48.5X31.5X18
Gross weight (packaging included) :
5.7 Kg
Assembly time:
15 minutes
Prompt Delivery
9 items in stock
Free Shipping
Estimated delivery: 21/02/2025 - 25/02/2025
Lowest price:
€ 1.077,23
-10 %
€ 969,51
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

ICARUS ECO 200 cm Battery-powered Olive Harvester

The Icarus V1 ECO PLUG-IN is a pioneering device in the agricultural olive harvester sector, designed to optimise operational efficiency during harvesting while preserving the integrity of plants and fruit.

The heart of the device is a high-efficiency brush motor that delivers a power of 325 W and reaches a rotation speed of 1200 rpm.

These technical features make it ideal for quick and precise harvesting operations, contributing to a significant reduction in working time.

Designed to operate at 12V, the Icarus V1 ECO PLUG-IN has a power consumption ranging from 7 to 8 Ah, ensuring an optimal balance between performance and power consumption.

This allows efficient energy management, extending autonomy and operational effectiveness during use in the field.

Another distinctive feature of the device is its low weight of 3 kg, which facilitates handling and reduces operator fatigue, even with extended use. This ergonomic aspect is especially beneficial in agricultural operations that require long working hours.

The harvester head, made of sturdy materials, is equipped with interchangeable carbon-fibre prongs, designed to harvest efficiently without compromising the quality and integrity of the fruit.

Moreover, the power cord is equipped with an anti-tear protection system, designed to prevent accidental damage and ensure a longer service life of the device.

The Icarus V1 ECO PLUG-IN is also equipped with a telescopic pole that can be extended up to 200 cm, offering considerable operational flexibility and allowing the user to easily adapt to different harvesting situations.

In terms of power, the Icarus V1 ECO PLUG-IN is extremely versatile, as it can be connected to either a car battery or a Campagnola 21.6 V plug-and-play battery.

This flexibility makes it suitable for a wide range of working conditions, both in the open field and in more structured settings.

In brief, the Icarus V1 ECO PLUG-IN is a harvester designed with a focus on reliable performance, energy efficiency and crop protection, representing a solid and versatile solution for operational needs in the agricultural sector.

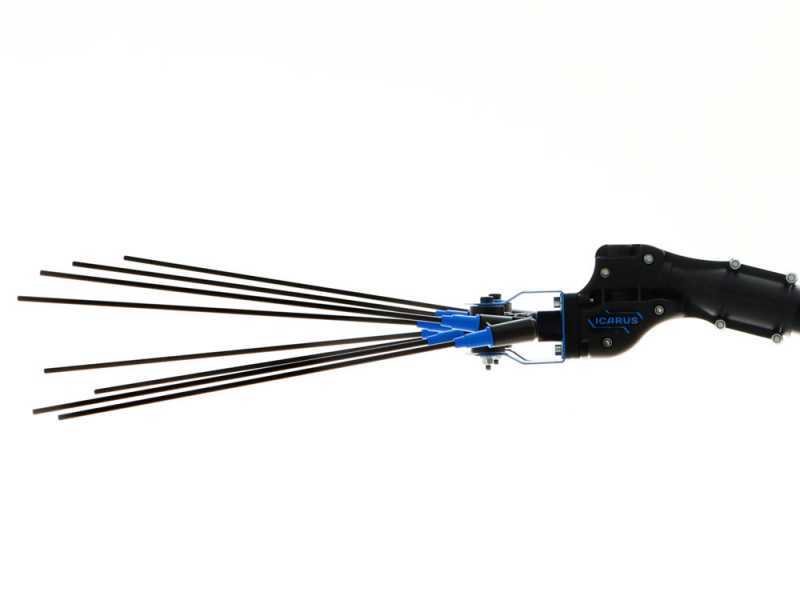

Prongs

The rakes are made of pure carbon and perform a characteristic double side-to-side motion.

The rakes swing in a right-to-left motion, which allows for a wider collecting radius. This special swinging motion reduces to minimum the vibrations transferred to the operator.

Amazing advantages:

  • greater harvesting capacity of each prong, i.e. greater separation of the olives
  • collection capacity exceeding 50 %

The Campagnola Icarus is one of the battery-powered harvesters with the highest hourly harvesting capacity. Unlike all harvesters on the market, there is no specific technique of use for the Icarus. It can be used like a rake on well pruned and loose plants.

On the other hand, it can be inserted and extracted repeatedly from the foliage in unpruned and very dense plants (which do not allow the machines to rake through).

The advantage is an exceptional ability to penetrate into foliage, thanks to the scattered front, and very deep thanks to the exceptional length of the prongs.

200 cm Fixed Carbon Pole

The most important features to consider when choosing a carbon pole instead of an aluminium one are:

  • Higher sturdiness;
  • More rigidity, thus higher control;
  • It weighs 300 grams less than its aluminium counterpart;

New fixed pole (longer than previous models) extra light and completely made of CARBON.

  • Length of the rotating carbon pole: 200 cm

The length of this pole is the ideal configuration of this olive harvester, because the motor is mounted at the end of the pole.

It is great with shorter olive trees, we advise to grip the pole at the middle to maintain a 50%-50% weight balance (just like in the diagram above) making it even more handy to use.

The rotating pole for electrical equipment is 100% made of Carbon, thus resulting robust and extremely light.

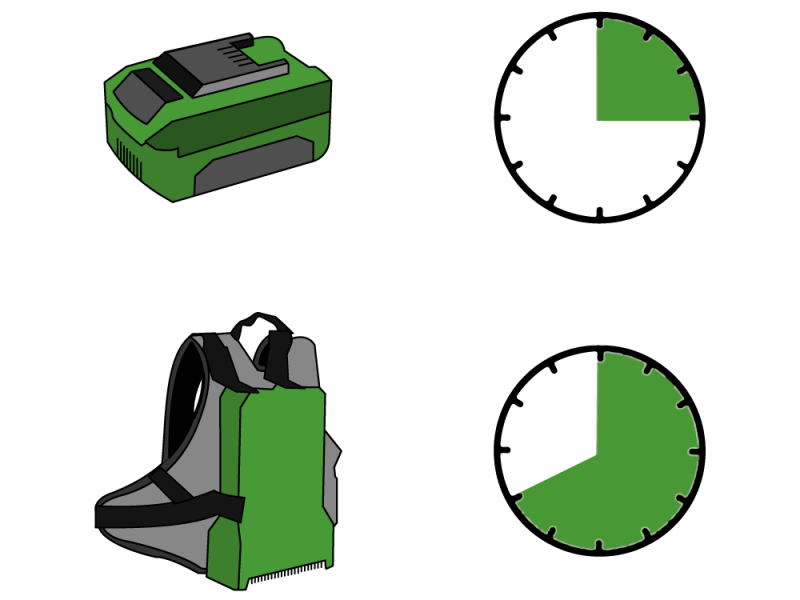

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.
Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.
On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.
However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.
Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.
On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.
However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.

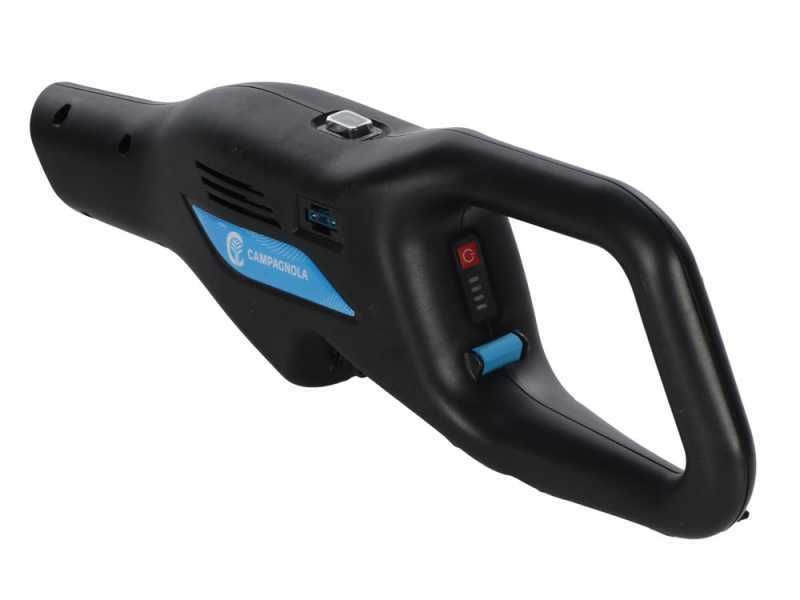

PLUG-IN Electric Motor

The Campagnola ICARUS V1 ECO PLUG-IN is fitted with a 325 W brush motor placed in the head of the machine

The machine can be powered either by a 12V lead-acid car battery (not included), with a consumption of 8 Ah, or by a Campagnola Plug-in 21.6V lithium battery.

The Campagnola ICARUS V1 ECO PLUG-IN features 9 carbon harvesting prongs on the head.

The 36 cm long prongs allow deep access into the plant.

Technical details of the head:

  • Working width: max. 34 cm.
  • Shakes per minute: 1200.

Battery and Charger

Description of the 21.6V 5Ah Campagnola Battery and Charger

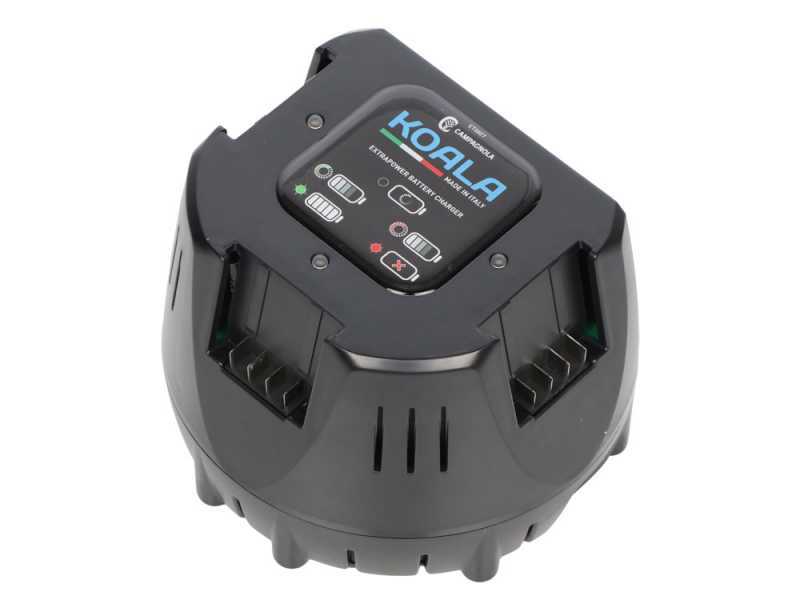

Campagnola battery charger:

The Campagnola battery charger is designed for charging 21.6V lithium-ion batteries used in Campagnola devices.

The compact design makes it suitable for intensive use in both private and professional settings.

The charger provides a fast and safe charging process, thanks to a smart charge management that protects the battery from overcharging and overheating.

Equipped with LED lights, the charger provides real-time information on charging status, allowing the user to easily monitor the process.

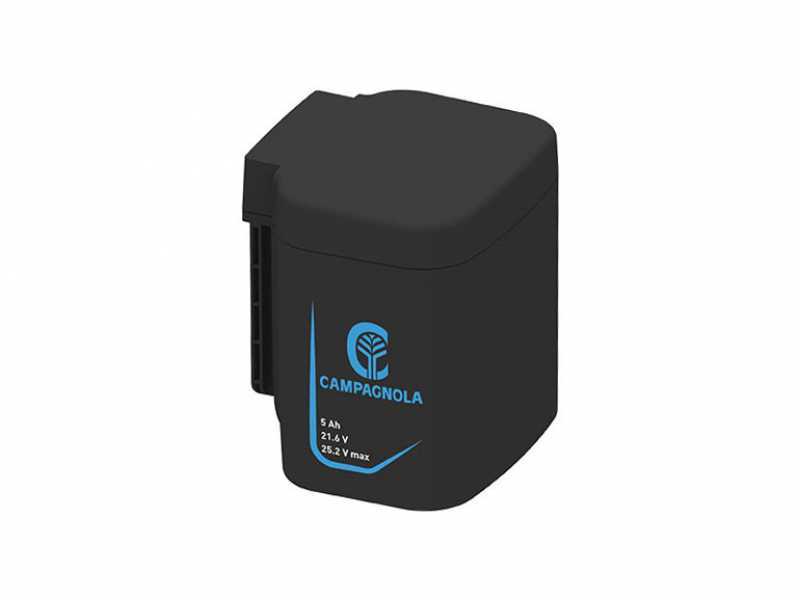

Campagnola 21.6V 5Ah battery:

The Campagnola 21.6V / 5Ah battery is ideal for powering a wide range of Campagnola tools and equipment.

With a capacity of 5Ah, this battery provides good autonomy, allowing handy and fast work.

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

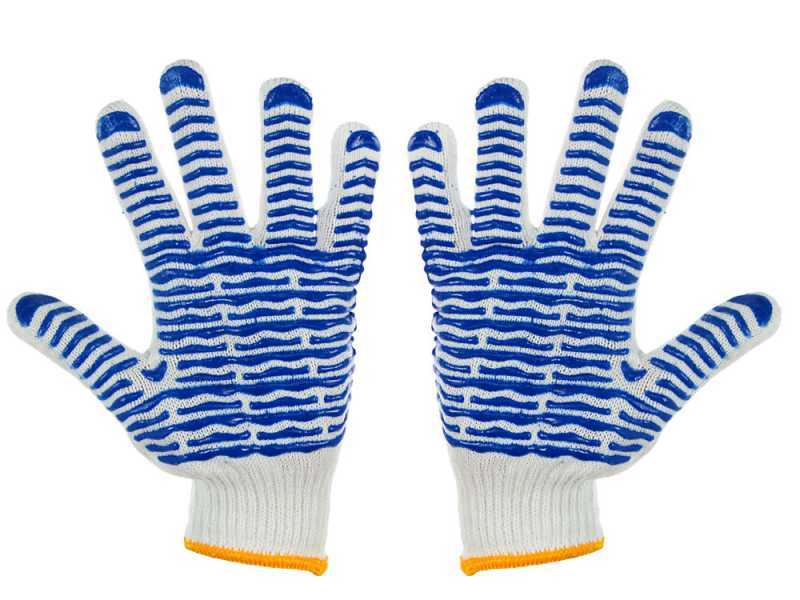

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

Standard Equipment

Standard equipment:

  • 15 m long PROFESSIONAL connection cable with battery terminal clamps
  • 36 cm carbon prongs
  • Instruction manual
  • Battery
  • Charger
