Campagnola HERCULES 58V - 230 cm Carbon Pole - Electric Battery-powered Olive Harvester

Add a question
ID: K608900

EAN: N/A

MPN: N/A

9,1/10
After-sales assistance & Spare parts
Campagnola HERCULES 58V - 230 cm Carbon Pole - Electric Battery-powered Olive Harvester
FREE
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Head material
ABS
Motion
Rotary
Speed (bpm)
1140 bpm
Pole material
Carbon
Max. length
230 cm
Motor type
Induction
Voltage
58 V
Nominal power (W)
350 W
Motor position
At the bottom of extension pole
Motor speed levels
2
Motor type
Battery-powered
Battery type
Li-Ion
Items included
Battery and battery charger NOT included
ABS Prongs
Manufacturing country
Italy
Product Features
Model:
Hercules 58V
Power supply:
Lithium battery
Head material:
ABS
Type:
Li-ion battery-powered
Operating mode:
12 V battery-powered
Items included:
Battery and battery charger NOT included
Motor position:
At the bottom of extension pole
Motion:
Rotary
Speed (bpm):
1140 bpm
"Wave" prongs:
No
No. of prongs:
9
Prongs length:
35 cm
Prongs material:
Technopolymers, Carbon
ABS Prongs:
Max. length:
230 cm
Pole material:
Carbon
Carbon pole:
Adjustable head:
no
Removable harvesting head for direct use:
No
Max. power even with low battery:
Yes
Energy Saving System:
Yes
Pole type:
Fixed
Manufacturing country:
Italy
Motor data
Motor position:
At the bottom of extension pole
Motor type:
Battery-powered
Motor type :
Induction
Battery type:
Li-Ion
Motor speed levels:
2
Nominal power (W):
350 W
Power supply:
12 V battery-powered
Fuse:
Yes
Voltage:
58 V
Recommended battery:
70 Ah
Motor power:
58 V
Manufacturing country:
Italy
Equipment
Extension pole :
230 cm fissa
Extension power cable:
13 m
Control unit with circuit board:
Yes - inside the motor
Free gifts/extra features
Ear muffs:
yes
Instructions manual:
Yes
Dimensions and logistics

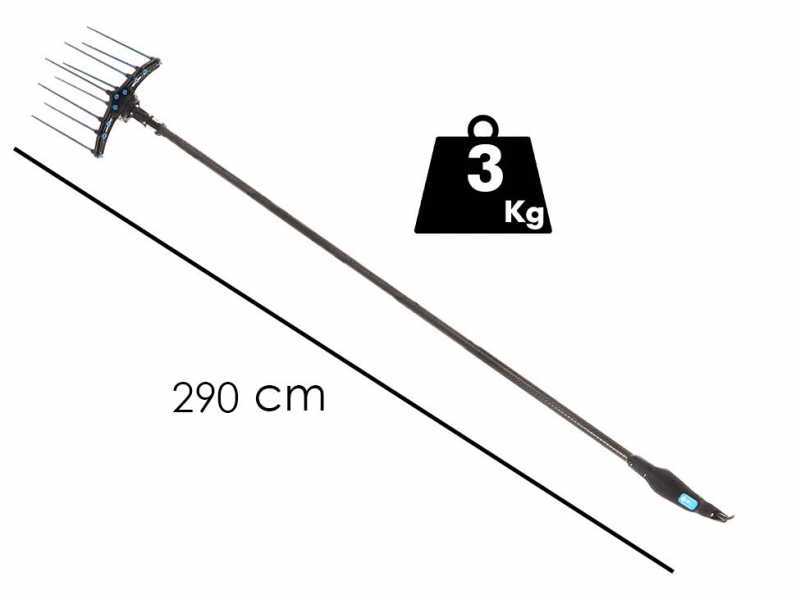

Product dimensions in cm (L x W x H):
290x34
Net weight:
3 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
49 x 31 x 18 cm
Gross weight (packaging included) :
5.7 Kg
Assembly time:
5 minutes
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 25/02/2025 - 27/02/2025
Suggested price:
€ 1.067,24
€ 990,66
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

Main Features

HERCULES is the olive harvester that Campagnola has intended for a professional use on larger plants or thick foliage.

This olive harvester is ranked at the top of Campagnola's range of electromechanical harvesters for its harvesting capacity in lowland or hillside cultivation.

Designed to adapt to any work situation, it guarantees the best results with utmost respect for the integrity of the plant and the fruit.

This amazing line features a professional induction motor, compatible with all 58 line products.

With this product, Campagnola wanted to implement a couple of improvements such as no switches but only touch buttons, while the fittings are no longer screwed but interlocking.

Major advantages of this olive harvester:

  • 230 cm fixed carbon pole
  • Double possibility of use thanks to the two sets of prongs provided: techno polymer prongs (with flexible prongs so as not to damage the plant) and carbon (with sturdy tines for a more incisive action)
  • Dual speed operation
  • Motor placed at the end of the pole for better balance
  • Powerful 550W brushless induction motor
  • Tear-proof cable grip
  • Low absorption and great lightness

The head is entirely made of carbon-filled techno polymer to ensure absolute lightness.

The Campagnola HERCULES is the battery-powered harvester with one of the highest hourly harvesting rates.

In this configuration, the harvester is supplied with a 230 cm fixed carbon pole.

230 cm Fixed Carbon Pole

The most important features to consider when choosing a carbon pole instead of an aluminium one are:

  • Higher sturdiness;
  • More rigidity, thus higher control;
  • It weighs 300 grams less than its aluminium counterpart;

New fixed pole (longer than previous models), extra light and entirely made of CARBON.

  • Fixed rotating carbon pole length: 230 cm

The pole at such length is always the ideal configuration of this harvester, precisely because it mounts the motor at the bottom of the pole.

Perfect for use with shorter olive trees, we recommend to grip the pole from the middle to maintain a weight balance of 50%-50% (see diagram above) making its operation even more comfortable.

The rotating pole for electrical equipment is 100% made of Carbon, thus resulting robust and extremely light.

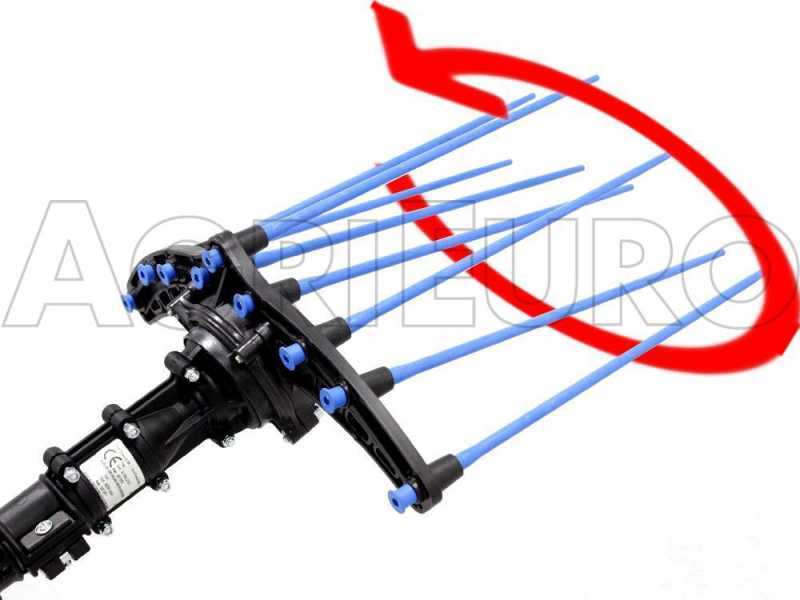

Lightweight Head

The head of this harvester only consists of the transmission and the prongs support.

The engine is placed at the bottom of the pole for better weight balance.

The harvester comes with 2 sets of prongs:

  • Set including nine 35 cm long prongs made of carbon (30 cm effective)
  • Set including nine 31 cm long prongs made of highly flexible polymer (25 cm effective)

The choice of these 2 different types of prongs ensures top performance and versatility among Campagnola harvesters in terms of harvesting and reaching into the plant foliage.

The transmission allows the single support, on which the prongs are fitted, to perform short lateral elliptical oscillations (both left and right from the initial position), very fast (1080-1140 rpm thanks to the possibility of selecting 2 speeds of action).

The advantages of this technique are: a reduced number of vibrations and the olive detaching itself at a vertical angle to the ground.

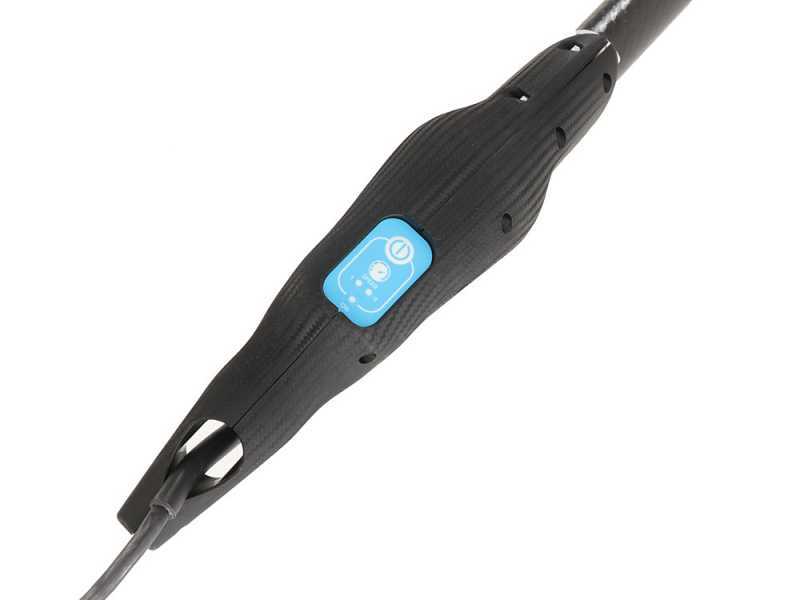

The Engine at the Bottom of the Pole

The engine at the end of the pole gives this olive harvester exceptional balancing, which translates into less fatigue during use.
However, 90% of harvesters on the market today still feature the motor at the head: which is an easier and more affordable solution that makes the harvester extremely unbalanced and very tiring to use.

It should not be forgotten that most of the time the harvester is gripped at the bottom of the pole, and if the weight is concentrated all over it, it becomes very heavy to handle and certainly impossible to use for a whole day.

When choosing an olive harvester, it is a mistake to consider only the total weight when assessing user comfort

The user comfort is given not by the total weight but from balancing weights, and then by mounting the engine at the bottom of the pole

Very powerful 550 watt 2-speed brushless induction motor

* All the olive harvesters on the market are powered by a 100–300 watts motors

It generates, despite the large rake size, 1080 strokes per minute on first speed and up to 1150 strokes per minute on fastest mode.

Support base with cable grommet. Provides full protection of the extension cable and the motor connection socket. Both in the working phase, when the cable is constantly being pulled, and in the other phase, when the machine is resting vertically on the ground.

Free items & Standard equipment

Standard Equipment

The machine is shipped in 2 packages

HIGHLY-PROFESSIONAL, exceptionally robust 13 m long connection cable with battery terminal clamps

Nine 31 cm long prongs made of techno polymer

Nine 35 cm long prongs made of carbon

Campagnola fleece

230 cm fixed pole

Instruction manual

WARNING

Electric battery not included
