BlackStone SBC 24-10 - Silenced Electric Air Compressor

Questions & Answers (5)
ID: K601541

EAN: 9999991089235

MPN: SBC 24-10

8,9/10
After-sales assistance & Spare parts
BlackStone SBC 24-10 - Silenced Electric Air Compressor
+800 sold
Free gifts from AgriEuro
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
24 L
Max. operating pressure
8 bar
Air intake flow
165 L/min
Cylinder head rpm
1440 RPM
Lubrication
Oil-less
Pump type
Single-stage
Silenced
Yes
Nominal power
1 HP
Operating mode
Single-phase 230 V
Product Features
Model:
SBC 24-10
Air compressor type 2:
Oilless
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Max. operating pressure:
8 bar
Number of tanks:
1
Air compressor tank:
24 L
Noise level:
79 dBA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
1 HP
Silenced:
Yes
Power supply:
220 V electric
Tank capacity:
24 L
Manufacturing country:
China
Pump data
Pump brand:
Blackstone
Model:
SBC 24-10
Air intake flow:
165 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
1
Cooling manifold:
No
Manufacturing country:
China
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
1440 RPM
Equipment
No. of outlet couplings:
1
Front handle:
Yes
Rear wheels size:
190mm
Rubber-coated soft grip:
Yes
Folding/removable handle/s:
No
Lifting handle:
Yes
Battery position:
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Quick reduction coupling:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
57x35x58cm
Net weight:
20 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
57x31x62,5cm
Weight including packaging:
22 Kg
Assembly time:
5 minutes
Out of stock
Free Shipping
Suggested price:
€ 230,78
€ 173,09
Vat included

You're viewing:
Customers also viewed:
Description

BlackStone SBC 24-10 Silenced Electric Air Compressor

The Blackstone SBC 24-10 belongs to the "silenced" range. These models have been designed to reduce noise emissions to a minimum, providing the user with greater comfort during operation.

Compact design: it measures 57x35x58 cm and weights only 20 kg

Suitable for professional use:

  • Air blowing
  • Inflation
  • Air brushing
  • Nailing - Stapling
  • Spraying treatments
  • Painting

Thanks to the handle and the comfortable and durable wheels, the air compressor can be easily transported anywhere.

It features a power supply of 750Wis capable of reaching a maximum pressure of 8 bar . The air compressor features a compressed air suction capacity of165 L/min.

The low noise emissions are only 79 dB, thanks to the innovative enclosed pump that provides safety without compromising usability.

Furthermore, this air compressor operates without oil, thus ensuring simple and limited maintenance without further waste.

Sturdy steel tank, with a capacity of up to 24 L

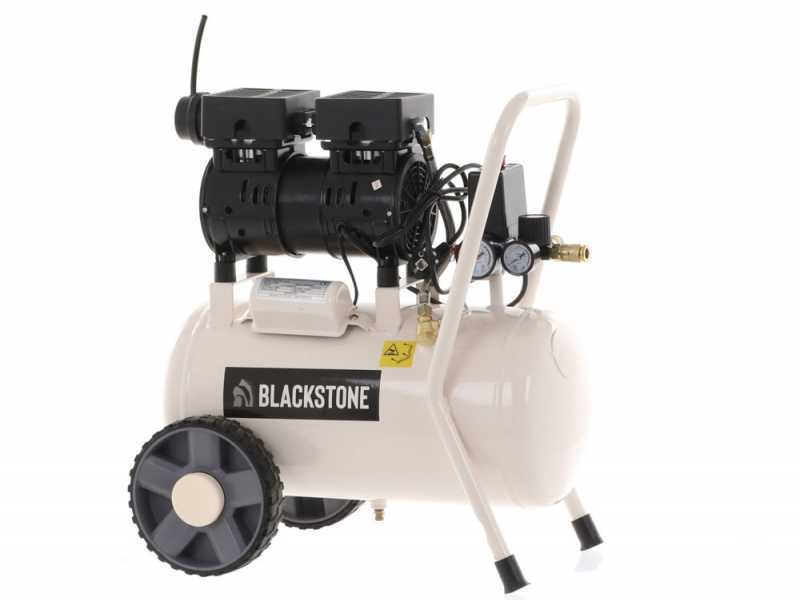

Technical features

The brand new Blackstone SBC 24-10 air compressor comes with many features:

Pumping unit type: Oilless

Air intake flow: 165 L/min

Pressure: 8 bar

Tank: 24 L

Power: 750 W

SILENCED: only 79 dB. Designed to overcome the issue related to the noise emissions while operated in working areas. This range of air compressors stands out on the market for the low noise level.


Overall dimensions:
- Length: 57 cm

- Width: 35 cm

- Height: 58 cm

Weight: 20 kg

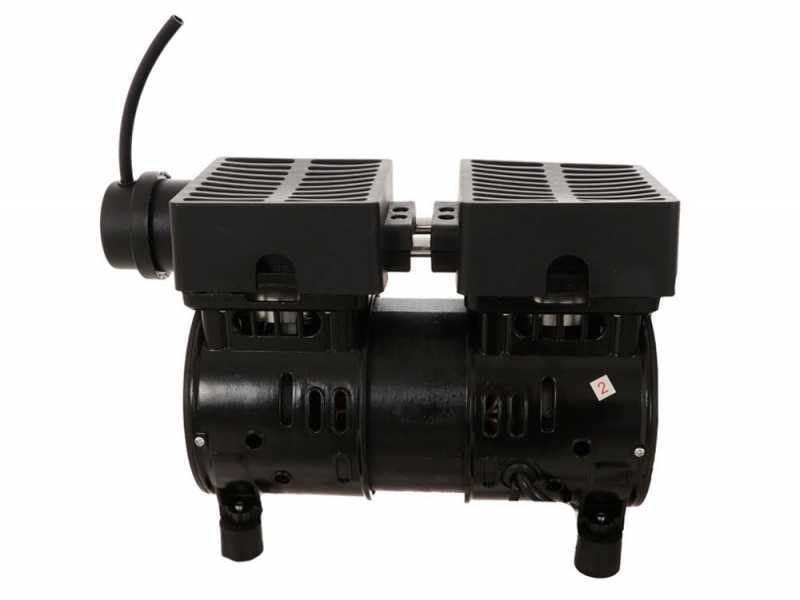

1 Hp single-phase electric induction motor

Power supply: 230 V

Power: 1 Hp

The induction motor is characterised by a very long service life and low need for maintenance.

This motor is in fact brushless, the brushes being the main component subject to wear in electric motors. The absence of this component grants high durability to the motor.

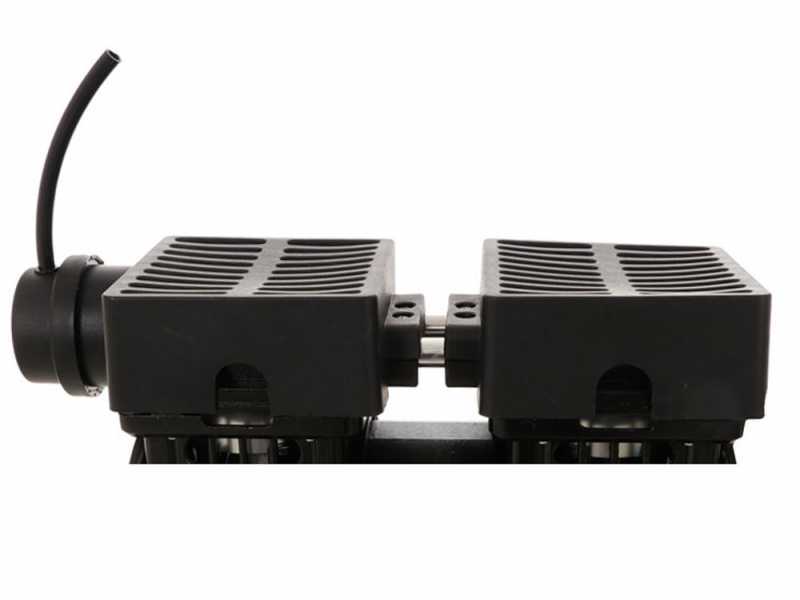

Cylinder head

Air intake flow: 165 L/min
Cylinder head type: single-cylinder with cast iron cylinder
Suction type: single stage
Lubrication: oilless
No. of revolutions: 1440 rpm


The degree of professionalism and more generally the life of the air compressor is largely determined by the number of revolutions per minute of the cylinder head.

The lower the rpm, the longer the life of the air compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are fitted to the motor and to the cylinder head respectively.

Controls and other features

The air compressor features easy and user-friendly controls, which are divided into:

Power switch

Output air pressure gauge and tank air pressure gauge

Air compressor female outlet fittings

Pressure adjusting knob

Anti-vibration rubber pads which give greater stability to the air compressor during use

Comfortable and resistant wheels, to transport the air compressor anywhere

Practical caps to be placed at the ends of the wheels

Free items & Standard equipment

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
