BlackStone SBC 09-07 - Silenced Electric Air Compressor

Questions & Answers (5)
ID: K601527

EAN: 9999991089228

MPN: SBC 09-07

8,9/10
After-sales assistance & Spare parts
BlackStone SBC 09-07 - Silenced Electric Air Compressor
+700 sold
FREE
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
8 L
Max. operating pressure
8 bar
Air intake flow
100 L/min
Cylinder head rpm
1440 RPM
Lubrication
Oil-less
Pump type
Single-stage
Silenced
Yes
Nominal power
0.73 HP
Operating mode
Single-phase 230 V
Nominal power (W)
550 W
Product Features
Model:
SBC 09-07
Air compressor type 2:
Oilless
Air compressor type:
Portable
Handheld:
Operating mode:
Single-phase 230 V
Max. operating pressure:
8 bar
Number of tanks:
1
Tank capacity:
8 L
Air compressor tank:
8 L
Noise level:
79 dBA LwA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
0.73 HP
Nominal power (W):
550 W
Silenced:
Yes
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump brand:
Blackstone
Model:
SBC 09-07
Air intake flow:
100 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
1
Cooling manifold:
No
Manufacturing country:
China
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
1440 RPM
Equipment
Anti-vibrating system:
Yes
No. of outlet couplings:
1
Rubber-coated soft grip:
Yes
Lifting handle:
Yes
Battery position:
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
45x17x56cm
Net weight:
14.3 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
51x22,5x52cm
Weight including packaging:
16 Kg
Assembly time:
5 minutes
Prompt Delivery
82 items in stock
Free Shipping
Estimated delivery: 22/05/2025 - 26/05/2025
Suggested price:
€ 146,42
€ 140,56
Vat included

You're viewing:
Customers also viewed:
Description

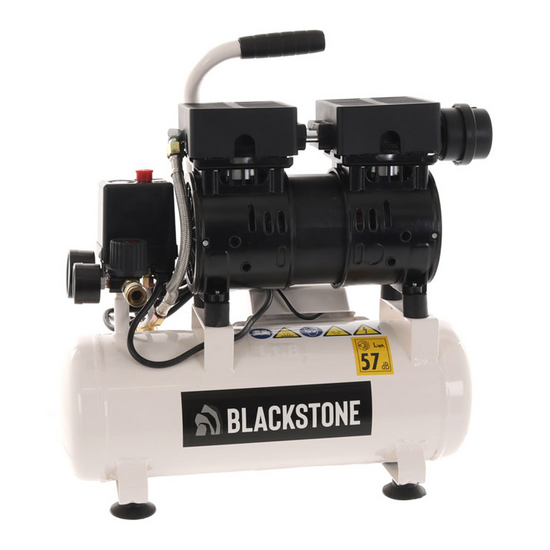

BlackStone SBC 09-07 Silenced Electric Air Compressor

The Blackstone SBC 09-07 establishes itself as an excellent choice for do-it-yourself enthusiast, being a portable compressor with low noise and comfortable handling for performing small household jobs.

This compressor is distinguished by its low maintenance, as it operates without the use of oil, thus excluding the need for periodic checks or topping up of this fluid.

Its ease of transport is one of its main qualities, and the absence of oil eliminates the risk of spillage, ensuring that there are no leaks even when the compressor is stored in a horizontal position, a can happen in the luggage compartment of a car.

The compressor tank, with a capacity of 8 litres, contributes to its portability and versatility, allowing it to be used even in confined or difficult-to-access spaces.

With a low weight of 14.5 kg, the compressor is extremely manageable, making it ideal for household needs.

Its noise emission of 59 dBA contributes to a quieter working environment.

The 0.7 HP electric engine that drives it allows the compressor to have an air intake capacity of 100 litres per minute and a maximum pressure of 8 bar.

This model is part of the Blackstone series of compressors that promote low noise and oil-free operation.

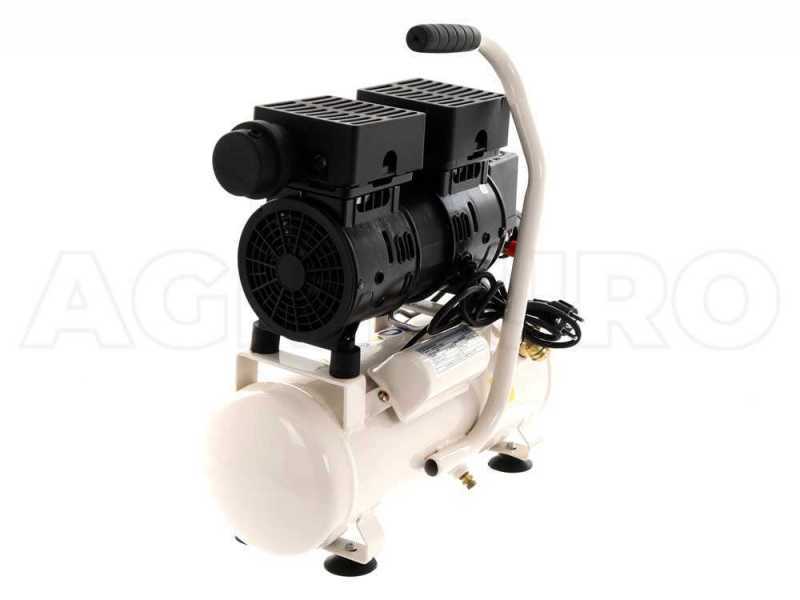

Technical features

Pumping type: Coaxial

Air intake flow: 100 L/min

Pressure: 8 bar

Tank: 8 L

The sound level can be measured in both dBA and Lwa. In detail:

Sound emission: 59 dBA

Sound emission in LwA: 79 dB

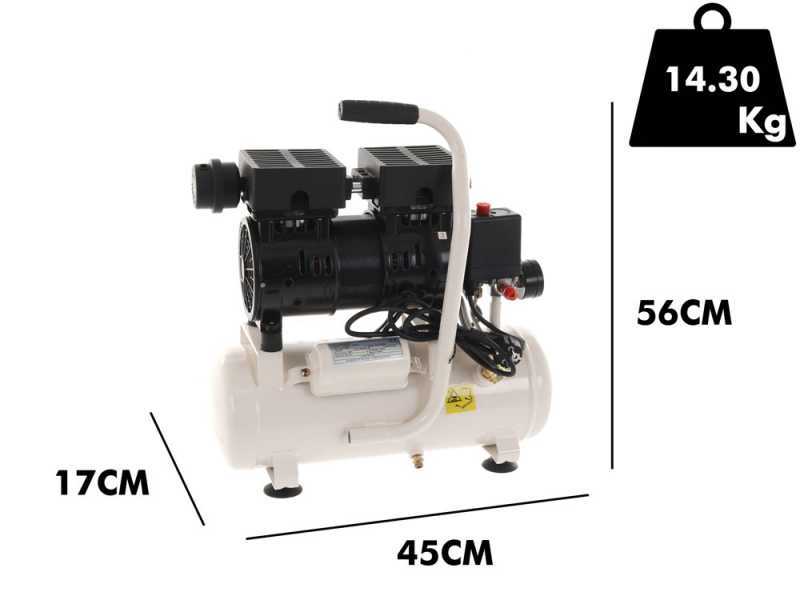

Overall dimensions:
- Length: 45 cm

- Height: 56 cm

- Depth (or thickness): 17 cm

-Weight: 14.5 kg

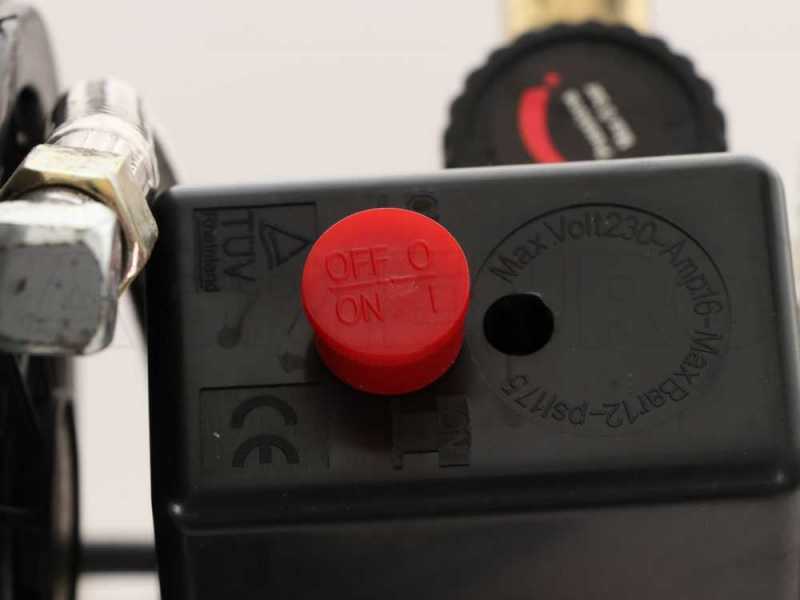

Controls

Controls

The controls of the Blackstone compressor are really simple and intuitive, they are divided into:

Pressure Gauge

Main switch

Compressor outlet female connection

Central pressure adjustment knob

Other features

Air intake flow: 100 L/min
Cylinder head type:single-cylinder with cast iron cylinder
Suction type:single stage
Lubrication: Oilless
No. of revolutions: 1440 rpm

Ergonomic lifting handle

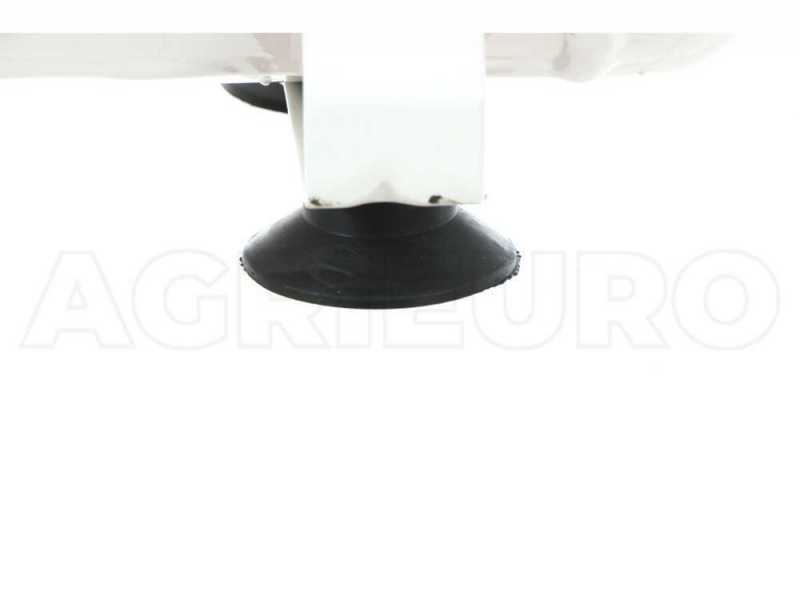

Anti-vibration rubbers


The degree of professionalism and more generally the life of the air compressor is largely determined by the number of revolutions per minute of the cylinder head.

The lower the rpm, the longer the life of the air compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are fitted to the motor and to the cylinder head respectively.

Free items & Standard equipment

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
