Name: BlackStone B-LBC 100-30 - Electric Belt-driven Air Compressor - 3 Hp Motor - 100 L
Brand: BlackStone
SKU: K603056
Price: 445.08 EUR
Availability: OutOfStock
Rating: 4.65 (54 reviews)

Description

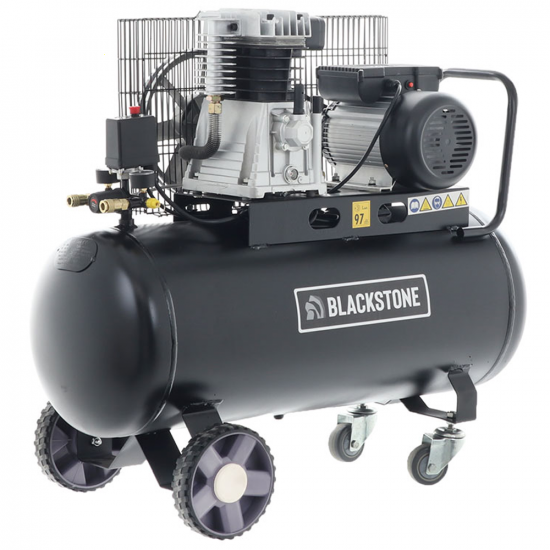

Blackstone B-LBC 100-30 Belt-driven Air Compressor

The Blackstone B-LBC 100-30 air compressor is equipped with a large 100 L compressed air storage tank.

The compressor weights approximately 55 Kg, but has both rear wheels and a pivoting front wheel that allows to easily transport it without lifting it. There is also an upper handle that further facilitates transportation.

Powered by a 3 Hp electric motor, this air compressor features a compressed air suction capacity of 250 L/min. It is capable of reaching a maximum pressure of 10 bar.

It comes with a large compressed air storage tank of 100 L.

BlackStone B-LBC 100-30 - Electric Belt-driven Air Compressor - 3 Hp Motor - 100 L

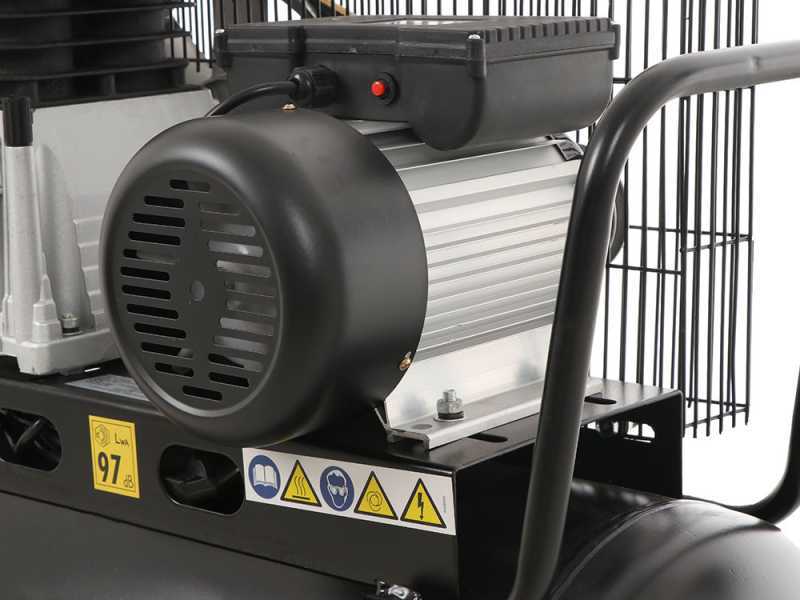

3 Hp induction electric motor

Power supply: 230 V

Power: 3 Hp

The motor is characterised by a very long service life and low need for maintenance.

This motor is in fact brushless, the brushes being the main component subject to wear in electric motors. The absence of this component grants high durability to the motor.

It is a top product in terms of reliability, low noise, durability, energy efficiency and maintenance.

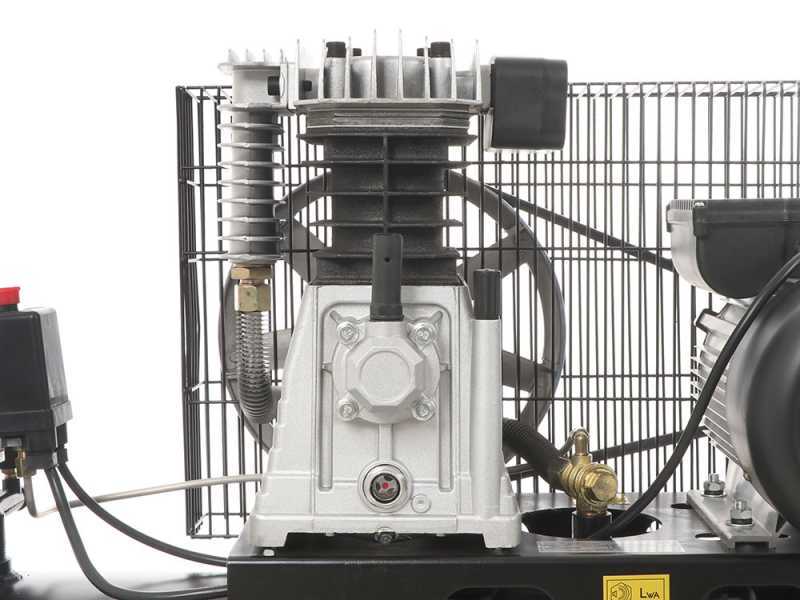

Cylinder head

Air intake flow: 250 L/min
Cylinder head type: twin-cylinder with cast iron cylinders
Suction type: single-stage
Lubrication: oil
No. of revolutions: 950 rpm

Equipped with air cooling side manifold (only available on very few air compressors on the market).
The output air will have a lower temperature.

The degree of professionalism and more generally the life of the air compressor is largely determined by the number of revolutions per minute of the cylinder head.

The lower the rpm, the longer the life of the air compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are fitted to the motor and to the cylinder head respectively.

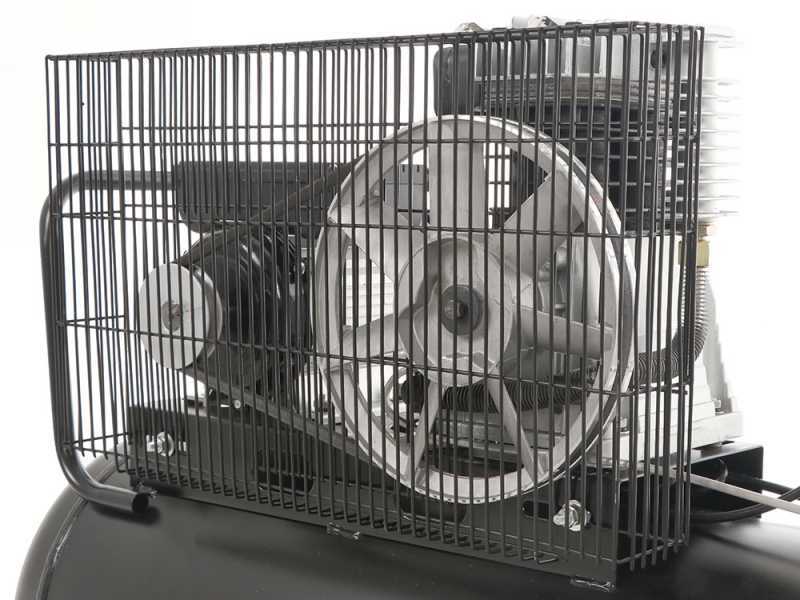

Belt drive

These Blackstone air compressors feature a belt drive.

The use of the belt, combined with an induction motor, contributes to the durability of this air compressor, drastically reducing the number of revolutions of the cylinder head, increasing its life and reducing wear.

The grid protection serves to prevent the drive belt and the transmission from being damaged by external objects that might hit it during operation. It also allows the status of the drive belt to be continuously checked.

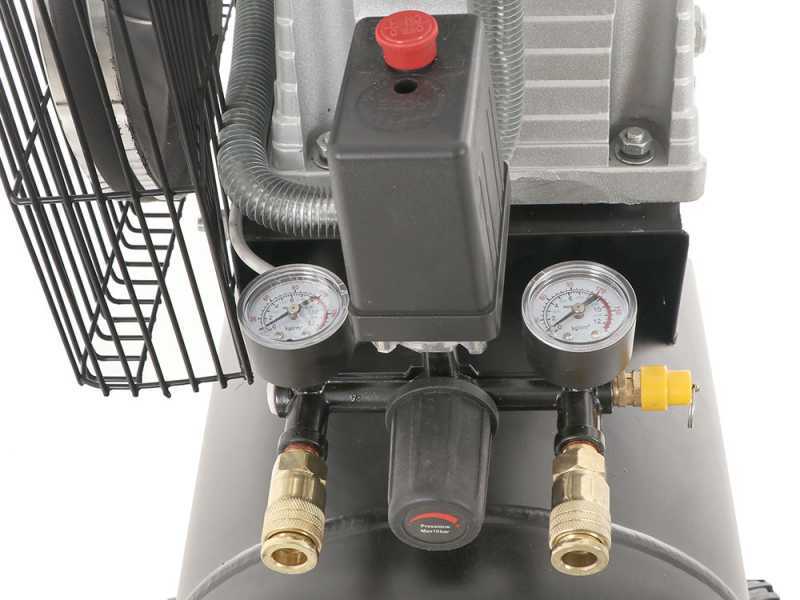

Controls

100 L large tank.

Maximum pressure: 10 bar

The air compressor is equipped with an output air pressure adjusting knob which can be checked by means of a pressure gauge.

It includes a single on and off button, a safety valve, that activates in case of excessive pressure in the tank, and a tank air pressure gauge.

Equipped with two pressure gauges:
-tank pressure gauge
-output pressure gauge adjusted by a regulator

Equipped with two female output quick joints as standard

Other features

Dimensions (L x W x H): 100x45x88 cm

Weight: 55 kg

Equipped with a sturdy front handle for easy grip.

Robust rear wheels.

Double front pivoting wheel

Focus on the oil tank cap

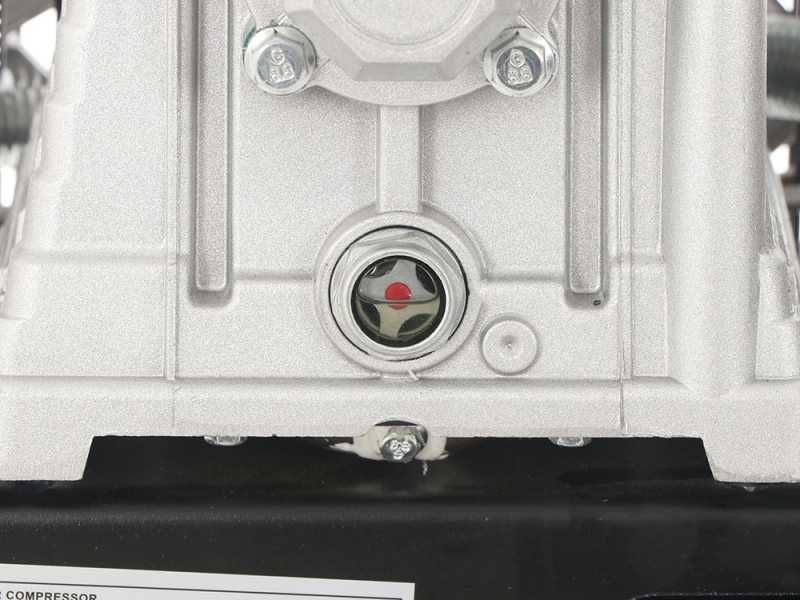

Porthole for oil level control

Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

Air compressor spare/replacing female output joint
Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint
Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.
Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)
Repair/Junction fitting for Ø 8 hoses

Repair/Junction fitting for Ø 10 hoses

Lower tank discharge valve replacement air compressor

Teflon roll, ideal for the main maintenance operations

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
