BlackStone CSB150E-L - Petrol shredder - Loncin 15 HP petrol engine - Electric start

The Blackstone CSB150E-L shredder is suitable for reducing brush and twigs to a size that is easy to handle and suitable for composting. Shredding the material also reduces the time it takes to decompose.

This is a petrol-powered shredder that delivers good results in terms of cutting, speed and reliability.

The Blackstone CSB150E-L petrol-powered shredder is equipped with a double hopper.

The main hopper is primarily intended for bulky branches, as well as general green material or small twigs.

Main hopper branch inlet dimensions: 18.5x15.5 cm.

It is large and can accommodate high volumes and quantities of material at the same time.

Machine equipped with electric start with key.

The secondary hopper of the Blackstone CSB150E-L shredder can only be used with branches up to a maximum diameter of 102 mm.

The Blackstone CSB150E-L shredder is equipped with a 420cc, 13 BHP Loncin combustion engine. The cutting mechanism is equipped with 2 blades, 10 hammers and 10 knives.

The structure of the machine is made entirely of steel, with the exception of the tool box that comes with the shredder.

2 blades + 10 knives - 10 hammers

We do not recommend shredding grass and leaves alone, i.e. without twigs, as this shredder is not self-feeding.

Please note: Like all shredders and wood chippers, it is not suitable for shredding grass, leaves, pine needles, etc. (it is designed to shred branches, but can also shred leaves, needles and other vegetation that may be attached to them).

Main requirements for use for all shredders on the market:
The shredder must shred branches that have been recently cut from the tree and are not dry (dry branches would limit its shredding capacity and cause rapid deterioration of the blades).
- Branches should preferably be long, regular in shape and not knotty (otherwise the cutting diameter is reduced).
The stated cutting diameter is the maximum, so it represents the exception rather than the rule in use. In this case, consider purchasing a shredder with a larger cutting diameter;
- The cutting diameter may vary depending on the consistency of the wood (for example, oak, olive, plum and peach are very hard woods and can reduce the cutting capacity of shredders).

Features:

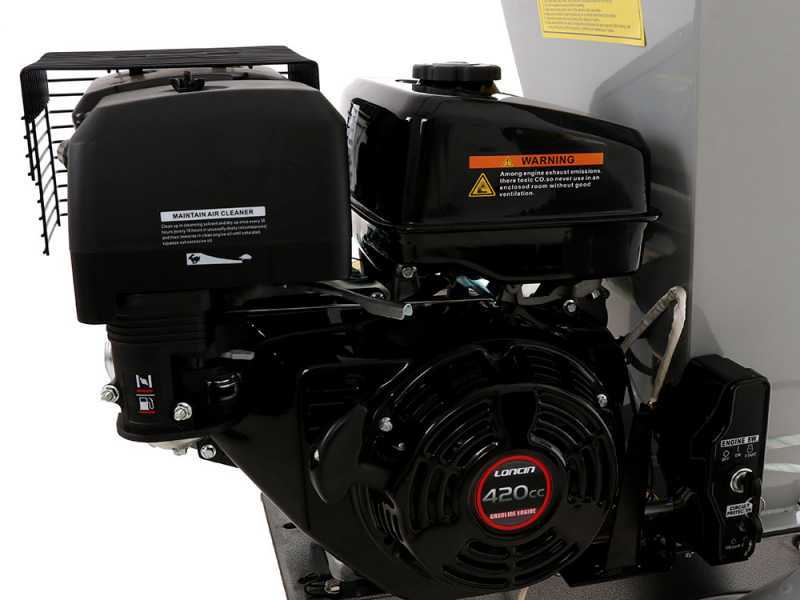

Latest generation 4-stroke petrol engine with overhead valves (OHV).

Nominal power: 15 hp
The most correct term would be "commercial" power, meaning the classic standard definition of power officially used until a few years ago by all the best-known engine manufacturers.

* This figure is still the most widely used and advertised in the main commercial sales channels, even though it is higher than the actual power.

Actual Power: 13 HP
This corresponds to the real power expressed at the crankshaft. It is the figure indicated as official in the manual or in the technical data provided by the engine manufacturer.

Electric start with key

The engine is SUPPLIED WITHOUT OIL.
Before starting it, read the instruction manual carefully.

The machine is equipped with a centrifugal clutch and, for correct use, the engine must always run at high speeds.

Unique in its category with intermediate belt drive.

This gives the machine exceptional sturdiness, protecting both the engine and the entire grinding mechanism from any type of internal impact or kickback.

Much longer life than traditional systems still used by all manufacturers with combustion engines directly connected to the shredding apparatus.

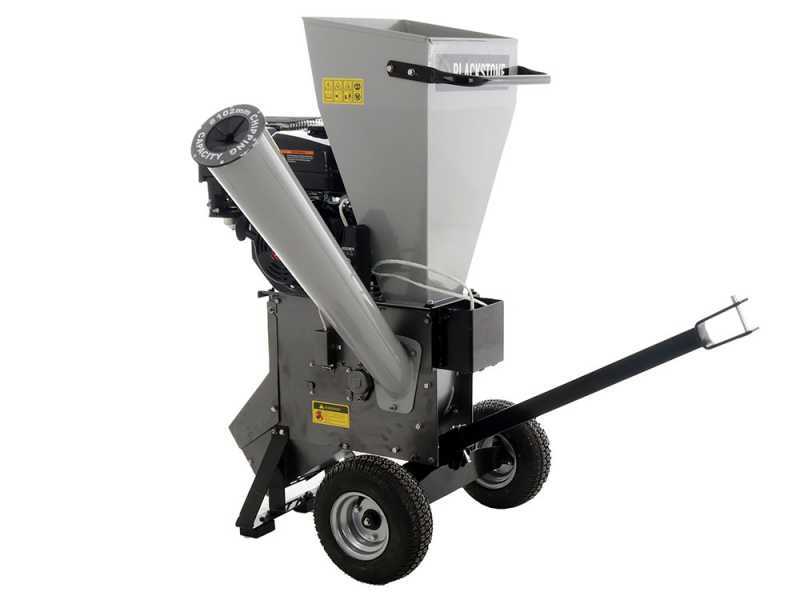

The shredder is equipped with a double hopper system.

The specific hopper for branches, which has a larger diameter, allows branches up to 10.2 cm in diameter to be shredded.

The hopper specifically designed for branches has been made considerably safer thanks to its increased length, which keeps the operator further away from the machine's sharp blades.

Main hopper branch inlet dimensions: 18.5x15.5 cm

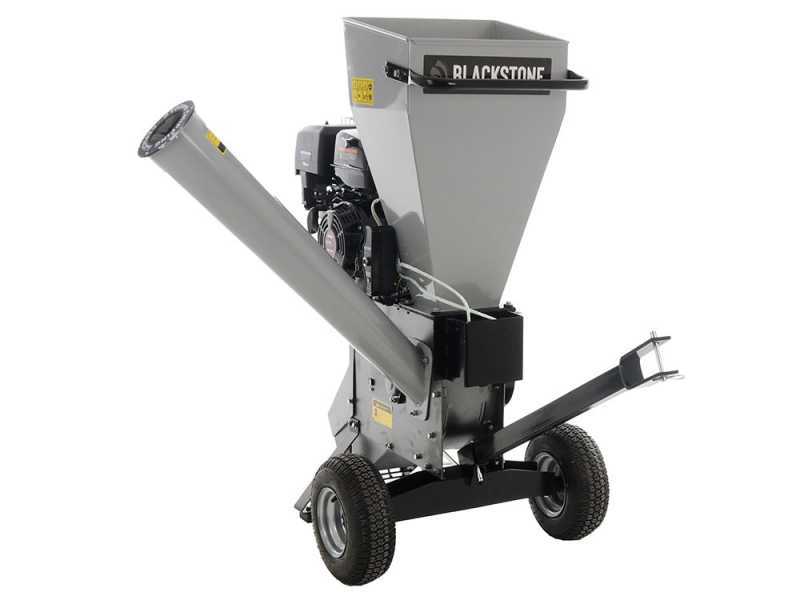

Exceptional cutting mechanism, highly effective and productive: 2 cutting blades + 10 hammers + 10 knives

2 large, thickcutting blades mounted on a rotating steel disc. These perform pre-shredding, cutting the material in the hopper into larger fragments

10 high-speed rotatingtriangular hammers made of hardened steel. These perform a centrifugal operation, shredding the material into smaller fragments.

10 high-speed rotatingrectangular knives made of hardened steel. These perform a centrifugal operation on the material already cut by the two blades, shredding the material into small fragments.

Equipped with a sieve that retains the material until it has been finely ground.

The protective grid prevents access to the inside of the machine and can be easily removed for cleaning and maintenance.

One of the few machines with an outlet equipped with a grid, which ensures that fragments are only ejected when perfectly shredded by the hammers.

Practical handle for moving the shredder

Generously sized pneumatic wheels.

New reinforced base with anti-vibration and anti-slip rubber pads.

Safety system.

Towing hook.

Battery for electric start.
