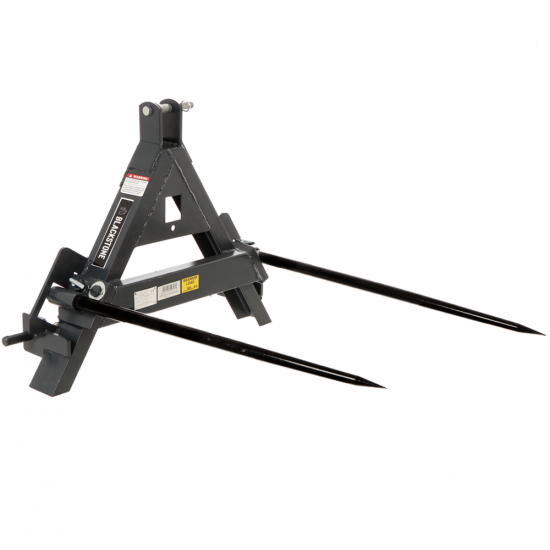

The BlackStone B-BF 1100 tractor loader is a useful forklift for lifting and transporting bales, round bales and hay bales.
Thanks to a simple system of lifting and locking the tips, it is possible to close the fork as to guarantee safe transport according to the Directive in force.

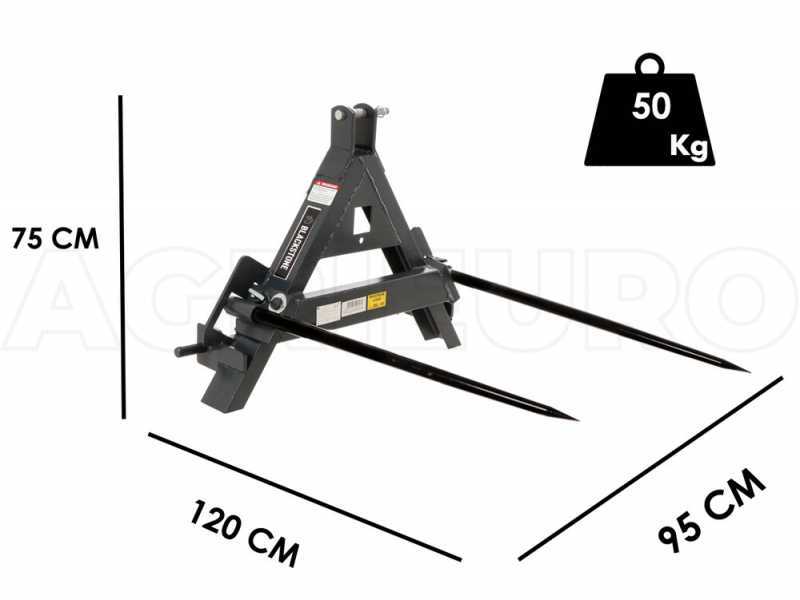

The length of the side forks is 100 cm
The distance between the two forks is 70 cm
The fork length is 95 cm
The machine weighs approx. 50 Kg

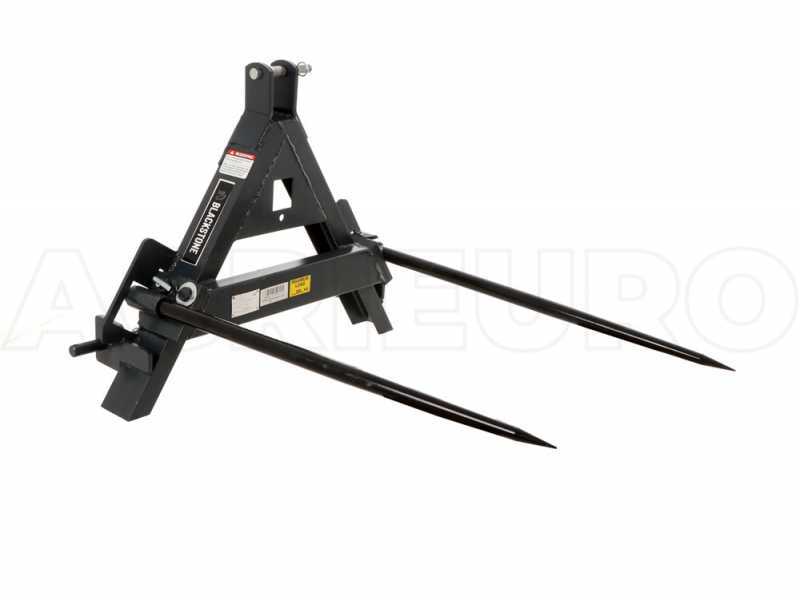

The B-BF 1100 loading forklift is equipped with a tractor three-point hitch.
The closing system of the forks is managed by a simple blocking rotation system by means of a pin, which blocks one of the forks. It is this proper fork to consequently fix the second one in its closed position.
Although its reduced weight, the forklift features a sturdy construction, which guarantees greater reliability and long-lasting durability.
The maximum loading capacity is 800 Kg with a tractor speed that must not exceed 20 Km/H.
Considering the tractor three-point hitch, the first hitch has a width of 59 mm with a pin diameter of 25 mm, while the pin diameter of the second and third hitches is 28 mm.

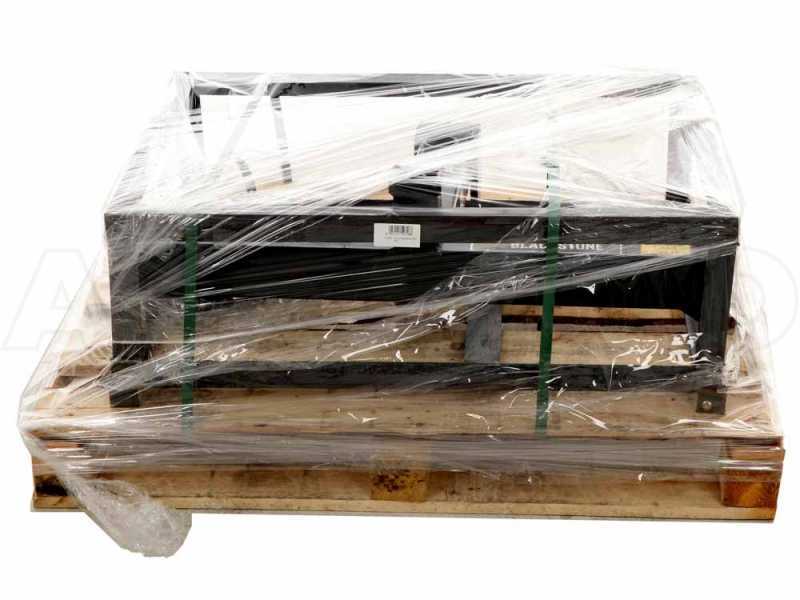

The machine is shipped on a pallet.
Extremely easy and quick assembly. Thus, the machinery comes complete with instructions manual.
