AgriEuro Tractor 680 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning

Questions & Answers (1)
ID: 101456

MPN: 141795320

9,0/10
After-sales assistance & Spare parts

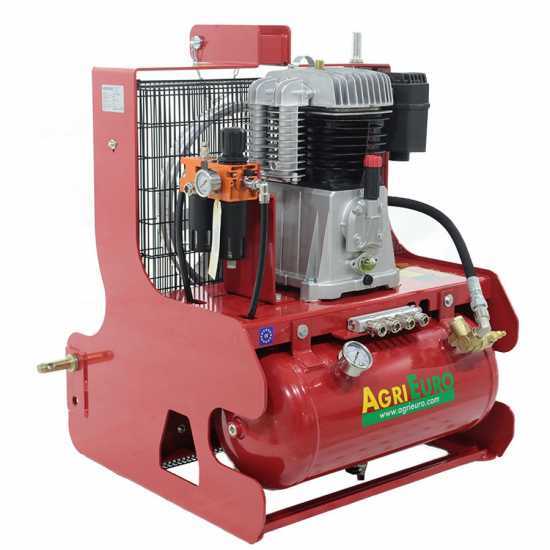

AgriEuro Tractor 680 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning
Max. operating pressure
11 bar
Air compressor tank
25 L
Cylinder head brand
Nuair
Air intake flow
680 L/min
Pump type
Single-stage
Cylinder head rpm
1350 RPM
Tractor power
20 to 30 HP
Operable harvester
Up to 3
Manufacturing country
Italy
Product Features
Model:
Tractor 680
Tractor power:
20 to 30 HP
Operating mode:
Tractor-driven PTO
Max. operating pressure:
11 bar
Number of tanks:
1
Air compressor tank:
25 L
Operable harvester:
Up to 3
Quantity of powered shears:
Up to 6
Quantity of powered chainsaws:
Up to 2
Power absorption:
20 Hp
Manufacturing country:
Italy
Pump data
Pump brand:
Nuair
Cylinder head brand:
Nuair
Model:
NB5
Air intake flow:
680 L/min
Pump type:
Single-stage
No. of cylinder heads:
1
No. of cylinders:
2
Cooling manifold :
Yes (2 manifolds)
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Transmission protective cover:
Metal grid
Cylinder head rpm:
1350 RPM
Pulleys material:
Aluminium
Equipment
No. of outlet couplings:
4
Hose reel support/s:
Yes
Pressure regulator with condensate filter:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
71 x 69 x 89 cm
Net weight:
108 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
71 x 70 x 89 cm
Gross weight (packaging included) :
128 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 25/06/2024 - 27/06/2024
€ 1.717,65
VAT Included
You're viewing:
Customers also viewed:
Description

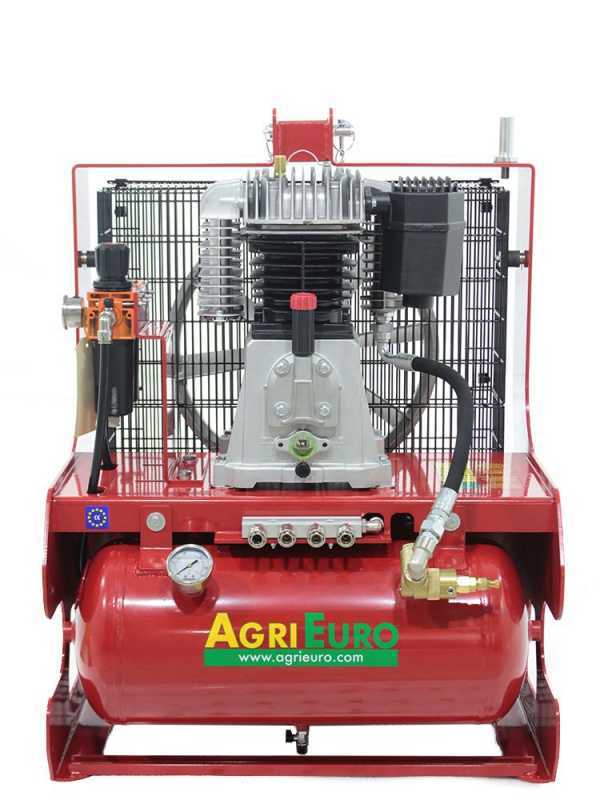

AgriEuro Tractor 680 PTO Driven Air Compressor

The AgriEuro Tractor 680 PTO driven air compressor is a professional product intended for use in combination with a tractor equipped with a power take-off, to simultaneously power different compressed air equipment.

The large heavy-duty twin-cylinder head allows for an air output capacity of 680 L/min at 11 bar, this allows to operate up to

6 pruning loppers

3 olive harvesters

2 Pruners

Characterized by a sturdy top-quality construction, it boasts a supporting frame in high-strength reinforced steel. Crushproof supporting structure made entirely of heavy-thickness steel

MADE IN ITALY product.

Low-rpm operation for greater fuel economy

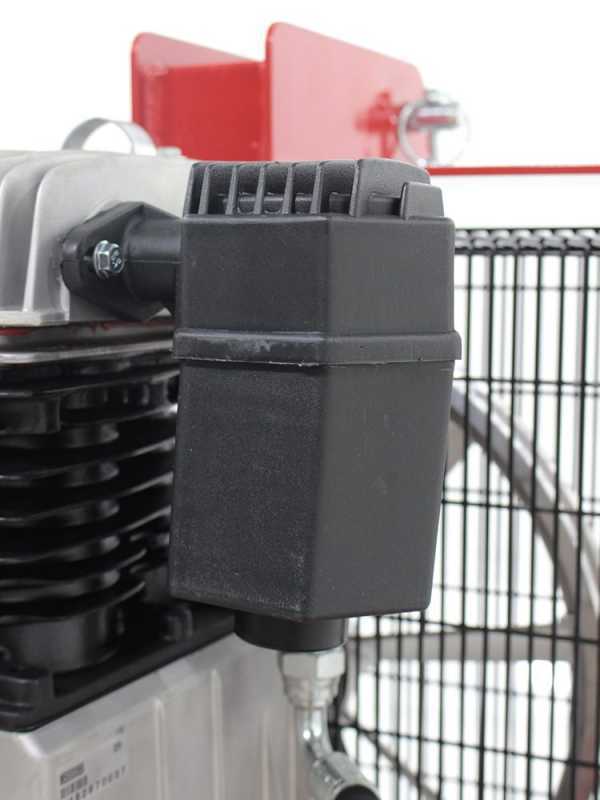

Professional twin-cylinder head

The large 680 L/min twin-cylinder head with cast iron cylinder guarantees machine durability. High air output: 680 litres/min, enough to guarantee the operation of 3 olive harvesters, more than 6 pruning shears, 2 pruning saws.

Detail of the porthole for oil level control

Detail of the cooling manifold

Attention: do not exceed 325 rpm of the PTO.

Main features

AIR OUTLET SYSTEM:

a) heavy-duty pressure regulator MADE IN ITALY with condensate separation filter entirely made in aluminium with glycerine pressure gauge

b) heavy-duty aluminium lubricator MADE IN ITALY

c) first outlet with female quick joint, suitable for all the non-agricultural uses, which normally do not require oil to be sprayed into the air via the lubricator (almost no compressor on the market has this additional outlet) d) air shut-off valve for maintenance operations (such as introducing oil into the lubricator) e) NO. 04 quick output joints

25 L tank

No load operating system and maximum pressure control by means of a professional pilot check valve

Other features

PTO pulley and large-sized cooling fan made of alloy.

Support for hose reel as standard second hole for setting up a second hose reel.

Three-point-hitch for tractor

Free items & Standard equipment

Free items included

The PTO-driven air compressor is shipped in its original packaging on pallet

Instructions manual included
