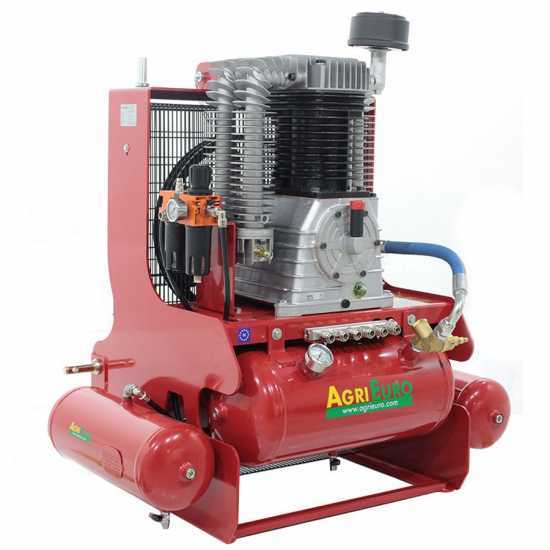

AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning

Description

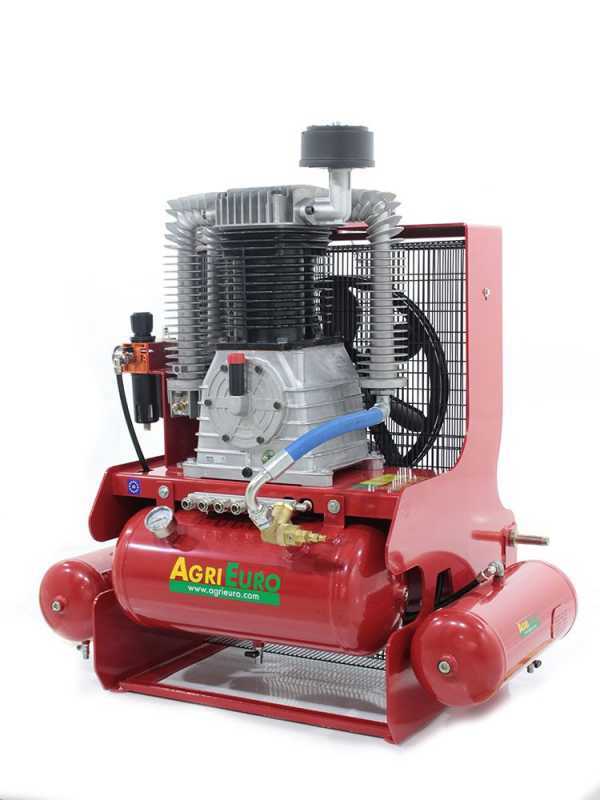

AgriEuro Tractor 1600 PTO Driven Air Compressor

The AgriEuro Tractor 1600 PTO driven air compressor is a professional product intended for use in combination with a tractor equipped with a power take-off, to simultaneously power different compressed air equipment.

PTO driven air compressor equipped with 3 tanks.

The large heavy-duty twin-cylinder head allows for an air output capacity of 1600 L/min at 11 bar, this allows to operate up to

15 pruning loppers

7 olive harvesters

3 Pruners

Characterized by a sturdy top-quality construction, it boasts a supporting frame of high-strength reinforced steel. Crushproof supporting structure made entirely of heavy-thickness steel

Low-rpm operation for greater fuel economy

MADE IN ITALY product

AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning

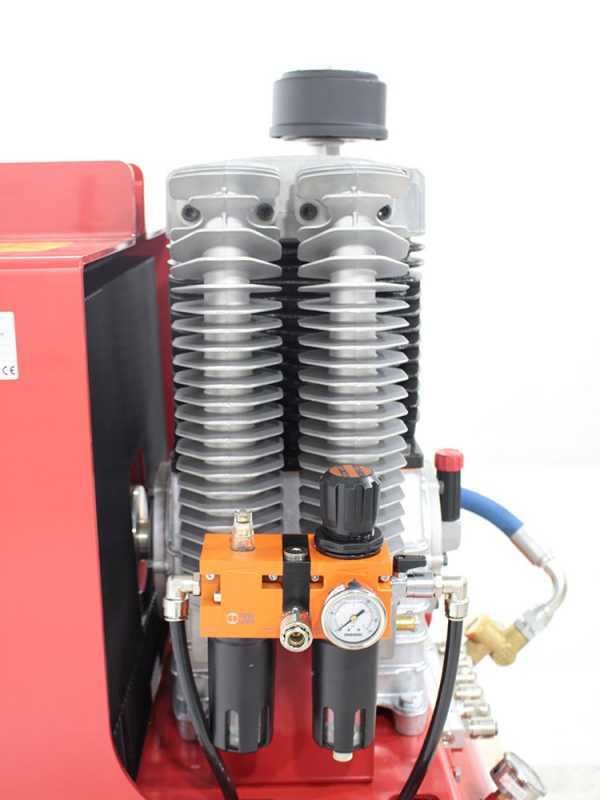

Professional twin-cylinder head

The large 1600 L/min twin-cylinder head with cast iron cylinder guarantees a long service life. High air output: 1600 L/min, enough to guarantee the operation of 7 olive harvesters, more than 15 pruning shears, 3 pruning saws.

Detail of the porthole for oil level control

Detail of the side cooling manifolds

Attention: do not exceed 325 rpm of the PTO.

Main features

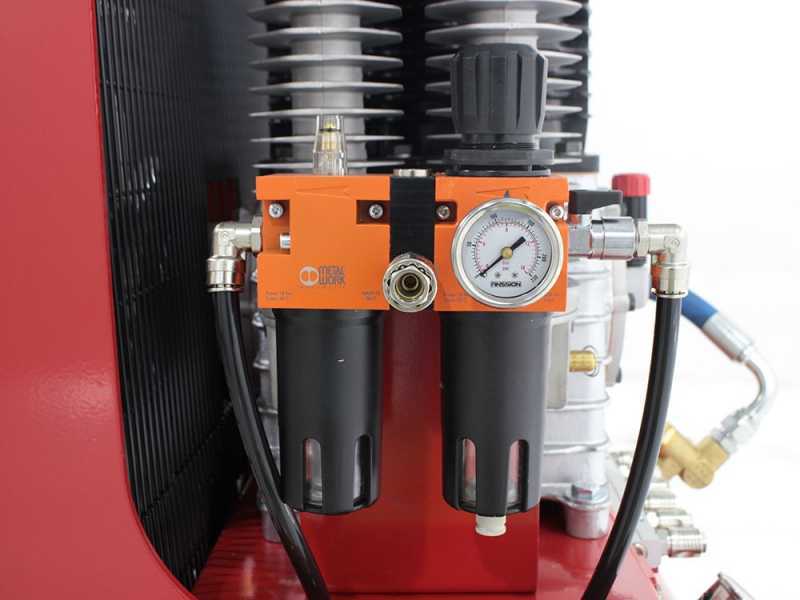

AIR OUTLET SYSTEM:

a) heavy-duty pressure regulator MADE IN ITALY with condensate separation filter entirely made in aluminium with glycerine pressure gauge

b) heavy-duty aluminium lubricator MADE IN ITALY

c) first outlet with female quick joint, suitable for all the non-agricultural uses, which normally do not require oil to be sprayed into the air via the lubricator (almost no compressor on the market has this additional outlet)

25 L tank

Detail of one of the two 10-litre tanks

No load operating system and maximum pressure control by means of a professional pilot check valve
