AgriEuro Top-Line RAPTOR 6800 YEDH Tracked Power Barrow - Yanmar L100E - with Loading Bucket

Add a question
ID: K605784

EAN: 8052532841332

MPN: H680HT-L100-E Diesel + pala

9,0/10
After-sales assistance & Spare parts
AgriEuro Top-Line RAPTOR 6800 YEDH Tracked Power Barrow - Yanmar L100E - with Loading Bucket
Load capacity
700 Kg
Barrow body type
Dumper
Box
Metal
Body tipping
Hydraulic
Max. slope
30 %
Type
Tracked
Starting mode
Electric
Motor brand
Yanmar
Motor Model
L100E
Motor type
Diesel
Nominal power
10 HP
Gear shifting system
Hydrostatic
Gears
Unlimited
Throttle lever
Yes
Assisted steering
Yes
Tilting track
Operator platform
Manufacturing country
Italy
Product Features
Model:
RAPTOR 6800 YEDH
Type :
Tracked
Operating mode:
Spark ignition
Self-propelling:
Yes
Load capacity:
700 Kg
Max. slope:
30 %
Load capacity on slopes:
500 kg
Barrow body type:
Dumper
Dumper body:
Body tipping:
Hydraulic
Starting mode:
Electric
Box:
Metal
Manufacturing country:
Italy
Motor data
Motor brand:
Yanmar
Motor Model:
L100E
Motor type:
Diesel
Nominal power:
10 HP
Fuel:
Diesel
Tank capacity:
10 L
Manufacturing country:
Japan
Transmission data
Gear shifting system:
Hydrostatic
Gearbox:
Hydraulic
Throttle lever:
Yes
No. of forward speeds:
Unlimited
Gears:
Unlimited
Forward speed:
2,5 - 3,5 Km/h
Operating mode:
Control levers
Equipment
Hydraulic piston:
Yes
Tubular extension sides:
No
Box:
Dumper
Hydraulic tipping kit:
Yes
Loading Shovel:
Operator platform:
Assisted steering:
Yes
Tilting track:
Track width:
200 mm
Total rollers no.:
4
Electric start with key :
Yes
Led Spotlight:
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
160x140x80 cm
Net weight:
625 Kg
Packaging:
On pallet
Assembly time:
5 minutes
Yanmar L100E - Diesel - Electric start
>
High-tip Skip
>
Standard Model
>
Loading Bucket
>
10 - 12 days from purchase
Free Shipping
€ 14.858,71
VAT Included
You're viewing:
Customers also viewed:
Description

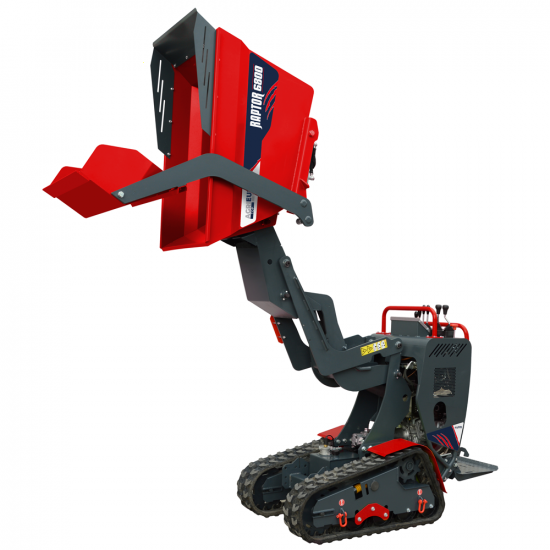

AgriEuro Top-Line RAPTOR 6800 YEDH power barrow - with loading bucket

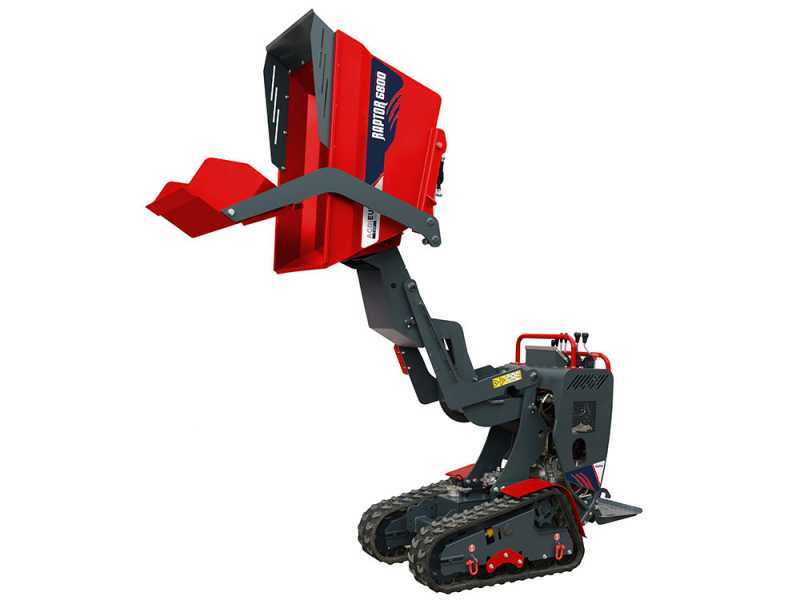

The AgriEuro Top-Line RAPTOR 6800 YEDH tracked power barrow is equipped with a hydraulic dumper body featuring high-tip skip and a powerful Yanmar L100E diesel engine with electric start.

EQUIPPED WITH LOADING BUCKET.

Advice on how to use the front lifting shovel:

  • The front shovel should only be used for loading loose material onto the power barrow.
  • It is not suited for use as a shovel for levelling the soil; there are dedicated attachments specifically designed for said purpose called ‘front blades’.

When moving the power barrow forward, the shovel must be raised and not forced into the ground (this could damage the pistons, joints, supports and other components).

The diesel-powered engine is capable of reaching a power of 10 Hp.

The power barrow is equipped with hydrostatic transmission, which allows changing the operating speed even while moving without having to stop.

  • Up to a maximum of 700 Kg on flat ground.
  • Up to a maximum of 500 Kg on soils featuring a maximum slope of 30%, which makes it an indispensable tool for each type of transport.

The hydraulic system for lifting the dumper body of which this wheelbarrow is equipped with, facilitates at the maximum each working stage, eliminating the effort to raise the truck once loaded. Thanks to the self-propulsion on tracks and to the powerful HONDA engine, this power barrow is intended for carrying loads.

The controls are easy and intuitive, equipped with levers, designed for controlling the barrow, tracks and the forward speed.

The frame of the machine is designed and manufactured to make it light and sturdy.

One of the main features of this power barrow are its tracks (featuring 2 tilting rollers), which guarantee stability and safety when using the machine even with heavy loads and slopes that standard wheelbarrows are not able to handle.

Warning: these machines are tested by the producer before being shipped. Therefore, the engine is already filled with oil at level and with a minimum amount of fuel in the tank. Gearbox oil already at level.

Remember that it is always a good idea to:
1) check the engine oil level
2) put oil in the filter because it is not present (in case of filter in oil bath)
3) carefully read the instructions manual before carrying out any oil check and topping up operation (the manufacturer can modify the supply modalities specified in the two upper points without any prior notice).

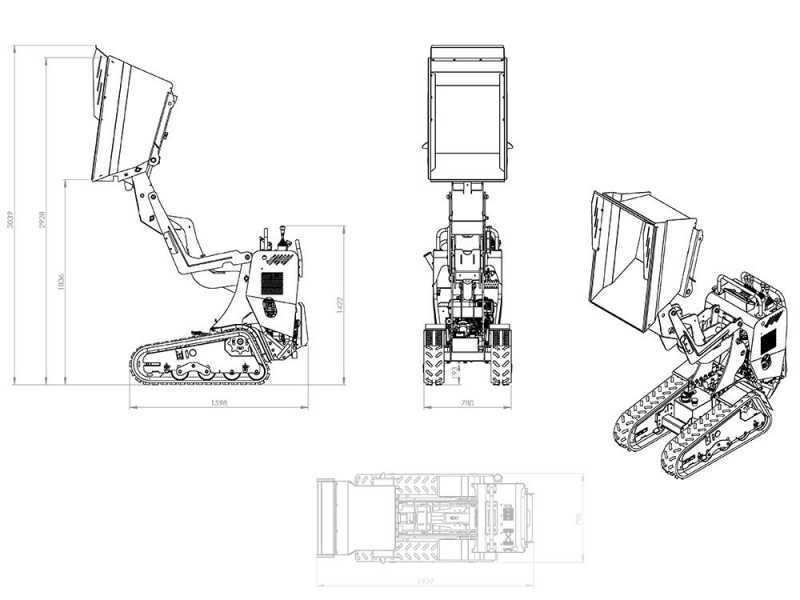

Technical features

These power barrows are equipped with a very high active safety system. Indeed the machine is provided with 2 OverCenter valves flanged directly to the engine that immobilise the machine when stationary on uneven terrain and prevent the machine from gaining speed downhill.

The track is designed to provide the machine a low centre of gravity so that it is stable on all types of terrain. It is made of carbon steel at least 5 mm thick. The height from the ground (16 cm) has been increased to allow overcoming obstacles on uneven terrain.

Here follow the main features of the machine:

  • Engine model: Yanmar L100E
  • Nominal power: 10 Hp
  • Fuel tank capacity: 10 L Diesel
  • Activation: electric
  • Tip skip type: high
  • Transmission: hydrostatic
  • Driving speed: 2 speeds - 2.5 Km/h - 3.5 Km/h
  • Hydraulic motors: 200 cc orbital
  • Hydraulic pumps type: triple gear
  • Pump flow rate: 12+9+9 L/m at 3000 rpm
  • Max. operating pressure: 180/150 bar
  • Hydraulic oil tank capacity: 16 L
  • Max. slope: 30% (17°)
  • Max. load capacity on level/slope ground 700/ 500 Kg
  • Body tipping system: hydraulic
  • Overall size: 160x140x80 cm - 625 Kg + 75 Kg self loading bucket
  • Driving system: standard levers
  • Tracks size: 200 mm width - 72 mm pitch
  • Track rollers: 4, 2 of which tilting

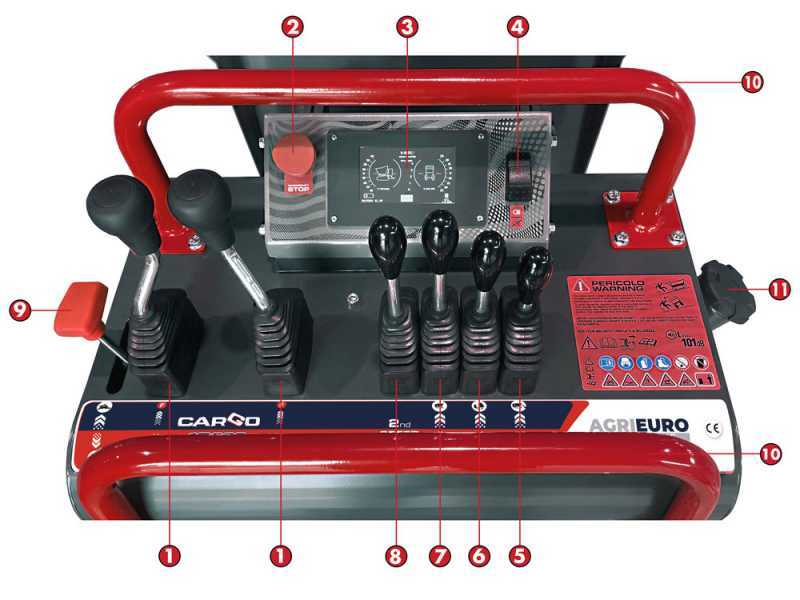

Control panel

The control panel is intuitive and user-friendly. Here follows all its main components:

Among the controls we’ll find:

  1. Operating handles
  2. Safety switch to immediately stop the machine
  3. LCD * display (only on the Industria 4.0 model)
  4. Led lights switch
  5. Loading bucket engagement lever
  6. Lever for tipping the body
  7. Lever for high-tip skip
  8. 2-Speed lever
  9. Engine throttle lever
  10. Support handlebar
  11. 10 L fuel tank
