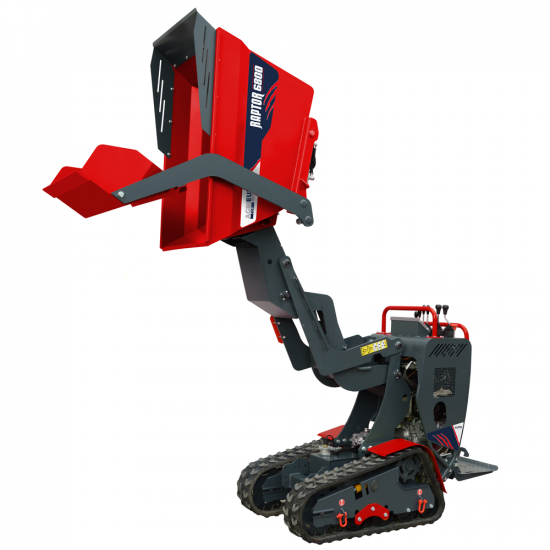

The AgriEuro Top-Line RAPTOR 6800 HEDH tracked power barrow is equipped with a hydraulic dumper body featuring high-tip skip and a powerful Honda GXe270 engine with electric start.
EQUIPPED WITH LOADING BUCKET.
Advice on how to use the front lifting shovel:
- The front shovel should only be used for loading loose material onto the power barrow.
- It is not suited for use as a shovel for levelling the soil; there are dedicated attachments specifically designed for said purpose called ‘front blades’.
When moving the power barrow forward, the shovel must be raised and not forced into the ground (this could damage the pistons, joints, supports and other components).
The engine is capable of reaching a power of 9 Hp.
The power barrow is equipped with hydrostatic transmission, which allows changing the operating speed even while moving without having to stop.
- Up to a maximum of 700 Kg on flat ground.
- Up to a maximum of 500 Kg on soils featuring a maximum slope of 30%, which makes it an indispensable tool for each type of transport.
The hydraulic system for lifting the dumper body of which this wheelbarrow is equipped with, facilitates at the maximum each working stage, eliminating the effort to raise the truck once loaded. Thanks to the self-propulsion on tracks and to the powerful HONDA engine, this power barrow is intended for carrying loads.

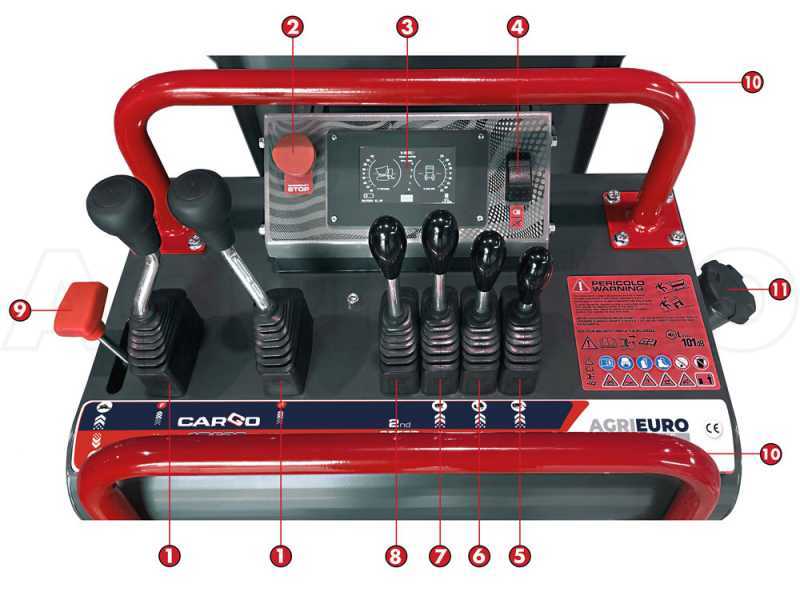

The controls are easy and intuitive, equipped with levers, designed for controlling the barrow, tracks and the forward speed.
The frame of the machine is designed and manufactured to make it light and sturdy.
One of the main features of this power barrow are its tracks (featuring 2 tilting rollers), which guarantee stability and safety when using the machine even with heavy loads and slopes that standard wheelbarrows are not able to handle.
Warning: these machines are tested by the producer before being shipped. Therefore, the engine is already filled with oil at level and with a minimum amount of fuel in the tank. Gearbox oil already at level.
Remember that it is always a good idea to:
1) check the engine oil level
2) put oil in the filter because it is not present (in case of filter in oil bath)
3) carefully read the instructions manual before carrying out any oil check and topping up operation (the manufacturer can modify the supply modalities specified in the two upper points without any prior notice).
