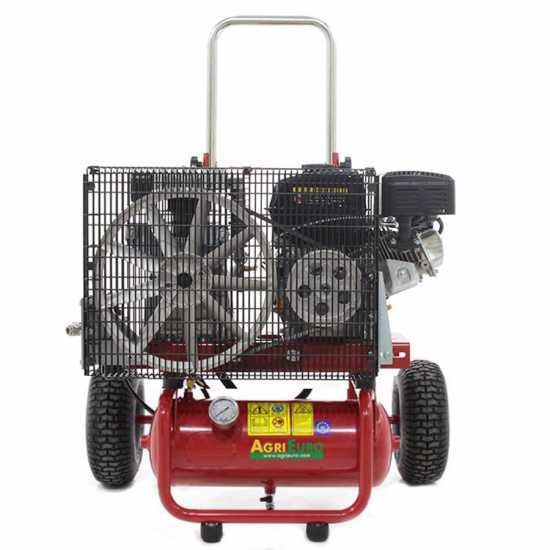

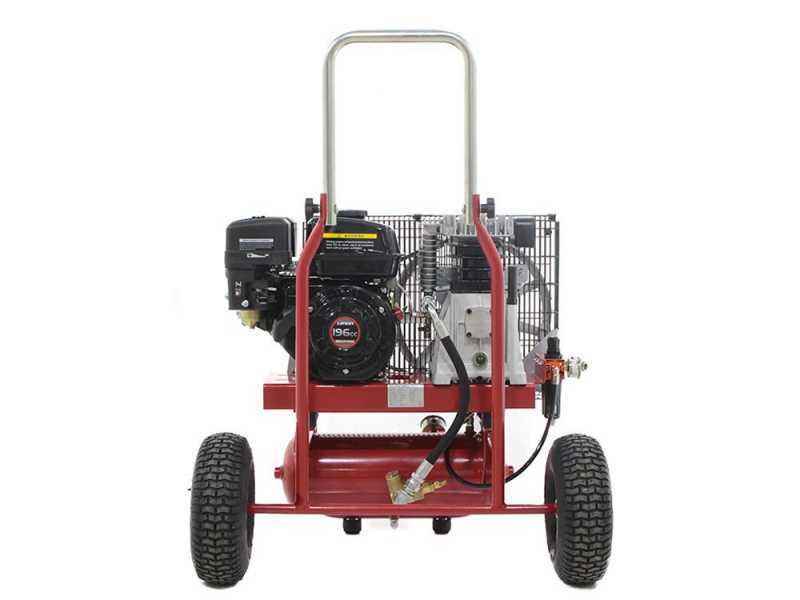

AgriEuro TB 10/520 Petrol Engine-driven Air Compressor - Petrol Air Compressor (520 L/min)

The AgriEuro TB 10/520 is a petrol engine-driven air compressor designed to power and operate pneumatic tools for pruning and harvesting work in the agricultural sector.

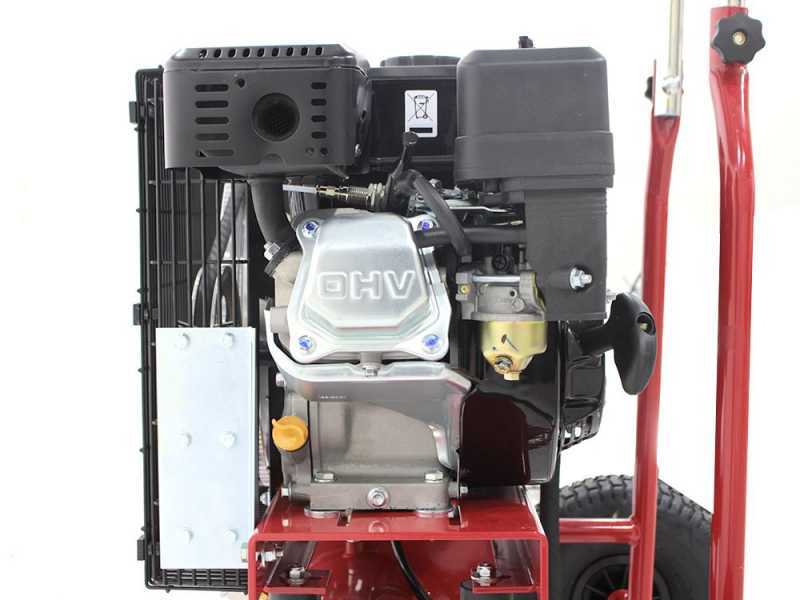

The pumping unit is activated via a Loncin 6.5 HP engine.

The air compressor is mounted on a structure separated from the frame. This model features a 10 L tank.

PORTABLE size:
this petrol engine-driven air compressor takes up very little space, despite its good air output capacity (520 L/min.), which makes it particularly easy to transport.

Equipped with large pneumatic wheels and a comfortable handle to make transport and movement easier during working phases.

This petrol engine-driven air compressor allows the use of 2 olive harvesters at the same time, up to 4 pneumatic pruning shears and a pneumatic chainsaw.

This petrol engine-driven air compressor is equipped with a pneumatic self-regulation device able to bring the engine to operating speed only during the tank refilling time until the maximum pressure is reached.
This system allows a considerable saving on fuel, a reduction in the wear of the mechanical parts and also a decrease in exhaust emissions.

Features:

Engine type: 4-stroke engine

Detail of the recoil start system

Automatic throttle

One of the few machines on the market to be equipped with this device.

Thanks to this smart system, the engine automatically adjust its acceleration level based on the air intake of the equipment used.

When the use of equipment is suspended, the engine will idle and when the equipment is switched on again, the engine will accelerate just enough to guarantee the production of the air necessary for their operation.

ADVANTAGES:
- reduced fuel consumption
- reduced wear on the engine and the air compressor cylinder head. Detail of the connection of the black compressed air hose that feeds the automatic throttle and the valve. When the latter is opened, it deactivates the system, allowing the engine to idle for a few minutes when starting for the first time to warm up.

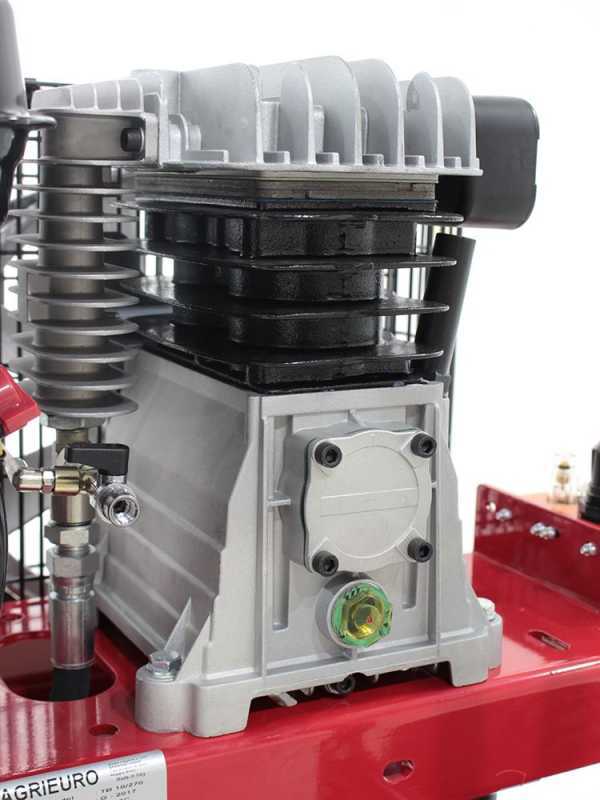

This air compressor mounts a twin-cylinder head with a cast iron cylinder (long life guarantee). Large air intake flow: 520 L/min, enough to guarantee the operation of 2 olive harvesters or 4 pneumatic pruning shears and up to 1 pneumatic chainsaw.

The cylinder head features a side cooling manifold for more effective cooling of the compressed air produced, before it is fed into the tank mounted on the air compressor

oil level indicator in the pumping unit

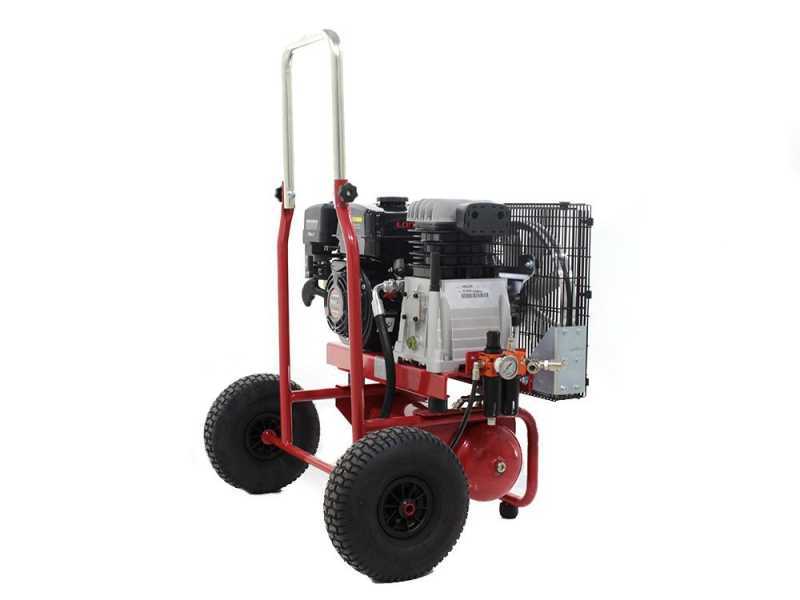

The AgriEuro air compressor features a belt drive.

The use of transmission belt guarantees a very high level of safety, and makes this machine the top of the range. Combined with the petrol engine, the belt drive contributes to the durability of this compressor, drastically reducing the number of revolutions of the cylinder head and reducing wear.

The protective housing is made of metal, very solid and robust, it allows excellent cooling.

Detail of the drive pulley

Detail of the drive belt

This petrol engine-driven air compressor features a 10 L tank.

Maximum pressure: 11 bar

Equipped with glycerine pressure gauge directly connected to the tank.

No load operation system and maximum pressure control by means of a professional MADE IN ITALY pilot check valve

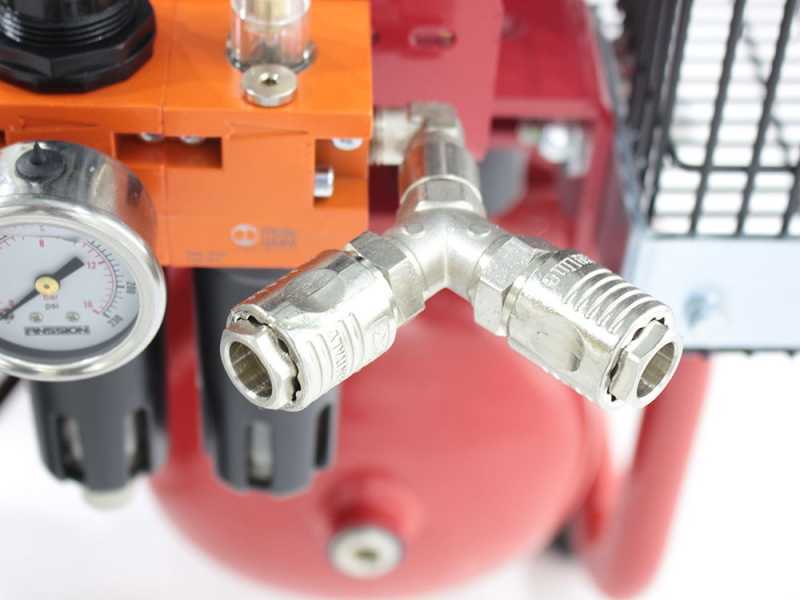

2-outlet air divider that allows to use 2 pneumatic pruning shears at the same time

Also equipped with a pressure regulator which adjusts the air outlet pressure for the operation of the tools, a lubricator, that atomises oil in the outlet air to lubricate tools (adjustable lubrication intensity), and a drain valve which allows the discharge of condensate. These features are all included in the control panel

Dimensions (L x W x H): 90 x 73 x 91 cm (without handle)

Weight: 73 kg

Equipped with foldable handle for comfortable grip and easy storage.

Detail of the folded handle.

The petrol engine-driven air compressor is equipped with a frame isolation system, which helps reducing vibrations and ensures a longer service life of the machine.

Large-sized tractor rear wheels
