AgriEuro TB 10/270 Petrol Engine-driven Air Compressor (270 L/min) with Petrol Engine

Questions & Answers (2)
ID: 101449
9,0/10
After-sales assistance & Spare parts
AgriEuro TB 10/270 Petrol Engine-driven Air Compressor  (270 L/min) with Petrol Engine
Power supply
Petrol
Max. operating pressure
11 bar
Air compressor tank
10 L
Motor brand
Loncin
Motor Model
Series 118
Motor type
4-stroke
Cubic capacity
118 cm³
Nominal power
4 HP
Cylinder head brand
Nuair
Air intake flow
270 L/min
Pump type
Single-stage
Cylinder head rpm
1300 RPM
Automatic throttle
Yes
Operable harvester
1
Manufacturing country
Italy
Product Features
Model:
TB 10/270
Power supply:
Petrol
Transport:
Hand push on cart frame
Operating mode:
Spark ignition
Max. operating pressure:
11 bar
Number of tanks:
1
Air compressor tank:
10 L
Electric start:
No
Operable harvester:
1
Quantity of powered shears:
Up to 2
Quantity of powered chainsaws:
0
Manufacturing country:
Italy
Motor data
Motor brand:
Loncin
Motor Model:
Series 118
Motor type:
4-stroke
Cubic capacity:
118 cm³
No. of cylinders:
1
No. of cylinders:
Single-cylinder
Nominal power:
4 HP
Rated power (HP):
3.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Decompressor with lever
Noise level:
96 dB(A)
Manufacturing country:
China
Pump data
Cylinder head brand:
Nuair
Air intake flow:
270 L/min
Pump type:
Single-stage
No. of cylinder heads:
1
No. of cylinders:
2
Cooling manifold :
Yes
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Transmission protective cover:
Metal grid
Cylinder head rpm:
1300 RPM
Integrated clutch device:
No
Pulleys material:
Aluminium
Equipment
Battery for electric start:
No
Automatic throttle:
Yes
Electric start with key :
No
Recoil start system (with rope):
Yes
No. of outlet couplings:
2
Hose reel support/s:
On request (extra price accessory)
Pressure regulator:
Yes
Pressure regulator with condensate filter:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Double tank:
X
Rear wheels size:
11 x 4.00 - 4
Folding/removable handle/s:
Yes
Lifting handle:
No
Free gifts/extra features
Engine oil bottle for free:
No
Maintenance tool kit:
No
Tool case:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
90 x 73 x 91 cm
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
90 x 73 x 91 cm
Gross weight (packaging included) :
66 Kg
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 26/06/2024 - 28/06/2024
€ 1.036,11
VAT Included
You're viewing:
Customers also viewed:
Description

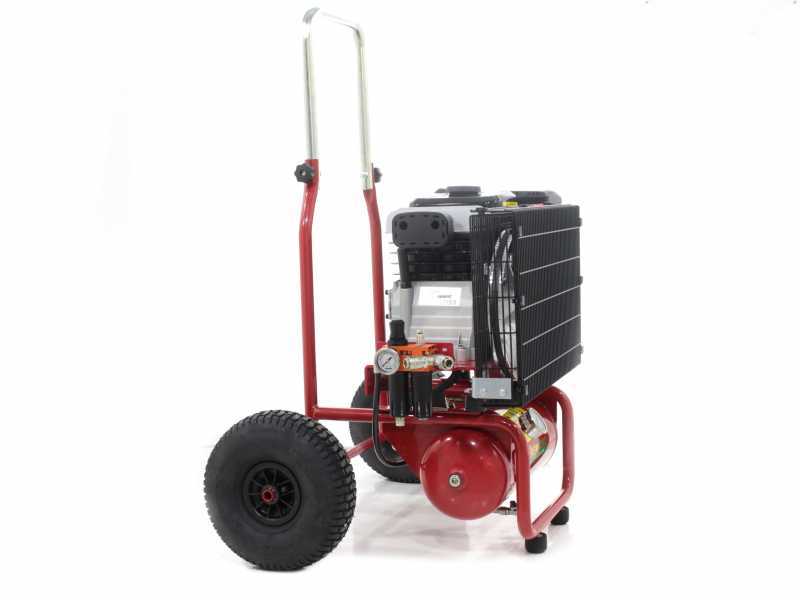

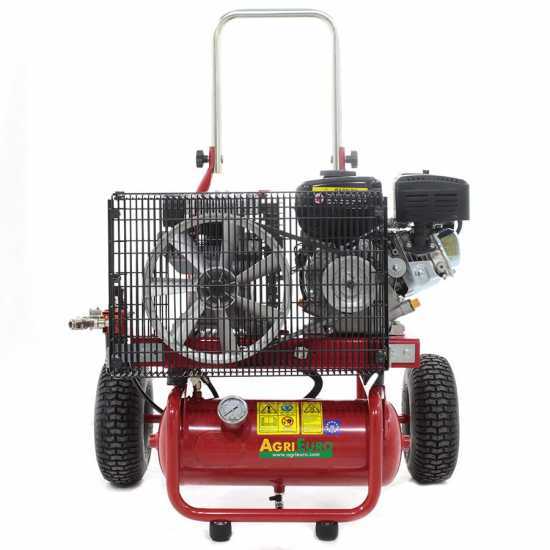

AgriEuro TB 10/270 Petrol Engine-driven Air Compressor with Petrol Engine

The AgriEuro TB 10/270 is a petrol engine-driven air compressor designed to power and operate pneumatic tools for pruning and harvesting work in the agricultural sector.

The pumping unit is activated via a Loncin 4 HP engine

The air compressor is mounted on a structure separated from the frame. This model features a 10 L tank.

PORTABLE design:
this petrol engine-driven air compressor takes up very little space, despite its good air output capacity (270 L/min.), which makes it particularly easy to transport.

Equipped with large pneumatic wheels and a comfortable handle to make transport and movement easier during working phases.

This air compressor supports the use of 1 olive harvester or up to 2 pneumatic pruning shears.

This petrol engine-driven air compressor is equipped with a pneumatic self-regulation device able to bring the engine to operating speed only during the tank refilling time until the maximum pressure is reached.
This system allows a considerable saving on fuel, a reduction in the wear of the mechanical parts and also a decrease in exhaust emissions.

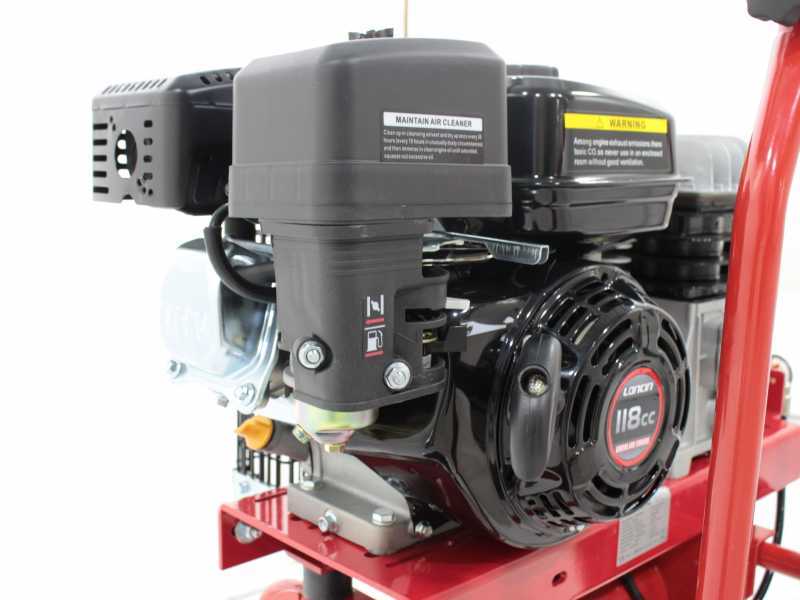

LONCIN 4 HP petrol engine

Features:

Engine type: 4-stroke engine

Power:
4 Hp
Cooling:
Air cooled
Cylinder type:
Aluminium
Cubic capacity:
118 cm³

Detail of the recoil start system

Automatic throttle

One of the few machines on the market to be equipped with this device, thanks to which, the engine automatically adjusts its acceleration level based on the air intake of the equipment used.

When the use of equipment is suspended, the engine will idle and when the equipment is switched on again, the engine will accelerate just enough to guarantee the production of the air necessary for their operation.

ADVANTAGES:
- reduced fuel consumption
- reduced wear on the engine and the air compressor cylinder head. Detail of the connection of the black compressed air hose that feeds the automatic throttle and the valve. When the latter is opened, it deactivates the system, allowing the engine to idle for a few minutes when starting for the first time to warm up.

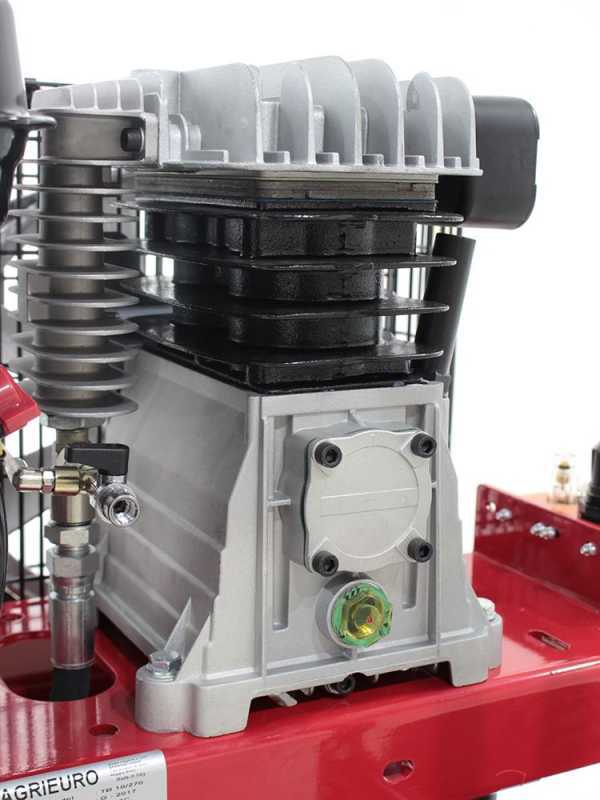

Cylinder head

This air compressor mounts a twin-cylinder head with a cast iron cylinder (long life guarantee). Large air intake flow: 270 L/min, enough to guarantee the operation of 1 olive harvesters or 2 pneumatic pruning shears.

The cylinder head features a side cooling manifold for more effective cooling of the compressed air produced, before it is fed into the tank mounted on the air compressor

oil level indicator in the pumping unit

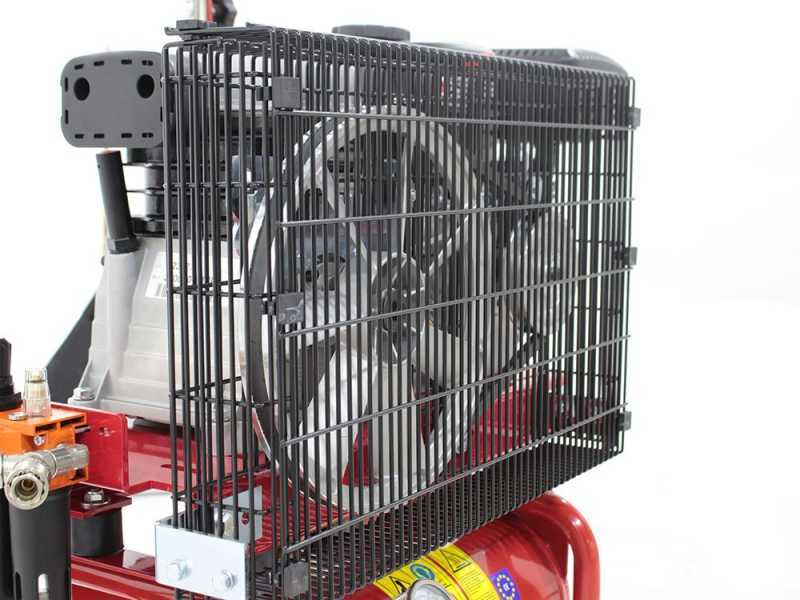

Belt drive

The AgriEuro air compressor features a belt drive.

The use of transmission belt guarantees a very high level of safety, and makes this machine the top of the range. Combined with the petrol engine, the belt drive contributes to the durability of this compressor, drastically reducing the number of revolutions of the cylinder head and reducing wear.

The protective housing is made of metal, very solid and robust, it allows excellent cooling.

Detail of the drive pulley

Detail of the drive belt

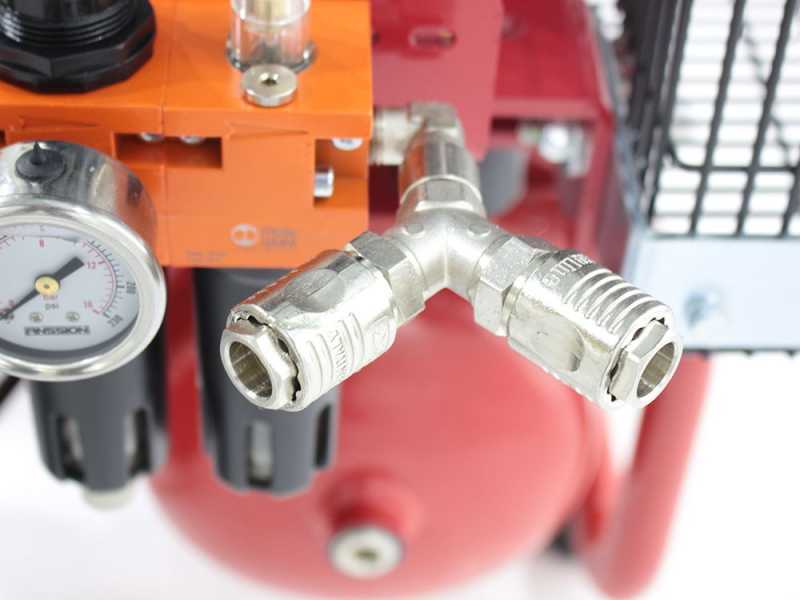

Tank and controls

This petrol engine-driven air compressor features a 10 L tank.

Maximum pressure: 11 bar

Equipped with glycerine pressure gauge directly connected to the tank.

No load operation system and maximum pressure control by means of a professional MADE IN ITALY pilot check valve

2-outlet air divider that allows to use 2 pneumatic pruning shears at the same time

Also equipped with a pressure regulator which adjusts the air outlet pressure for the operation of the tools, a lubricator, that atomises oil in the outlet air to lubricate tools (adjustable lubrication intensity), and a drain valve which allows the discharge of condensate. These features are all included in the control panel

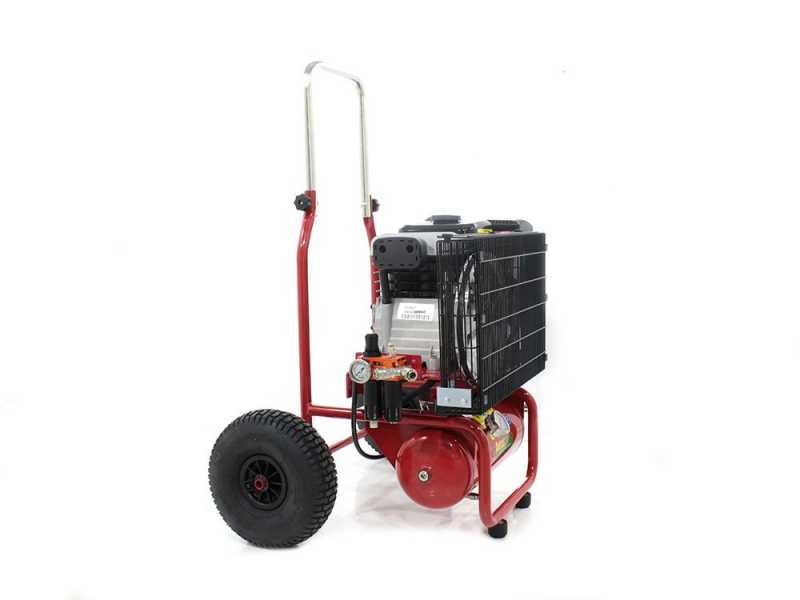

Other features

Dimensions (L x W x H): 90 x 73 x 91 cm (without handle)

Weight: 66 kg

Equipped with foldable handle for comfortable grip and easy storage.

Detail of the folded handle.

The petrol engine-driven air compressor is equipped with a frame isolation system, which helps reducing vibrations and ensures a longer service life of the machine.

Large-sized tractor rear wheels

Free items & Standard equipment

Free items and extra features

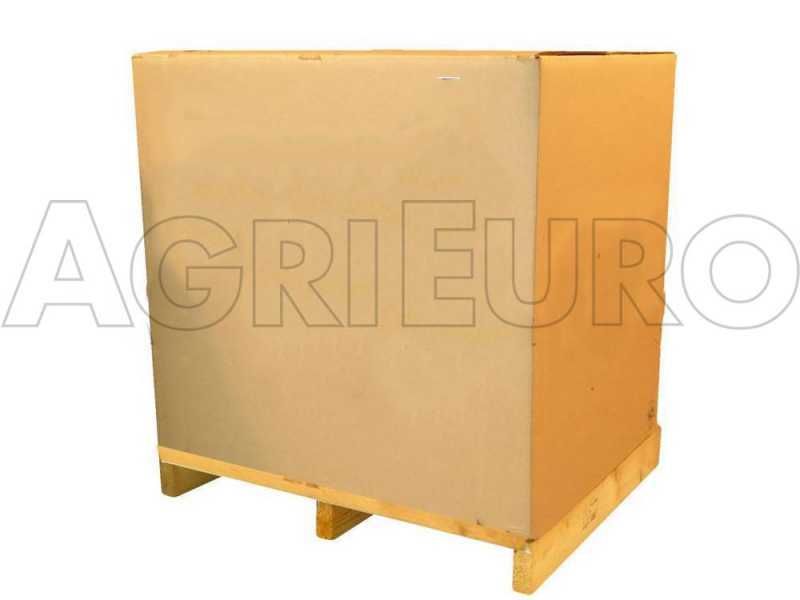

The air compressor is shipped in its original packaging

Original documents and instructions manual included in the packaging.
