AgriEuro Premium Line - Petrol garden shredder - Loncin G420F engine - Electric start

Questions & Answers (26)
ID: K501930

EAN: 9993081522688

AgriEuro Premium Line - Petrol garden shredder - Loncin G420F engine - Electric start
+700 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Motor type
4-stroke
Motor brand
Loncin
Motor Model
G420F
Cubic capacity
420 cm³
Nominal power
15 HP
Cutting Rotor Type
Knives + hammers
No. of blades
2
No. of hammers
8
Interchangeable sieves
Yes
Max. Branch Diameter
80 mm
Wood Chip size
2 - 3 cm
N° of hoppers
1
Electric start
Yes
Transmission type
Belt
Battery type
Lead
Manufacturing country
Italy
Product Features
Model:
CH420
Operating mode:
Spark ignition
Hydraulic self-dragging:
No
Discharge chute:
Medium
N° of hoppers :
1
Hopper opening size (height):
42 cm
Hopper opening size (width):
65 cm
Chip size reducing sieve:
Yes
Interchangeable sieves:
Yes
Wood chips min. size with sieve:
1.0 cm
Electric start:
Yes
Manufacturing country:
Italy
Motor data
Motor Model:
G420F
Motor type:
4-stroke
Battery type:
Lead
Cubic capacity:
420 cm³
No. of cylinders:
1
Nominal power:
15 HP
Rated power (HP):
13 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
China
Transmission data
Transmission type:
Belt
Cutting data
Body material:
Enamelled steel
Max. Branch Diameter:
80 mm
Cutting Rotor Type:
Knives + hammers
No. of blades:
2
No. of hammers:
8
Blade movement:
Rotating
Counter blades:
2
Wood Chip size:
2 - 3 cm
Equipment
Battery for electric start:
Yes
Electric start with key :
Yes
Recoil start system (with rope):
Yes
Front handle:
Yes
Rear wheels size:
2.50 - 4"
Free gifts/extra features
Engine oil bottle for free:
2
Spark plug wrench:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
165x100x125 cm
Net weight:
134 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
90x80x130 cm
Gross weight (packaging included) :
143 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
15 minutes
Prompt Delivery
13 items in stock
Free Shipping
Estimated delivery: 08/05/2024 - 10/05/2024
€ 2.089,00
VAT Included
You're viewing:
Customers also viewed:
Description

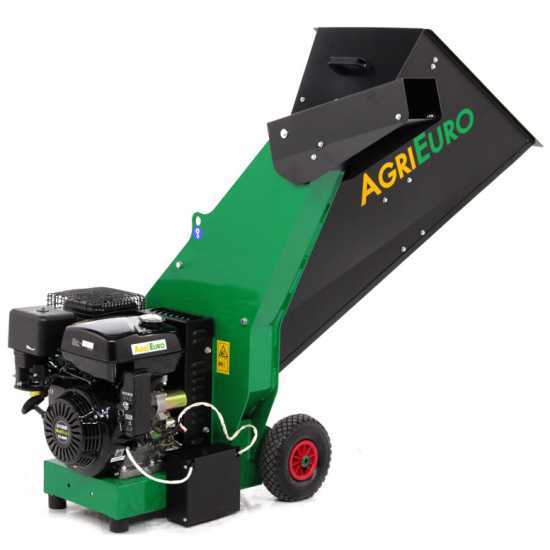

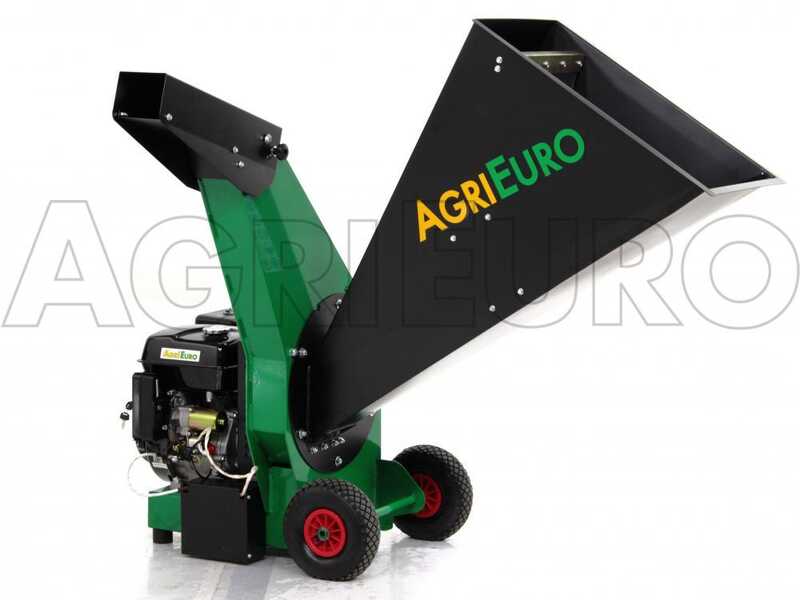

Petrol garden shredder

This petrol garden shredder allows reducing weeds and twigs in an easy to handle and suitable size for composting. Shredding operations also allow reducing the material decomposing time.

The large steel hopper can process even very bulky branches and leaves without having to pre-shred them. Thus, it also features a higher capacity that allows entering a large amount of material at a time.

Maximum cutting diameter: 80 mm

The engine of this shredder is also equipped with electric start.

This petrol wood chipper is MADE IN ITALY, featuring the quality of large-sized shredders, thus ensuring maximum results in terms of cutting, speed and reliability.

The machine is compliant with the CE standards.


Warning: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and others)

Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper);

The engine may be aesthetically different from the pics due to the upgrade to the required Euro 5 specification.

Images for illustrative purposes, the shredder engine is a Loncin G420F.

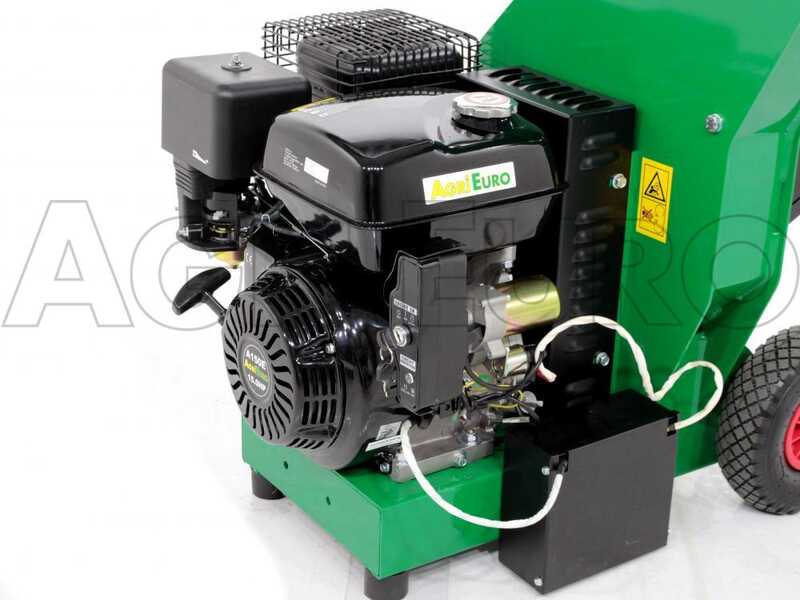

15 Hp Loncin G420F engine

• Features:

• Engine model: Loncin G420F

Single cylinder 4-Stroke

• Forced air-cooled

• Cubic capacity: 420 cc

• Power: 15 Hp

• Focus on the electric start with key

Fuel tank capacity 6 L

Oil tank capacity: 1.4 L

• Starter battery included: focus on the metal battery housing

The engine of this shredder is also equipped with electric start.

Nominal power: 15 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 12 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

The engine may be aesthetically different from the pics due to the upgrade to the required Euro 5 specification.

Images for illustrative purposes, the shredder engine is a Loncin G420F.

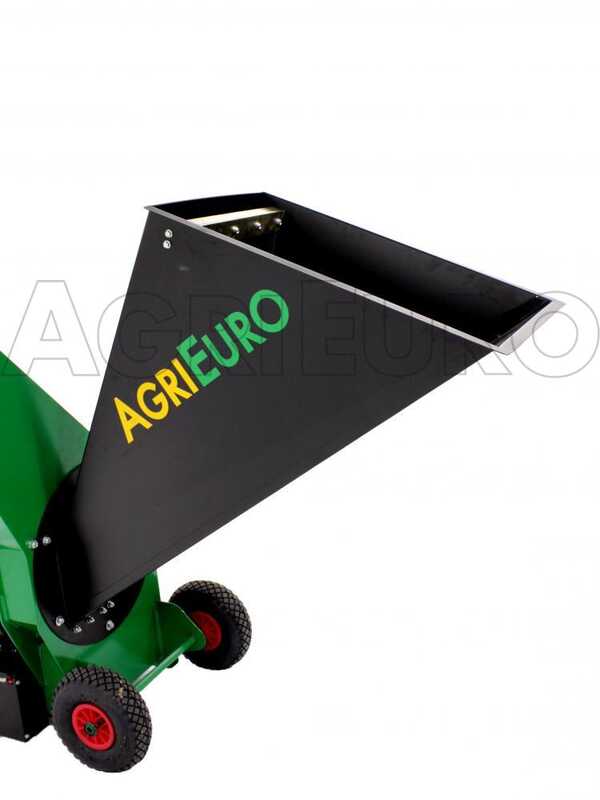

Unified hopper

The machine of large-sized is able to process even very bulky branches and leaves, without having to pre-shred them. Thus, it also features a higher capacity that allows entering a large amount of material at a time.

Focus on the transparent rubber bulkheads placed on hopper opening.

The engine may be aesthetically different from the pics due to the upgrade to the required Euro 5 specification.

Images for illustrative purposes, the shredder engine is a Loncin G420F.

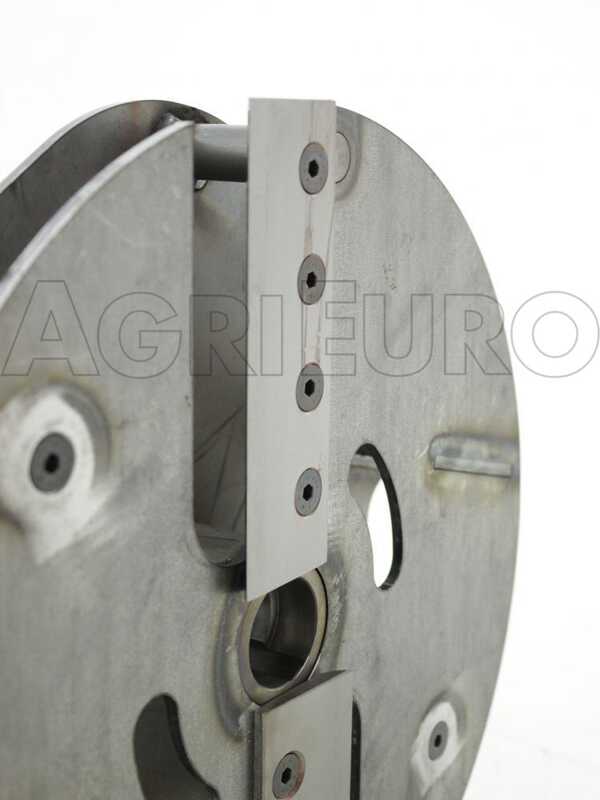

Central rotor

The outer shredding chamber (the largest and sturdiest in its category) is proportionate to the rotor it includes. It is wide and features a round-shape. It guarantees excellent productivity, as well as the durability of the system.

The machine structure is 100% made of steel. No plastic has been used.

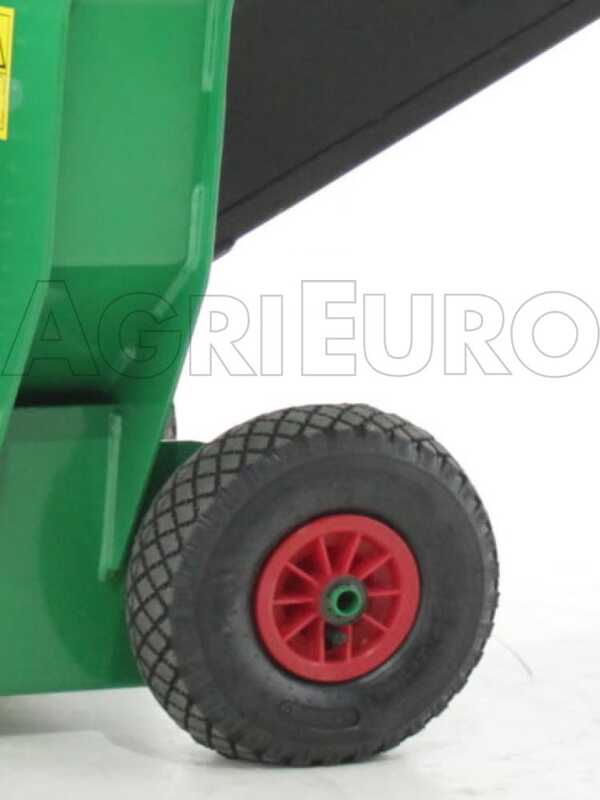

Equipped with anti-vibration rubbers and pneumatic wheels for easy transport.

Adjustable discharge chute, 1 m high from the ground, equipped with adjustable-tilting deflector.

It allows discharging the wood chips directly into a box.

Brand-new reinforced highly sturdy shredding blades

Focus on the hammer

Focus on the counter-blades

Focus on the sieve

The engine may be aesthetically different from the pics due to the upgrade to the required Euro 5 specification.

Images for illustrative purposes, the shredder engine is a Loncin G420F.

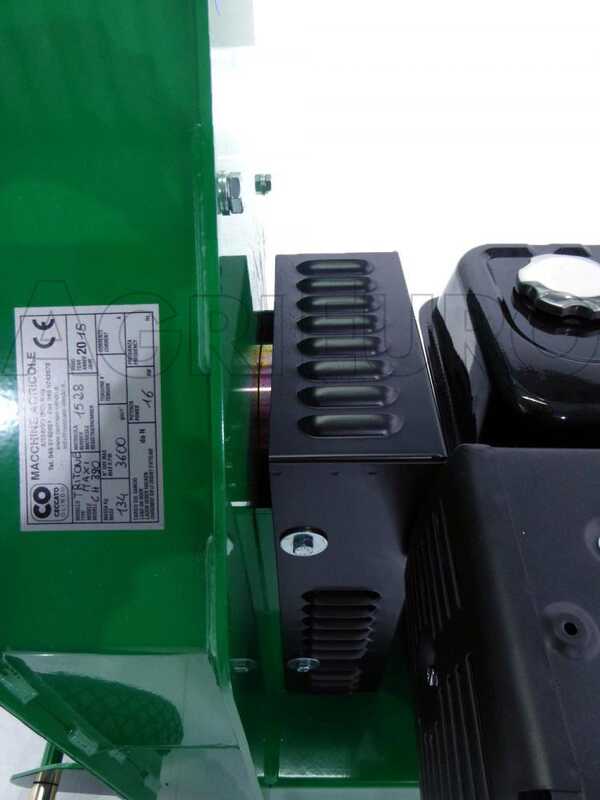

Shredding chamber

This transmission gives the machine an extraordinary sturdiness, protecting both the motor and the internal shredding rotor from any kind of internal shock or kickback.

In case of a rotor clogging caused, for example, by a too large branch, stones, etc.. there is no risk of breaking the drive shaft and the motor, but the intermediate belt will slip or at least will brake down.

Much longer service life than the standard systems still used by all manufacturers on their petrol-powered models where the engine is directly connected to the shredding unit.

The engine may be aesthetically different from the pics due to the upgrade to the required Euro 5 specification.

Images for illustrative purposes, the shredder engine is a Loncin G420F.

2-belt drive with reinforced belt

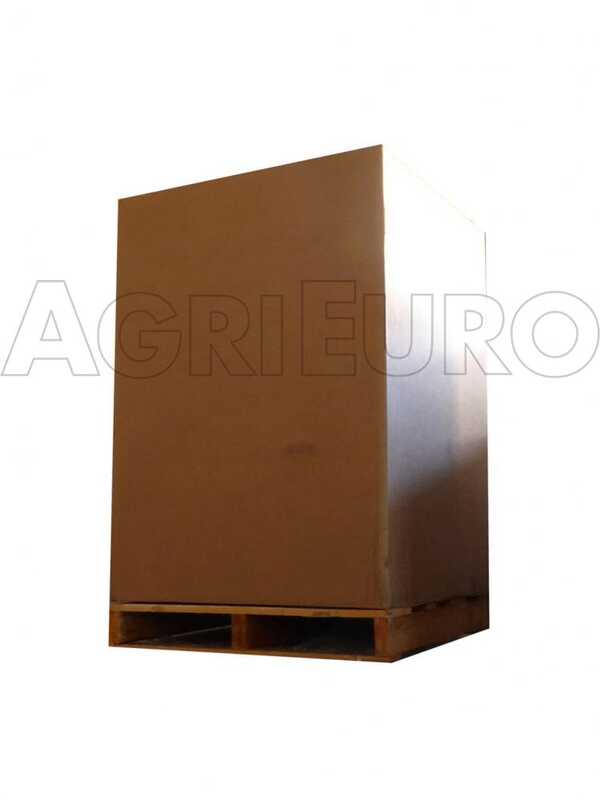

• The garden shredder is shipped on pallet.

Instructions manual included in the package.

The engine instructions and maintenance manual is included.

• Spark plug replacement wrench

The engine may be aesthetically different from the pics due to the upgrade to the required Euro 5 specification.

Images for illustrative purposes, the shredder engine is a Loncin G420F.

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Free items included

• The garden shredder is shipped on pallet.

Instructions manual included in the package.

The engine instructions and maintenance manual is included.

• Spark plug replacement wrench

The engine may be aesthetically different from the pics due to the upgrade to the required Euro 5 specification.

Images for illustrative purposes, the shredder engine is a Loncin G420F.
