Description

AgriEuro Tractor mounted rotary slasher SL 90

The tractor mounted rotary slasher with vertical axis SL 90 has a light and elastic structure ideal for the cut of grass on parks, gardens, sports fields, green areas in general and on orchards.

Apt for tractors up to max 12 - 70 hp.

It is equipped with 2 swinging blades; thanks to this characteristic the blades ensure a long lasting in time.

TECHNICAL DETAILS (in summary):

Real working width: 90 cm
Real width occupied (with side skids assembled): 100 cm
Weight: 120 kg
Suggested for tractors: from 12 to 70 HP

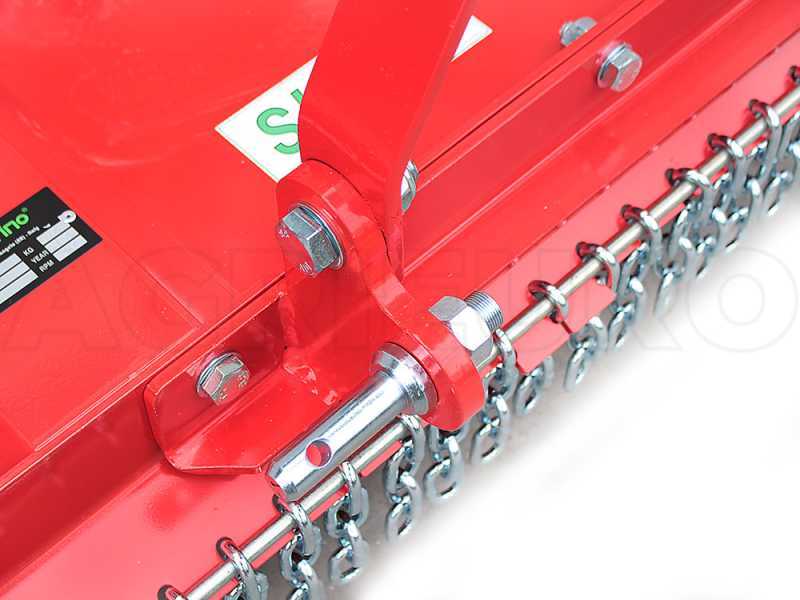

3 point linkage
Direct drive with cast iron gearbox
Hinged rear flap for expulsion
Reversible and adjustable skids

They do not work with left direction of rotation!

ATTENTION!

The engine DOES NOT PROVIDE OIL when supplied. Please add it up to the due level and
read the instructions manual carefully before starting the engine.

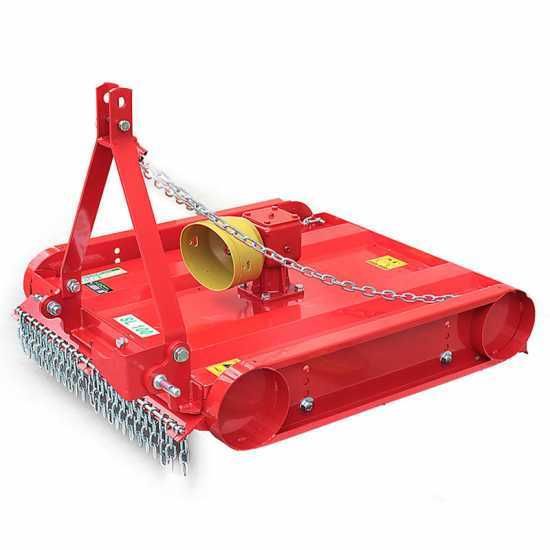

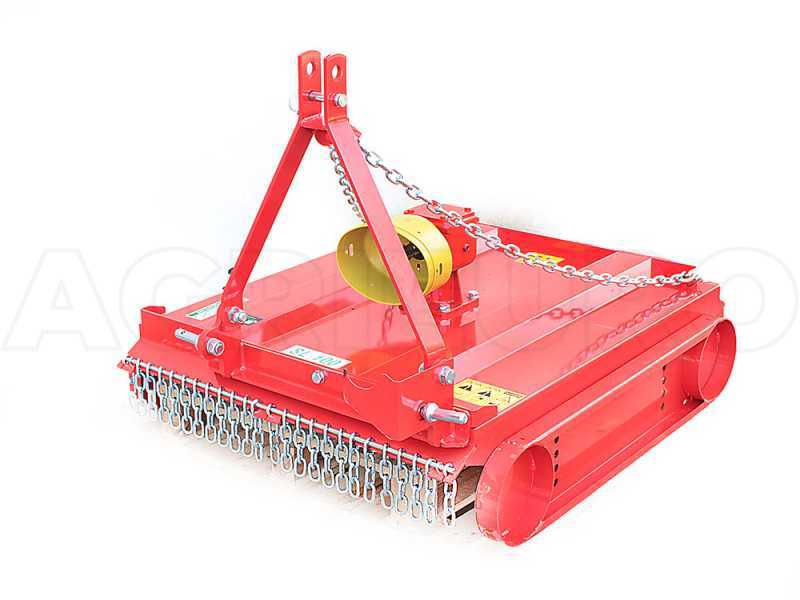

AgriEuro flat tractor mounted rotary slasher with vertical axis model SL 90

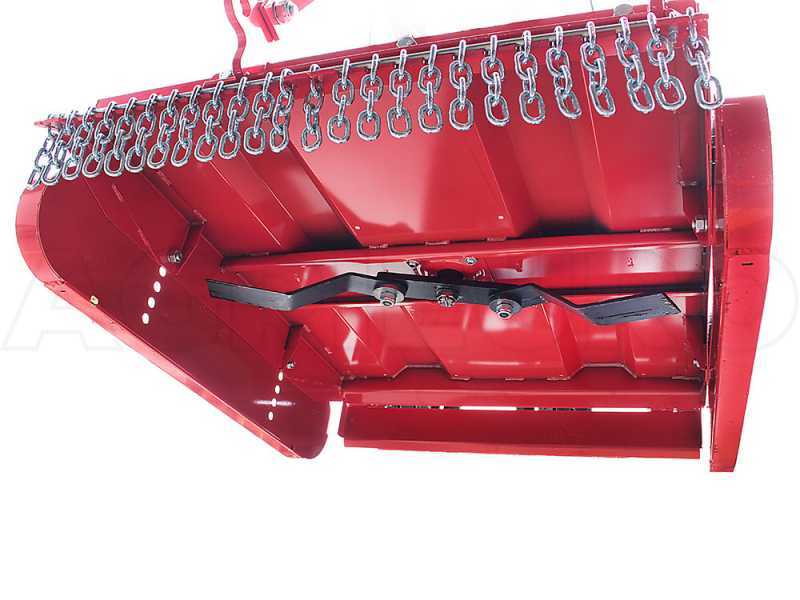

The blades

The blades are able to cut grass, pruning residuals and bushes in medium/difficult conditions, even in slopes but without exagerating.

The most of the times its purchase aim is to chop weed in orchards, wine yards and olive groves.

Sturdy cast iron gearbox, with direct drive at 540/rpm.

Working width: 90 cm

Focus on the blades.

Regulation of the cut height from 3 to 10 cm.

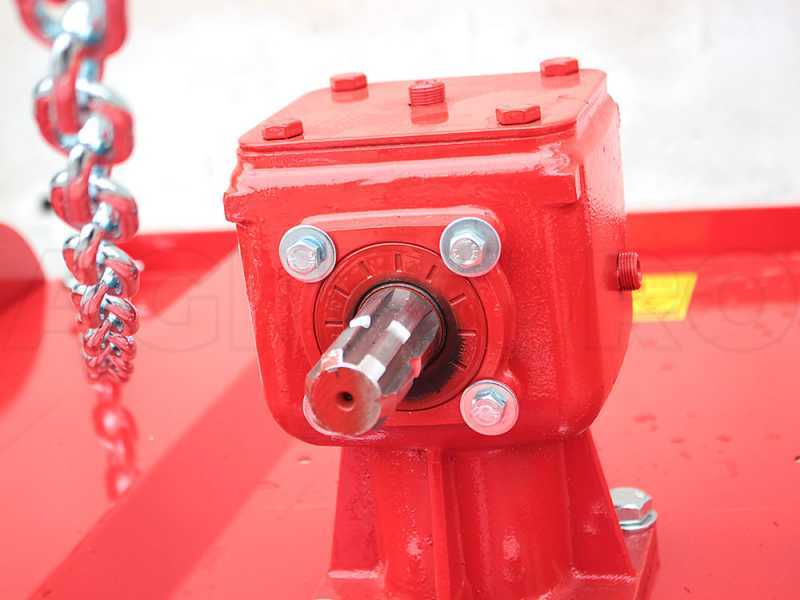

Rotor and side bearings

The drive of this model is direct at 540 g/min with cast iron gearbox.

Focus on the gearbox with cardan protection.

Focus on the cardan protection.

It is possible to regulate the side skids in order to obtain a cut from 3 to 10 cm. This oparation requires just few minutes; it is enough to unscrew and screw again the screws at the height you want . Moreover the skids are reversible, a characteristic that conveys a longer lasting to the chopping.

Focus on the back expulsion.

Focus on the cardan and the security shear bolt that helps to preserve the integrity of the drive and to reduce the risk of an accident for the user.
