AgriEuro flat tractor mounted rotary slasher model SL 110

Questions & Answers (1)
ID: 102218

EAN: 8033424491460

AgriEuro flat tractor mounted rotary slasher model SL 110
Sturdiness/Series
Light
Standard cutting tools
Knives
Cardan shaft
With safety bolt
Cast iron gearbox
Yes
Manufacturing country
Italy
Product Features
Model:
SL 110
Type:
light series
Sturdiness/Series:
Light
Shift:
Fixed hitch
Manual shift:
No
Required power:
12 / 70 HP
Manufacturing country:
Italy
Transmission data
Cast iron gearbox:
Yes
Cutting data
No. of blades:
2
Standard cutting tools:
Knives
Max. cutting height:
100 mm
Min. cutting height:
30 mm
Cutting width:
110 cm
Free gifts/extra features
Side skids:
Yes
Cardan shaft:
With safety bolt
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
135x125x85 cm
Net weight:
160 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
130x130x100 cm
Gross weight (packaging included) :
175 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
15 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 28/05/2024 - 30/05/2024
€ 1.656,54
VAT Included
Available versions
You're viewing:
Customers also viewed:
Description

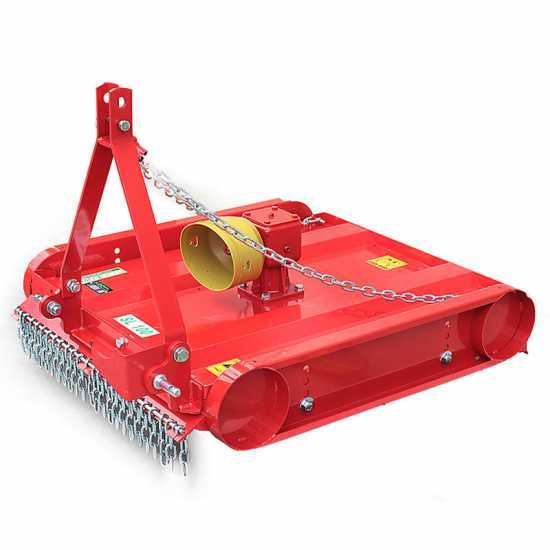

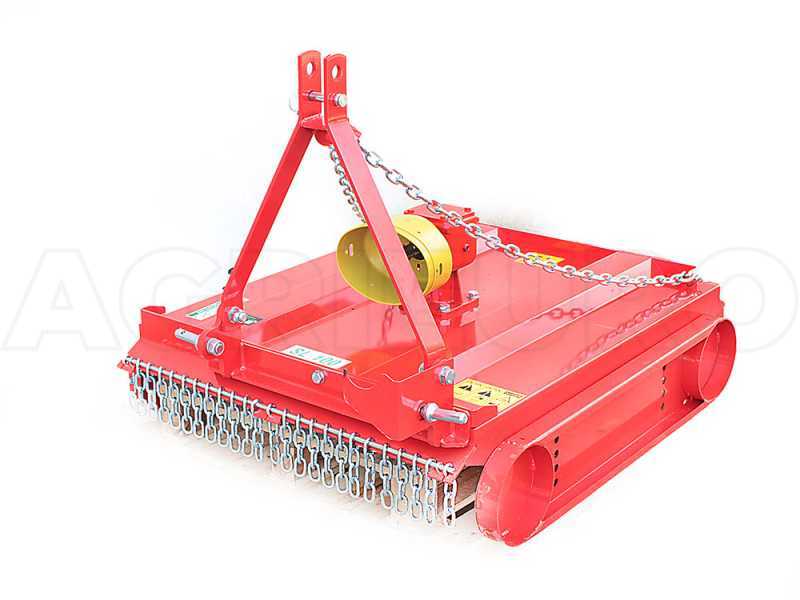

AgriEuro tractor mounted rotary slasher SL 110

The tractor mounted rotary slasher with vertical axis SL 120 has a light and elastic structure ideal for the cut of grass on parks, gardens, sports fields, green areas in general and on orchards.

Apt for tractors up to max 12 - 70 hp.

It is provided with 2 swinging blades; thanks to this characteristic the blades ensure a long lasting in time.

TECHNICAL DETAILS (in summary):

  • Real working width: 110 cm
  • Real width occupied (with side skids assembled): 130 cm
  • Weight: 160 kg
  • Suggested for tractors: from 12 to 70 HP
  • 3 point linkage
  • Direct drive with cast iron gearbox
  • hinged rear flap for expulsion
  • reversible and adjustable skids

They do not work with left direction of rotation!


 ATTENTION!

Attention: this machine DOES NOT PROVIDE OIL. Please add it up to the due level and read the instructions manual carefully before starting the engine.

The blades

The blades are able to cut grass, pruning residuals and bushes in medium/difficult conditions, even in slopes but without exagerating.


The most of the times its purchase aim is to chop weeds in orchards, wine yards and olive groves.


Sturdy cast iron gearbox, with direct drive 540/rpm.


Working width: 110 cm

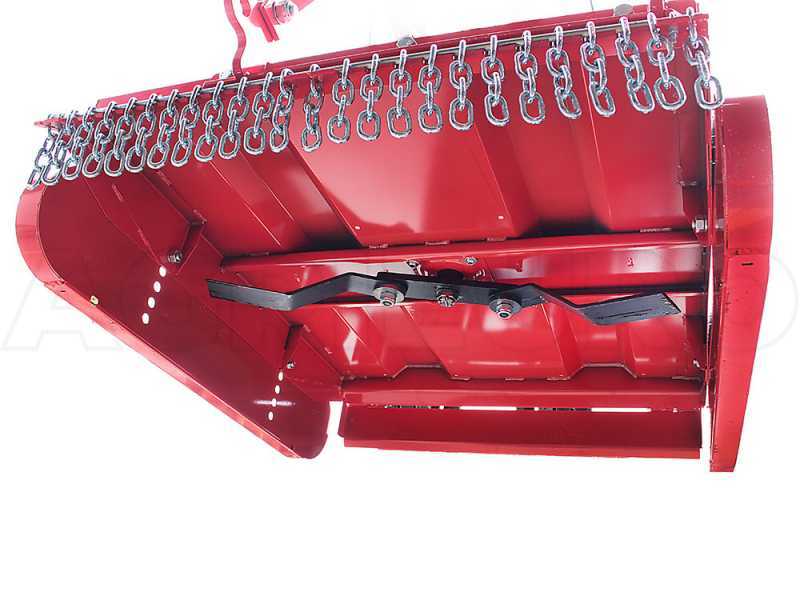

Focus on the blades.


Regulation of the cut height from 3 to 10 cm.

Gearbox and side skids

The drive of this model is direct at 540 g/min with cast iron gearbox.

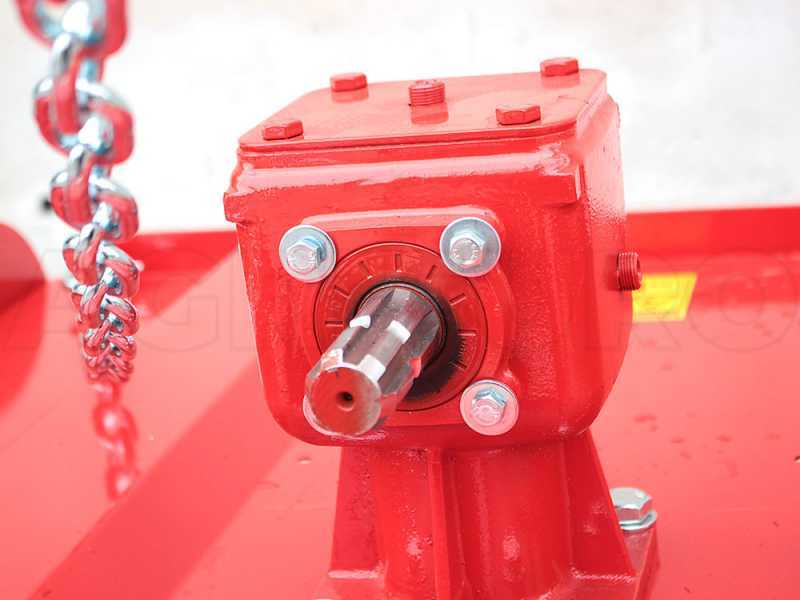

Focus on the gearbox with cardan protection.

Focus on the cardan protection.

It is possible to regulate the side skids in order to obtain a cut from 3 to 10 cm. This oparation requires just few minutes; it is enough to unscrew and screw again the screws at the height you want . Moreover the skids are reversible, a characteristic that conveys a longer lasting to the chopping.

Detail of the back expulsion.

Detail of the cardan and the security shear bolt that helps to preserve the integrity of the drive and to reduce the risk of an accident for the user.

Fixed 3-point hitch

The machine is equipped with fixed 3-point hitch.

Connections are of universal type and apt for all tractors on market.

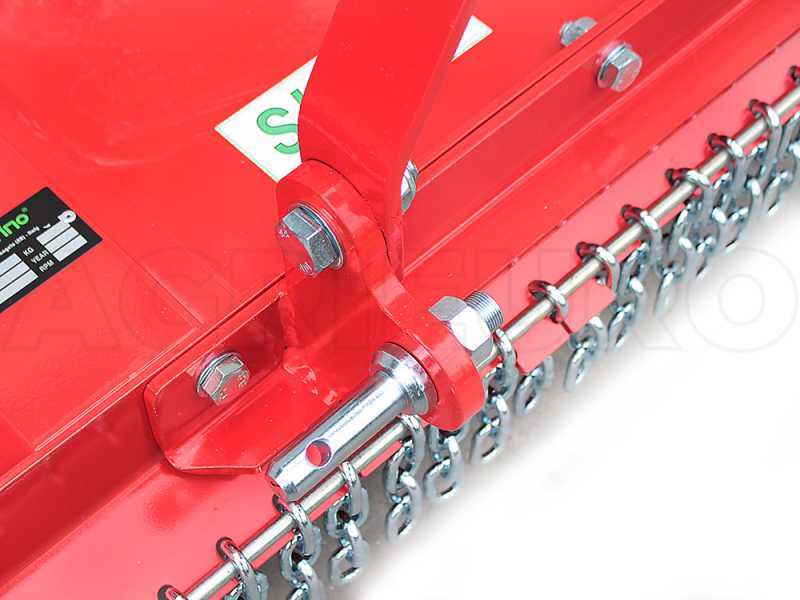

Focus on the sturdy 3-point hitch.

Focus on the cardan anchor.

Free items & Standard equipment

Free gifts & Standard equipment

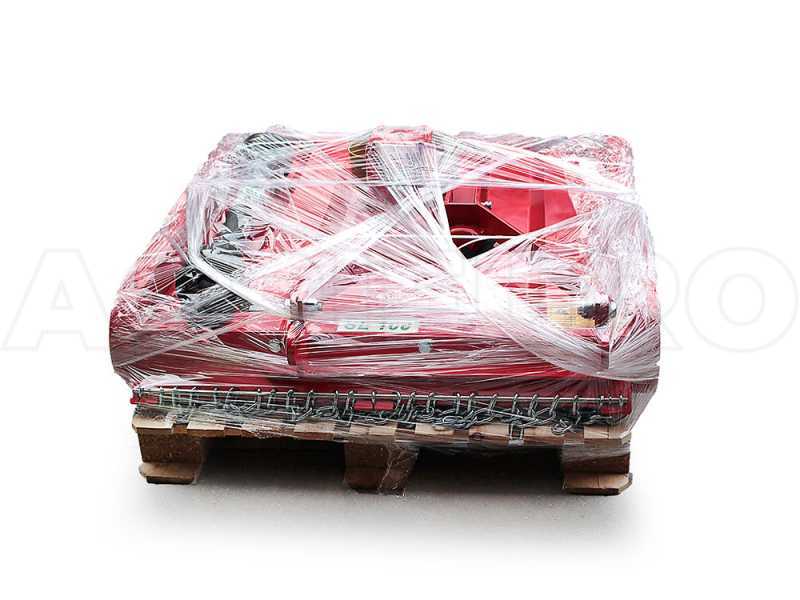

The tractor slasher is shipped on pallet. Only the three point linkage and few other particulars need to be assembled.

Cardan shaft and instructions manual included in the package.

Focus on the security shear boltof the cardan apt at preserving the integrity of the drive and so reduce the risks of an accident for the user.
