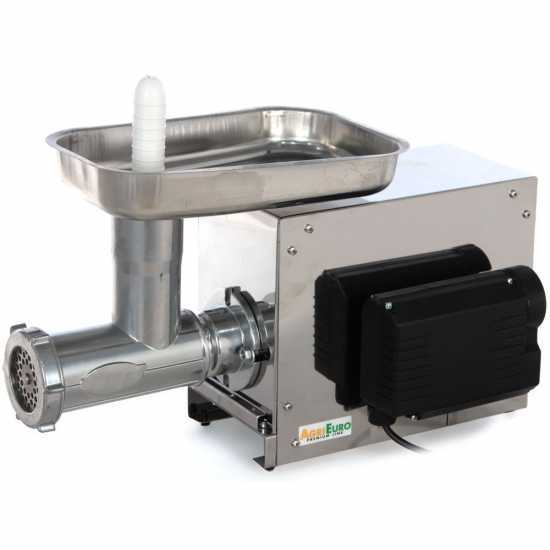

AE-SM 22 Electric Meat Grinder - 1.5 Hp - STAINLESS STEEL shell - 800W motor

Questions & Answers (2)
ID: 103097

EAN: 8023686001156

9,1/10
After-sales assistance & Spare parts
AE-SM 22 Electric Meat Grinder - 1.5 Hp - STAINLESS STEEL shell - 800W motor
Motor type
Induction
Speed reverser
Yes
Operating mode
Single-phase 230 V
Rated power
1.5 Hp
Certifications
CE domestic
Multi tool
2 in 1
Attachment dimensions
No.22
Accessory material
Aluminium
Hourly output
100 Kg/h
Transmission type
Gears
Funnel material
Stainless steel
Manufacturing country
Italy
Product Features
Model:
AE-SM 22 - 1.5
Machine body material:
Stainless steel
Certifications:
CE domestic
Power output:
800 W
Operating mode:
Single-phase 230 V
Hourly output:
100 Kg/h
Die plate material:
Stainless steel
Multi tool:
2 in 1
Speed reverser:
Yes
Manufacturing country:
Italy
Motor data
Motor type:
Induction motor
Motor type:
Induction
Rated power:
1.5 Hp
Power supply:
220 V electric
Motor protection:
IP 54
Manufacturing country:
Italy
Transmission data
Transmission type:
Gears
Gear unit type :
With gears
Gear material:
High-strength steel
Transmission protective cover:
yes - Stainless steel
Cutting data
Accessory material:
Aluminium
Attachment dimensions:
No.22
No.22 Accessory:
Funnel material:
Stainless steel
Blade material:
Stainless steel
Dimensions and logistics
Product dimensions in cm (L x W x H):
20x55x30 cm
Net weight:
25 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
38x60x30 cm
Gross weight (packaging included) :
26 Kg
Assembly time:
5 minutes
Out of stock
Free Shipping
€ 355,37
VAT Included

You're viewing:
Customers also viewed:
Description

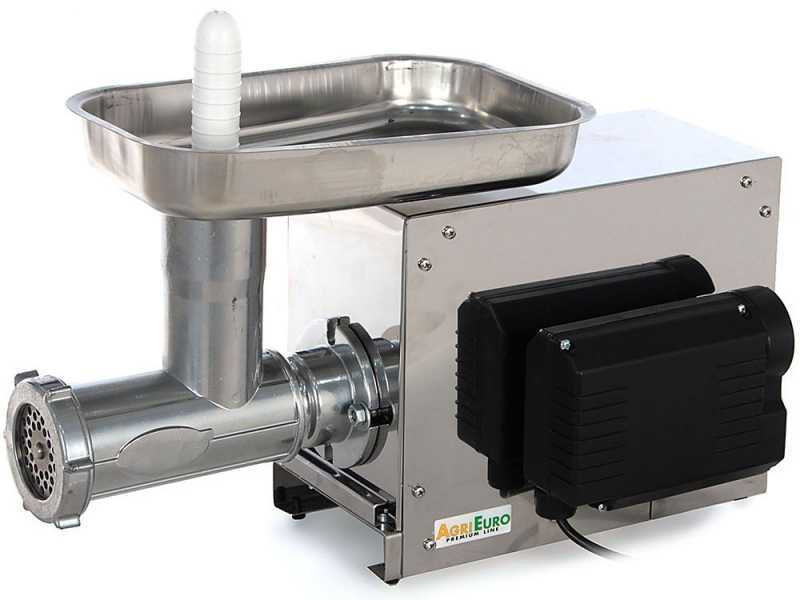

AE SM 22 INOX 1.5 Hp Heavy-duty tabletop meat grinder

The heavy-duty AgriEuro SM 22 INOX meat grinder is equipped with a 1.50 Hp (800W) motor and it has the ability to process any type of meat.

The machine motor is provided with high-thickness stainless steel shell, perfect for deep cleaning operations and to prevent accidental impacts. It makes the machine sturdy and reliable.

Designed as a table-top meat mincer. It features reduced and compact dimensions with 60 mm opening diamter.
This machine comes with a self-sharpening knife and grinder die plate. Plate holes diameter: 5 mm. Both the knife and the grinder plate are made of AISI 430 stainless steel.

Featuring a single-phase asynchronous electric motor. Power supply: 230V. The SM 22 INOX 1.5 Hp heavy-duty meat mincer features a watertight switch and it is is compliant with the Machinery Directive 89/392. Suitable for professionals and particularly demanding hobbyists.

The grinding unit can be fully detached from the machine body for thorough cleaning operations to ensure hygiene.

The machine comes with a set of two stuffing tubes that can be mounted immediately after the grinding plate to make sausages or salami. The machine body, the front lock ring and the protective casing are made of food-grade polished die-cast aluminium.

The lock ring on the machine body and the screw conveyor are made of tinned cast iron. The transmission unit features a nylon gear motor (speed reducer). The hopper is made of stainless steel and the pestle is made of HD polyethylene.

By ordering the separate tomato press attachment, you can use this machine as a sauce maker.

This meat grinder is entirely made in Italy, which translates to high-quality materials and components.

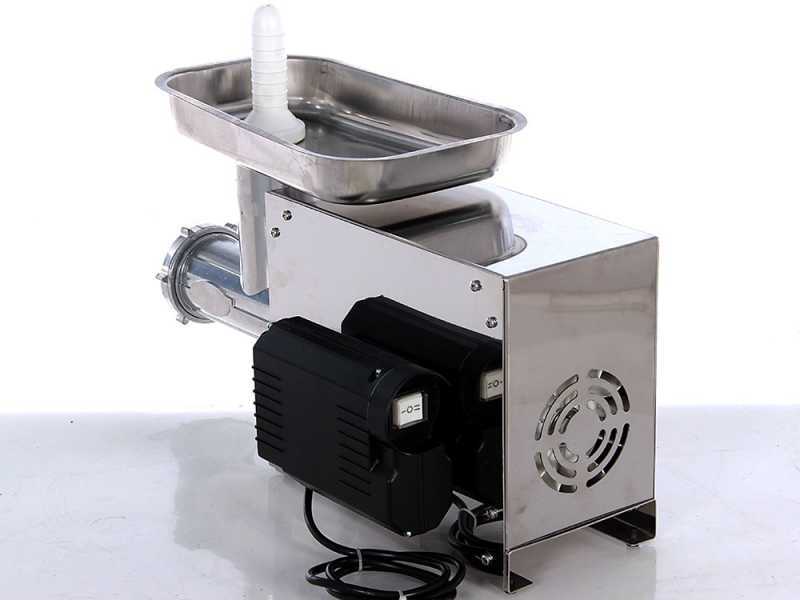

Motor and transmission

This machine is euipped with a single-phase induction electric motor. Power supply: 230 V. Maximum developed power: 1.5 Hp.

The motor is mounted on a stainless steel frame perfect for great cleaning operations and to prevent accidental impacts.

The drive shaft is made of F37 steel and it is not connected directly to the worm screw. In fact, there is a transmission component between the two, which also has the purpose of reducing motor revolutions, thus optimising the machine performances.

This nylon gear motor is extremely sturdy and robust.

The motor features a watertight switch.

All of the machine components are made in Italy.

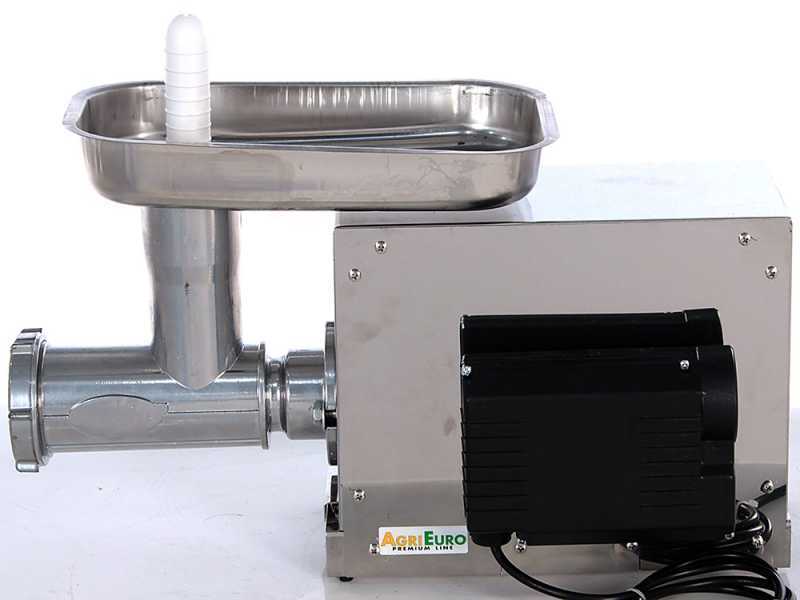

Machine body and components structure

This meat mincer is called AE SM 22 INOX because all of its main components are made of AISI 304 stainless steel. The machine body, the lock ring and the gearmotor protective casing are made by moulding UNI 50 die-cast aluminium.

Stainless steel hopper. Hopper size: 18x30 cm

The worm screw is made of tinned cast iron

The self-sharpening knife and the grinding plate are made of stainless steel.

Stuffing tubes diameter: 1.5 cm and 2 cm.

The pestle is made of food-grade HD polyethylene.

Free items & Standard equipment

Free items / Extra features

The meat grinder will be supplied in its original packaging.

Pestle included in the package

The machine comes with a special wrench to secure the lock ring.

2 stuffing tubes included as standard equipment
