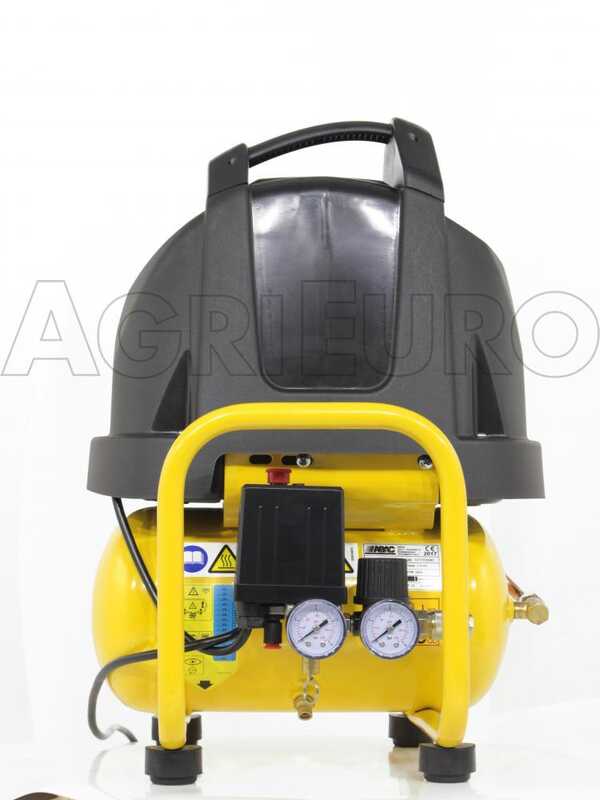

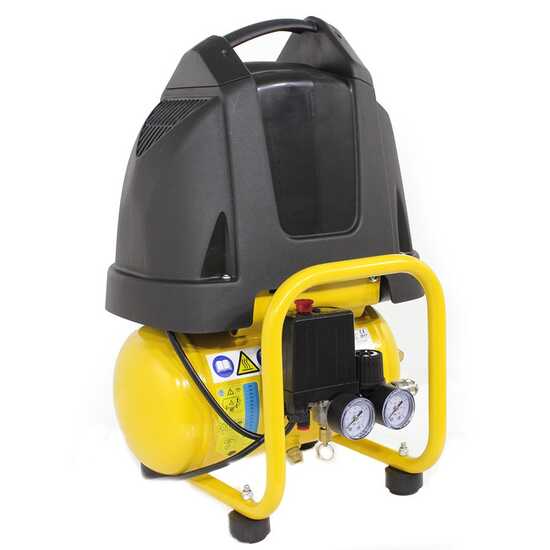

The Vento B15 small-sized compact air compressor is suitable for a variety of applications. Powered by a 1.5 Hp electric motor, it features a compressed air suction capacity of 160 L/min and is capable of reaching a maximum pressure of 8 bar.

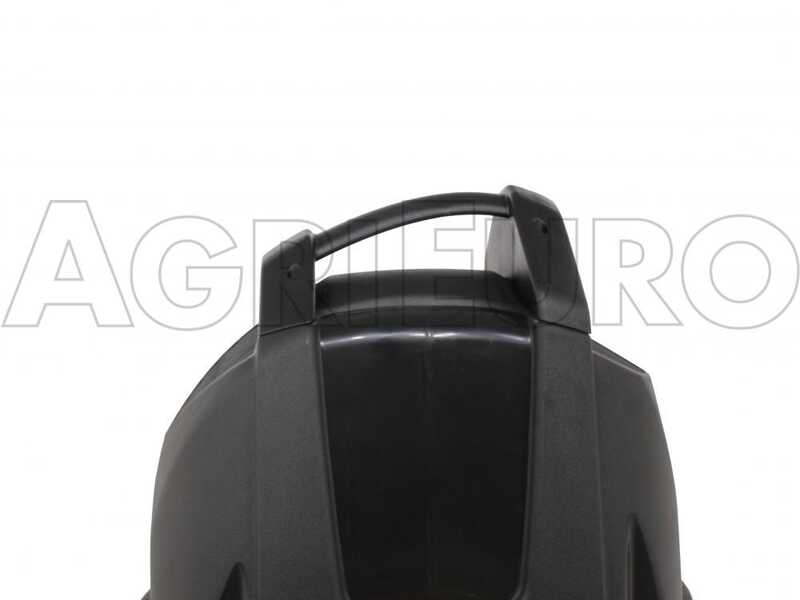

Provided with a 6 L compressed air storage tank, it weighs 11 kg and can be easily transported thanks to the ergonomic upper handle.
Maintenance operations are also reduced, as no control or topping up of lubricating oil is required, as well as the transportability of these air compressors, since there is no risk of oil leakage even when the air compressor is laid down on its side, for example to load it into the trunk of a car.
ABAC VENTO B15 - Portable, single-phase, oil-less, electric air compressor - Motor 1.5 HP - 6 litres
ID:
K501312
EAN: 8020119024089
MPN: 1129100008
27Pictures
1Videos
7Customer pics
Free gifts from AgriEuro
Universal cover for storageOut of stock
Notify me when available
Free Shipping
Free returns (up to 30 days after receipt)*
€ 192,39
Vat included
Technical data
Air compressor tank
6 L
Max. operating pressure
8 bar
Air intake flow
160 L/min
Cylinder head rpm
2450 RPM
Lubrication
Oil-less
Pump type
Single-stage
Nominal power
1.5 HP
Operating mode
Single-phase 230 V
Pump unit mounting
Welded
Product Features
Model
VENTO B15 baseline
Air compressor type 2
Oilless
Air compressor type
Portable
Handheld
yes
Operating mode
Single-phase 230 V
Max. operating pressure
8 bar
Number of tanks
1
Tank capacity
6 L
Air compressor tank
6 L
Noise level
90 LwA
Manufacturing country
China
Pump unit mounting
Welded
Motor data
Motor type
Electric single-phase
Nominal power
1.5 HP
Power supply
220 V electric
Pump data
Pump brand
ABAC
Model
VENTO B15
Air intake flow
160 L/min
Pump type
Single-stage
Lubrication
Oil-less
No. of cylinders
1
Cooling manifold
No
Transmission data
Transmission type
Coaxial type direct
Cylinder head rpm
2450 RPM
Equipment
No. of outlet couplings
1
Lifting handle
Yes
Free gifts/extra features
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
36x30x51 cm
Net weight
11 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
38x31x54 cm
Weight including packaging
12 Kg
Assembly time
Assembled
