Abac Suitcase - Portable, single-phase, oil-less, electric air compressor - Motor 1.5 HP

Add a question
ID: K601378

EAN: 8024900711226

MPN: 2236115858

7,6/10
After-sales assistance & Spare parts
Abac Suitcase - Portable, single-phase, oil-less, electric air compressor - Motor 1.5 HP
FREE
2 compressor guns2 compressor guns
Spiral hose 5 metresSpiral hose 5 metres
no. 8 compressor connectionsno. 8 compressor connections
Max. operating pressure
8 bar
Air intake flow
160 L/min
Cylinder head rpm
3450 RPM
Lubrication
Oil-less
Pump type
Single-stage
Nominal power
1.5 HP
Operating mode
Single-phase 230 V
Product Features
Model:
SUITECASE - 0
Air compressor type 2:
Oilless
Air compressor type:
Portable
Handheld:
Operating mode:
Single-phase 230 V
Max. operating pressure:
8 bar
Noise level:
97 LwA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
1.5 HP
Air compressors engine speed:
3450
Pump data
Pump brand:
FIAC
Model:
F3100
Air intake flow:
160 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
1
Cooling manifold:
No
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
3450 RPM
Equipment
No. of outlet couplings:
1
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
29x19x35 cm
Net weight:
5 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
36.5x33x21.5 cm
Weight including packaging:
5.8 Kg
Assembly time:
Assembled
Prompt Delivery
24 items in stock
Free Shipping
Estimated delivery: 13/05/2025 - 15/05/2025
€ 160,75
Vat included

You're viewing:
Customers also viewed:
Description

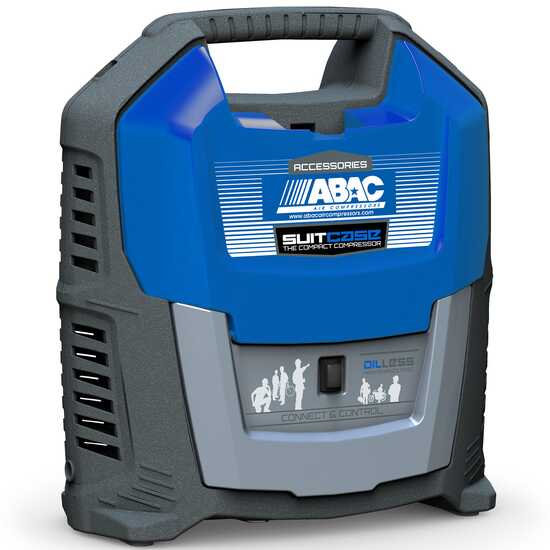

ABAC SUITECASE - 0 Electric Air Compressor

The Abac O15 range of air compressors offers a quick and convenient solution for minor compressed air tasks, both domestic and non-domestic.

By using the different pneumatic accessories, this air compressor can perform a variety of tasks, such as tyre inflation or PC blowing.

In the upper part there is a practical tool holder where the integrated coiled hose is stored

Powered by a 1.5 Hp electric motor, this air compressor features a compressed air suction capacity of 180 L/min. It is capable of reaching a maximum pressure of 8 bar.

This air compressor weights only 5 Kg and is easily transportable also thanks to the practical ergonomic upper handle. We recommend the purchase of an electrical extension cord in the "Accessories" section to make the best use of the product.

Maintenance operations are also reduced, as no control or topping up of lubricating oil is required, as well as the transportability of these air compressor, since there is no risk of oil leakage even when the air compressor is laid down on its side, for example to load it into the trunk of a car.

Technical features

The moving components (piston and shaft) feature innovative constructive solutions, with a low friction coefficient and high wear resistance materials. Therefore, no lubrication is required during use, thus guaranteeing a high reliability and a compressed air completely free of oil residues.


Air intake flow: 180 L/min

Pumping unit type: coaxial oilless
- no lubrication
- no maintenance

Pressure: 8 bar

Electric motor power: 1.5 Hp

Dimensions:

- Length: 29 cm

- Width: 19 cm

- Height: 35 cm

Weight: 5 kg

Controls and other features

The Suitcase - 0 air compressor features very simple and user-friendly controls: just use the power switch to turn the equipment on.

Comfortable handle for transportation.

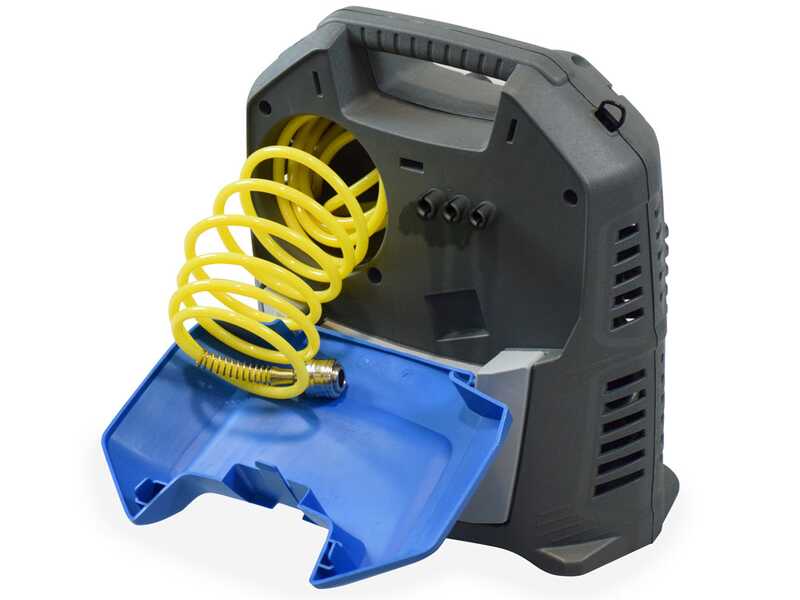

Tool holder with integrated coiled hose

The air compressor is powered by a Schuko plug

Free items & Standard equipment

COMPLIMENTARY: GeoTech accessories kit for air compressors - 3 tools

This extensive air compressor accessories kit includes:

- Tyre inflating gun with
integrated pressure gauge

- Air blowing gun

- Coiled air hose

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
