ABAC Start Quiete OS10 - Silent Single-phase Electric Air Compressor - Oil-less - 1 HP Motor - 6 lt

Add a question
ID: K610388

EAN: 6975532451429

MPN: 1129741347

7,6/10
After-sales assistance & Spare parts
ABAC Start Quiete OS10 - Silent Single-phase Electric Air Compressor - Oil-less - 1 HP Motor - 6 lt
Free gifts from AgriEuro
2 compressor guns2 compressor guns
Spiral hose 5 metresSpiral hose 5 metres
Air compressor tank
6 L
Max. operating pressure
9 bar
Air intake flow
140 L/min
Cylinder head rpm
1420 RPM
Lubrication
Oil-less
Pump type
Single-stage
Silenced
Yes
Nominal power
1 HP
Operating mode
Single-phase 230 V
Product Features
Model:
ABAC Start Quiete OS10
Air compressor type 2:
Oilless
Air compressor type:
Portable
Handheld:
Operating mode:
Single-phase 230 V
Max. operating pressure:
9 bar
Number of tanks:
1
Tank capacity:
6 L
Air compressor tank:
6 L
Noise level:
59 dBA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
1 HP
Silenced:
Yes
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump brand:
ABAC
Model:
Start Quiete OS10
Air intake flow:
140 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
1
Cooling manifold:
No
Manufacturing country:
China
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
1420 RPM
Equipment
No. of outlet couplings:
1
Rubber-coated soft grip:
No
Lifting handle:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Quick reduction coupling:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
40x31x53 cm
Net weight:
20.7 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
38.5x31.5x54.8 cm
Weight including packaging:
21.9 Kg
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 30/06/2025 - 02/07/2025
€ 270,43
Vat included
You're viewing:
Customers also viewed:
Description

Electric Compressor ABAC Start Quiete OS10

ABAC Start Quiete OS10 is the electric compressor designed for those seeking reliable performance with unparalleled acoustic comfort. It is part of the innovative OS series, specifically designed to drastically reduce noise during operation.

Thanks to the sound level of only 59 dB, comparable to a normal conversation, this compressor is ideal for use in enclosed or shared environments, without disturbing those working nearby.

Despite its quiet design, performance remains high: the 1 HP motor allows it to reach a maximum pressure of 9 bar, with an air flow rate of 140 litres per minute. Additionally, the oil-free system minimizes the need for maintenance.

Its lightweight and compact structure make it easy to transport and position wherever needed, offering maximum convenience for both domestic and semi-professional use.

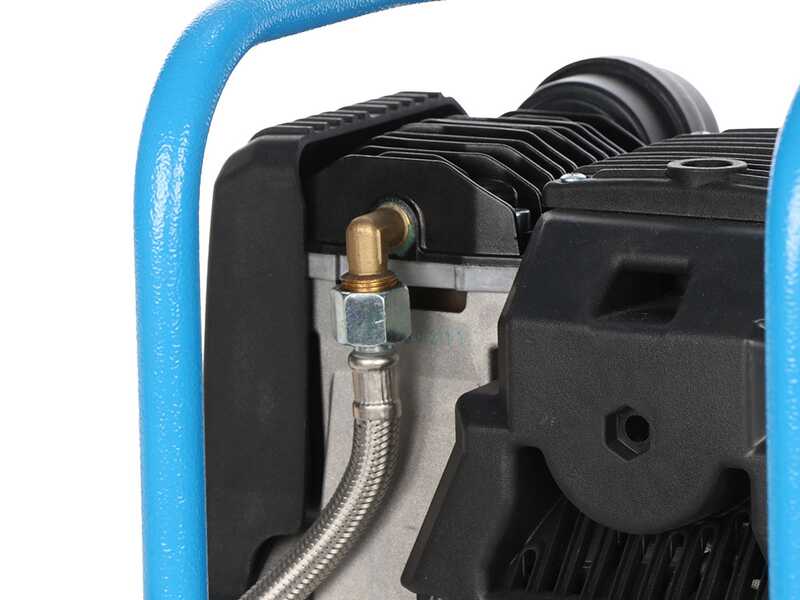

Technical features

Main technical features:

  • Pumping type: coaxial - oil-less
  • Air intake: 140 lt/min
  • Pressure: 9 bar
  • Electric motor power: 1 HP
  • Tank: 6 lt

Silent, only 59 dB. Designed to solve the noise problem in work environments, these compressors stand out in the market for their low noise level.

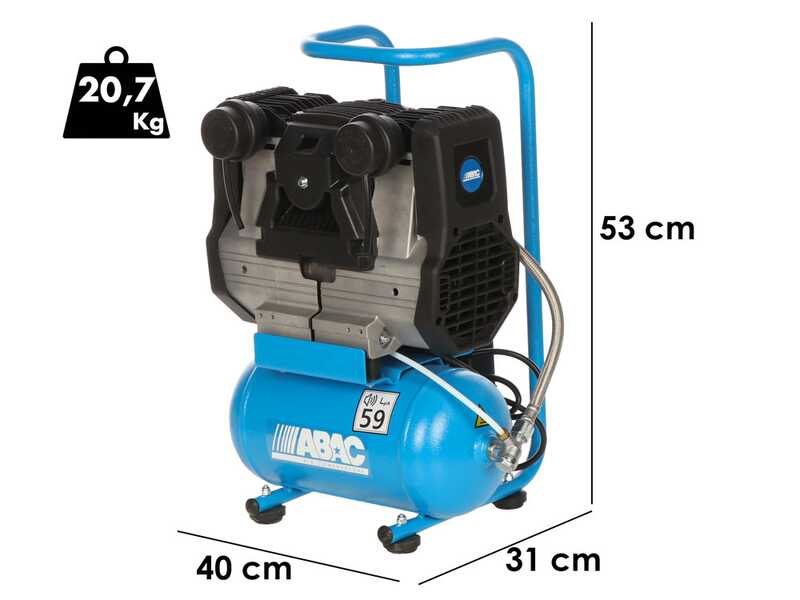

Dimensions and weight:

  • Length: 400 mm
  • Depth: 310 mm
  • Height: 530 mm
  • Weight: 20.7 Kg

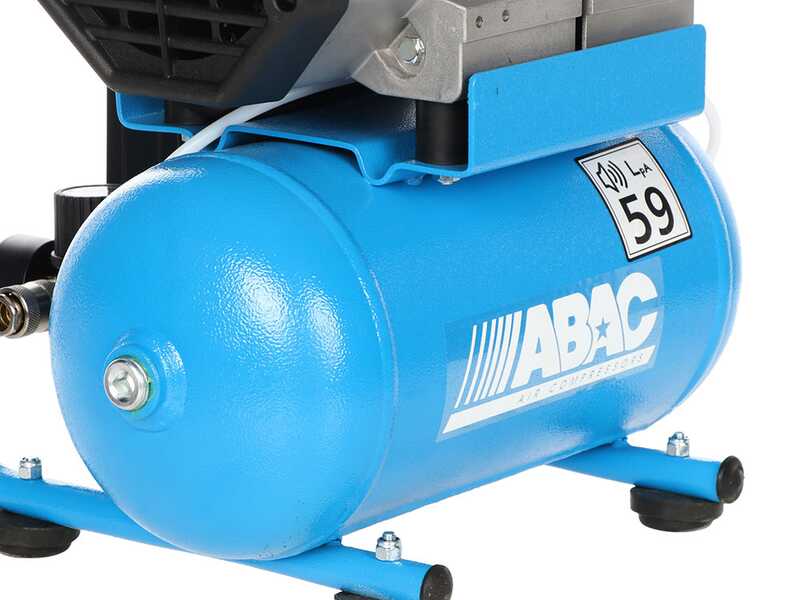

Controls and other features

The compressor controls are really simple and intuitive, and they include:

  • Main switch
  • Outlet air pressure gauge and tank pressure gauge
  • Female outlet fitting of the compressor
  • Central pressure adjustment knob
  • Ergonomic handle for moving
  • 4 anti-vibration rubber feet providing great stability during use
  • Condensate drain valve
  • Shuko socket
Free items & Standard equipment

COMPLIMENTARY: GeoTech accessories kit for air compressors - 3 tools

This extensive air compressor accessories kit includes:

- Tyre inflating gun with
integrated pressure gauge

- Air blowing gun

- Coiled air hose

Free items included

The compressor is supplied in its original packaging.

Instruction manual included in the package.
