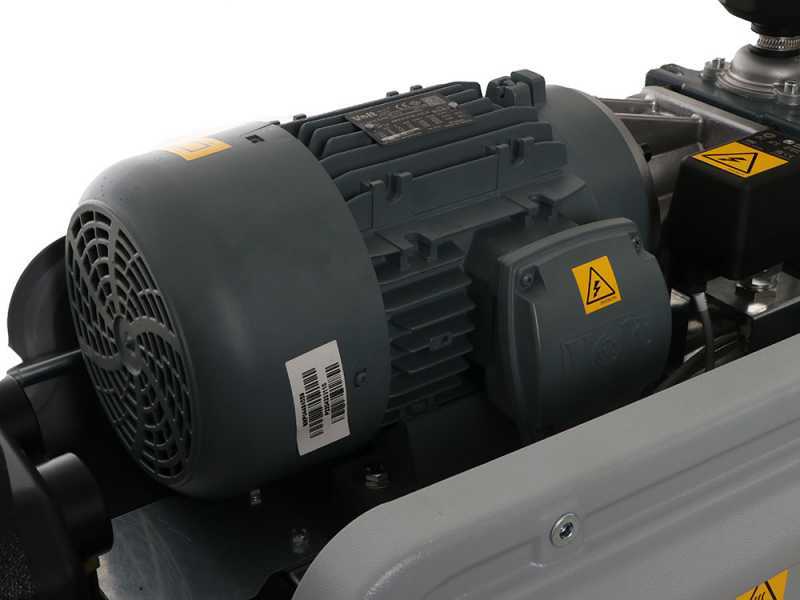

The Spinn D 2.2 90W 10 400/50 screw compressor is part of Abac new rotary screw product range. It has a 3 HP three-phase electric motor.

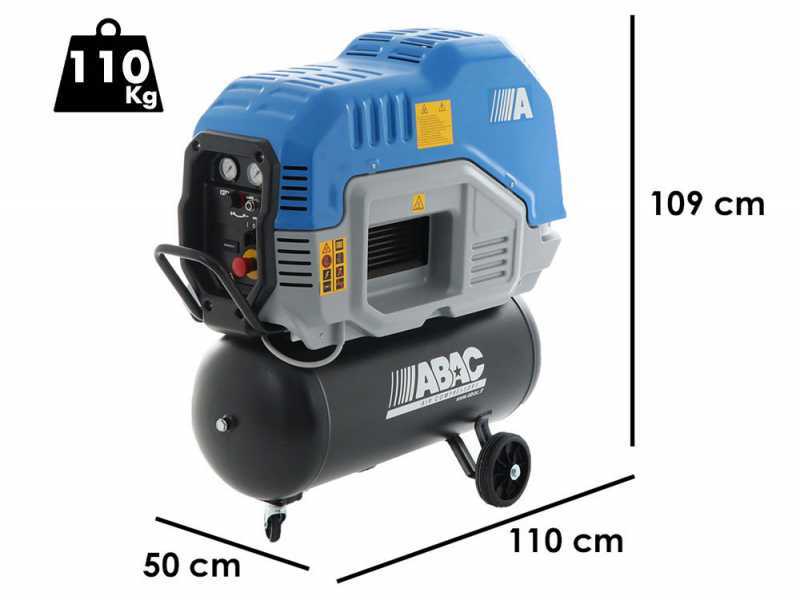

Easily transportable thanks to its 3 wheels, one of which, the front one, is pivoting.

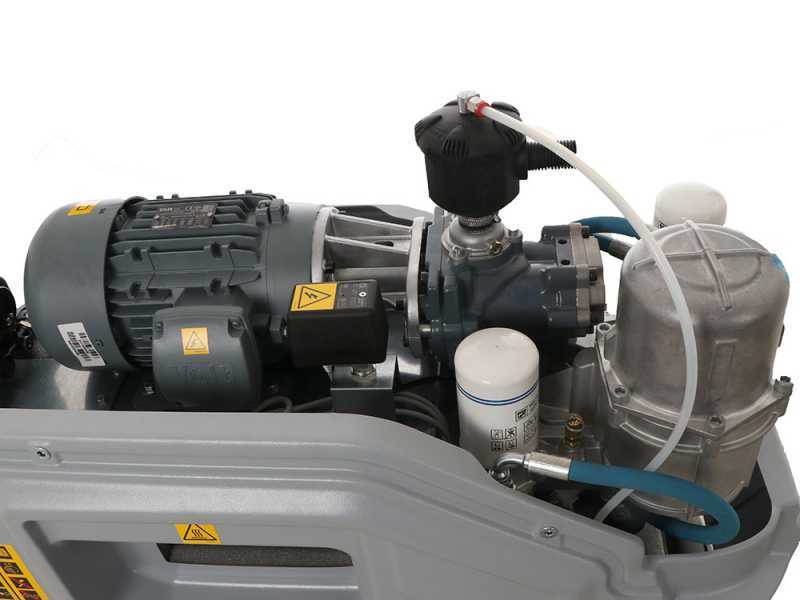

The compressor operation can be summarized as follows:
- The gas passes through a suction line created between the two rotors.
- The rotation of the screws stops the input suction and the air is pushed towards the delivery output.
- The screws are made in such a way as to progressively reduce the space between the rotors and the stator and this allows for an increase in pressure.
- The last step of the operation concerns the expulsion of air from the discharge of the pump unit.
Models with screw technology are designed for heavy-duty, continuous use, such as in business or industrial areas. Due to their continuous and uninterrupted productivity they are suitable for use in machine shops, industries, etc. Rotary screw compressors are perfect for those who require continuous compressed air production over the long term. In addition, the maintenance of this machine has been greatly simplified to allow the user to perform it in a few simple steps.
This type of product guarantees high and continuous performance over a long period of time as it does not require any pauses for cooling. They are also very quiet, producing a noise level of less than 59 db(A).
They are capable of producing complex air of high quality and free of oil contamination, which makes them suitable even for more complicated manufacturing processes such as paper, food and pharmaceuticals. They can still be used to feed automation systems, for gas compression or for the activation of any type of pneumatic machine.
This model is equipped with a large 90 L tank. It can produce 272 L of air per minute. It has a nominal capacity of 2.2 kW and it is able to produce a maximum pressure of 10 bar.
