Abac Spinn D 2.2 90W 10 230/50 - Rotary screw compressor - Max. pressure 10 bar

The Spinn D 2.2 90W 10 230/50 screw compressor is part of Abac new rotary screw product range.

This type of product guarantees high and continuous performance over a long period of time as it does not require any pauses for cooling. They are also very quiet, producing a noise level of less than 59 db(A).

They are capable of producing complex air of high quality and free of oil contamination, which makes them suitable even for more complicated manufacturing processes such as paper, food and pharmaceuticals. They can still be used to feed automation systems, for gas compression or for the activation of any type of pneumatic machine.

The compressor operation can be summarized as follows:

• The gas passes through a suction line created between the two rotors.
• The rotation of the screws stops the input suction and the air is pushed towards the delivery output.
• The screws are made in such a way as to progressively reduce the space between the rotors and the stator and this allows for an increase in pressure.
• The last step of the operation concerns the expulsion of air from the discharge of the pump unit.

Thanks to their three wheels, they are also easy to transport and use anywhere. The rotary screw system makes them very functional and guarantees higher performance and efficiency than classical piston compressors with belt drive.

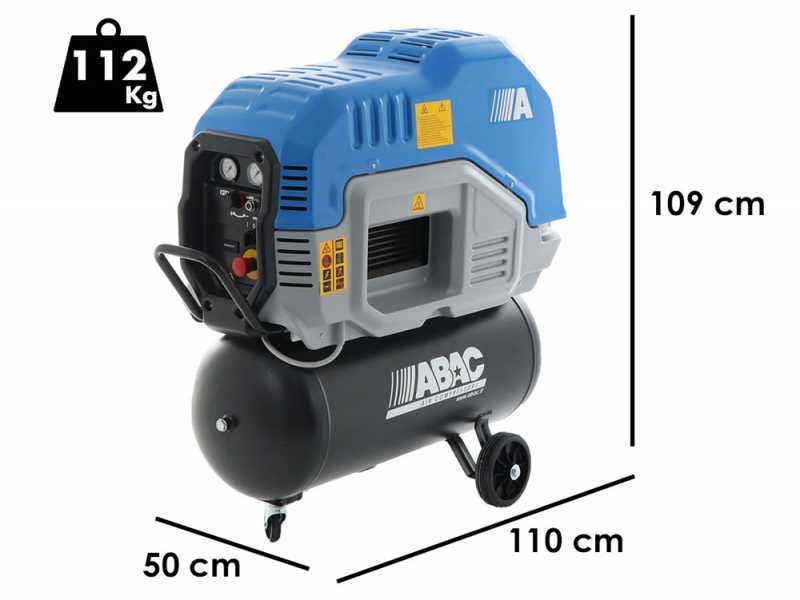

This model is equipped with a large 90 L tank. It can produce 272 L of air per minute. It has a nominal capacity of 2.2 kW and it is able to produce a maximum pressure of 10 bar.

Models with screw technology are designed for heavy-duty, continuous use, such as in business or industrial areas. Due to their continuous and uninterrupted productivity they are suitable for use in machine shops, industries, etc. Rotary screw compressors are perfect for those who require continuous compressed air production over the long term. In addition, the maintenance of this machine has been greatly simplified to allow the user to perform it in a few simple steps.

The screw compressors are particularly suitable for those environments that require a higher air flow rate and for prolonged use. Unlike piston models, they do not require a rest period, but only an initial phase during which the air compressor must reach a suitable temperature to be able to deliver the maximum pressure and flow rate.

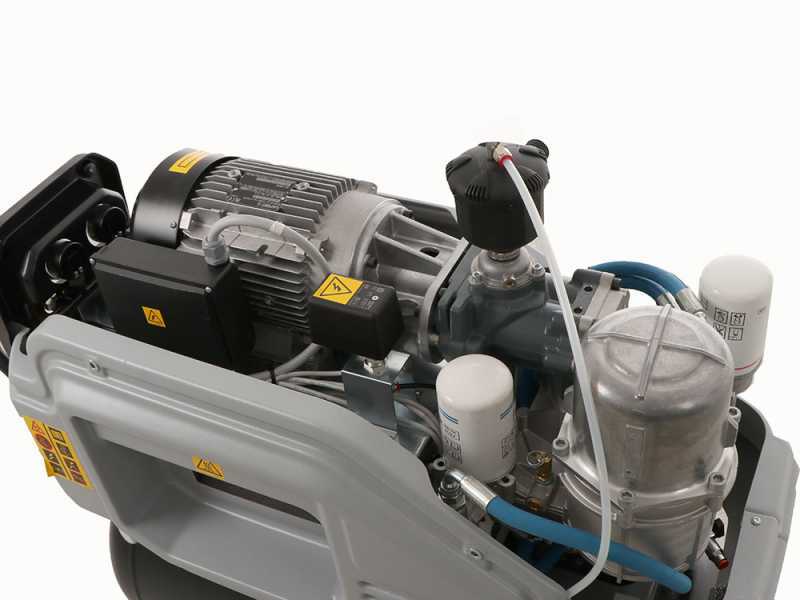

The new line of screw compressors ensures high efficiency and reliability. These models feature a single-stage compression unit cooled by fluid injection, designed to achieve a greater accessibility during maintenance. The components subject to wear have been reduced to allow maintenance to be carried out in total autonomy and avoid unnecessary interventions that could damage the machine.

The screw unit and the electric motor are fixed on an anti-vibration base which eliminates the transmission of vibrations to the structure of the compressor, so as to greatly reduce noise and mechanical stress on the fixed parts of the machine.

Noise emissions: 59 db

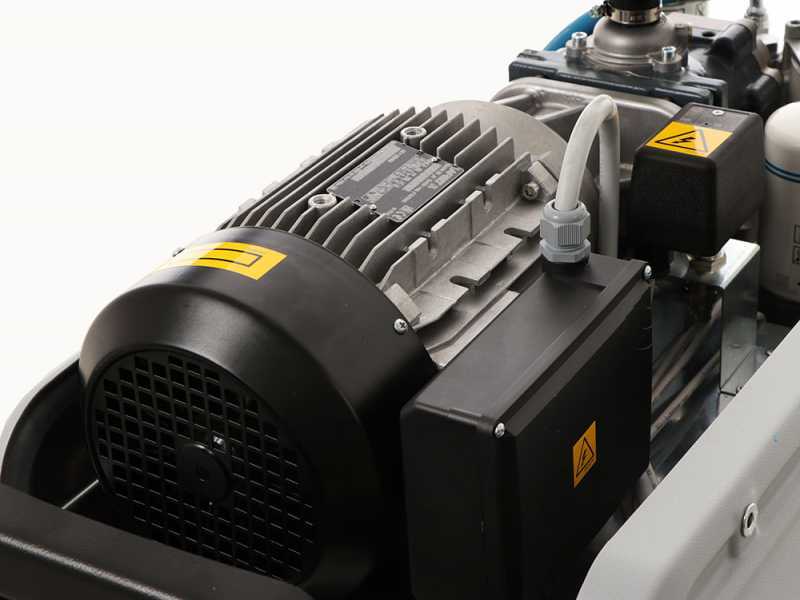

The air compressor has a single-phase electric motor. The induction motor is characterised by a very long service life and low maintenance requirements. In fact, this motor is brushless, the brushes being the main component subject to wear in electric motors. The absence of this component gives the motor durability. It stands out to be a top-quality product in terms of reliability, low noise, durability, energy efficiency and maintenance.

The air compressor is connected to the pumping unit via a gear motor

• Type: Single-phase electric
• Voltage: 230 V
• Power: 3 HP
• Frequency: 50 HZ

Focus on the air filter

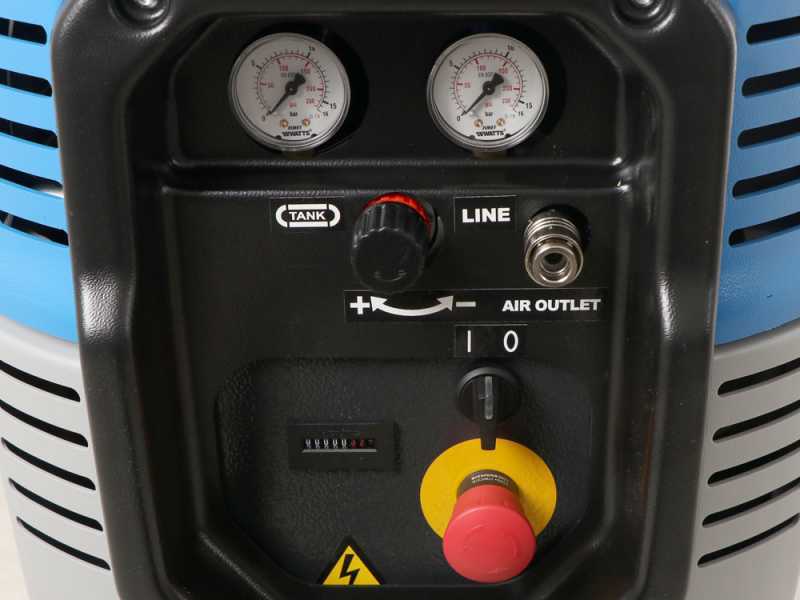

The air compressor features easy and user-friendly controls, which are divided into:

- Air outlet

- Power switch

- Emergency switch

- Tank pressure gauge

- Output air pressure gauge

- Hour meter;

- Pressure regulator

Other motor features include:

Porthole for oil level control

Plastic rear wheels

Front pivoting wheel

Transportation handles

Front pivoting wheel

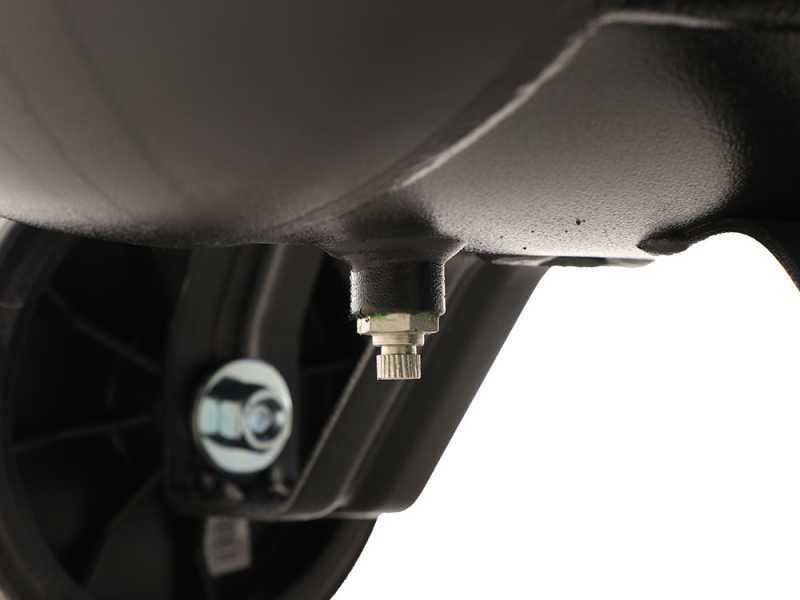

Drain valve

90 L tank

Cooling fan
