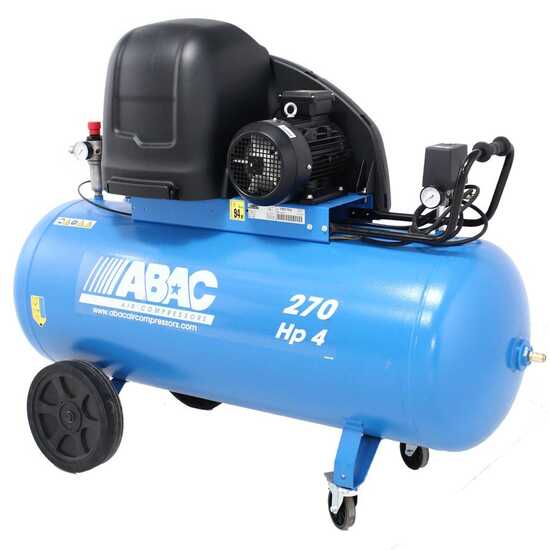

ABAC SILENT A39B 270 CT4 - Silenced three-phase belt-driven electric air compressor - 4 HP motor - 270 l

ABAC A39B 270 CT4 Air Compressor

Main features:

S = Silenced compressor
A = "Single stage” cylinder head
39= ABAC "39 series” cylinder head
B = Cooling manifold
270 = Tank capacity in L
C = Wheeled (on wheels)
T = Three-phase motor
4 = Motor power in HP

Electric silenced air compressor equipped with belt drive. This solution offers numerous advantages over a direct drive, the main one being that it allows the cylinder head to be kept at a low speed, which significantly increases the life of the cylinder head and reduces wear. In addition, a low-speed pumping unit also allows for a significant reduction in the operating temperature and noise emissions.

This type of air compressor is particularly suitable for intensive use at both semi-professional and hobby levels, with a special care for the acoustic comfort of work.

Power supply: three-phase 400 V

Power: 4 Hp

The induction motor is characterised by a very long service life and low maintenance requirements.

In fact, this motor is brushless, the brushes being the main component subject to wear in electric motors. The absence of this component grants high durability to the motor.

It is a top product in terms of reliability, low noise, durability, energy efficiency and maintenance.

Air intake flow: 486 L/min
Cylinder head type: twin-cylinder with cast iron cylinders
Suction type: single stage
Lubrication: oil
No. of revolutions: 1300 rpm

The degree of professionalism and more generally the life of the air compressor is largely determined by the number of revolutions per minute of the cylinder head.

A low revolutions number means low wear and longer life of the air compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are fitted to the motor and to the cylinder head respectively.

In order to improve the efficiency and performance of the air compressor, the cylinder head is equipped with a side cooling manifold.

The air intake flow cooling system is able to improve the efficiency of the air compressor itself.
When air is pumped from the air compressor cylinder head, it is fed into the tank at a very high temperature. For this reason, the more the air tends to cool, the more the condensate tends to separate and deposit itself in the bottom of the tank.
The feeding of pre-cooled air from the manifolds means that condensate formation is greatly reduced.

These air compressors are designed to be kept close to the working area and benefit from the low noise emissions and maximum operator comfort.

This range of products stands out for the excellent combination of noise reduction and easy transportability.

All the advantages of the PRO range are enhanced by low noise emissions comfort.

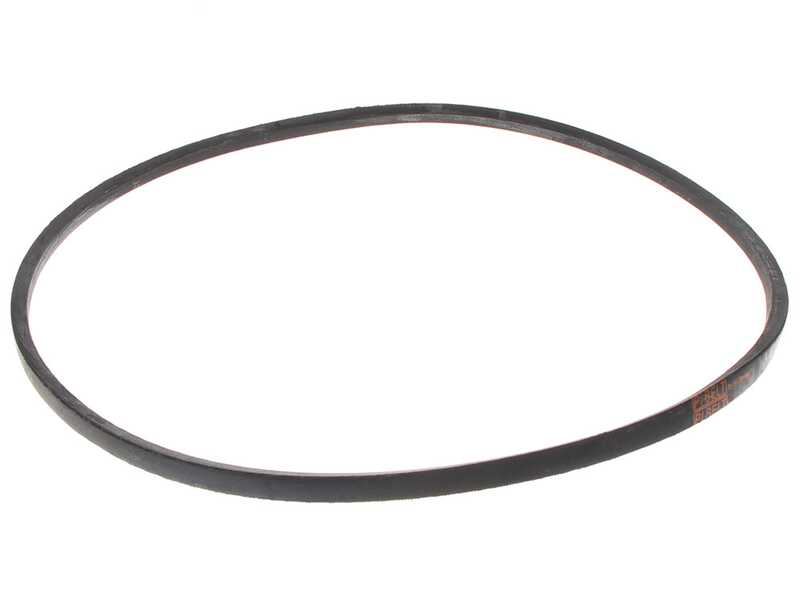

These ABAC air compressors feature a belt drive.

The use of the belt, combined with an induction motor, contributes to the durability of this air compressor, drastically reducing the number of revolutions of the cylinder head, increasing its life and reducing wear.

The protective housing is enveloping and effective. In fact, it has a practical ergonomic shape that allows a better cooling of the cylinder head than other metal protection grids.

Dimensions (L x W x H): 153 x 59.5 x 114 cm

Weight: 141 kg

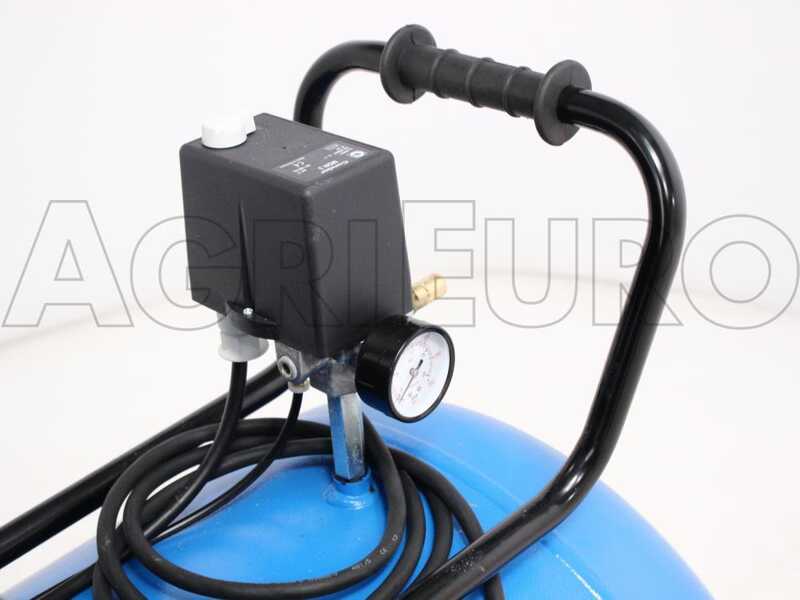

Equipped with a sturdy and rubberised front handle for easy grip.

Robust rear wheels.

Pivoting front wheels with braking system.

Drain valve placed under the tank.

Recommendations for use

To ensure maximum durability and efficiency of the machine, the following instructions must be strictly observed. Failure to do so constitutes improper use, with a serious risk of damage to the product (such damage is not covered by the warranty).

• Tank maintenance and condensate drainage: Moisture contained in the intake air accumulates as condensate at the bottom of the tank, due to the thermal processes generated during compression. Drain the condensate after each use by operating the lower drain valve, turning it carefully to avoid sudden discharges of compressed air and liquid. Failure to carry out this maintenance task may lead to internal corrosion of the tank. Furthermore, condensate accumulation reduces the effective air volume, causing abnormal motor restart cycles and the transfer of impurities to connected tools, with the resulting risk of premature damage to the entire system.
• Suitability of extension leads: Do not use unsuitable extension leads. Given the  high motor power, it is essential to ensure a constant power supply. Undersized cabling causes voltage drops that prevent the motor from reaching the correct speed, leading to abnormal overheating and permanent damage to electrical components. Use only cables with a minimum cross-section of 2.5 mm². This cross-section is necessary to handle the high current absorption, especially during start-up.

Unwind the extension lead completely before use. Never use the machine if the power cable is partially coiled or bunched up. Heat build-up due to induction can melt the cable and cause serious electrical damage to the motor or a fire hazard.

• Operating position:  The air compressor must only be installed in environments free from humidity, preferably in dry locations that are fully protected from weather exposure and potential water splashes. Adequate ventilation must be ensured by maintaining a clearance of at least 50 cm between the machine and any wall or obstacle, in order to allow for proper air circulation and effective heat dissipation. The installation area must also guarantee a high level of air cleanliness and be free from dust, fumes, chemical vapours, or flammable gases. Failure to comply with these requirements exposes the product to the following risks:

1. Critical overheating: insufficient ventilation or installation in confined spaces impairs the cooling of the motor and pump assembly, resulting in reduced service life.
2. Safety risks: the presence of volatile or flammable substances may compromise the structural integrity of the machine or the safety of the operator.

• Obstruction of cooling and ventilation systems:  During machine operation, the air compressor must not be covered with sheets, boxes or makeshift casings, as such barriers prevent the air flow required for cooling the internal components. Blocking the ventilation slots causes a rapid rise in operating temperature, with the consequent risk of irreversible damage to the motor and the seals of the pumping unit. If protective covers are used during periods of inactivity, these must be completely removed before any start-up attempt to ensure the full efficiency of the heat dissipation system, thus preventing critical overheating.
• Power supply and connections suitability: The air compressor must be connected exclusively to an electrical socket rated for the motor’s nominal power. Avoid using unsuitable sockets or connections located too far from the main electrical system. Failure to comply with these requirements exposes the machine to insufficient voltage conditions, seriously compromising the start-up phase, causing start-up difficulties, abnormal stresses and the sudden tripping of protective devices (circuit breakers or residual-current devices).
• Shutdown procedure and static pressure management: It is recommended not to leave the tank pressurised during periods of inactivity. After switching off (OFF position), the residual pressure must be released and the drain valve opened, leaving the tank empty in order to promote the evaporation of internal moisture. Maintaining constant pressure, in fact, promotes condensation build-up and accelerates the deterioration of pneumatic components, such as diaphragms and valves, drastically reducing the overall reliability of the system and its operational life.
• Checking the oil level: Before each use, check the oil level in the pumping unit. The level must fall within the range indicated by the oil level indicator or the dipstick, if fitted. Do not operate the air compressor if the oil level is too low, too high or if the oil is contaminated. An insufficient oil level can cause overheating, accelerated wear, seizure of the pumping unit and damage not covered by the warranty. An excessive oil level can cause leaks, oil leakage and oil carry-over into the compressed air circuit.

Operating position: Use the air compressor exclusively in a vertical position, on a flat and stable surface. Use on sloping surfaces may compromise the correct lubrication of the pumping unit.
