ABAC MONTECARLO OS20P - Silenced, oil-less, single-phase electric air compressor - Motor 2 HP - 50 lt

Questions & Answers (4)
ID: K600324

EAN: 8020119152874

MPN: 1129740299

7,6/10
After-sales assistance & Spare parts
ABAC MONTECARLO OS20P - Silenced, oil-less, single-phase electric air compressor - Motor 2 HP - 50 lt
+600 sold
Free gifts from AgriEuro
2 compressor guns2 compressor guns
Spiral hose 5 metresSpiral hose 5 metres
Technical data
Air compressor tank
50 L
Max. operating pressure
9 bar
Air intake flow
230 L/min
Cylinder head rpm
1420 RPM
Lubrication
Oil-less
Pump type
Single-stage
Silenced
Yes
Motor type
Electric
Nominal power
2 HP
Operating mode
Single-phase 230 V
Product Features
Model
Montecarlo OS20P
Air compressor type 2
Oilless
Air compressor type
Horizontal
Operating mode
Single-phase 230 V
Max. operating pressure
9 bar
Number of tanks
1
Air compressor tank
50 L
Noise level
65 dBA
Manufacturing country
China
Motor data
Motor type
Electric
Nominal power
2 HP
Silenced
Yes
Power supply
220 V electric
Manufacturing country
China
Pump data
Pump brand
ABAC
Model
Montecarlo OS20P
Air intake flow
230 L/min
Pump type
Single-stage
Lubrication
Oil-less
No. of cylinders
1
Cooling manifold
No
Manufacturing country
China
Transmission data
Transmission type
Coaxial type direct
Cylinder head rpm
1420 RPM
Equipment
No. of outlet couplings
1
Rear wheels size
150 mm
Rubber-coated soft grip
Yes
Lifting handle
No
Free gifts/extra features
Wooden pallet (safe shipping)
Yes
Quick reduction coupling
Yes
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
76x38x61
Net weight
35.1 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
85x45x72 cm
Weight including packaging
37.5 Kg
Assembly time
Assembled
Out of stock
Free Shipping
€ 330,39
Vat included

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

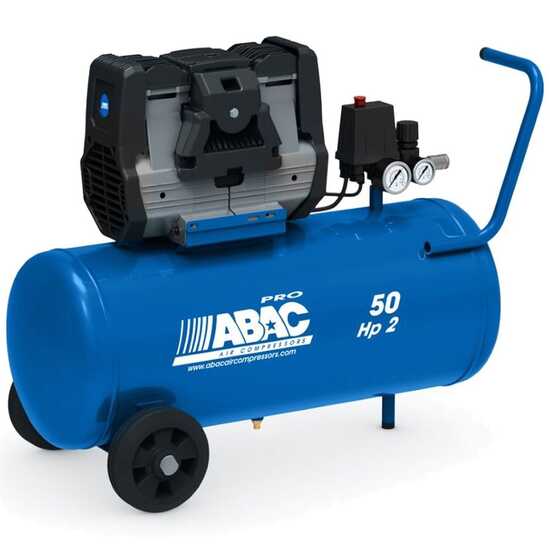

ABAC Montecarlo OS20P Air Compressor

The ABAC Montecarlo OS20P air compressor is regarded as the best choice among hobbyists looking for a reliable, lightweight and high-performing equipment. It belongs to the OS Series, a new range which has been designed primarily to reduce the constant noise caused by running these types of machines.

The noise emission produced is only 65 db, which is equivalent to the sound of a normal conversation, thus allowing the user a greater comfort and a more relaxed working environment.

It comes with a large compressed air storage tank of 50 L. This air compressor operates without oil, thus ensuring simple and limited maintenance.

Powered by a 2 Hp electric motor, this air compressor features a compressed air suction capacity of 230 L/min of ì. It is capable of reaching a max pressure of 9 bar.

It weighs 35 Kg and can be easily transported thanks to the upper handle and the two wheels, very easy to assemble.

This air compressor belongs to the ABAC "PRO" series.
. This is the "high" end of the ABAC range, thus representing its flagship. These air compressors have been designed with great attention to detail and are equipped with the best ABAC production cylinder heads.

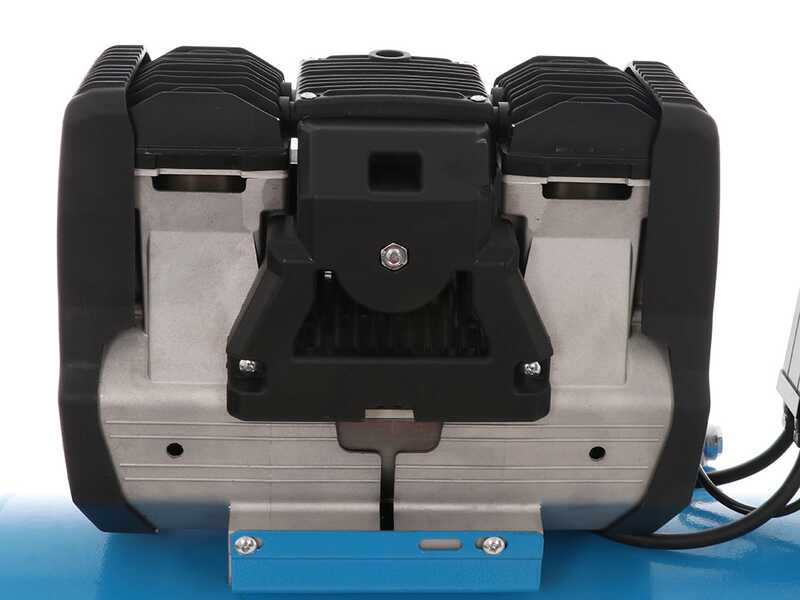

Technical features

Pumping unit type: coaxial - oilless

Air intake flow: 230 L/min

Pressure: 9 bar

Electric motor power: 1.5 Hp

Tank: 50 L

SILENCED: only 65 dB Designed to overcome the issue related to the noise emissions while operated in working areas. This range of air compressors stands out on the market for the low noise level.

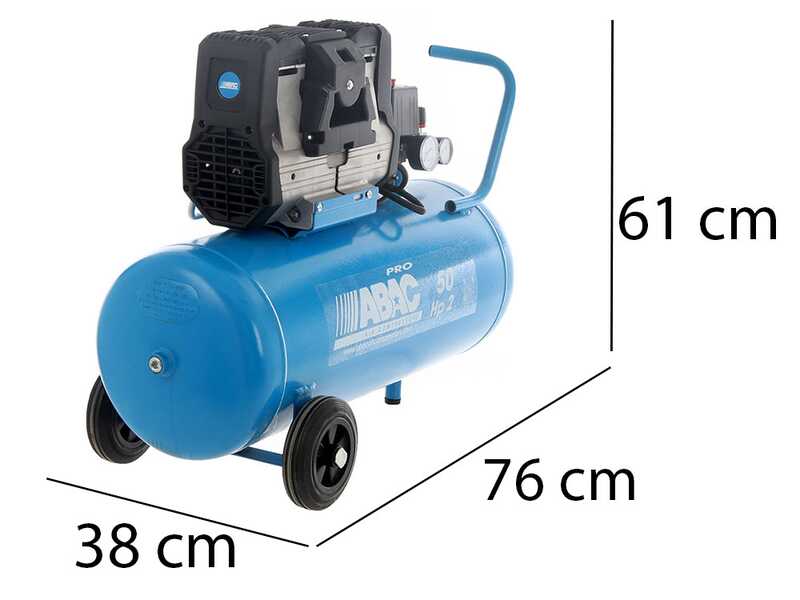

Overall dimensions:
- Length: 760 mm
- Height: 610 mm
- Depth (or thickness): 380 mm

Weight: 35.1 kg

Controls

The ABAC Montecarlo OS20P air compressor features easy and user-friendly controls, which are divided into:

Power switch

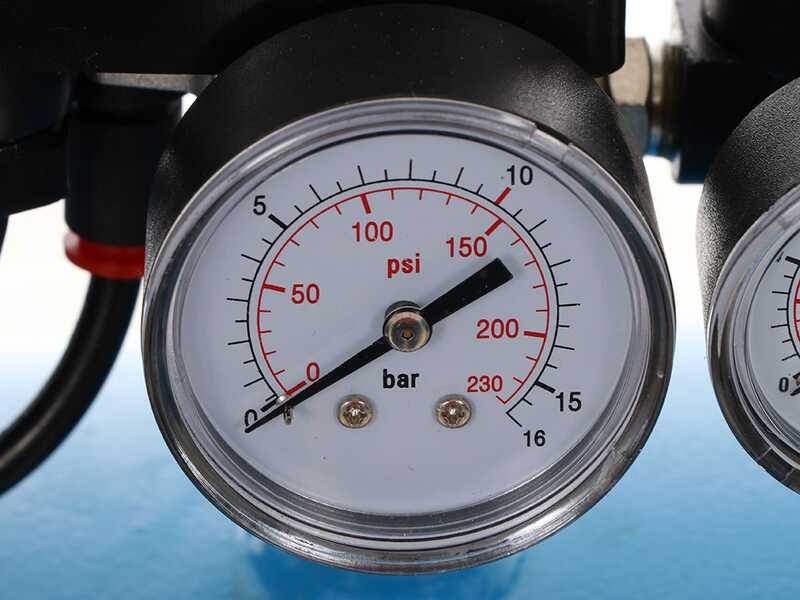

Output air pressure gauge

Tank air pressure gauge

Air compressor female outlet fitting

Pressure adjusting knob

Other features

Schuko plug

Ergonomic lifting handle

Large sturdy plastic wheels

Anti-vibration rubber pad

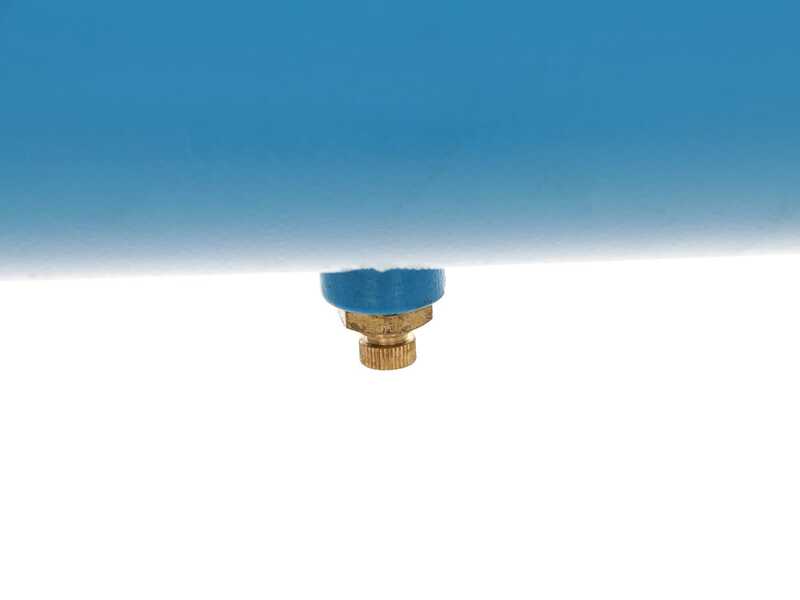

Condensate drain valve

Free items & Standard equipment

COMPLIMENTARY: GeoTech accessories kit for air compressors - 3 tools

This extensive air compressor accessories kit includes:

- Tyre inflating gun with
integrated pressure gauge

- Air blowing gun

- Coiled air hose

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
