ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt

Hobby
Questions & Answers (13)
ID: K500928

EAN: 8020119048801

MPN: 1129100023

ABAC
Catalogue ABAC
7,6/10
After-sales assistance & Spare parts
35Pictures
29Videos
134Customer pics
ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt
ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt
ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt
ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt
ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt
ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt
+2000 sold
Free gifts from AgriEuro
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
Universal cover for storageUniversal cover for storage
Prompt Delivery
293 items in stock
Free Shipping
Estimated delivery: 27/01/2026 - 29/01/2026
Free returns (up to 30 days after receipt) *
€ 242,30
Vat included
Technical data
Air compressor tank
50 L
Max. operating pressure
10 bar
Air intake flow
220 L/min
Cylinder head rpm
2850 RPM
Lubrication
Oil
Pump type
Single-stage
Motor type
Electric
Nominal power
2 HP
Operating mode
Single-phase 230 V
Product Features
Model
Montecarlo L20
Air compressor type
Horizontal
Operating mode
Single-phase 230 V
Operating mode
Electric 230 V
Max. operating pressure
10 bar
Number of tanks
1
Air compressor tank
50 L
Noise level
95 dB(A)
Noise level
95 LwA
Manufacturing country
China
Motor data
Motor type
Electric
Nominal power
2 HP
Air compressors engine speed
2850
Power supply
220 V electric
Manufacturing country
China
Pump data
Pump brand
ABAC
Model
L20
Air intake flow
220 L/min
Pump type
Single-stage
Lubrication
Oil
No. of cylinders
1
Cooling manifold
No
Cylinders material
Cast iron
Transmission data
Transmission type
Coaxial type direct
Cylinder head rpm
2850 RPM
Equipment
No. of outlet couplings
1
Lifting handle
Yes
Free gifts/extra features
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
77x31x64 cm
Net weight
32.6 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
77x33x64 cm
Assembly time
5 minutes
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

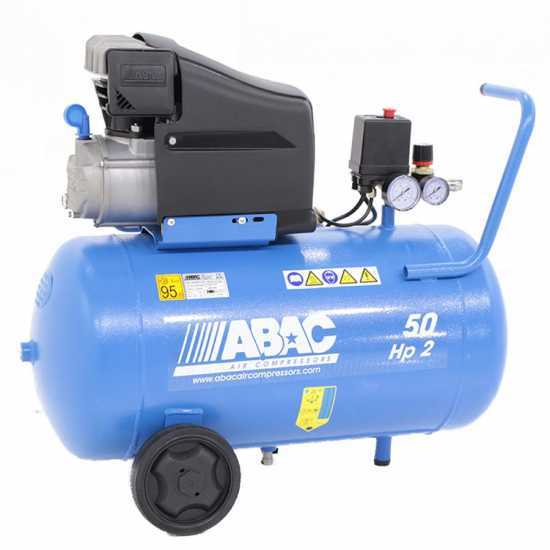

ABAC Montecarlo L20 Electric Air Compressor - 50 L - 2 Hp

ABAC Montecarlo L20 Air Compressor
Main features:
Montecarlo = Air compressor model
L = Oil lubricated
20 = Motor power in Hp x 10

The ABAC Montecarlo L20 air compressor is renowned as the best choice among hobbyists looking for a reliable, lightweight and high-performing equipment.

Powered by a 2 Hp electric motor, this air compressor features a compressed air suction capacity of 220 L/min. It is capable of reaching a maximum pressure of 10 bar.

It comes with a large-sized compressed air storage tank of 50 L. It weighs 33 Kg and can be easily transported thanks to its wheels and to the upper handle.

This air compressor belongs to the Abac "LINE” series.
This series includes all the "medium"-range products by ABAC and is the most popular and best-selling. It features all of ABAC excellent quality, with outstandingly finished air compressors at a great value for money.

ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt
ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt

Technical features

Air intake flow: 220 L/min

Pumping unit type: coaxial

Pressure: 10 bar

Electric motor power: 2 Hp

Tank: 50 L


Overall dimensions:
- Width: 770 mm
- Height: 645 mm
- Depth (or thickness): 310 mm

Weight: 33 kg

ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt
ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt

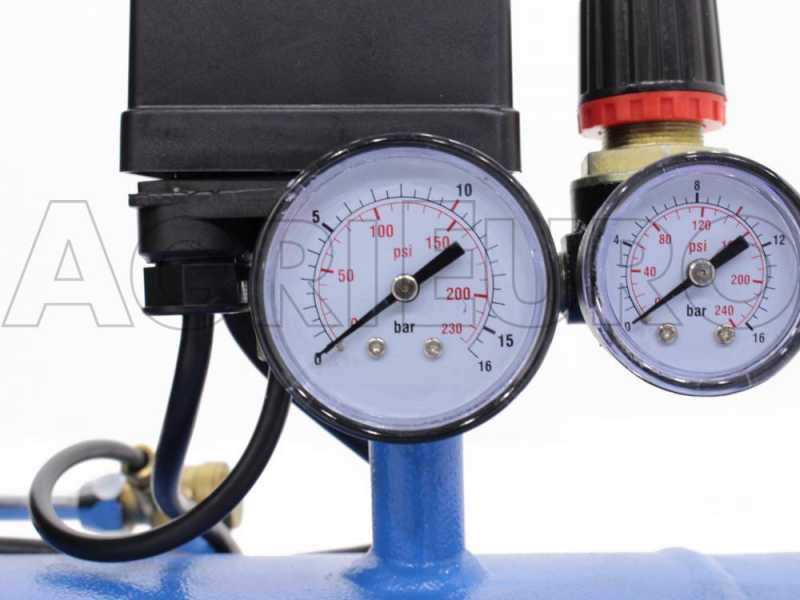

Controls

The ABAC Montecarlo L20 air compressor features easy and user-friendly controls, which are divided into:

Power switch

Output air pressure gauge

Tank air pressure gauge

Air compressor female outlet fitting

Pressure adjusting knob

ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt
ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt

Other features

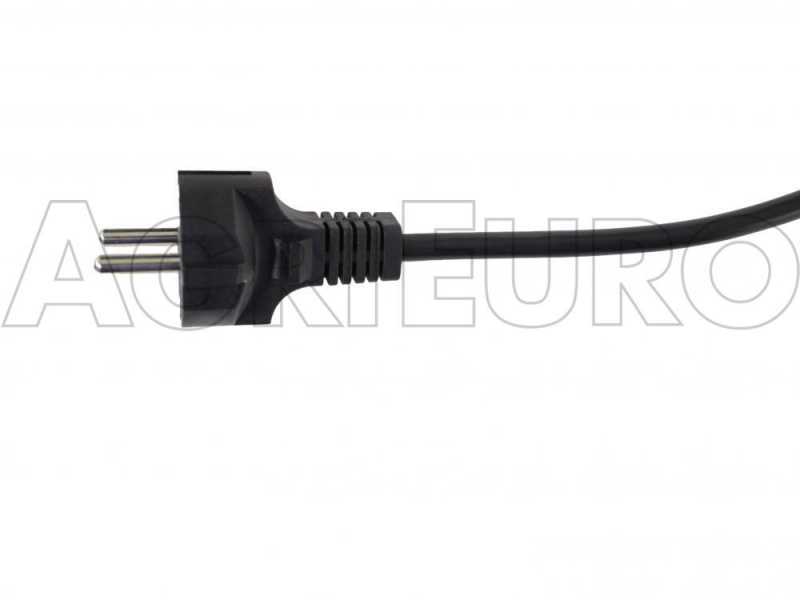

Schuko plug

Ergonomic lifting handle

Large sturdy plastic wheels

Anti-vibration rubber pad

Condensate drain valve

Oil pump dipstick and oil level control porthole

ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt
ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt
Free items & Standard equipment

COMPLIMENTARY: Heavy-duty cover for covering and storage

Essential to protect your generator when is not in use.

This cover is fast and easy to place: in just a few seconds your machinery is protected from dust and humidity.

Specifically designed to perfectly fit small machines.

Easy to fold and store thanks to its small overall size!

ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt
ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.

ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt
ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt ABAC MONTECARLO L20 - Single-phase, electric air compressor - Motor 2 HP - 50 lt
