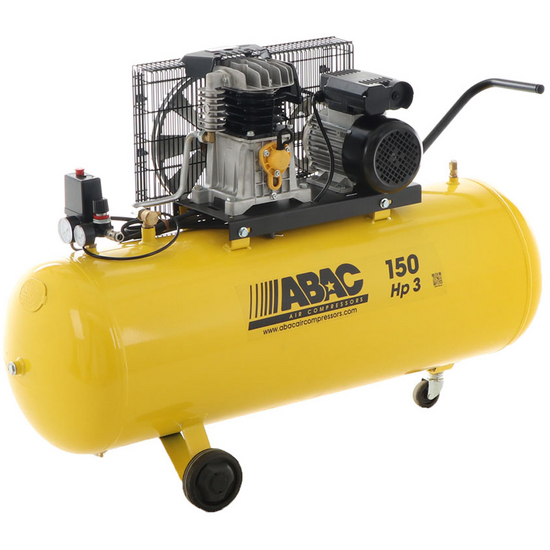

Name: ABAC LINE B26B/150 CM3 - Single-phase belt-driven electric air compressor - Motor 3 HP - 150 litres
Brand: ABAC
SKU: K604028
Price: 857.72 EUR
Availability: OutOfStock
Rating: 5 (2 reviews)

Description

ABAC B26B/150 CM3 Silenced Air Compressor

ABAC B26B/200 CM3 Air Compressor - short overview:

B26B = head type
150 = Tank capacity in liters
C = Wheeled (on wheels)
M = Single-phase electric motor
3 = Motor power in HP

This air compressor is renowned as the best choice among the hobbyists and high-demanding users, who are looking for a reliable, silent, lightweight and high-performing equipment. It has a large-sized compressed air storage tank of 150 liters.

Powered by a 3 HP single-phase electric motor, this air compressor has a 240 L/min compressed air suction capacity. It’s capable of reaching a 10 bar maximum pressure.

The air compressor weighs 90 Kg, and it can be easily transported thanks to its three wheels and the upper handle.

ABAC LINE B26B/150 CM3 - Single-phase belt-driven electric air compressor - Motor 3 HP - 150 litres

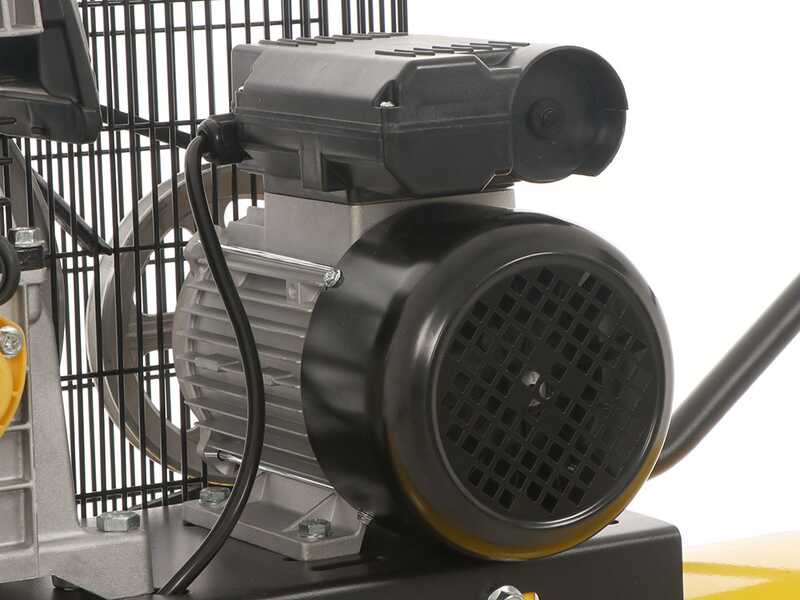

Single-phase electric motor - 2.2 kW

Power supply: 230V

Power: 3 hp

Pumping unit with traditional piston and cylinder made of cast iron and air output adjustment with quick joint.

This compressor stands out for its long durability over time and the low maintenance requirement.

It is a top-quality product in terms of reliability, durability, energy efficiency and maintenance.

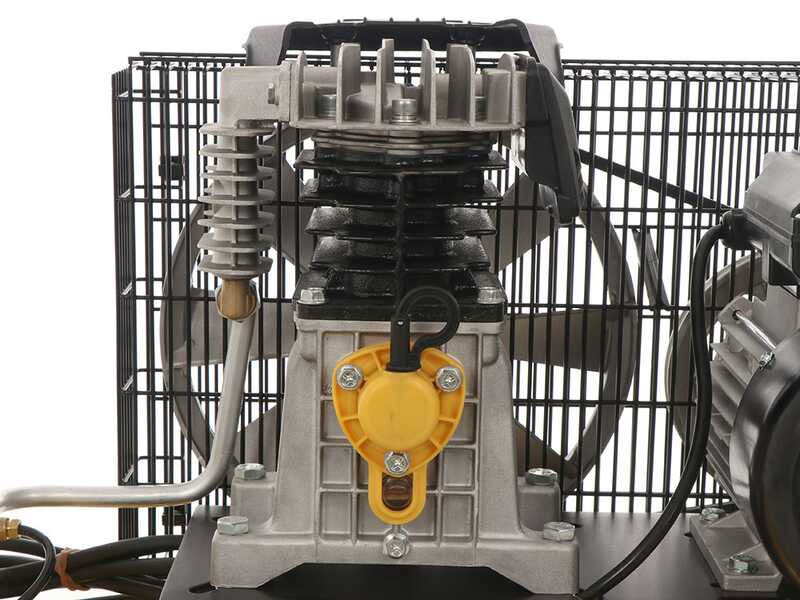

ABAC B26B Head

Air displacement: 240 L/min
Head type:twin-cylinder with cast iron cylinders
Suction type:single-stage
Lubrication:oil-lubricated
Number of revolutions: 1600 rpm

The degree of professionalism and more generally the life of the compressor is largely determined by the number of revolutions per minute of the head.

The lower the rpm, the longer the life of the compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are assembled to the motor and to the head unit respectively.

Focus on the cooling manifold

Focus on the oil tank plug

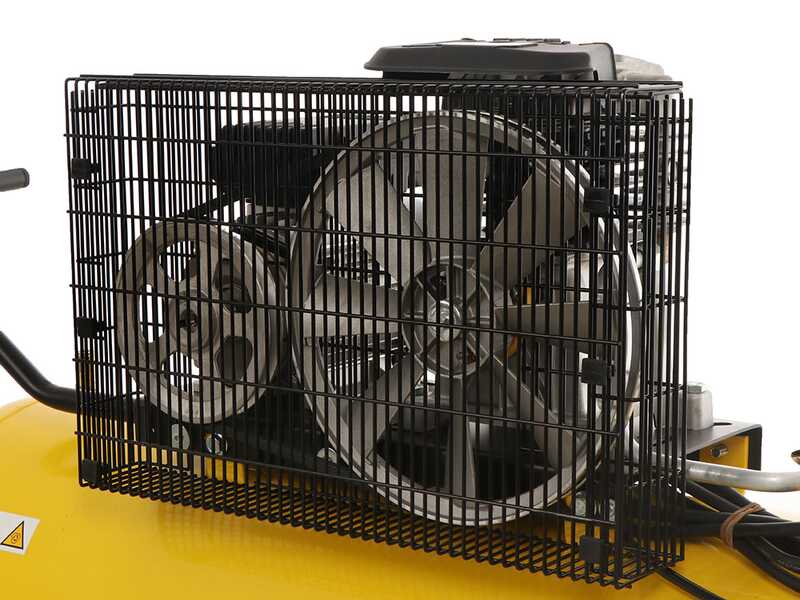

Belt drive

The belt drive is an element that characterizes these ABAC compressors.

The use of the belt, combined with an induction motor, contributes to the durability of this compressor, drastically reducing the number of revolutions of the head, increasing its life and reducing wear.

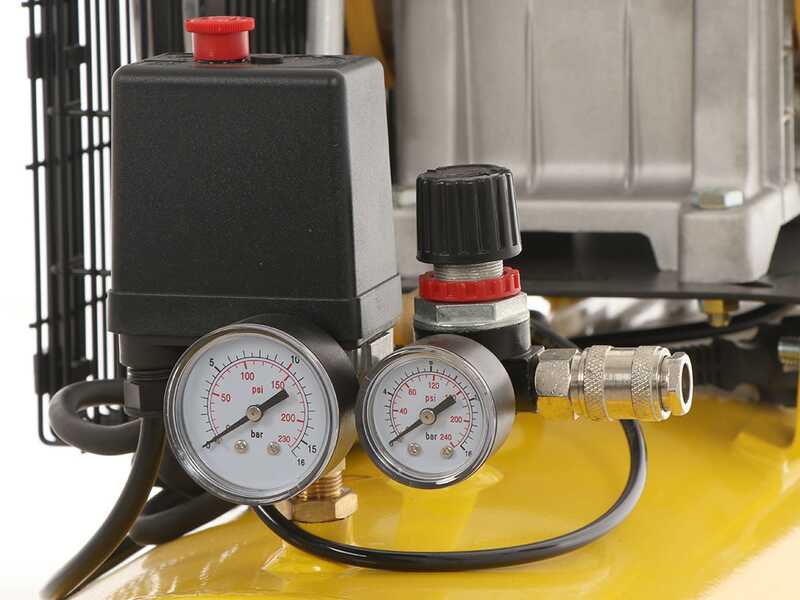

Tank and controls

Tank: 150 L

Maximum pressure: 10 bar

The air compressor is equipped with a special knob for adjusting the output pressure which can be checked by means of a pressure gauge located immediately below.

Power switch

Female outlet fitting

Tank internal pressure gauge and outlet pressure gauge

Bolted Motor–Pump Assembly Connection

In this model, the link between the pump assembly and the tank is not welded but secured using a heavy-duty bolted system.
This design solution, typical of higher-end compressors, has been developed to provide:

Increased durability over time: the bolted mechanical joint helps prevent micro-cracks and structural failures that can affect welded joints when exposed to vibration or high pressures.
Simplified maintenance: the connection can be disassembled swiftly, facilitating inspection, cleaning and replacement of parts.
Improved operational stability: the bolted connection ensures a stronger and more durable coupling, particularly beneficial for compressors subjected to heavy-duty use.

Overall, this configuration results in a compressor that is more reliable, more durable and easier to maintain.

Other features

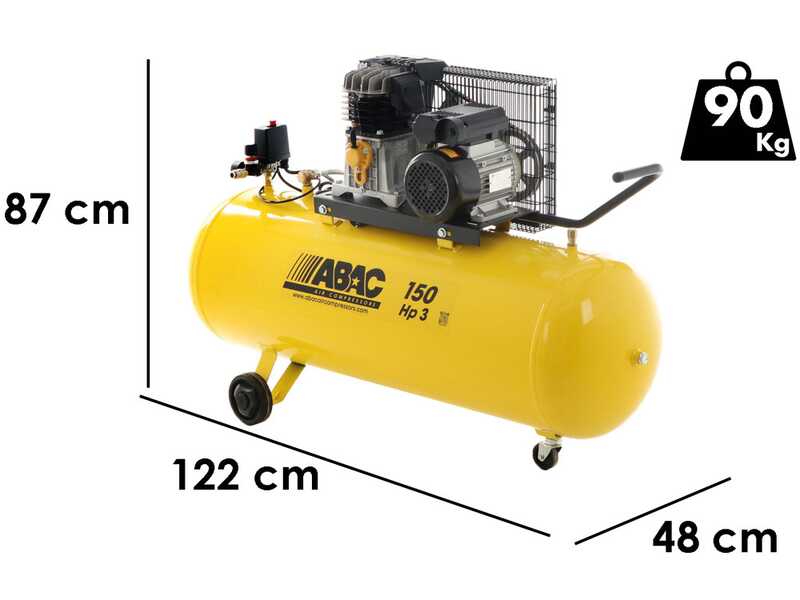

Dimensions (l x p x h): 121 x 48 x 87 cm

Weight: 90 Kg

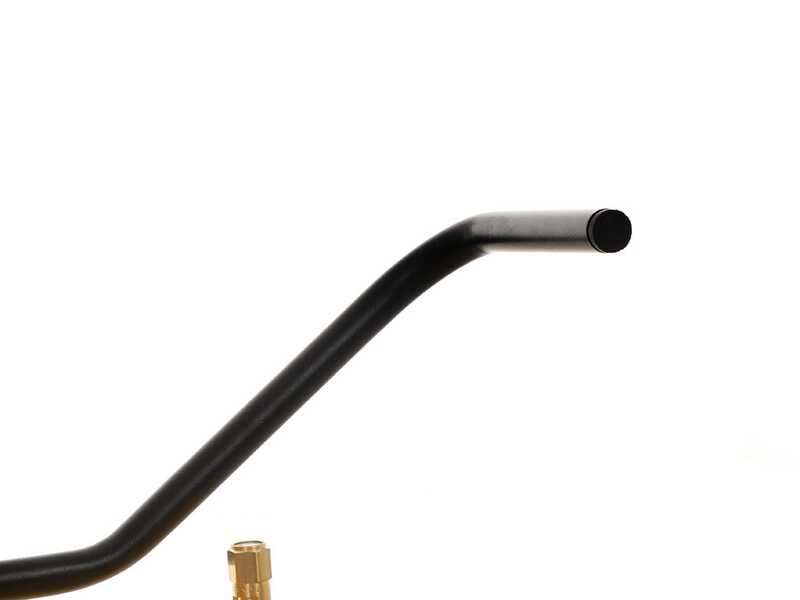

Equipped with a sturdy and rubber-coated front handle for easy grip.

Sturdy rear wheels.

Pivoting front wheel

Drain valve placed under the tank.
