HOME Workshop and Do-It-Yourself Electric Air Compressors Heavy-duty belt-driven air compressors (50-300 L) 100 Litre Belt-drive Air Compressors Single-phase Belt-driven Air Compressors 100 L 2 Hp ABAC B26/90 CM2

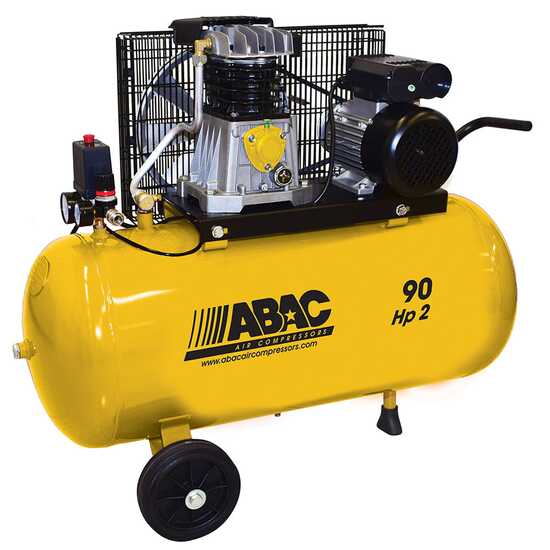

ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l

Semi-Pro
Add a question
ID: K503499

EAN: 8020119132852

MPN: 1121450004

ABAC
Catalogue ABAC
7,6/10
After-sales assistance & Spare parts
38Pictures
1Videos
4Customer pics
ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l
ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l
ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l
ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l
ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l
ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l
Special offer
FREE
2 guns with container2 guns with container
2 compressor guns2 compressor guns
Extension hoseExtension hose
Universal adaptors kitUniversal adaptors kit
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
90 L
Max. operating pressure
10 bar
Air intake flow
210 L/min
Cylinder head rpm
1400 RPM
Lubrication
Oil
Pump type
Single-stage
Motor type
Induction
Nominal power
2 HP
Operating mode
Single-phase 230 V
Transmission type
Belt
Manufacturing country
Italy
Product Features
Model:
B26/90 CM2
Air compressor type 2:
Belt-driven
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
90 L
Noise level:
95 dB(A)
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
2 HP
Silenced:
No
Air compressors engine speed:
1400
Power supply:
220 V electric
Pump data
Pump brand:
ABAC
Model:
B26/90 CM2
Air intake flow:
210 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
2
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Belt-driven:
✔
Transmission type:
Belt
Cylinder head rpm:
1400 RPM
Transmission protective cover:
Protection shield conveying air on the pump unit
Equipment
No. of outlet couplings:
1
Front handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
110x40x83 cm
Net weight:
62 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
114x41x83
Weight including packaging:
65 Kg
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 19/05/2025 - 21/05/2025
Free returns (up to 30 days after receipt) *
Lowest price:
€ 628,77
-3 %
€ 609,54
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

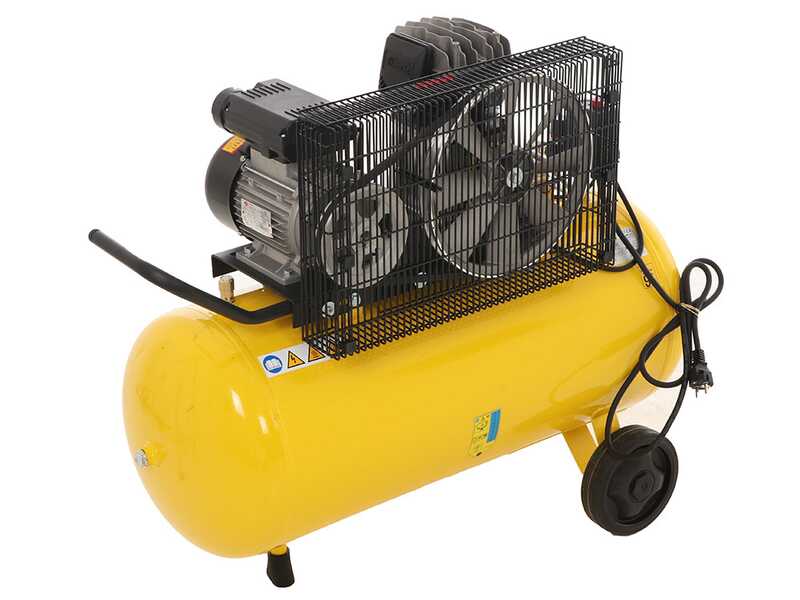

ABAC B26/90 CM2 90 L Silenced Air Compressor

ABAC B26/90 CM2 Air Compressor
Main features:

B26 = cylinder head type
90 = Tank capacity in litres
C = Wheeled (on wheels)
M = Single-phase electric motor
2 = Motor power in Hp

Electric belt-driven air compressor. This solution offers numerous advantages over a direct drive. The main one is that it allows the cylinder head to be kept at a low speed, which significantly increases the life of the cylinder head itself and reduces wear. In addition, a low-speed pumping unit also allows for a significant reduction in the operating temperature and noise emissions.

This type of compressor is particularly suitable for intensive use at both semi-professional and hobby levels, with a special attention for the acoustic comfort of work.

ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l
ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l

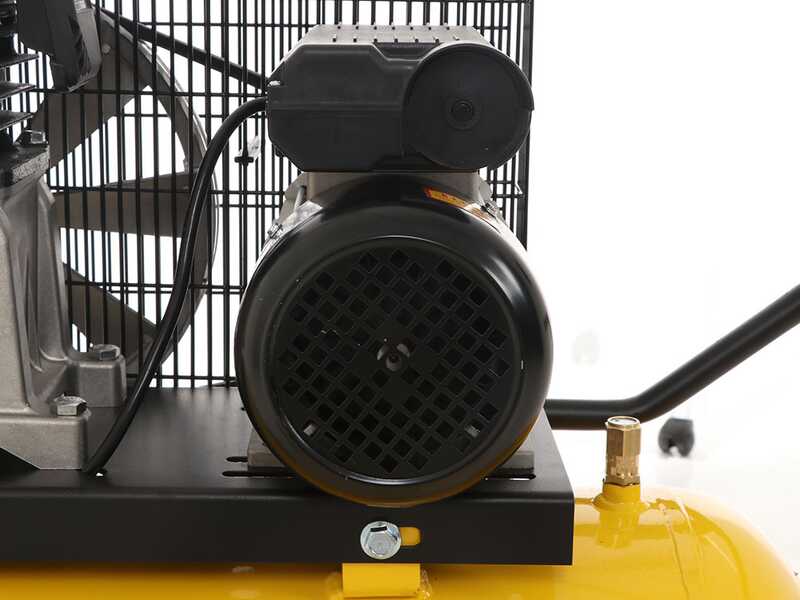

2 Hp single-phase electric motor - 1,5 wv

Power supply: 230 V

 Power: 2 Hp

Pumping unit with traditional piston and cylinder made of cast iron and air output adjustment with quick joint.

This air compressor is characterised by a very log service life and low need for maintenance.

It is a top-quality product in terms of reliability, durability, energy efficiency and maintenance.

ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l
ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l

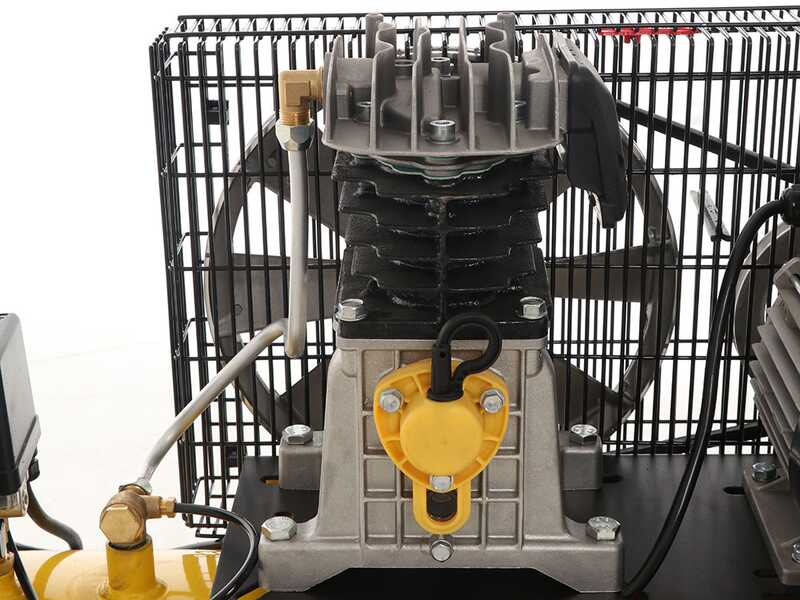

ABAC b26 cylinder head

Air intake flow: 210 L/min
Cylinder head type: single-cylinder with cast iron cylinders
Suction type: single-stage
Lubrication: oil
No. of revolutions: 1400 rpm

The degree of professionalism and more generally the life of the air compressor is largely determined by the number of revolutions per minute of the cylinder head.

The lower the rpm, the longer the life of the air compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are fitted to the motor and to the cylinder head respectively.

ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l
ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l

Tank and controls

90 L tank.

Maximum pressure: 10 bar

The air compressor is equipped with a pressure adjusting knob of the output air pressure which can be checked by means of a pressure gauge placed just below it, combined with an outlet.

The pressure switch placed next to it automatically reactivates the air compressor as soon as the pressure drops below a certain threshold.

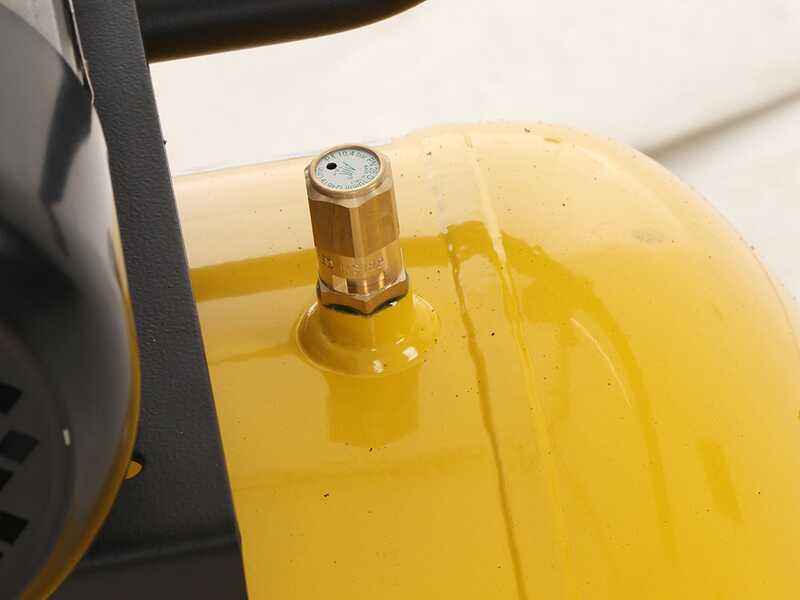

It also features a single on/off button.The safety valve that activates in case of excessive pressure in the tank.

Tank air pressure gauge.

ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l
ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l

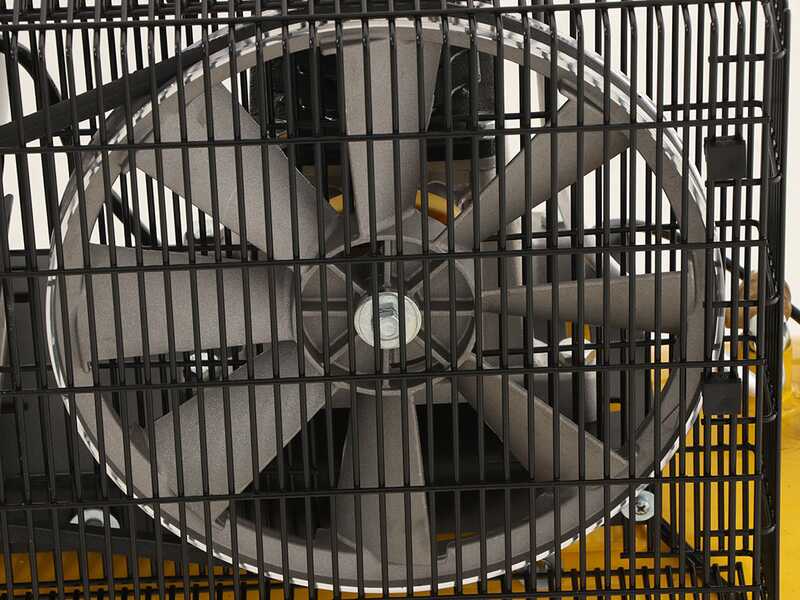

Belt drive

These ABAC air compressors feature a belt drive.

The use of the belt, combined with an induction motor, contributes to the durability of this air compressor, drastically reducing the number of revolutions of the cylinder head, increasing its life and reducing wear.

ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l
ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l

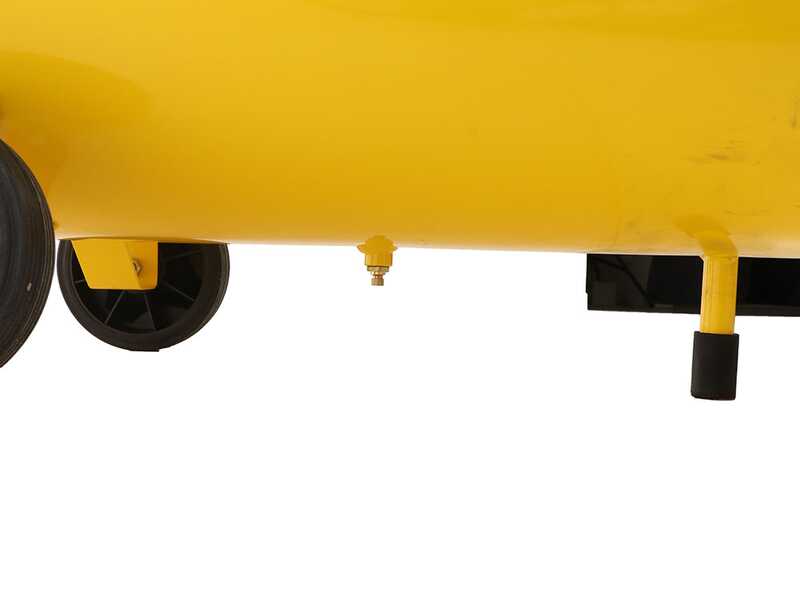

Other features

Dimensions (L x W x H): 110 x 40 x 83 cm

Weight: 62 kg

Equipped with a sturdy and rubberised front handle for easy grip.

Robust rear wheels.

Non-slip rubber pad

Drain valve placed under the tank.

ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l
ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l
Free items & Standard equipment

COMPLIMENTARY: GeoTech accessories kit for air compressors

This extensive air compressor accessory kit includes:

- Tire inflating gun with
integrated pressure gauge

- Wash gun

- Air blow gun

- Air brushing gun

- Fittings for inflation ideal for inflating camping equipment and/or balloons.

This kit includes

-10 mt professional straight rubber braided hose.

ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l
ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint

  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations
ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l
ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l
ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l

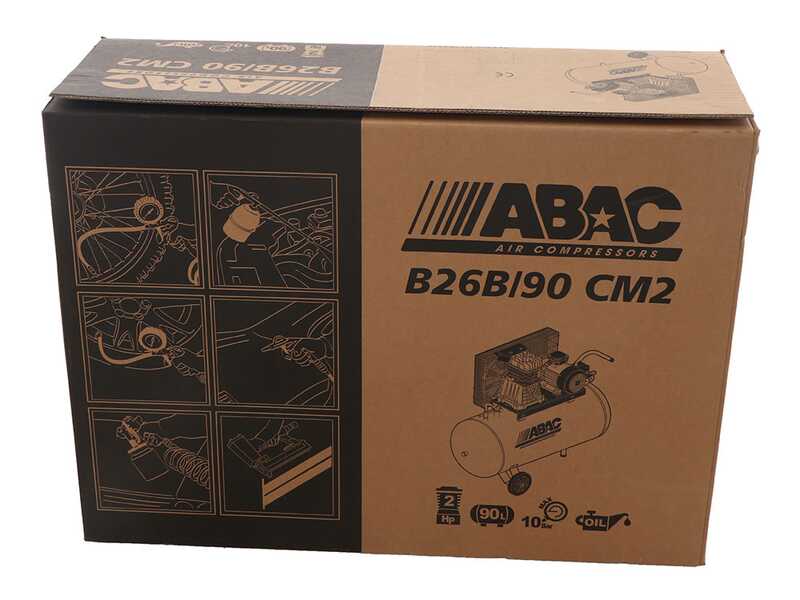

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.

ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l
ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l ABAC LINE B26/90 CM2 - Single-phase electric belt driven air compressor - Motor 2 HP - 90 l
