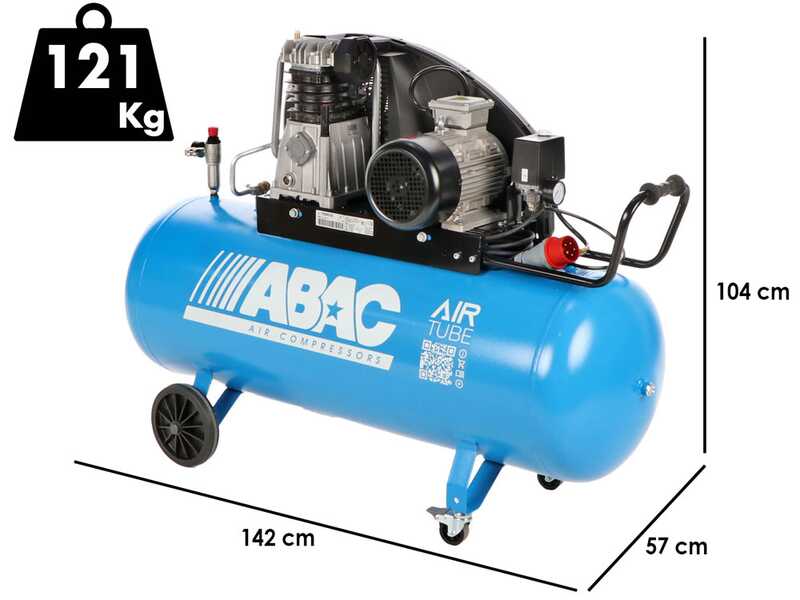

Abac A49B 200 CT4 - Three-phase belt driven electric air compressor - 4 HP motor - 200 litres

The ABAC EXP A49B 200 CT4 air compressor is a versatile and powerful device, ideal for a wide range of professional and industrial applications. This three-phase compressor is equipped with a 4 HP (3 kW) motor that guarantees high and consistent performance. With a maximum pressure of 11 bar (159.5 PSI), it can handle jobs that require significant and continuous airflow.

Among its key technical features, the ABAC EXP A49B 200 CT4 has a 200-liter vessel , providing a large compressed air storage capacity. The A49B pumping unit , equipped with a cooling manifold, helps to keep operating temperatures low, improving efficiency and longevity. The compressor runs at 1300 rpm, ensuring an air flow of 553 l/min.

This model is designed to be easy to move and handle, with two large wheels and two swivel wheels with brake, plus a full rubber grip for easy and safe transport. The sound pressure level is 76 dB (LPA) and the sound power level is 96 dB (LWA), making it relatively quiet for a compressor of this power.

Other distinguishing features include lubrication, which ensures smooth operation and reduces wear, and the dual output pressure switch with filter, which allows for easy connection of various air tools and improves the quality of the air supplied. The pre-assembled three-phase plug facilitates installation and immediate use.

Distinctive features:

• Powerful motor: 4 HP to ensure high performance.
• High pressure: Up to 11 bar (159.5 PSI).
• Large capacity: 200 liter tank.
• Pumping unit with cooling: A49B with cooling manifold.
• Mobility: 2 large wheels and 2 pivoting wheels with brake system.
• Rubber-coated ergonomic handle .
• Low sound levels: LPA 76 dB, LWA 96 dB.
• Lubricated: For efficient operation.
• Dual output pressure switch with filter: For connecting multiple tools.
• Pre-assembled three-phase plug: For easy installation.

Power supply: Three-phase 400 V

Power: 4 Hp /KW 3

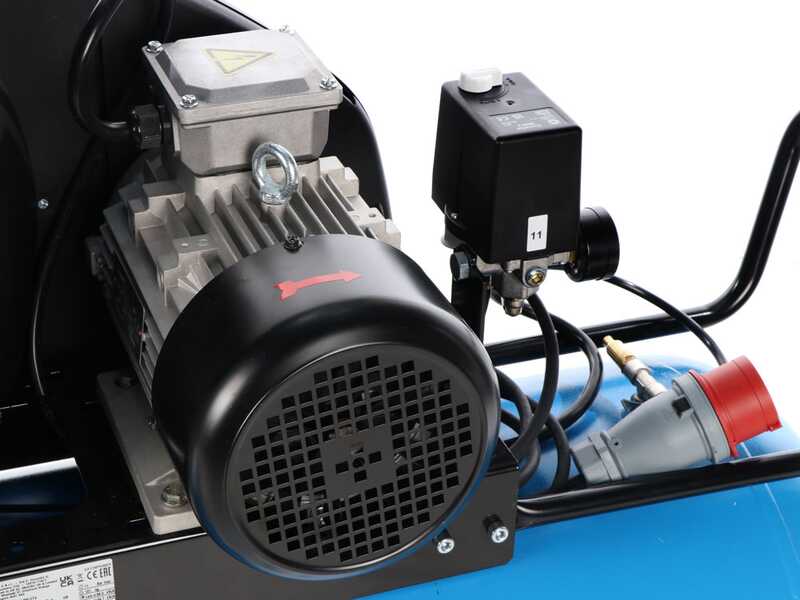

The induction motor is characterised by a very long service life and low need for maintenance.

This motor is in fact brushless, the brushes being the main component subject to wear in electric motors. It is exactly the absence of this component that gives the engine its proverbial durability.

It’s a top product for reliability, low noise, durability, energy efficiency and maintenance.

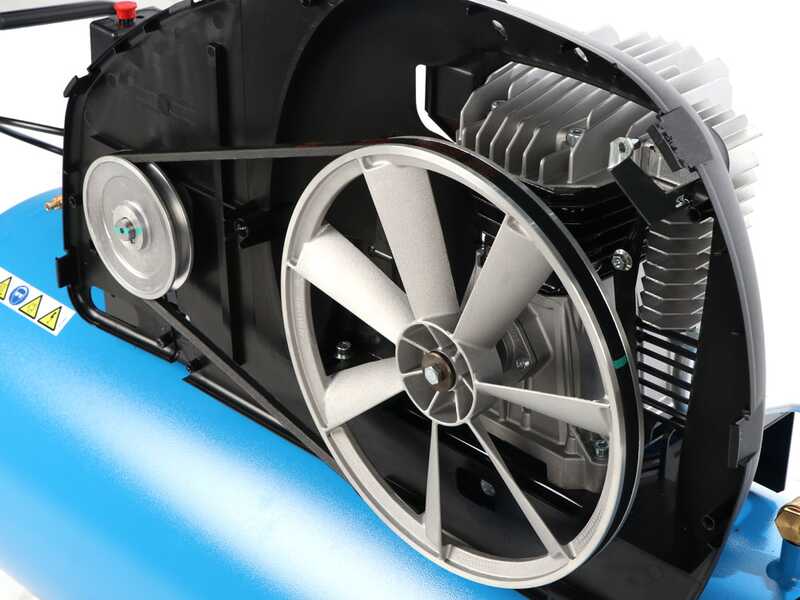

The belt drive is an element that characterizes these ABAC compressors.

The use of the belt, combined with an induction motor, contributes to the durability of this compressor, drastically reducing the number of revolutions of the head, increasing its life and reducing wear.

The grid protection serves to prevent the drive belt and the transmission from being damaged by external objects that might hit it during operation. It also allows the status of the belt to be monitored at all times.

• Increased durability over time: the bolted mechanical joint helps prevent micro-cracks and structural failures that can affect welded joints when exposed to vibration or high pressures.
• Simplified maintenance: the connection can be disassembled swiftly, facilitating inspection, cleaning and replacement of parts.
• Improved operational stability: the bolted connection ensures a stronger and more durable coupling, particularly beneficial for compressors subjected to heavy-duty use.

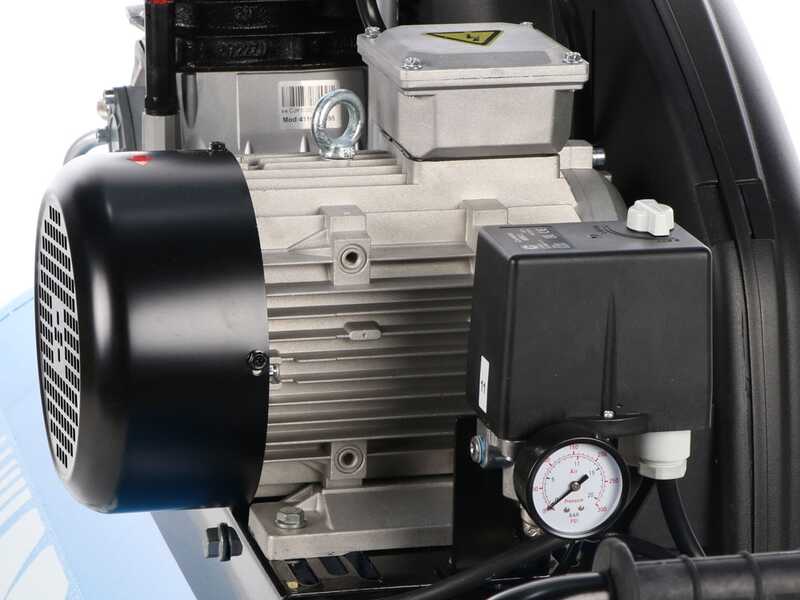

Easy and user-friendly controls, which are divided into:

Main switch

Tank internal pressure gauge and outlet pressure gauge

The air compressor is equipped with a special knob for adjusting the output pressure which can be checked by means of a pressure gauge located immediately below, attached to the exit.

Dual output pressure switch and filter.

Ergonomic handle

Large wheels in sturdy plastic

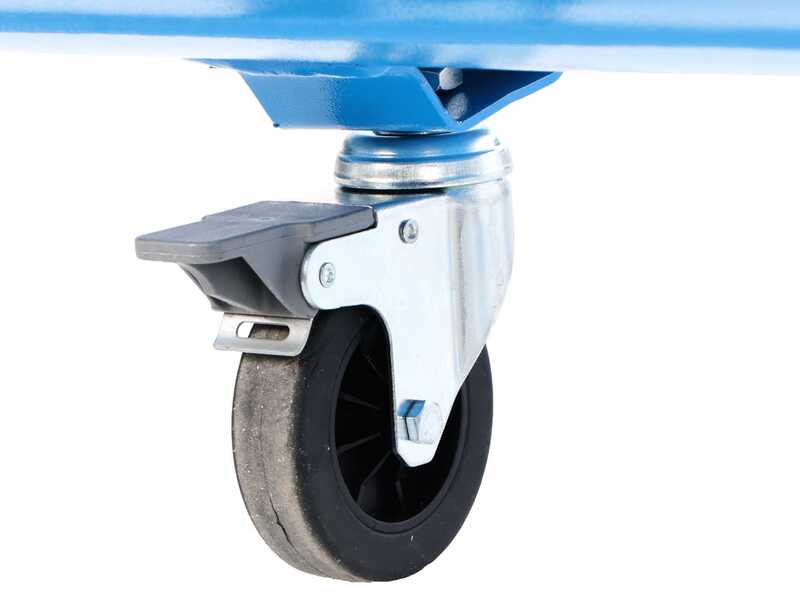

Pivoting front wheel

Condensate purge Valve

Recommendations for use

To ensure maximum durability and efficiency of the machine, the following instructions must be strictly observed. Failure to do so constitutes improper use, with a serious risk of damage to the product (such damage is not covered by the warranty).

• Tank maintenance and condensate drainage: Moisture contained in the intake air accumulates as condensate at the bottom of the tank, due to the thermal processes generated during compression. Drain the condensate after each use by operating the lower drain valve, turning it carefully to avoid sudden discharges of compressed air and liquid. Failure to carry out this maintenance task may lead to internal corrosion of the tank. Furthermore, condensate accumulation reduces the effective air volume, causing abnormal motor restart cycles and the transfer of impurities to connected tools, with the resulting risk of premature damage to the entire system.
• Suitability of extension leads: Do not use unsuitable extension leads. Given the  high motor power, it is essential to ensure a constant power supply. Undersized cabling causes voltage drops that prevent the motor from reaching the correct speed, leading to abnormal overheating and permanent damage to electrical components. Use only cables with a minimum cross-section of 2.5 mm². This cross-section is necessary to handle the high current absorption, especially during start-up.

Unwind the extension lead completely before use. Never use the machine if the power cable is partially coiled or bunched up. Heat build-up due to induction can melt the cable and cause serious electrical damage to the motor or a fire hazard.

• Operating position:  The air compressor must only be installed in environments free from humidity, preferably in dry locations that are fully protected from weather exposure and potential water splashes. Adequate ventilation must be ensured by maintaining a clearance of at least 50 cm between the machine and any wall or obstacle, in order to allow for proper air circulation and effective heat dissipation. The installation area must also guarantee a high level of air cleanliness and be free from dust, fumes, chemical vapours, or flammable gases. Failure to comply with these requirements exposes the product to the following risks:

1. Critical overheating: insufficient ventilation or installation in confined spaces impairs the cooling of the motor and pump assembly, resulting in reduced service life.
2. Safety risks: the presence of volatile or flammable substances may compromise the structural integrity of the machine or the safety of the operator.

• Obstruction of cooling and ventilation systems:  During machine operation, the air compressor must not be covered with sheets, boxes or makeshift casings, as such barriers prevent the air flow required for cooling the internal components. Blocking the ventilation slots causes a rapid rise in operating temperature, with the consequent risk of irreversible damage to the motor and the seals of the pumping unit. If protective covers are used during periods of inactivity, these must be completely removed before any start-up attempt to ensure the full efficiency of the heat dissipation system, thus preventing critical overheating.
• Power supply and connections suitability: The air compressor must be connected exclusively to an electrical socket rated for the motor’s nominal power. Avoid using unsuitable sockets or connections located too far from the main electrical system. Failure to comply with these requirements exposes the machine to insufficient voltage conditions, seriously compromising the start-up phase, causing start-up difficulties, abnormal stresses and the sudden tripping of protective devices (circuit breakers or residual-current devices).
• Shutdown procedure and static pressure management: It is recommended not to leave the tank pressurised during periods of inactivity. After switching off (OFF position), the residual pressure must be released and the drain valve opened, leaving the tank empty in order to promote the evaporation of internal moisture. Maintaining constant pressure, in fact, promotes condensation build-up and accelerates the deterioration of pneumatic components, such as diaphragms and valves, drastically reducing the overall reliability of the system and its operational life.
• Checking the oil level: Before each use, check the oil level in the pumping unit. The level must fall within the range indicated by the oil level indicator or the dipstick, if fitted. Do not operate the air compressor if the oil level is too low, too high or if the oil is contaminated. An insufficient oil level can cause overheating, accelerated wear, seizure of the pumping unit and damage not covered by the warranty. An excessive oil level can cause leaks, oil leakage and oil carry-over into the compressed air circuit.

Operating position: Use the air compressor exclusively in a vertical position, on a flat and stable surface. Use on sloping surfaces may compromise the correct lubrication of the pumping unit.
