7 HP GeoTech Petrol wood pellet machine for the domestic production of pellet for heating

Body material
Enamelled steel
Motor type
4 stroke
Rated output
7 HP
Engine Model
170F
FREE:
Free items: 2 bottles of 600 ml engine oil each
FREE:
Free items: 2 bottles of 600 ml engine oil each
€ 1.120,56
VAT Included
Prompt Delivery
33 items in stock
|
Free Shipping
You should receive it by 19/05/2021
ID: K500142

EAN: 9993089406799

MPN: 500142

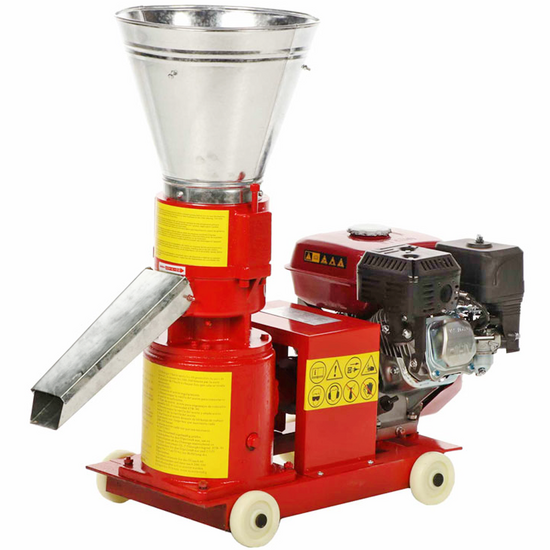

7 HP GeoTech GWPM150 petrol wood pellet machine

Thanks to this machinery, you can produce pellet at home when you need to stock many sacks of it.

Moreover, you will be able to recycle your garden shredder's wood chips in a very profitable way: with great simplicity, you will have the possibility to produce a very efficient fuel from an energetic point of view.

GeoTech wood pellet machine is a spark ignition engine machine, powered by a 7 HP petrol engine, very useful for the pellet making when a the electric power is not availavble.


WARNING: the wood pellet machines have been designed for the pellet production by using only small-sized material once shredded by a garden shredder. Thus, we highly recommend the use of a shredder equipped with an interchangeable sieve on the output opening, which allows obtaining regular small wood chips (Ceccato Tritone, Tritone Maxi and AgriEuro 7 HP and 15 HP models have been deeply tested, ensuring in this way all the specifications mentioned above).

How can I produce pellet at home?

  1. Crush wood by using a garden shredder: the first thing to do is to take wood and shred it with the wood shredder. Do not use any sieve.
  2. Double crush the wood chips: put again the wood chips into the garden shredder. Use the sieve most suitable to your needs according to the garden shredder model in order to sieve chips at the right size for this wood pellet machine into the garden shredder.
  3. As wood must be green to be shredded, the shredding result will need to be dried. before it is worked with the pellet machine. The humidity degree must be between 10% and 14%.
  4. Once the chipped wood is dried, it will be sufficient to put it into the hopper of the wood pellet machine and finally transform it into pellet.

We recommend you to use only pure and clean material, free from any different materials such as metals and plastics that may damage the machinery. Results may change depending on the kind of wood and the wood chips desiccation.

For the pellet production is necessary that an operator continuously supplies the machine with the chipped wood.

Here follow some examples of garden shredders for crushing chips suitable for you wood pellet machine: you can mount a sieving grid (8 mm or 10 mm) according to the model for sieving chips at the right size for this wood pellet machine.

WARNING: both small-sized wood residuals coming from the wood processing as well as sawdust are not suitable for pellet machines because of their length, which exceeds from that one allowed while their thickness is lower compared to the one required. The wood chips are the only material allowed for these machines as mentioned above.

Technical features

The wood pellet machine, in other words the machine that produces pellet, is equipped with extruder (diameter: 150 mm). The 78mm diameter pressure rollers movement (equipped with two bearings each) compresses the material. The press rolls movement is powered by a 7 HP petrol engine.

Put the material into the loading hopper.

The produced pellet is discharged through the side chute.

The wood pellet machine's hourly production is going from 50 to 90 kg. Pellet's section is 6 mm. The pellet length is going from 25 to 35 mm.

By changing the die sprout it is possible to obtain different size pellet: 4 - 6 - 8 mm

Overall dimensions:

Lenght: 750 mm;
Width: 420 mm;
Height: 700 mm.

The machine is provided with hard rubber wheels for transport.

Product Features
Model:
GWPM150
Body material:
Enamelled steel
Activation:
spark ignition
Output capacity:
50 - 90 kg/h
Manufacturing Country:
China
Motor data
Engine Model:
170F
Motor type:
4 stroke
Rated output:
7 HP
Max. revolutions per minute:
1250
Fuel:
gasoline
Power supply:
Overhead valve
Manufacturing Country:
China
Equipment
Front Handle:
No
Free gifts/extra features
Instructions manual:
yes
Dimensions and logistics
Product dimensions cm (LxWxH):
40x73x79 cm
Net weight:
115 Kg
Packaging:
On pallet
Packaging dimensions cm (LxWxH):
42x57x70 cm
Gross weight (packaging incuded) :
120 Kg
Hydraulic tail lift delivery:
Yes
Assembly time:
5 minutes

For Free

For free

2 bottles of 10W40 oil, specific for 4-stroke engines

Standard equipment

Included with machine:

Cleaning and maintenance instructions ad procedures

Syringe greaser for maintenance

Tools for the engin maintenance

Wooden box and pallet for shipment.
