Ripartrak Agrotechnic X.32 Superveloce - Electric Olive Harvester - Carbon Pole - Brushless Motor

The X.32 Full Carbon olive harvester is an electromechanic machine suitable for the harvest of olives based which takes advantage of the 360° vibrating rotary motion.

Best suitable for those who need to carry out an harvest on trees that produce table olives.

This olive harvester features 280/350 kg hourly output thanks to 2500 rpm.

The induction motor is located at the bottom of the pole to provide and excellent balance during the machine use.

The motor is induction, the best model on market, fitted with a speed regulator to adjust the harvester revolutions.

It is important to highlight that during the harvest, the olives fall down near the plant It is therefore suitable to all olive types.

Olives and branches remain undamaged during harvest operation.

It does not transfer vibrations thanks to the orthogonal axis which is electronically balanced and to the enhanced plastic harvesting device.

It proves out to be a higly efficient olive harvester that respects both plant and operator.

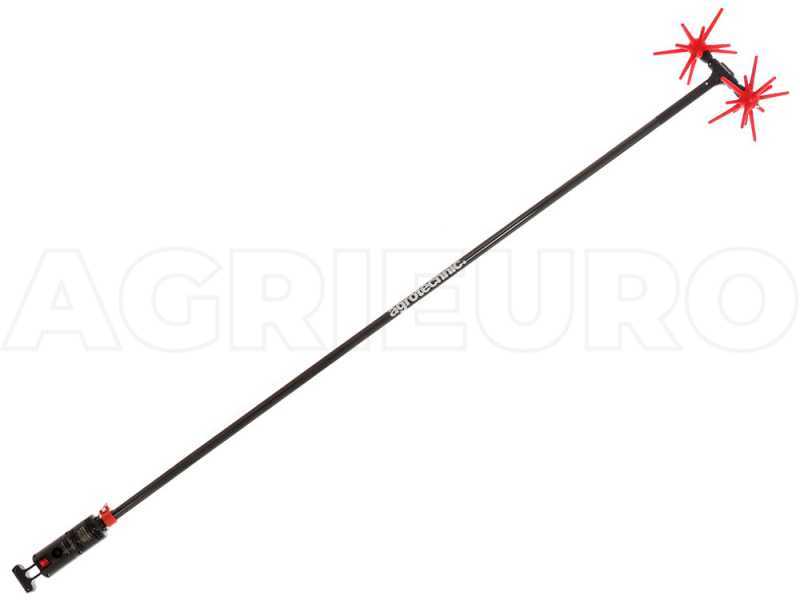

The harvester pole is fixed and features 200 cm length. It is entirely made of carbon with 1.2 mm thickness.

Since the pole is made of carbon, it features and extreme lightweight with a considerable reduction of the vibrations. While the pole length is ideal for not too high plants.

We suggest to grab the olive harvester with just one hand at the bottom of the motore where the proper housing is located. Grab the pole with the other hand.

The pole at its maximum extension represents the best setting for this olive harvester since the motor is located at the pole bottom.

Here the most outstanding features to take into consideration while choosing a carbon pole instead of an aluminium one:

• Higher sturdiness;
• Higher stiffness, therefore a higher control;
• 300 gr less with respect to the to the corresponding aluminium pole

New telescopic pole (longer with respect to the previous models), very light and entirely made of CARBON and equipped with quick fixing.

• Fixed carbon pole length: 200 cm

* the olive harvester reaches about 2.40 m length with pole and head included

The pole with its maximum extension always represents the best setting of this olive harvester since the motor is to be found on the bottom of the pole.

Excellent in case of lower olive trees, we suggest to grab the pole at the centre to keep the balance of the weights 50% - 50% (as in the above scheme) thus resulting more handy to use.

The rotating extension pole for electric equipment is totally made of carbon, therefore it is sturdy and extremely light.

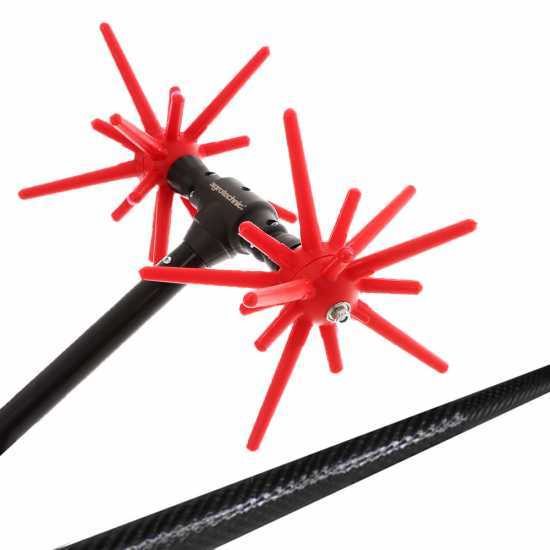

Typical and new 360° VIBRATING ROTARY MOTION.

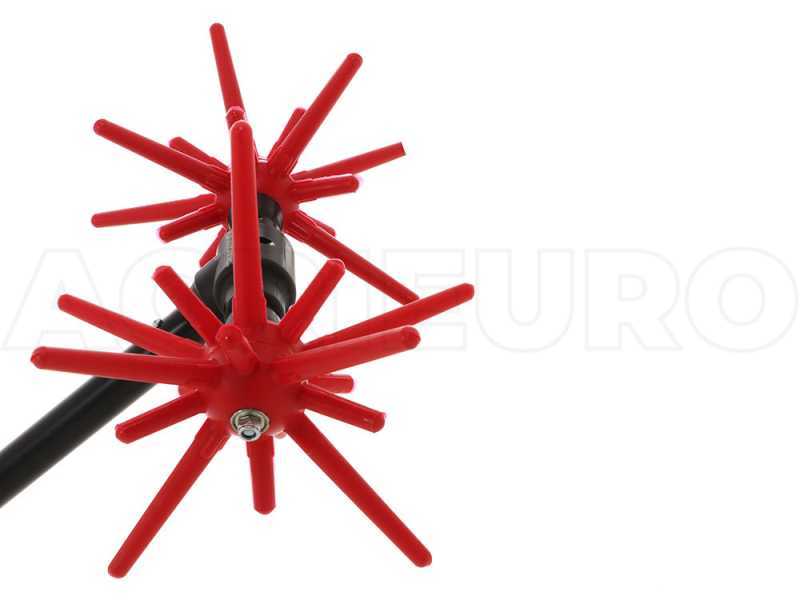

The head with spheres succeeds in penetrating inside the tree and causes the perpendicular falling of the olives onto the harvest net without getting damaged.

Combs are mouned on an axle thanks to which they rotate on themselves thanks to the help of two small bearings located at the end of the prongs. In addition to a rotatory motion, prongs carry out an elliptical motion that facilitates an excellent introduction into the plant. While, the 360° one is carried out on an axle.

16 combs are mounted on one sphere and other 16 on the other. The longest ones are 10 cm long and the shortest ones are 4 cm long.

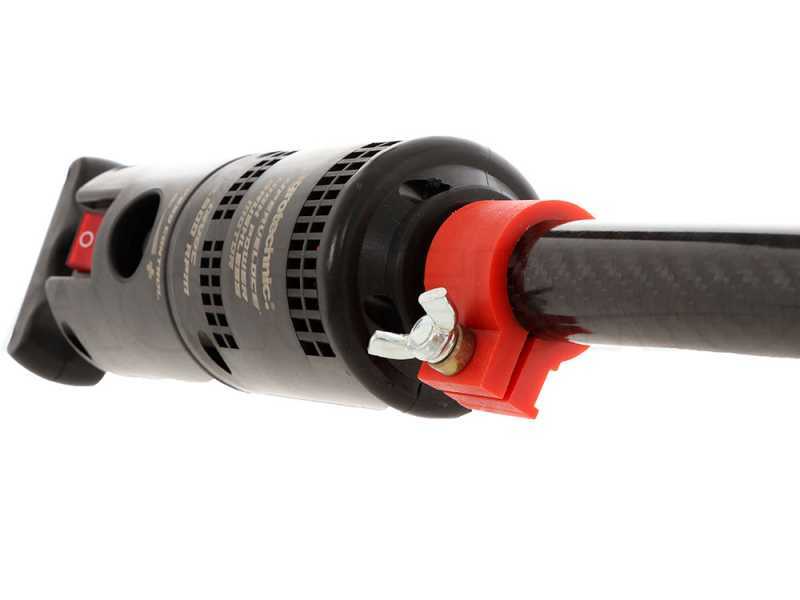

The motor at the bottom of the pole provides to this amazing olive harvester an excellent balance that reduces the operator's efforts.

Powered by a brushless engine that ensures an amazing output and a long lasting over time.

This powerful 12 V engine features 1000 W power and supplies 2500 rpm. Speed che be adjusted thanks to a regulator.

User-friendly and clearly visible start button and an ergonomic handle for a more secure grip is located at the engine bottom.

While choosing an olive harvester, it is wrong to consider just the total weight since it is misleading in the evaluation of the comfort of use, above all, for those olive harvesters that have the motor mounted on the top, therefore with the 80% of their weight focused on the upper part. The comfort during use does not depend on the total weight since on the weight balance. Therefore, on the motor position on the pole.

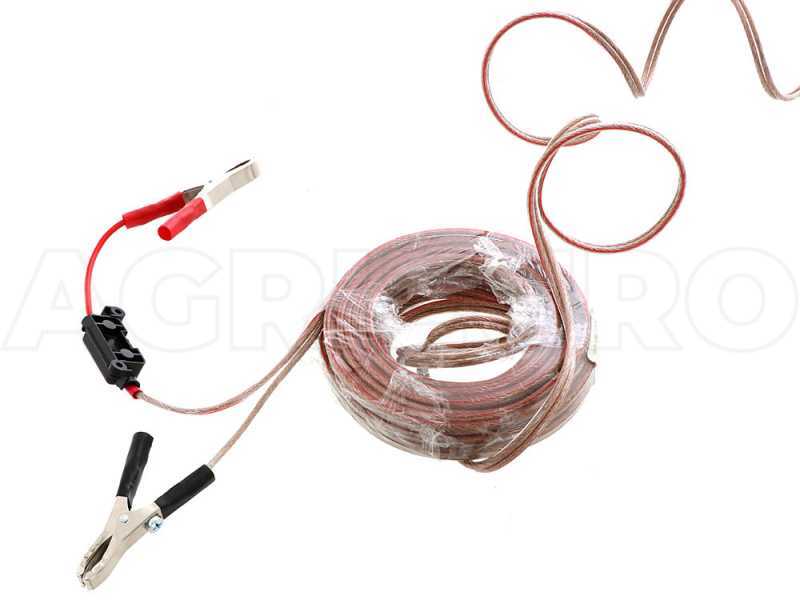

Equipped with a fuse located inside the connector cable box. In case of surge, the fuse blows without causing any damage to the machine.
