Name: Fiac Light Silver LS 4 10 400/50 CE - Screw compressor
Brand: FIAC
SKU: 110819
Price: 2957.75 EUR
Availability: InStock

Description

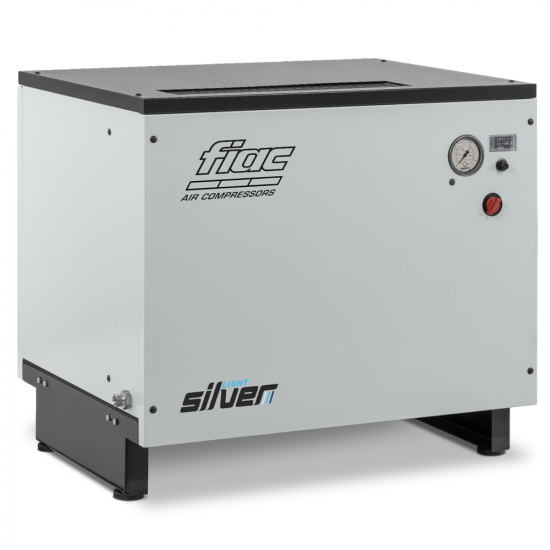

Fiac Light Silver LS 4 10 400/50 C Screw Compressor

The Fiac Light Silver LS 4 10 400/50 CE screw compressor is capable of producing 352 L of air per minute at 10 bar and 444 L of air per minute at 8 bar. It has a nominal capacity of 3.36 kW (4.5 HP) and it can produce a maximum pressure of 10 bar.

It offers better performance and greater reliability than classic piston compressors. Screw compressors are perfect for those who need an uninterrupted production of compressed air on a long term basis. Part of the latest generation of Fiac screw compressors, it is also lighter and less bulky.

The compressor operation can be summarized as follows:

The gas passes through a suction line created between the two rotors.
The rotation of the screws stops the input suction and the air is pushed towards the delivery output.
The screws are made in such a way as to progressively reduce the space between the rotors and the stator and this allows for an increase in pressure.
The last step of the operation concerns the expulsion of air from the discharge of the pump unit.

Models with screw technology are designed for heavy-duty, continuous use, such as in business or industrial sectors. Due to their continuous and uninterrupted productivity, they are suitable for use in machine shops, industries, and many others.

Unlike the classic piston compressor, these machines are also extremely silent, the screw technology makes it possible to maintain a very low sound emission level. In addition, the maintenance of this machine has been greatly simplified to allow the user to perform it in a few simple steps.

Fiac Light Silver LS 4 10 400/50 CE - Screw compressor

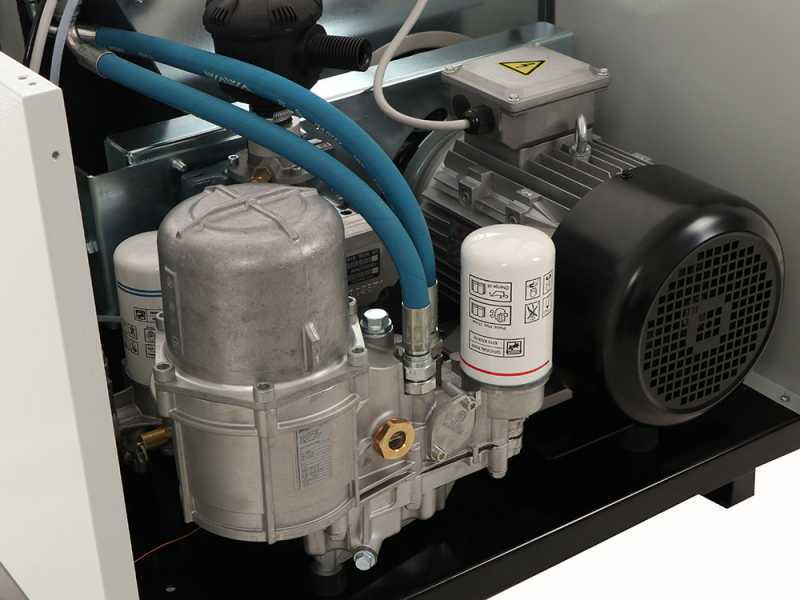

Main features of the screw unit

The screw compressors are particularly suitable for those environments that require a higher air flow rate and for prolonged use. Unlike piston models, they do not require a rest period, but only an initial phase during which the compressor must reach a suitable temperature to be able to deliver the maximum pressure and flow rate.

The motor performs fewer starts, thus reducing wear and increasing its service life.

The new line of screw compressors of the Light Silver range ensures high efficiency and reliability. The components subject to wear have been reduced to allow maintenance to be carried out in total autonomy and avoid unnecessary interventions that could damage the machine.

Furthermore, these models consume much less oil than piston models, thus reducing both costs and the number of maintenance operations.

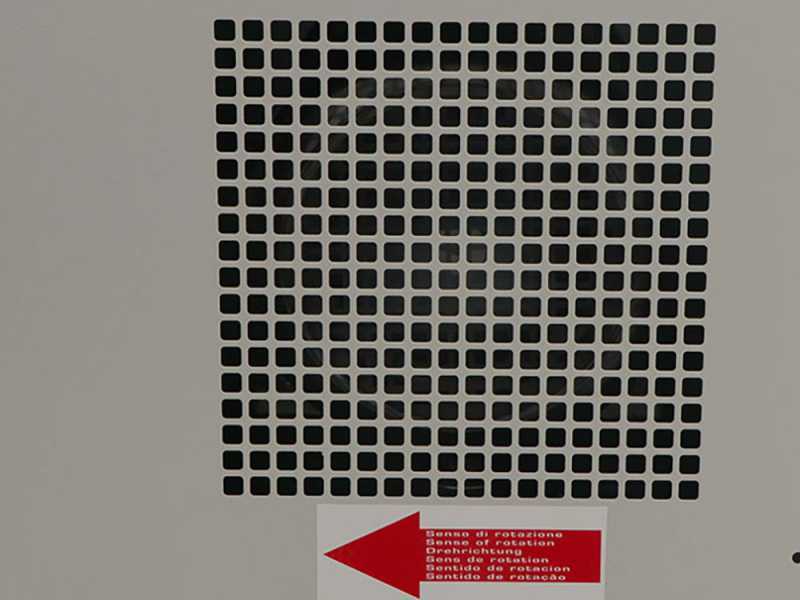

There is an independent axial electric fan installed on the side of the machine.

The screw unit and the electric motor are fixed on an anti-vibration base which eliminates the transmission of vibrations to the structure of the compressor, so as to greatly reduce noise and mechanical stress on the fixed parts of the machine.

The frame is made of reinforced sheet metal with ribs. High density washable sound absorbing panels are installed on the sides.

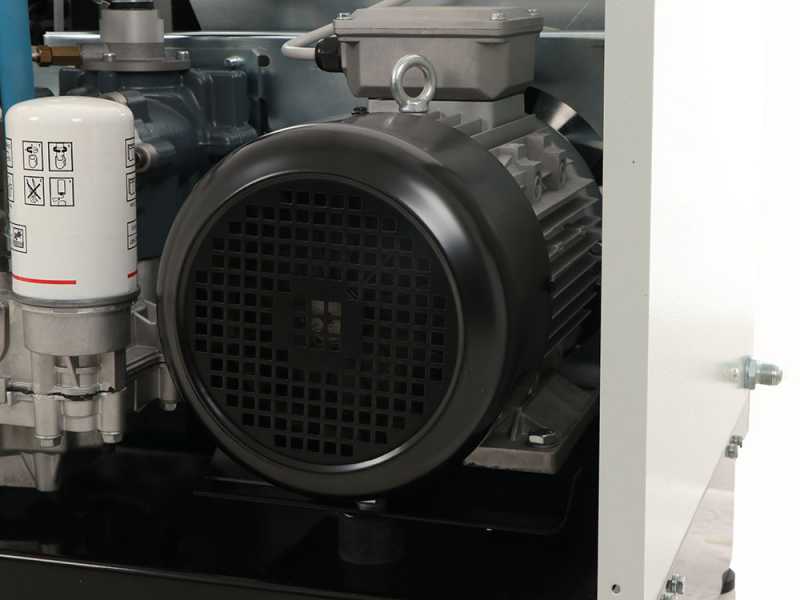

Motor technical specifications

The air compressor features a three-phase electric motor. The induction motor is characterized by very long life and low maintenance requirements. In fact, this motor is brushless, the brushes being the main component subject to wear in electric motors. The absence of this component gives the motor durability. It is a top-quality product in terms of reliability, low noise, durability, energy efficiency and maintenance.
