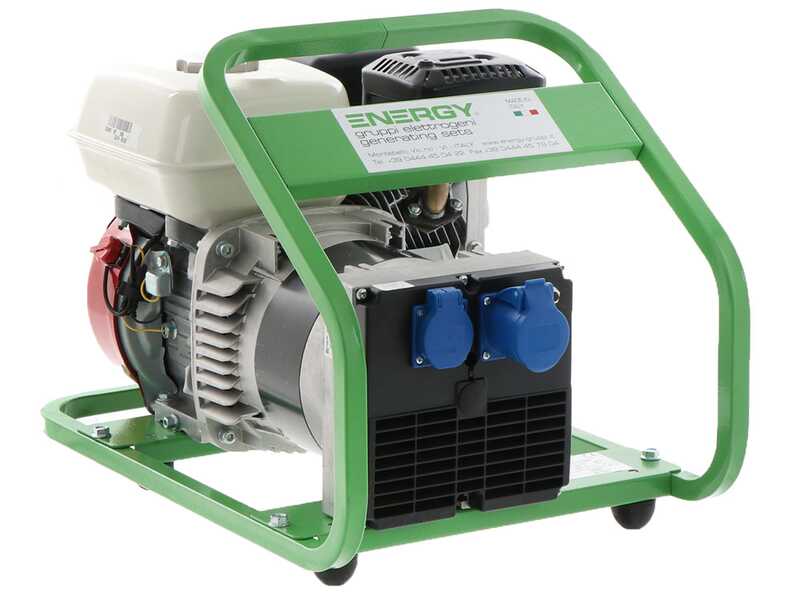

Energy EY-3.6MB AVR - Petrol Power Generator 3 kW - Continuous 2.7 Single-phase

The single-phase petrol generator EY-3.6MB AVR by Energy Gruppi Elettrogeni is a professional solution ideal for various needs, designed to be lightweight, practical, and easy to use. It is suitable for multiple applications, from hobby work to leisure, including domestic emergency situations and other daily needs.

This model is equipped with the AVR board (Automatic Voltage Regulator), an advanced system that ensures the stabilization of the electric current.

It can generate an output electrical power of 3 kW.

The quality of the Energy EY-3.6MB AVR is based on two main components: the engine and the alternator, both of the highest level. The Honda GX200 engine is synonymous with reliability and superior performance, representing the best in this category of generators. The KR100 D alternator, made by NSM, a renowned Italian manufacturer of high-quality alternators, completes the system's power.

The combination of the Honda engine and the Made in Italy alternator places the ENERGY EY-3.6MB among the best generators in its class.

Maximum Single-phase Power Output: 3 KW

Nominal Continuous Power (COP) Single-phase: 2.7 KW

This is the data to be considered as the actual and constant data in the generator's output (ensuring unlimited hours of operation).

Voltage: 230 V

Operating Frequency: 50 Hz

Nominal Amperage: 14.3 A

Petrol Tank Capacity: 3.1 lt

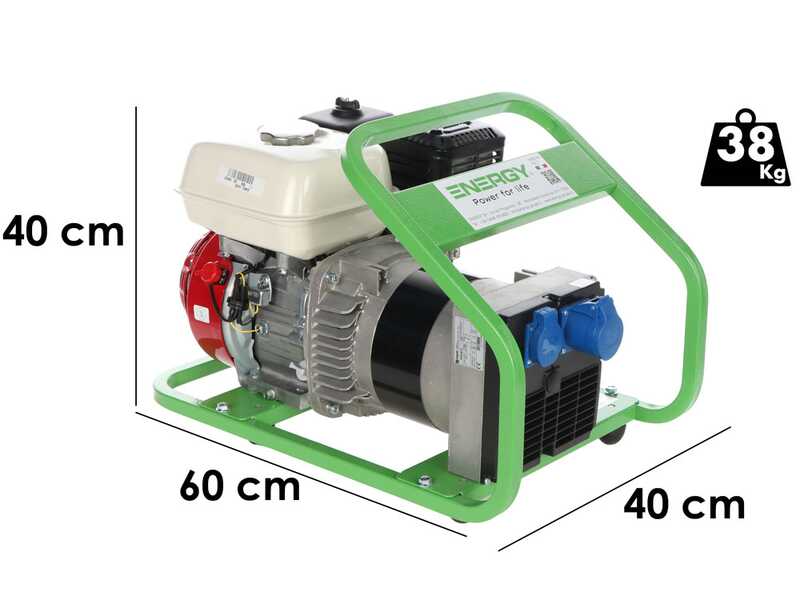

Dimensions: 60x40x40 cm

Weight: 38 kg

Noise Level: 96 dB

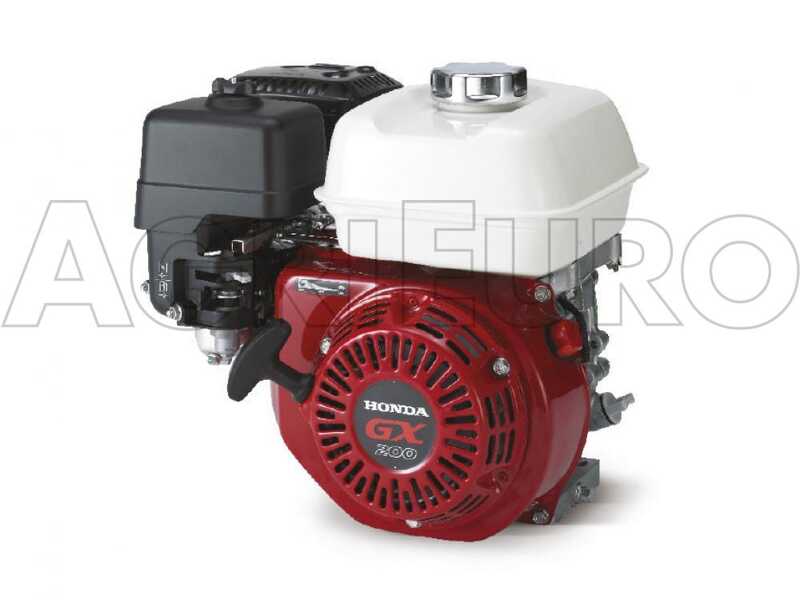

The Honda GX 200 engine is a
professional and powerful latest generation series with overhead valve technology.

Features:

The Honda "GX" series is highly professional and has been developed for heavy-duty work in construction, agriculture, generators, welders, etc., characterized by great durability and reliability.

ATTENTION

Before starting the engine, carefully read the instruction manual.

Engine without oil.

Nominal Power: 6.5 HP

* Also known as "Commercial" Power, this is the classic standard of power definition that was officially used until a few years ago by all the most renowned engine manufacturers. This data is still the most widespread and advertised in the main commercial sales channels.

Effective Power: 5.00 HP

* Corresponds to the actual power expressed on the cutting organ during work. It is the one indicated as official in the manufacturer's manual or technical data.

Many other machines on the market instead use the "GC" series from Honda, which has been developed for domestic and more limited work and is qualitatively inferior to the first and more economical in price.

The HONDA series GX engines are today configured as "THE BEST ENGINES ON THE MARKET".

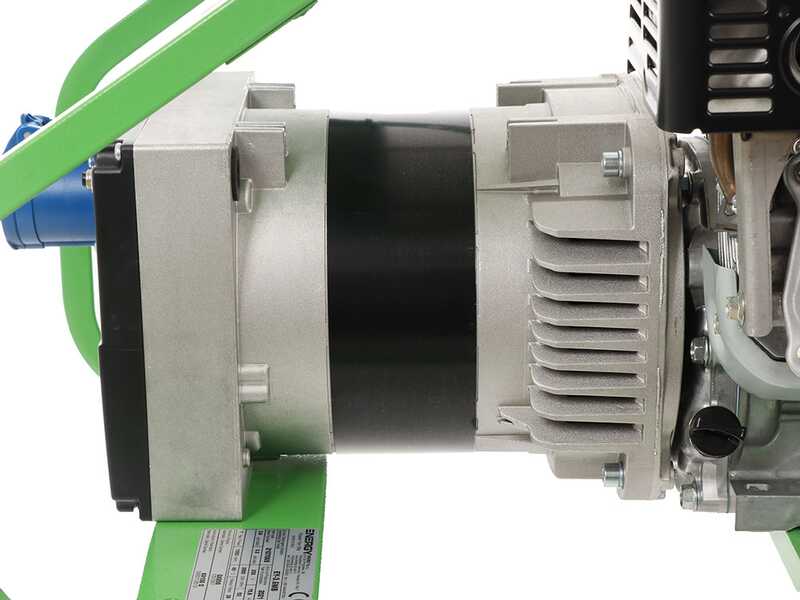

Alternator NSM KR100 D

NSM (Nuova Saccardo Motori) is a leading company in the production of alternators, electric motors, and electrical and electronic components in general. One of the few companies that follows and performs the entire complete production cycle. The entire creation of the alternator is Made in Italy, thus making these products of the highest quality.

The AVR board with which the product is equipped allows for automatic voltage regulation, keeping it constant as the load varies.

High-quality and efficient alternator featuring a copper winding.

Voltage: 230 V

Operating Frequency: 50Hz

Number of Poles: 2

Type: brushless

Voltage Regulation: capacitor

Voltage Precision: +/- 5%

Manual Electrical Panel

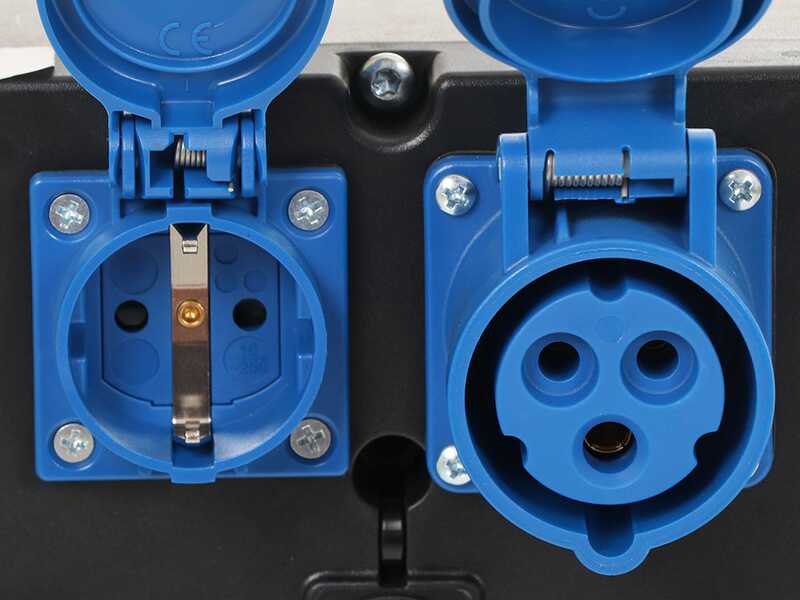

Power Outlets:

Nr 1 Schuko power outlet 230 V single-phase

Nr 1 CEE power outlet 230 V single-phase 3 poles 16A and protection breaker

Reset Button

Engine Start Button

Detail of the anti-vibration rubbers

Detail of the oil tank cap

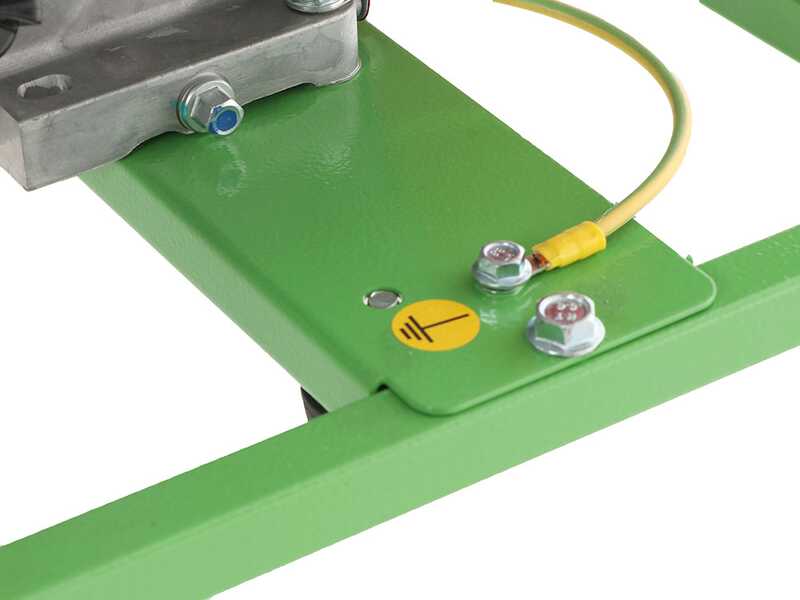

Detail of the ground discharge

Detail of the top handle

Regarding the power needed for the use you will make of it, we provide a handy table to guide you through consumption, starting coefficients, and watts.

The best criterion is to first identify which tools you need to power with the generator, and consequently perform a simple calculation, as explained below, to determine the necessary power that the generator must be able to deliver.

Required Power = Object Consumption X Starting Coefficient

The starting coefficient is a fundamental characteristic of every tool that operates on electric current, indicating how much the object's consumption increases during startup and thus serves to concretely determine how many WATTS are needed for its startup.

Example: Compressor (1500 Watts) X Coefficient (2) = 3000 Watts Therefore, orient yourself towards a generator that has a power in WATTS equal to or greater than the obtained result (*)

Check the consumption of your object in the user and maintenance manual or on the label applied to it

ATTENTION: the table is purely indicative. Through the aforementioned formula, you can easily calculate the power that a generator must deliver to connect and operate certain products and thus identify the most appropriate model for your needs.
