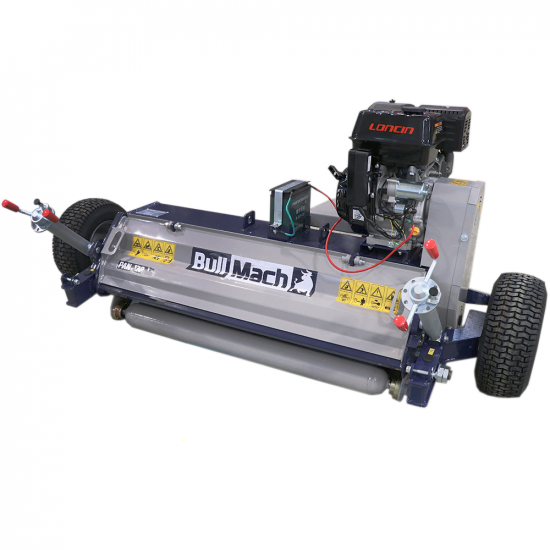

BullMach PAN 120 L - ATV-mounted Trailed Rough Cut Mower - Loncin G420FD

The BullMach PAN 120 L ATV flail mower is fitted with a powerful petrol engine and it is designed to be used with ATVs or riding-on mowers.

It's a great alternative for those who don't own a tractor and need a powerful and reliable rough cut mower.

The rough cut mower is provided with a sturdy frame and can be used for shredding light prunings, grass and small shrubs.

It is equipped with trailer hitch coupling and can be attached to ATVs or riding-on mowers equipped with a hitch.

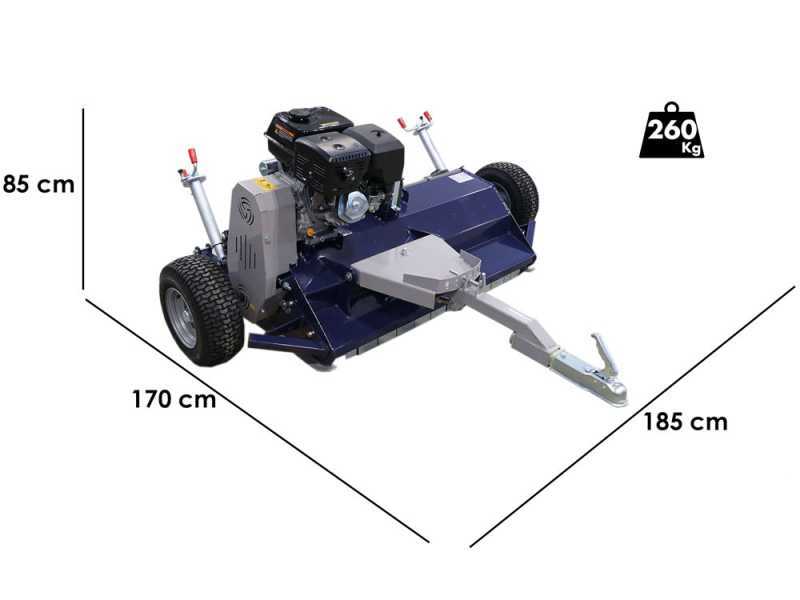

Technical data:

• Operating width: 120 cm
• Total width: 185 cm
• Weight: 260 kg

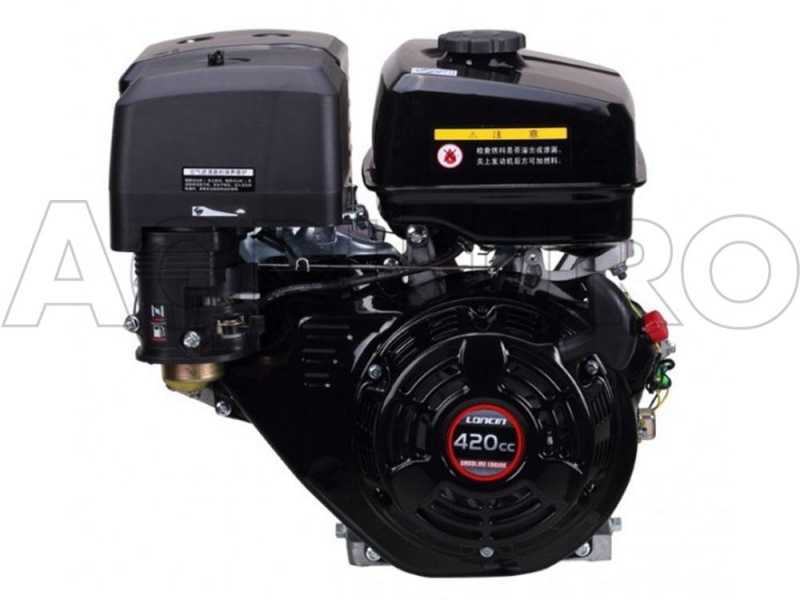

• 420 cc Loncin engine with electric start
• Recommended for ATVs and riding-on mowers
• Trailer hitch
• Belt transmission

ON STANDARD EQUIPMENT:

• Hammer blades
• Adjustable rear roller
• 16X6.50-8 pneumatic wheels

ADJUSTED OPERATING CUTTING HEIGTH (7-8 cm high)

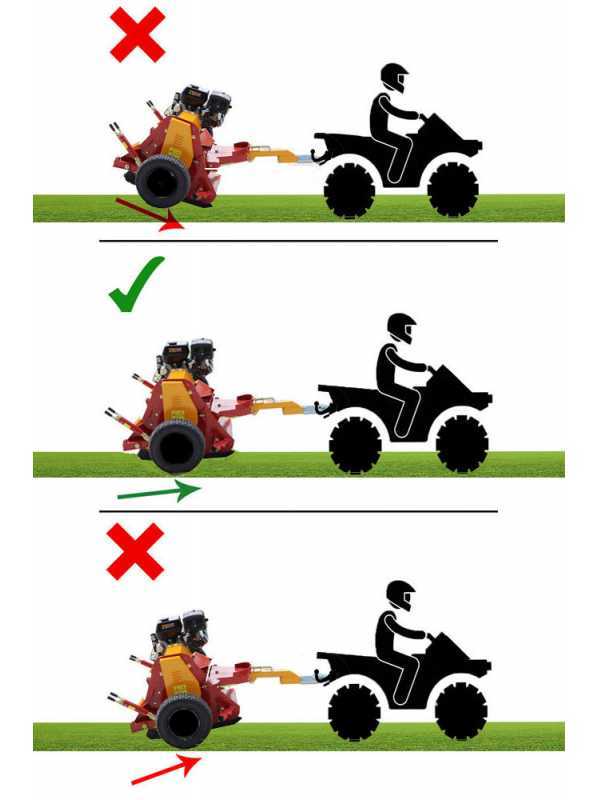

The height of the ATV rear hitch may vary, so make sure that the ATV is positioned so that it is sufficiently raised off the ground to prevent the cutting hammers from touching the ground.

The exact working height of the hammers from the ground is at least 7-8 cm.

WARNING: if the hammers frequently hit the ground, this can lead to excessive wear of the side drive belts or even to their overheating or combustion with damage to the belts and the machine.
We recommend to pay attention so as to not overload the machine as the noise of overloading may sometimes not be heard by the Operator while riding the ATV due to the noise emitted by the latter.

FORWARD SPEED:

a mistake often made by those using this cutting tool is precisely selecting the working speed, because the ATV can actually cause the Operator to select a high speed.
The ATV petrol rough cut mower should be used at the same operating speed as the tractor-mounted or the smaller petrol models manually operated.

Operating speed: from 1 km/h up to max. 4 km/h

In case of particularly high grass, it is advisable not to exceed a speed of 1 / 1.5 km/h.

In case of short, frequently cut grass, it is advisable to choose an operating speed closer to 4 km/h.

WARNING: this rough cut mower is equipped with a side centrifugal clutch which keeps the hammer rotor stationary (in neutral position) when the engine is started at low speed (rest condition), and a drive transmission equipped with 2 belts. Using this rough cut mower at a higher speed than the one indicated above could lead to overloading and overheating the clutch and also to excessive wear of the side drive belts. In the worst cases, if the clutch burns, there is the risk to even burn the near belts or other parts of the machine.

Features:

Thanks to the convenient electric start with key, starting the machine has never been been so easy!

Focus on the battery

WARNING

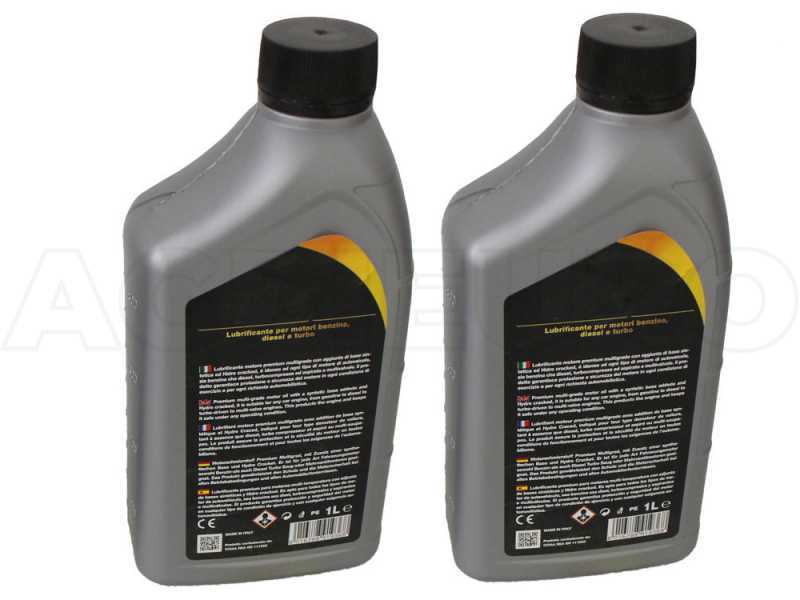

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

No. of hammers fitted on standard equipment: 28

These hammers are mounted on a sturdy 12 mm diameter hardened steel bolt.

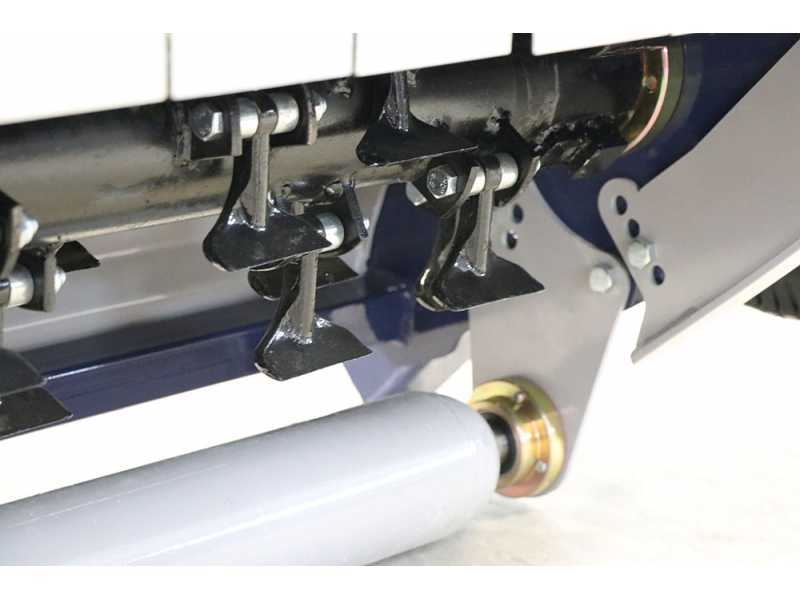

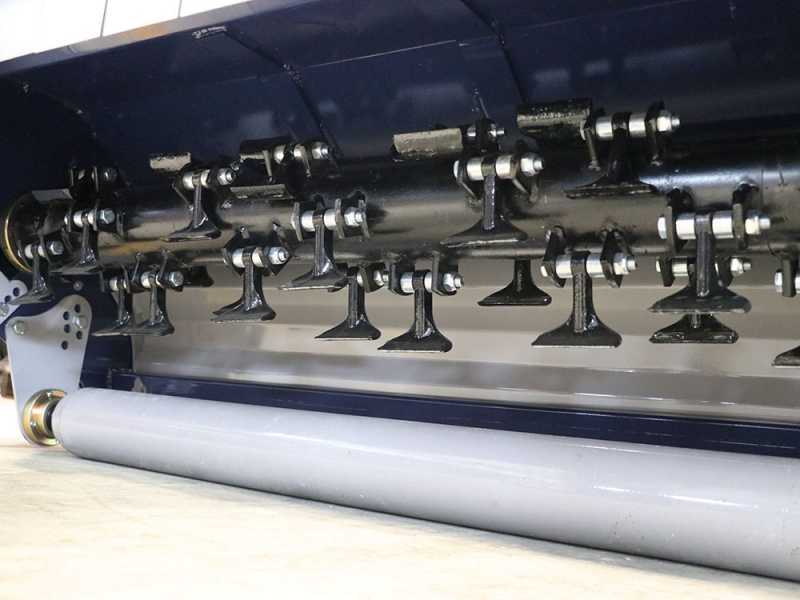

Focus on the cutting hammers, mounted on the rotating roller.

It finely shreds grass and cuttings, while simultaneously rolling the turf. Thanks to the high rotor speed and the large number of hammers, this rough cut mower reduces the wave effect on the turf performing an excellent shredding.

The hammers ensures high-quality results in gardens, lawns and urban areas. The rough cut mower can be attached to a motorised vehicle by means of a tow hitch.

Focus on the trailer hitch.

Side transmission with belts:

- Focus on the side belt guard with side grease nipple on the transmission side, laced in a convenient position, accessible through the proper opening.

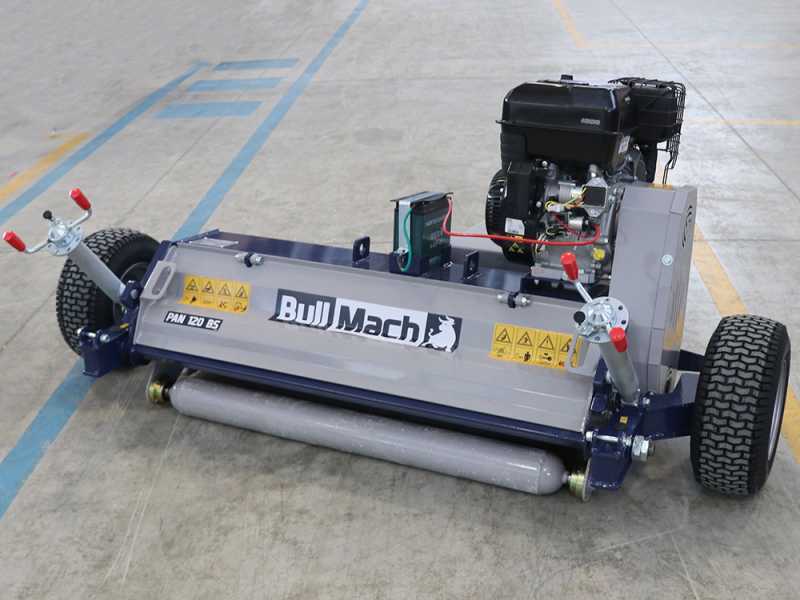

This rough cut mower allows the pneumatic wheels to be adjusted in two different positions according to the needs. The wheels can be mounted either to the side of the cutting rotor or to the rear part of the machine.

Each configuration is more appropriate depending on the situation. For example, if you are operating on more uneven ground, it is advisable to keep the wheels at the rear of the roller so that the latter, together with the towing hitch, can provide more stability to the rollers. Furthermore, this configuration makes it easier to perform manoeuvres in hard-to-reach spaces and also reduces the overall size of the machine when working with obstacles on the ground.

The wheels, on the other hand, adjusted laterally, are more suitable for operating in more even and flat grounds, allowing the rear roller to provide stability to the machine.

The large pneumatic wheels allow the machine to easily move on every type of ground.

Focus on the trailer hitch adjustment system.

Height-adjustable rear support roller provided on standard equipment. The rear roller, together with the two pneumatic wheels, considerably increases the stability of the machine even on the roughest terrain. In fact, due to its position near the rotor and being as wide as the whole machine, can perceive any unevenness in the ground, and moving as a consequence it is able to lift the machine so as to avoid the hammers getting stuck on the ground.

The cutting height is adjustable by means of proper handles that raise and lower the wheels and consequently the cutting rotor.

Focus on the rear roller fixing bearing

Focus on the roller support provided with holes for adjusting its height. It is height-adjustable in 6 different positions.

Standard side support skids, also adjustable in 4 different positions.

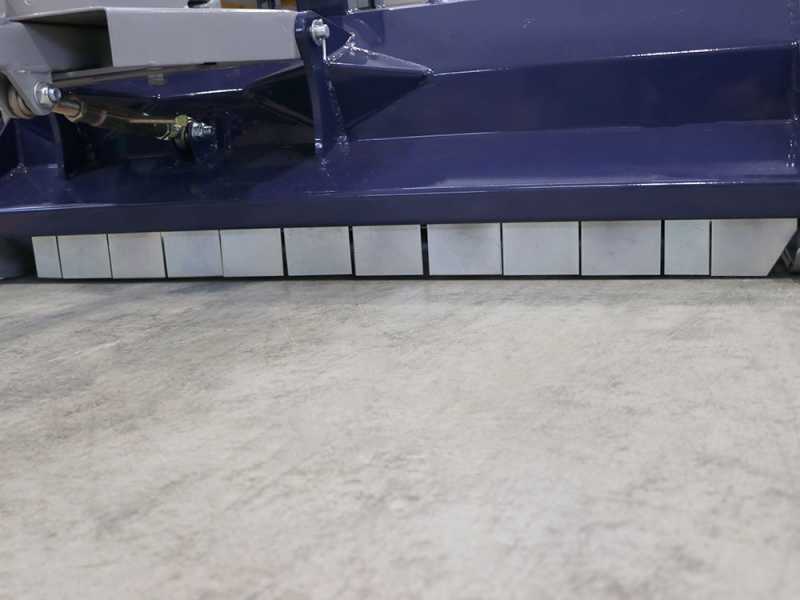

Sturdy set of front protection slaps made of shaped steel.

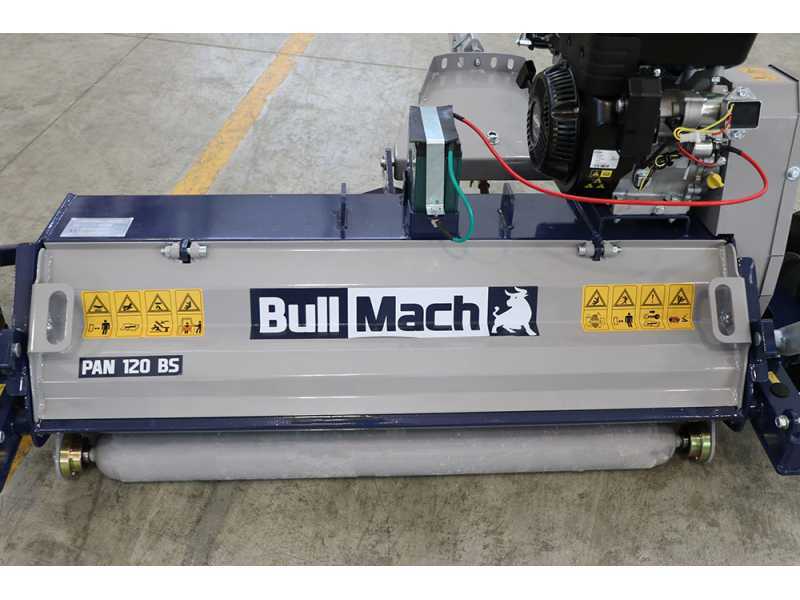

This tractor-mounted rough cut mower is provided with a standard rear opening cover mounted on 2 sturdy hinges. The cover can be easily opened simply by removing two bolts. Also equipped with a lifting handle. Extremely convenient for internal maintenance, cleaning, tool replacement operations etc.
