Name: Blackstone BM 180 Hydro - Tractor-mounted Flail Mower - Medium-light Series - Hydraulic Shift
Brand: BlackStone
SKU: 105388
Price: 2064 EUR
Availability: InStock
Rating: 4 (4 reviews)

Description

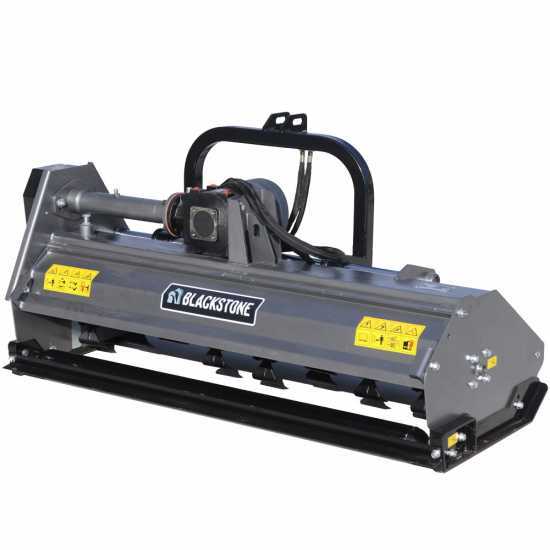

Blackstone BM180 Hydro Tractor Flail Mower

The Blackstone BM Hydro series tractor flail mower with horizontal axis hydraulic shift is the ideal tool for medium-sized tractors and can be used to shred vine shoots, grass and small shrubs, on meadows, woods, orchards and uncultivated land.

Medium series flail mower, mainly suitable for hobby use.

This flail mower model is equipped with hydraulic side shift, 3 drive belts and rear roller.

TECHNICAL SPECIFICATIONS (brief overview):

Real working width: 180 cm
Real width (side skids already assembled): 195 cm
Weight: 345 kg
Hydraulic side shift
Type 1 Three-point hitch
3-belt drive

FREE ITEMS PROVIDED ON STANDARD EQUIPMENT (short overview):

Hammer blades
Adjustable rear support roller
Adjustable skids
Rear door flap
Drive shaft

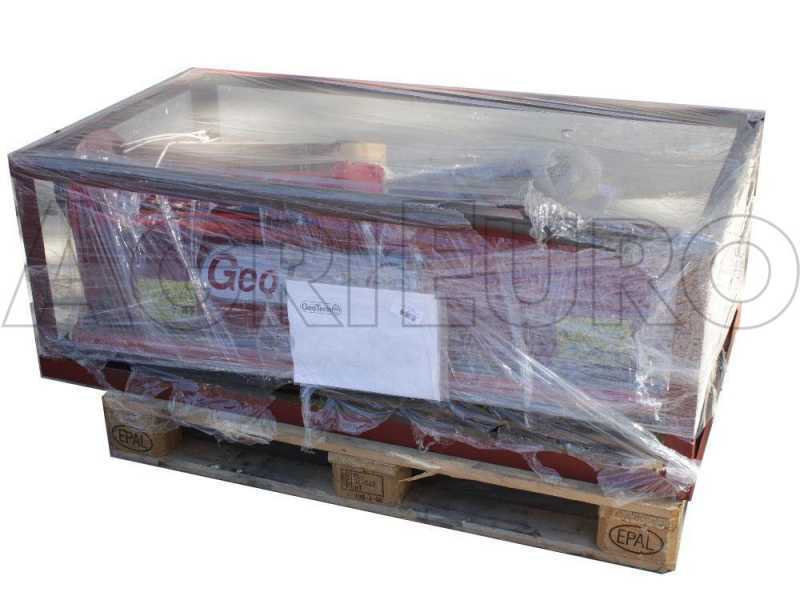

Note: the machinery is shipped ready to use. Once all parts have been assembled, check if the bolts are properly tightened.
Read the instruction manual carefully before use.

Blackstone BM 180 Hydro - Tractor-mounted Flail Mower - Medium-light Series - Hydraulic Shift

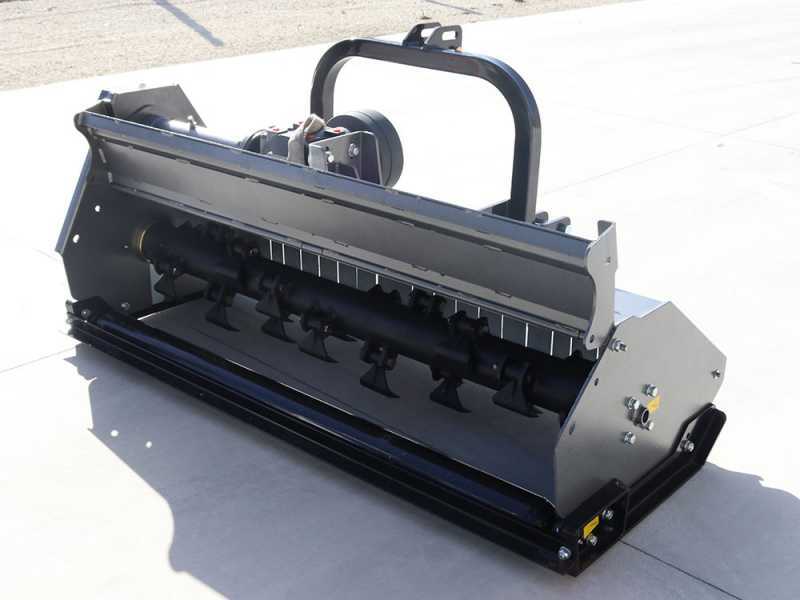

Rear door flap

A distinctive feature of this flail mower is its rear opening.

This has a double function: it allows the rear discharge space to be adjusted using simple screws, and also simplifies maintenance by allowing the operator to perform checks in specific areas of the machine

The door can be opened by simply using bolts

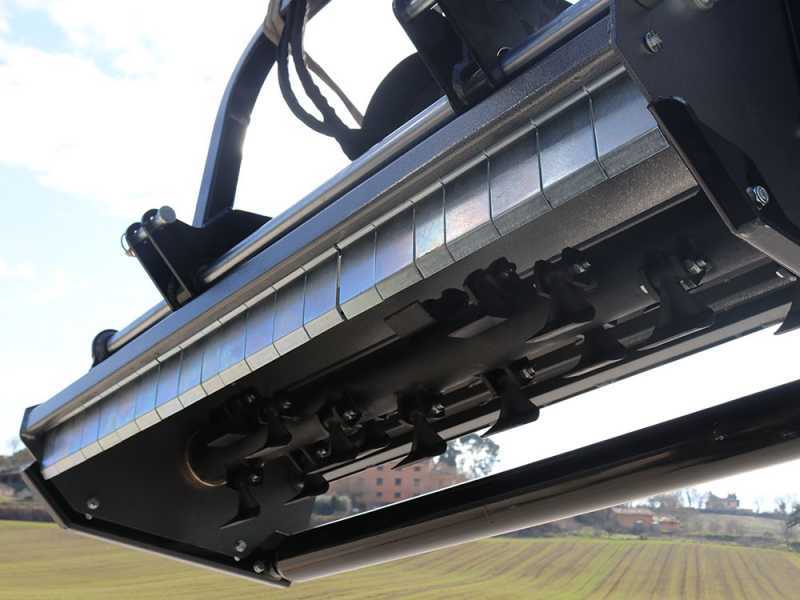

Cutting tools: hammer flails

No. of standard-supplied hammers: 22

These hammers are mounted on a sturdy bolt made of hardened steel with a diameter of 16 mm (lenght: 140mm).

The cutting hammers that are already assembled on the rotating roller.

It is intended to finely shred grass and clippings, while rolling the grass cover and turf simultaneously. Thanks to the high number of rotor rpms and hammers (hammer blades), the wave effect on the grass is reduced, for an excellent cutting job.

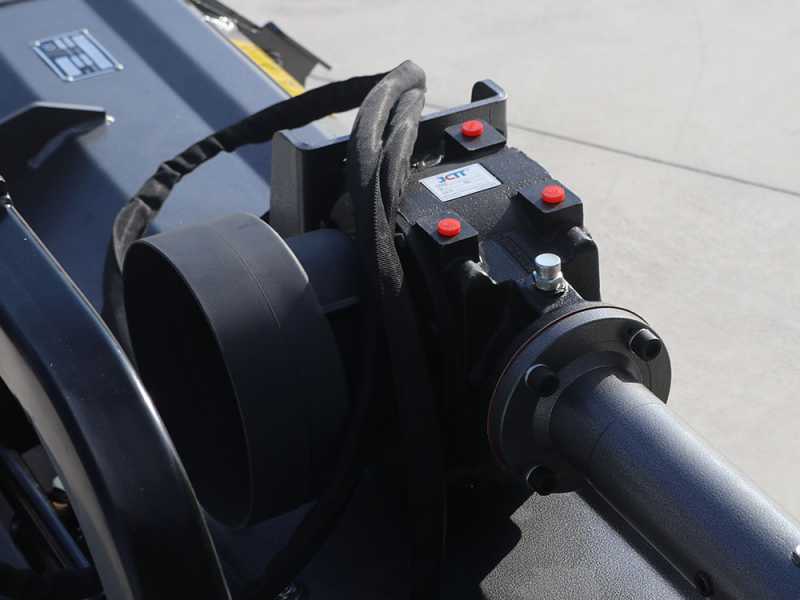

Side belt transmission and reduction gearbox group

Gearbox in oil bath The external housing is made in fusion material while the internal gears are in hardened steel.

Equipped with lubricated extension.

3-belt side transmission

Belt protection side shield.

Transmission side greaser

The gearbox of this machinery can contain no more than 1 L of oil.

Read the instruction manual carefully before use.

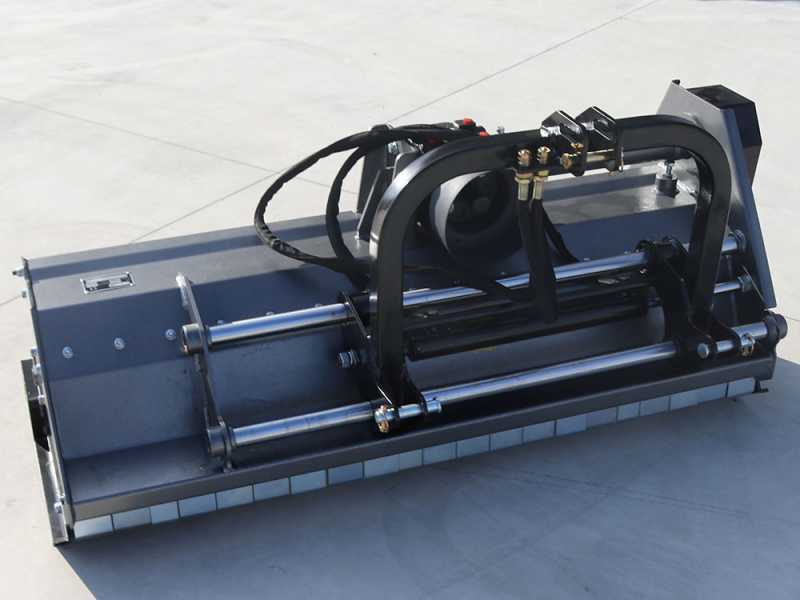

Hydraulic side shift and 3 point-hitch

The flail mower is equipped with hydraulic shift.

The three-point linkage runs on a robust tubular mounted across the width of the mower.

Detail of the piston that control the flail mower hydraulic shift.

Universal standard PTO (1 3/8” Z6).

Universal-type hitches that can be adapted to all tractors on the market.

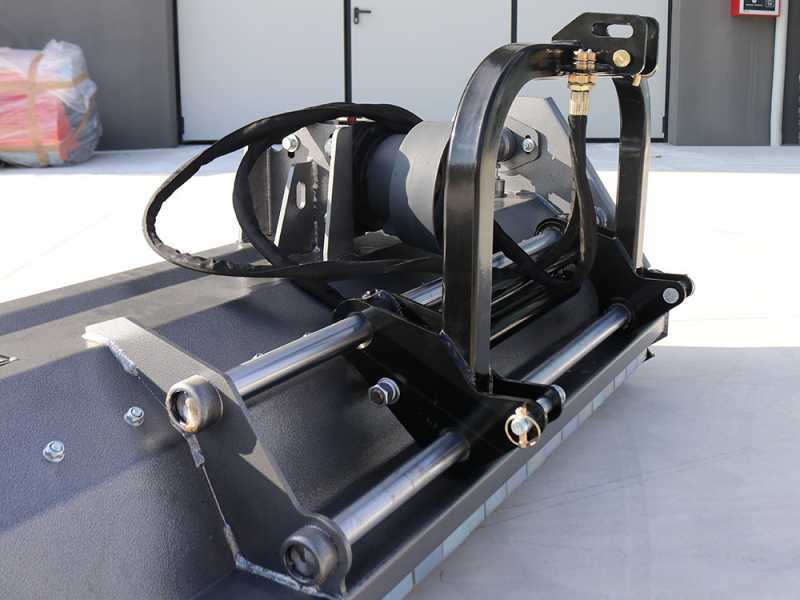

Detail of the sturdy type 1 three-point-hitch.

Rotor and side bearings

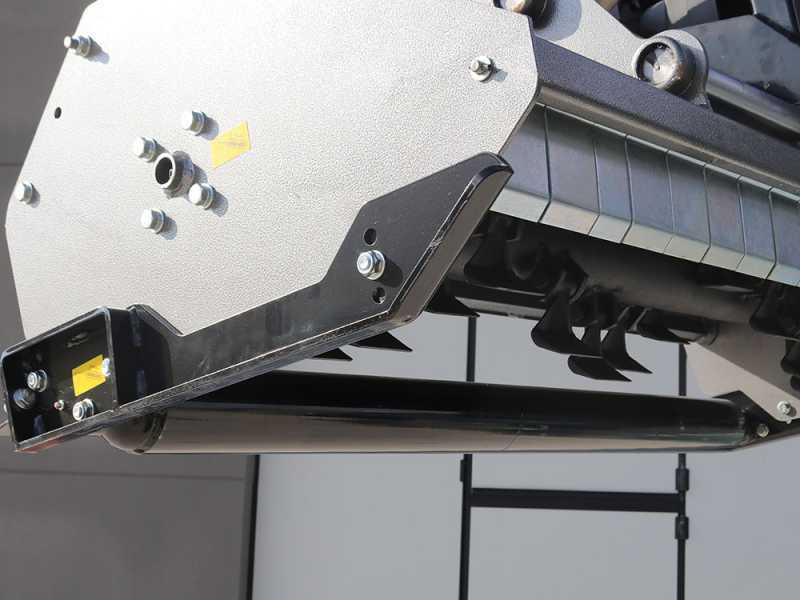

Detail of the side supporting device with internal locking bearing of the hammer rotor.

Detail of the external rotor anchorage system with central opening and greaser.

Thanks to the hammer flails you will get great cutting results while working on gardens, lawns and urban areas. The flail mower is fitted to the rear side of the tractor three-point linkage.

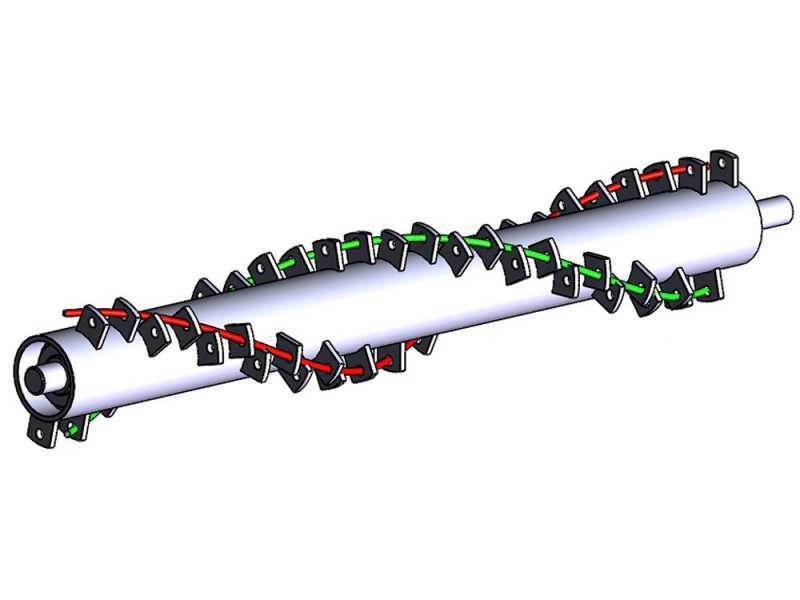

Figurative image of the double-spiral rotor.
