Description

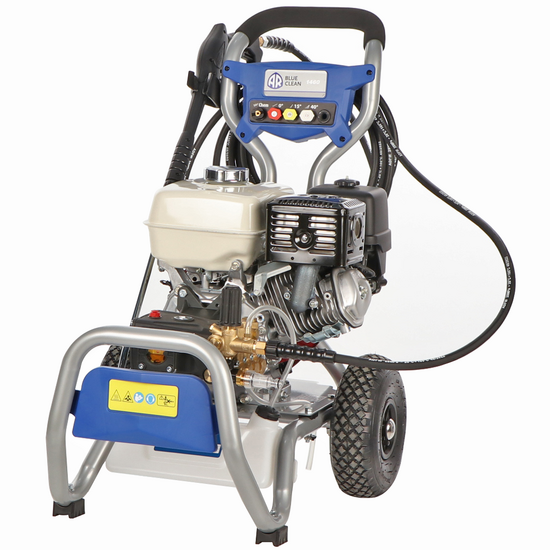

Annovi & Reverberi AR 1460 petrol pressure washer

The Annovi & Reverberi AR 1460 pressure washer is a professional tool ideal for the demanding hobbyist who is looking for excellent performance at a competitive price.

The piston pump, equipped with a high-performance connecting rod-crank system, guarantees superior build quality.

The construction of the pump, with in-line pistons and a brass cylinder head, ensures superior reliability and durability compared to pumps in aluminium and axial pumps.

The Honda GX 270 engine, known for its excellent value for money, delivers 9 HP, ensuring a maximum flow rate of 15 litres per minute and a maximum pressure of 270 bar. Starting is easy and light thanks to an efficient decompression system.

Distinctive features and advantages:

Piston pump with connecting rod-crank system: High performance and build quality.
Corrosion-resistant steel structure: Equipped with nozzle holder, gun and lance holder.
Built-in detergent tank: 2.8 litre capacity for greater autonomy.
Anti-vibration feet: Reduction of vibrations and noise.
Inflatable pneumatic: Facilitate handling.
In-line piston pump with brass cylinder head: Superior reliability and durability.
Recoil starter with decompression: Easy and light.
Metal trolley with two 28 cm pneumatic wheels: Removable handle for safe forward movement despite the weight of 51 kg.

Annovi & Reverberi AR 1460 - Petrol pressure washer - 270 bar - 900 L/h - Honda GX 270 petrol engine

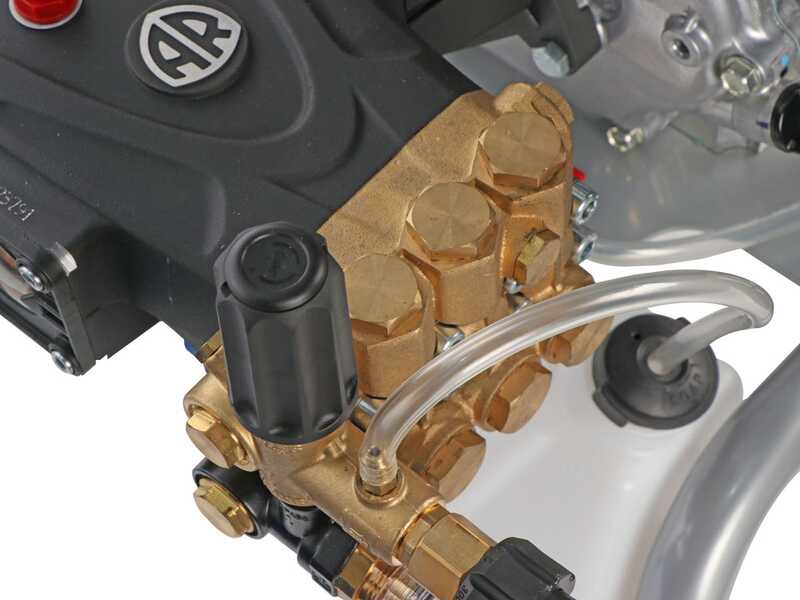

Three-piston pump with connecting rod-crank system

The pumping unit with connecting rod-crank system is equipped with 3 high-strength, corrosion-resistant pistons, inserted inside the head.

Head made entirely of brass.

Aluminium alloy, casing.
Pressure regulator
Automatic bypass valve

The piston pump, with brass head and 3 ceramic pistons, is designed for very intensive and heavy-duty use.

The construction of the pump with pistons and brass head ensures greater reliability and durability than normal aluminium pumps and axial pumps.

Pump flow rate: 15 L/min max (900 L/hour max) (The minimum inlet flow rate must be at least 15 L/min)
Operating pressure: 270 bar

Integrated detergent suction with 2.8 L internal tank (suction tube supplied). Most petrol pressure washers are not equipped with this practical integrated tank.

The engine is SUPPLIED WITHOUT OIL.

Oil will be supplied with the machine to bring the oil level up to the correct level.

Before starting the machine, carefully read the instruction manual.

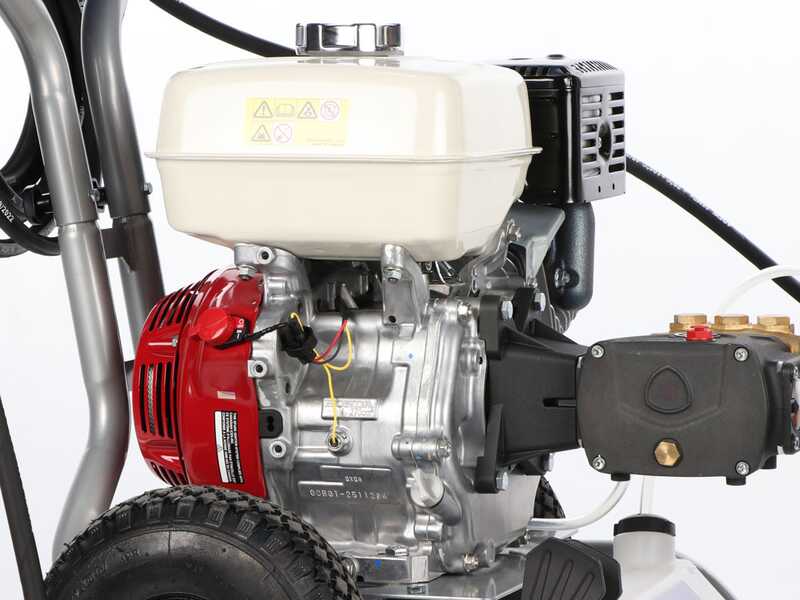

HONDA GX 270 Engine

The Honda GX 270 engine is a single cylinder, 4-stroke, OHV petrol engine with a 25° inclined cylinder and horizontal crankshaft.

The OHV configuration ensures highly efficient combustion and offers a high power-to-displacement ratio. Starting is easy and light, thanks in part to an efficient decompression system. Made from high-quality materials, Honda engines are designed and built to last a long time and comply with all existing European regulations.

Very low fuel consumption while offering good power.

Features:

Engine type: Single cylinder 4-stroke - OHV
Cylinder type: Cast iron
Displacement: 270 cm³
Net power: 6.3 kW (8.4 BHP)
Nominal power (9 hp)
Max. rpm: 3600
Tank capacity: 5.3 litres
Dry weight: 25.8 kg
Cooling system: Forced air circulation
Engine oil capacity: 1.1 litres

The engine is SUPPLIED WITHOUT OIL.

Oil will be supplied with the machine to bring the oil levels up to standard.

Before starting the machine, carefully read the instruction manual.

Spray lance and nozzles supplied

The pressure washer is equipped with a lance with 4 interchangeable quick-connect nozzles.

Red 0°: for a jet with maximum cleaning power in a very small radius
Yellow 15°: for good cleaning power in a small radius
White 40°: for moderate cleaning power over a wide radius
Black SOAP: to be used together with detergent

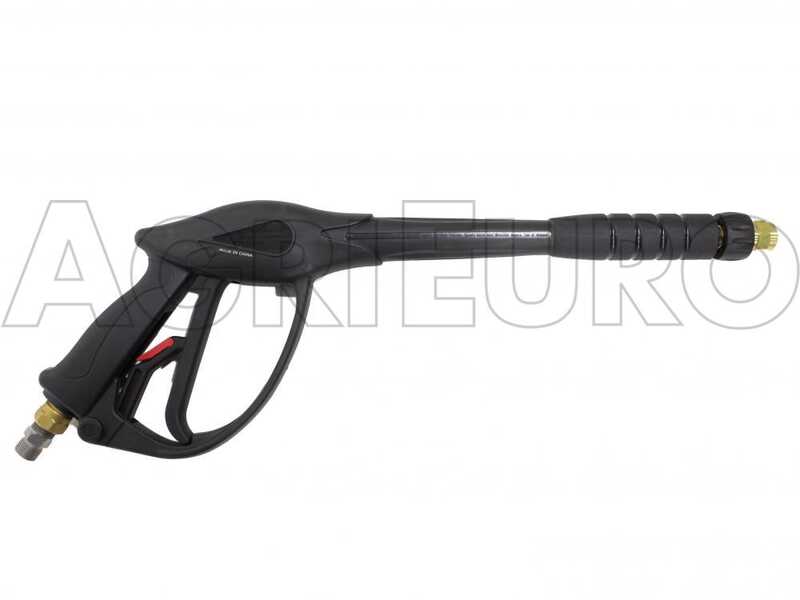

The lance is a professional type with quick coupling, equipped with an extension and safety catch

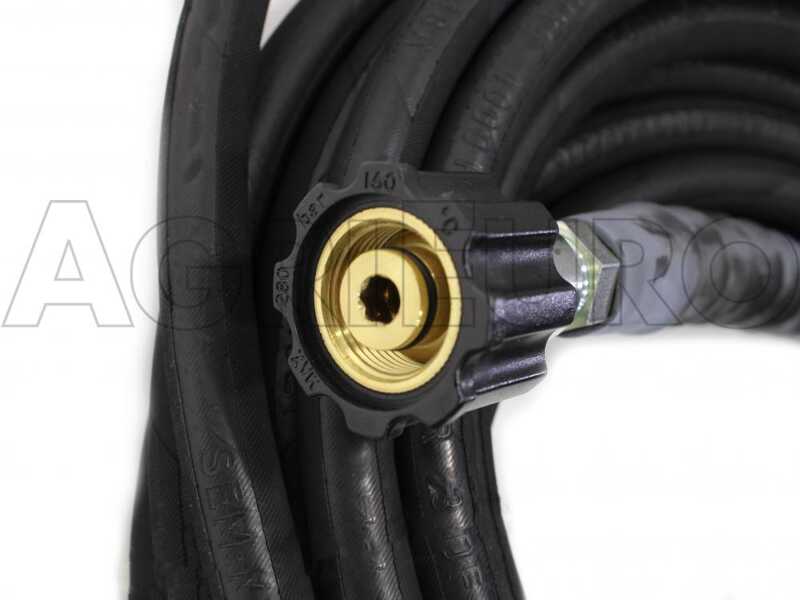

The 10-metre reinforced high-pressure hose supplied is quick-connect.

Also included is an inspectable water inlet filter with quick coupling.

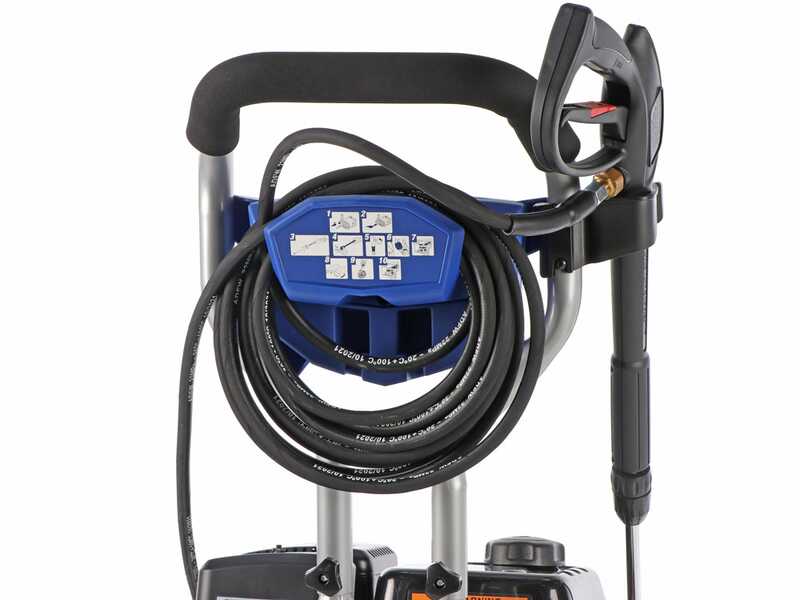

Other Features

The pressure washer is mounted on a steel trolley with slots to facilitate maintenance and a removable handle.

The machine is also equipped with:

Hose holder and lance holder.
Nozzle holder
Large diameter pneumatic wheels for easy movement even on surfaces that are not perfectly smooth.
Anti-slip front rubber pads

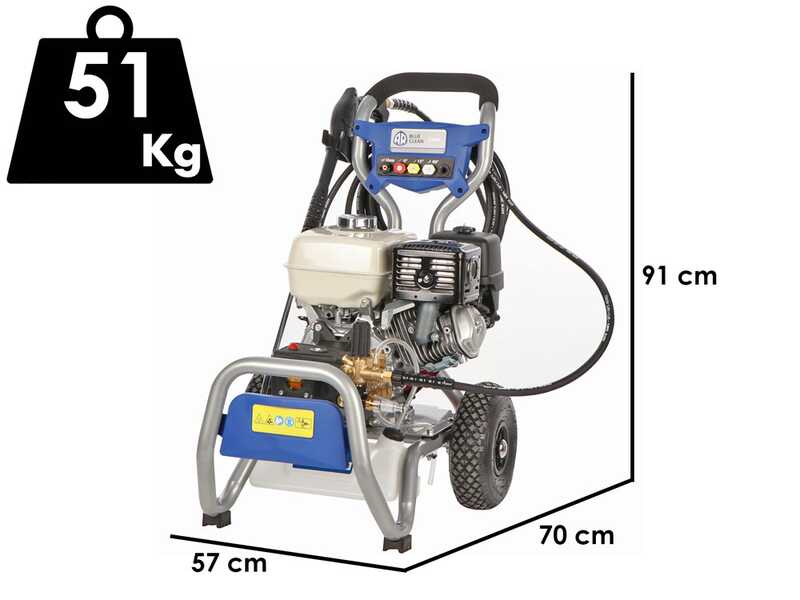

DIMENSIONS: 57 x 70 x 91 cm

WEIGHT: 51 kg

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Free Items Included

The Annovi & Reverberi petrol pressure washer is supplied in its original packaging and shipped on a pallet. Fully assembled except for the lance and wheels.
